DESCRIPTION

VL53L0X Time-of-Flight long distance ranging sensor, accurate ranging up to 2m

Overview

VL53L0X Distance Sensor is a Time-of-Flight (ToF) ranging module based on the VL53L0X from ST, with accurate ranging up to 2m, it is controlled through I2C interface, and pretty low power consumption.

The VL53L0X is a ToF sensor which embeds the ST's second generation FlightSense patented technology.

Unlike conventional ranging sensors, the VL53L0X is able to provide accurate distance measurement whatever the target color and reflectance, achieves better anti-interference capability.

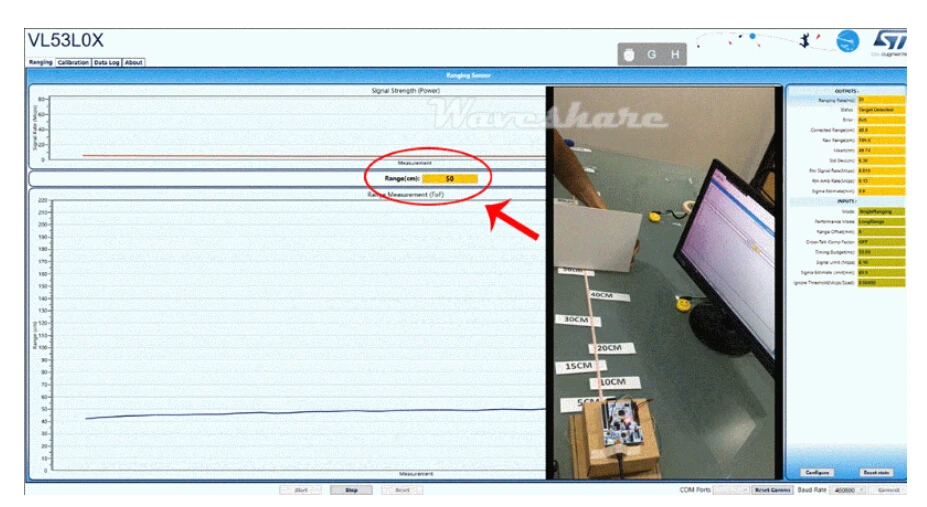

Features I2C communication interface, control the module on/off via IO pins Onboard voltage translator, compatible with 3.3V/5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V/5V Dimension: 20mm × 24mm Mounting holes size: 2.0mm Ranging distance: 30 ~ 2000mm Ranging accuracy: ±5% (high speed mode), ±3% (high accuracy mode) Ranging time (min): 20ms (high speed mode), 200ms (high accuracy mode) Field of view: 25° Laser wavelength: 940nm Operating temperature: -20 ~ 70°C Applications Mobile robot (fast distance ranging, obstacle detecting, wall tracking) User detection to power on/off and lock/unlock devices like personal computers/laptops/tablets 1D gesture recognition Camera (autofocus enhancement in low light, video focus tracking assistance) Pinouts VCC: 3.3V/5V power input GND: ground SDA: I2C data pin SCL: I2C clock pin SHUT: shutdown control, connects to IO pin INT: interrupt output, connects to IO pin Test Example

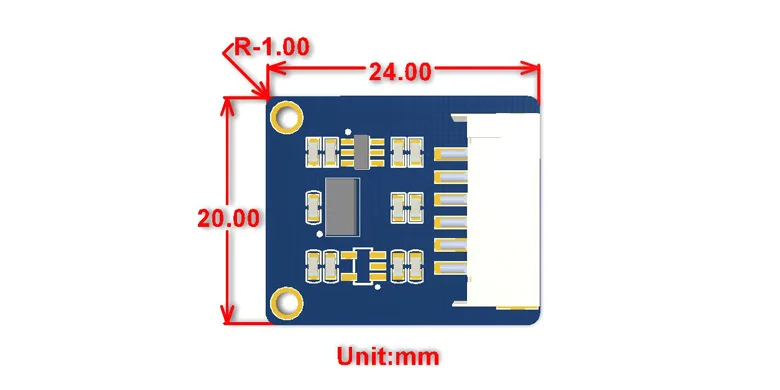

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/VL53L0X_Distance_Sensor

PACKAGE CONTENT

Weight: 0.005 kg

VL53L0X Distance Sensor x1 PH2.0 6PIN wire 20cm x1
