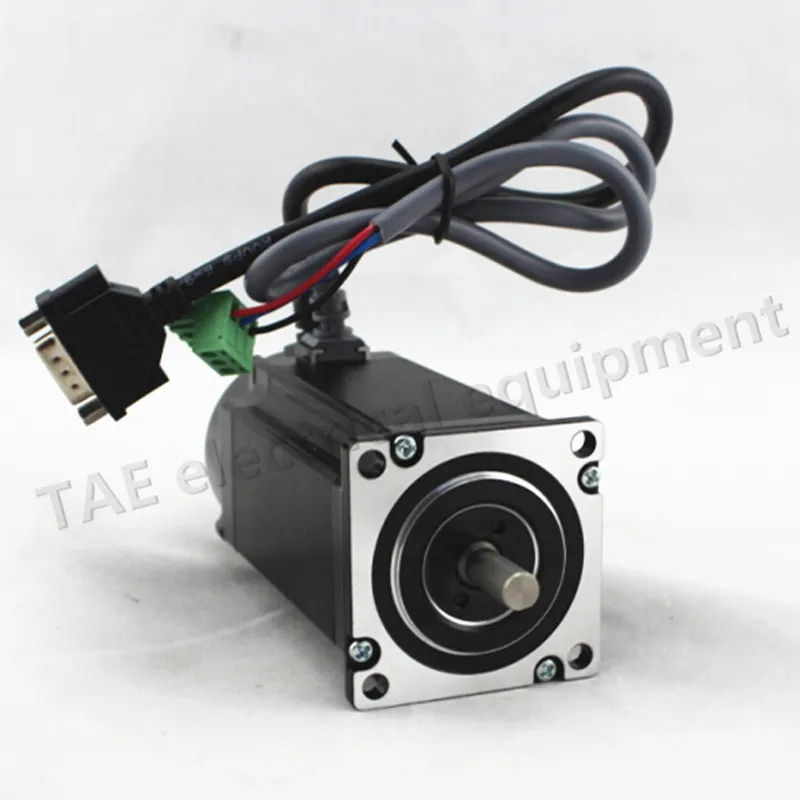

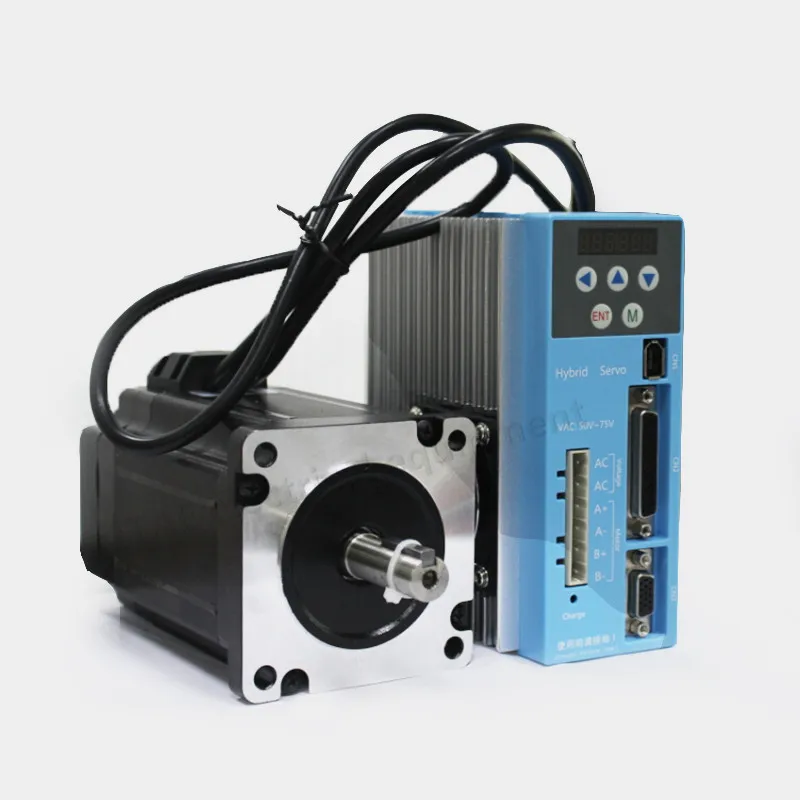

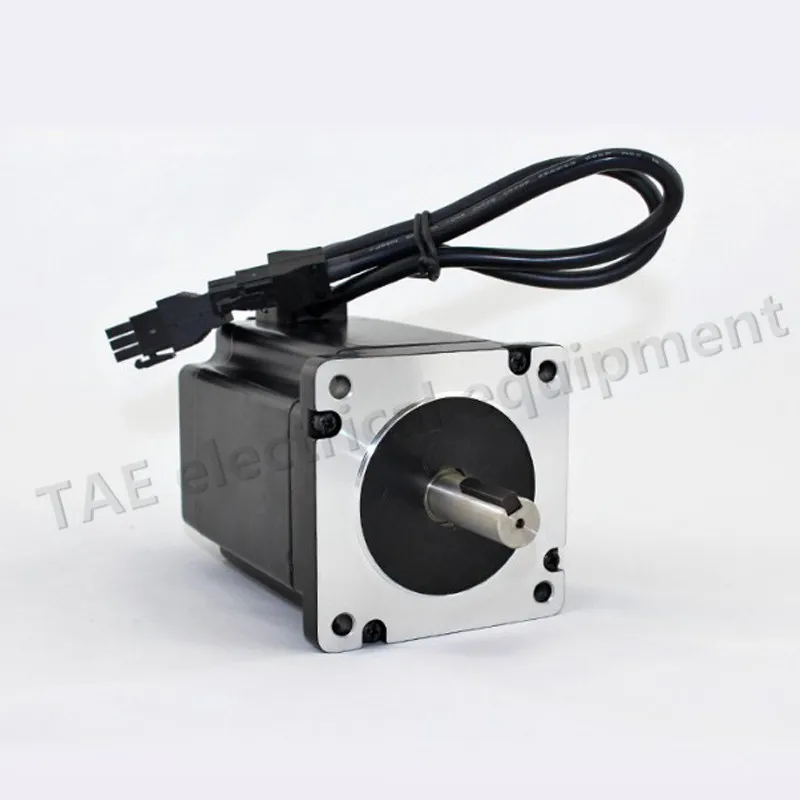

Lichuan Nema34 4.5Nm 86 Hybrid servo motor LCDA808H+LC86H280 CNC Nema 34 digital hybird closed loop 2-phase stepper motor driver AC /DC

More than one is allowed. If you're wholesale dealer or you wanna order Items in bulk or you have any questions before you place the order, or need other length encorder line,don't hesitate to contact us .

Motor specification:

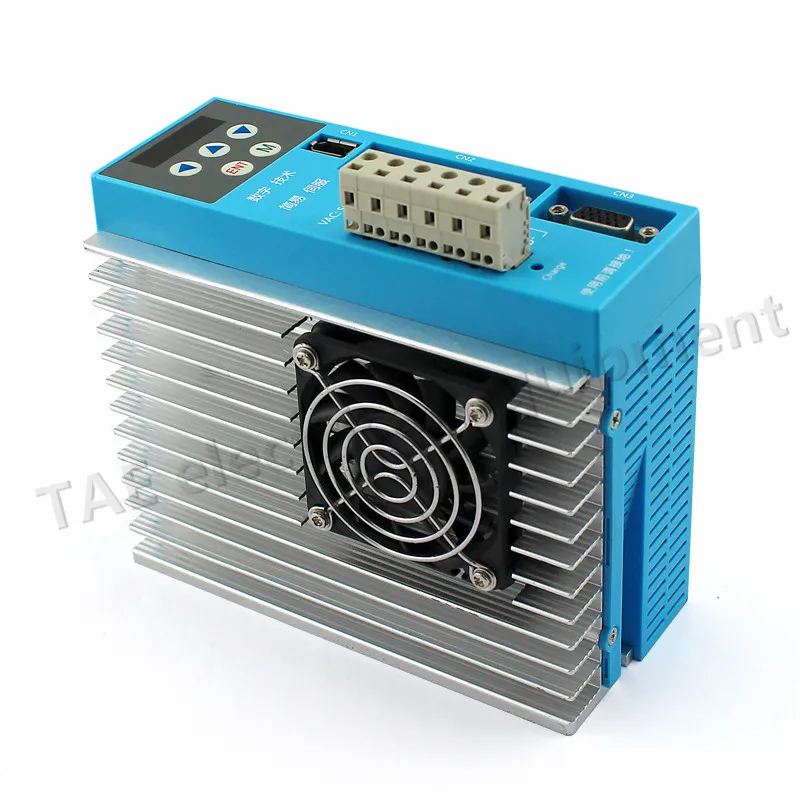

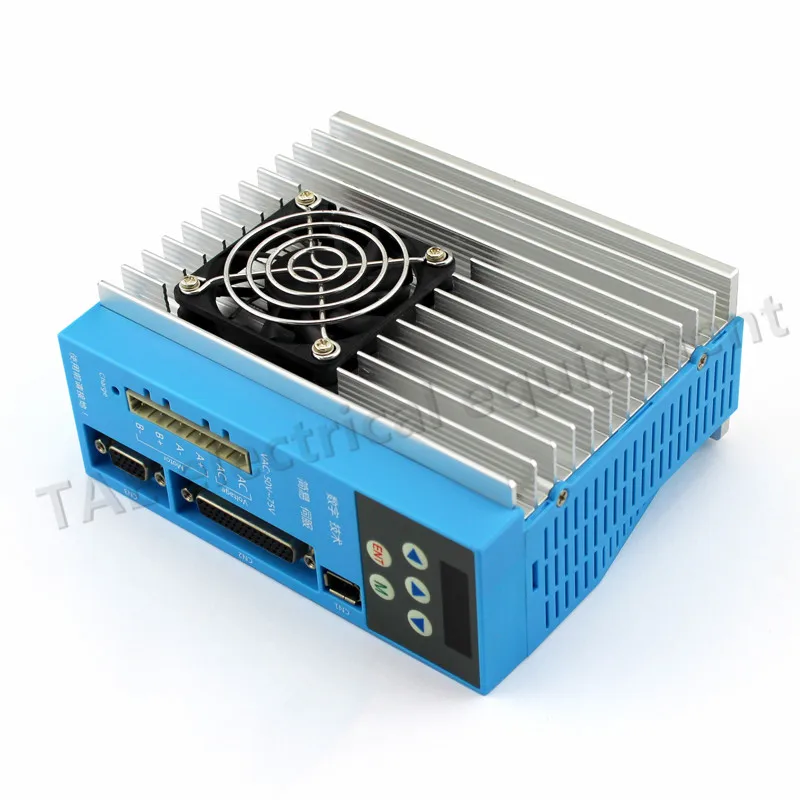

Lichaun series easy servo drives are based on the latest DSP technology and Lichaun's advanced control algorithm of combing brushless servo and stepper systems. They are featured with closed position loop, offering huge torque, excellent acceleration & quick response,no torque reservation,high standstill stiffness,extra low noise & heating, smooth motor movement,no hunting,noover shooting for almost zero settling time,and no tuning for almost all applications.

Due to combining the features of both brushless servo drives and stepper drives,Lichuan series easy servo drives are suitable for both upgrading conventional stepper systems, and replacing brushless servo systems which have closed loop and high torque requirements.

Clients have successfully implemented LCDA808H driven easy servo systems in applications such asdesktop CNC routers, small CNC mills, laser cutters / engravers, dental mills, electronic assembly & inspection equipments, labeling equipments, pick & place machines, X-Y tables, scientific instruments.

 Voltage input range: 50~80VAC

 Max peak current:8A

 Subdivision:200~51200ppr

 Pulse mode:pulse+direction,CW,CCW

 Pulse response frequency:0~200KHz

 Closed-loop controls to eliminate lose of steps, stall or movement synchronizatio

 High starting torque and quick response

 Smooth motor movement with no vibration

 Excellent respond time, quick acceleration, and very high high-speed torque (30% over open-loop)

 Load-dependent dynamic current output from drive to motor to significantly motor heating deduction

 Isolated control inputs of Pulse, Direction and Enable

 No tuning for plug and play setup

 On-board HMI for easy setup and configuration

 In-position and fault outputs to external motion controllers for complete system controls.

 Over voltage, over-current, and position-error protection

 Servo control for stepper motors with encoders up to NEMA 42

Voltage input range:AC : 50V~80V (Generally75V)

Max output current:8A

Pulse mode:pulse+direction ,CW/CCW

Logic input current:10~20mA

Pulse response frequency:0~200kHz

insulation resistance:500M

Save temperature:-20-80

Using temperature:0-55

Using humidity:90%RH(no condensation)

Shake frequency:less than 0.5G(4.9m/s2)

10Hz~60Hz(Not run continuously)

Install Size ( mm ):

​Lichuan is a brand owned by Shenzhen Xinlichuan Electric Co., Ltd.

Brand products mainly include servo motor, stepper motor driver, digital stepper motor driver, latest closed-loop stepping system, digital closed-loop stepping system, now widely used in engraving, laser, textile, packaging, medical, textile, lathe , Printing, inkjet and hundreds of automation equipment industry.
