> 1/2.8” 3Megapixel progressive scan STARVIS™ CMOS

> H.265&H.264 triple-stream encoding

> 50/60fps-3M(2048×1536)

> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> 2.7mm ~13.5mm zoom lens

> Max. IR LEDs Length 50m

> Micro SD memory,IP67,IK10,PoE+

 * Specifications：Swipe right to see more（on app）  →

Camera

Image Sensor

1/2.8” 3Megapixel progressive scan CMOS

Effective Pixels

2048(H)x1536(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F1.4 (Color,1/3s,30IRE)

0.03Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

3

Lens

Lens Type

Motorized /Auto Iris(HALL)

Mount Type

Board-in

Focal Length

2.7~13.5mm motorized

Max. Aperture

F1.4

Angle of View

H: 99 ˚~28 ˚ V:67 ˚ ~21 ˚

Optical Zoom

5x

Focus Control

Motorized

Predictive Focus Algorithm (PFA)

Support

Close Focus Distance

0.3m(0.98ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

54m(177ft)

22m(72ft)

11m(36ft)

5m(16ft)

T

166m(545ft)

66m(217ft)

33m(108ft)

17m(56ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V,AC24V, PoE+ (802.3at)(Class 4)

Power Consumption

<18W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

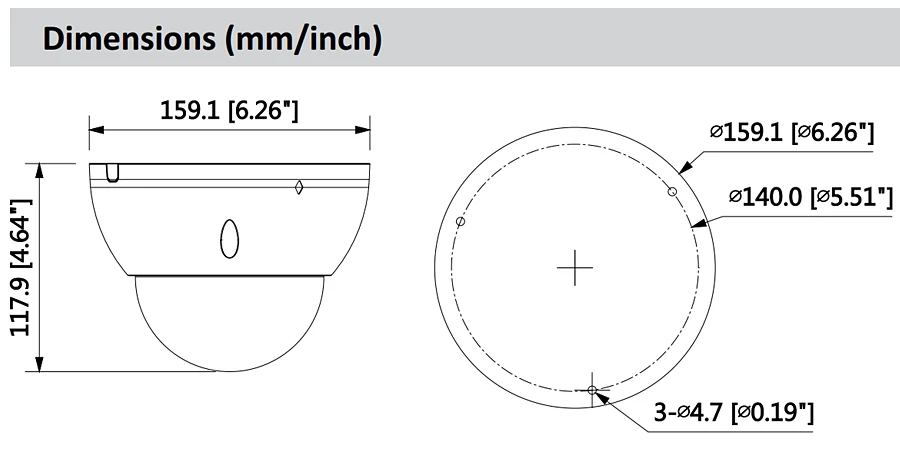

Dimensions

Φ159.1mm×117.9mm(Φ6.26”×4.64”)

Net Weight

0.96kg(2.12lb)

Gross Weight

1.75 kg(3.56lb)
