MINI 4G 1700 MHz Cellular Signal Booster B4 AWS 1700/2100 Repeater LTE Data Amplifier LPD Antenna+Ceiling Antenna+10m Kit

Model number : KW16L-AWS

This model work in 1700MHz only , if frequency doesn't ,it can not work ! .

Usually work in 4G Signal .

Tip:If SIM card 3g frequency is 1700mhz, also  can work in 3g internet .(uncommon)

Avoid to buy the wrong frequency device, please confirm the 4g frequency with the carriers,Thank you !!!

This model can cover about 300~600sqm without any barrier , but one  indoor antennas mostly can cover about 200sqm,

Working Principle: Signal booster improved your indoor signal via outdoor good signal.

Support outdoor condidtion: cell phone at least can catch 4 signal bars.full bars signal will be perfect.

​

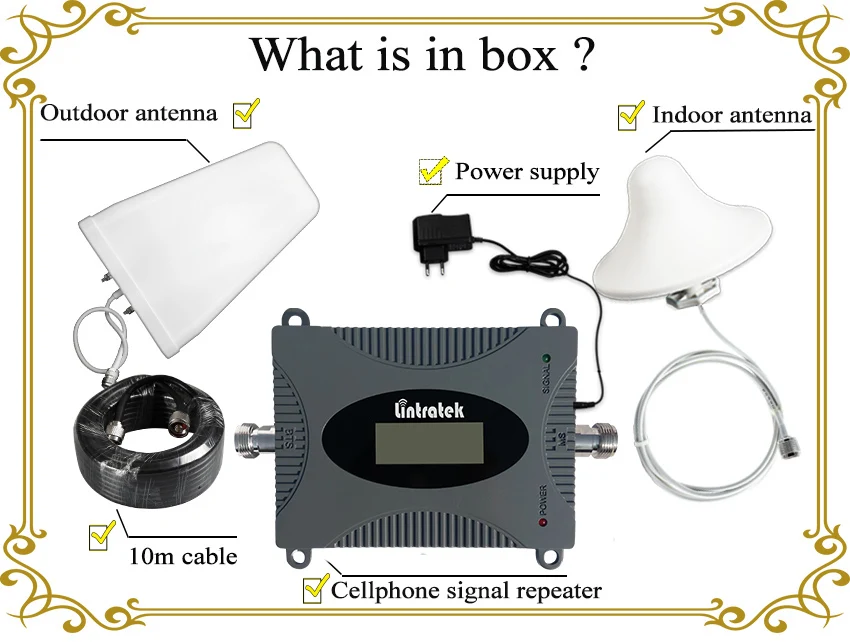

Package include:

1x 1700mhz Dual Band Booster

1xAC Power Cord

1xOutdoor log Periodic antenna

1x Indoor ceiling antenna

1x 10m cable

There have 4 type plugs to choose .

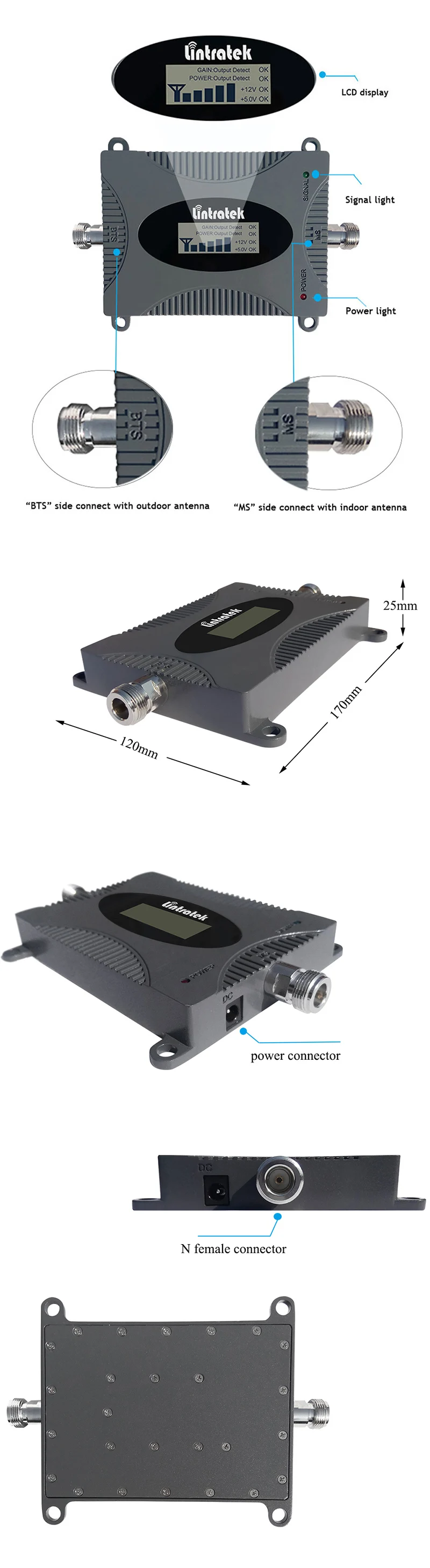

Signal repeater real shot:

Accessories detail

Outdoor log Periodic antenna

Gain:10dBi

Frequency: 800-2700mhz

N female connector

Indoor ceiling antenna

Gain:3dBi

Frequency: 800-2700mhz

N male connector

Coaxial RG6 10m cable,50ohm

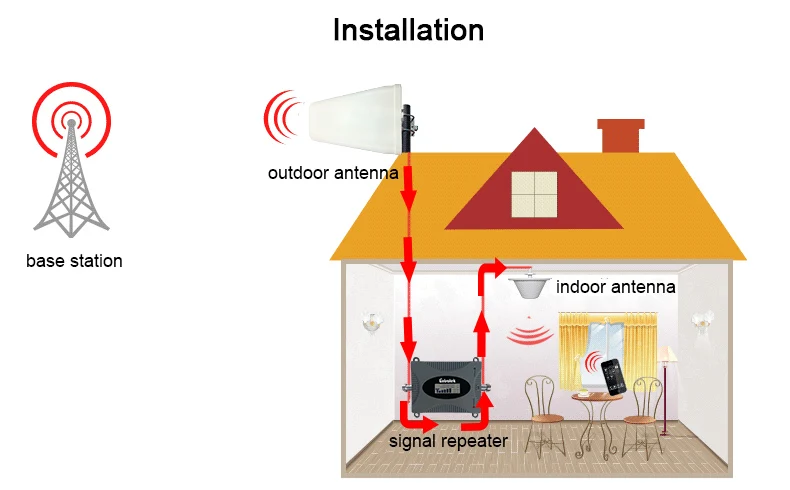

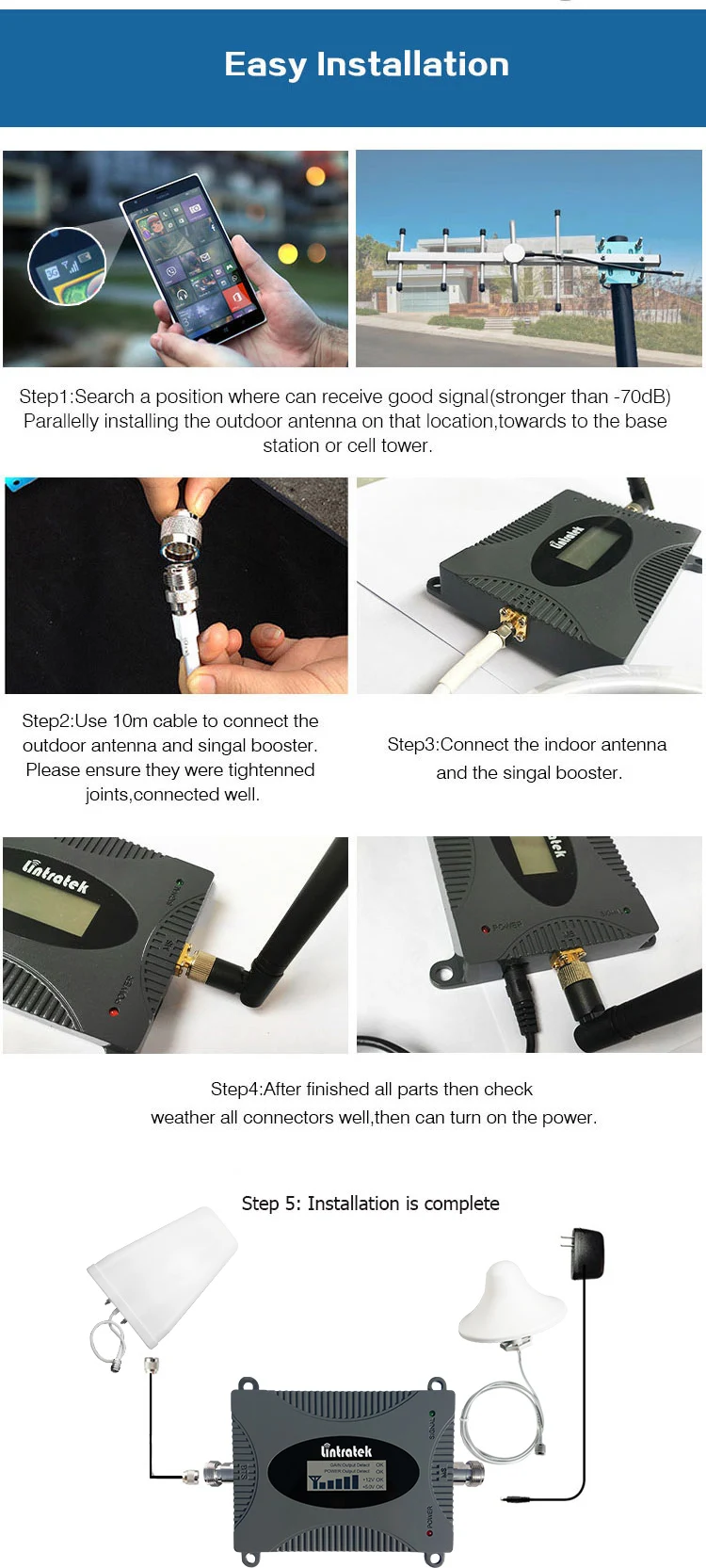

   Easy install 4 steps:

[ 1 ] Mount the External Antenna where you have the strongest cell phone signal, typically on a roof or in an attic.

[ 2 ] Connect the internal antenna to the Amplifier Base Unit and place where you need improved signal. Indoor antenna should connect "MS" end of Amplifier. There should be a minimum of 2 vertical meters of separation between the Base Unit and External Antenna.

[ 3 ] Run the coax cable (10 meters) between the Base Unit and External Antenna. External antenna should connect with "BTS" end of repeater.

[ 4 ] Connect the power supply to the Amplifier Base Unit and plug into a power outlet and you are done!

 The indoor antenna and outdoor antenna should be separate at least 10 meters, and at least between 1-2 brick wall. If the isolation is not enough, it will happens Self - excited phenomenon
