The lcd controller board kit support the lcd model:

N150X3-L05

B150XG02 V5

HT15X34-110

LP150X08-TLA6

LTN150XB-L02-G

LP150X09-A5

B150XG05

N150X4-L01

LP150X08-TLA8

LTN150XB-L03

LQ150X1LBE8

B150XG05 V2

N150X4-L14

LP150X08-TLAC

LTN150XF-L02

LP150X08-TLAD

B150XG07 V5

LP150X05-A2

LP150X08-TLB1

LTN150XG-L08

LTN150XG-L02

B150XG07 V6

LP150X05-A2C1

LP150X08-TLC1

LQ150X1LHS2

TM150XG-02L11

B150XG08 V2

LP150X05-A2K3

LP150X09-A3

LQ150X1LHS5

LP150X08-TLA2

N150X3-L03

LP150X05-A2M2

LP150X09-A3K1

QD15XL06 Rev.01

N150X3-L01

N150X3-L07

LP150X05-B2

LP150X09-A5K1

QD15XL06 Rev.04

B150XG01

N150X3-L08 Rev.C2

LP150X05-C2

LP150X09-B2

QD15XL09 Rev.01

B150XG01 V2

N150X3-L09

LP150X06-A2

LP150X09-B2K3

N150X2-L01

B150XG01 V7

N150X3-L0A

LP150X08-A3

LP150X10-A3K3

N150X2-L02

B150XG01 V8

CLAA150XH01

LP150X08-A3KC

LP150X2-C2

N150X6-L03

B150XG02

CLAA150XH01 REV.03

LP150X08-A3M1

QD15XL01 Rev.01

IAUX14P

B150XG02 V1

HSD150PX14-A00

LP150X08-A5

QD15XL06 Rev.02

N150X3-L08

B150XG02 V2

HSD150PX17-A00

LP150X08-A5N1

QD15XL06 Rev.03

B150XG02 V3

HSD150PX17-A05

LP150X08-A5N2

QD15XL09 Rev.04

B150XG02 V4

HT15X34-100

LP150X08-TLA4

LTN150XB-L01

When you don't make sure the controller board kit whether support your LCD panel that please chat with us in any time!:)

 Product Description

1. GENERAL DESCRIPTION of LCD controller board

TSU59 V2.0 is a multi-purpose LCD controller board which support HDMI

VGA+AV+YPBPR(Optional) various of video signal input and dual channel 8bit LVDS output interface. LVDS output signal can up to 1920X1080@60Hz.

TSU59 V2.0 with Audio function, The power of the audio output is 2X8Ω*2W.

Support HDMI audio output.

TSU59 V2.0 can use internal pin connector to instead of standard connector .

Such as : DC jack , HDMI ,VGA,AV ,Ypbpr, Audio,USB connector . This will be easy for you to embed this board into your products .

2. FUNCTION LAYOUT of LCD controller board

3.Function Layout of LCD controller board

CHIPSET

TSUMV59XU-Z1(Mstar)

Support LCD Panel

Interface

Single/Dual LVDS

Resolution

Up to 1920X1080@60Hz

Power

For board

12V DC power supply

To LCD panel

3.3V,5V,12V

Management

Low power consumption mode

Standby

<0.5 W

OSD Language

English,Chinese,Korean,French,German,Portugues,Italian

Russian,Spanish, Other language can customize.

KEY Function

7 keys

Power , Menu, Vol-,Vol+,CH-,CH+,Input

5 keys

Power,Menu,Up,Down,Exit/Enter

Video Input

HDMI

480i,480p,576i,576p,720p

1080i,1080p

VGA

Analog RGB(0.7Vp-p)

V-H SYNC Separator(TTL)

Ypbpr(optional)

480i,480p,576i,576p,720p,1080i,1080p

AV(CVBS)

Video System

PAL/NTSC/SECAM

Video level

1.0 Vp-p ±5%

USB Input

Support firmware update and Media Player feature

Audio Input

0.2 – 1.5 Vrms

Audio Output

2X2W (8Ω)  THD+N<10%

Extend Function

IR control, Custom Boot LOGO,Factory Setting ,OSD Menu Key Lock. Multiple Display Mode(Normal,Left/Right Mirror, Up/Down Mirror, Flip 180 degree ), Adjust backlight brightness(DC dimming mode)

4. PCB DIMENSIONS of LCD controller board

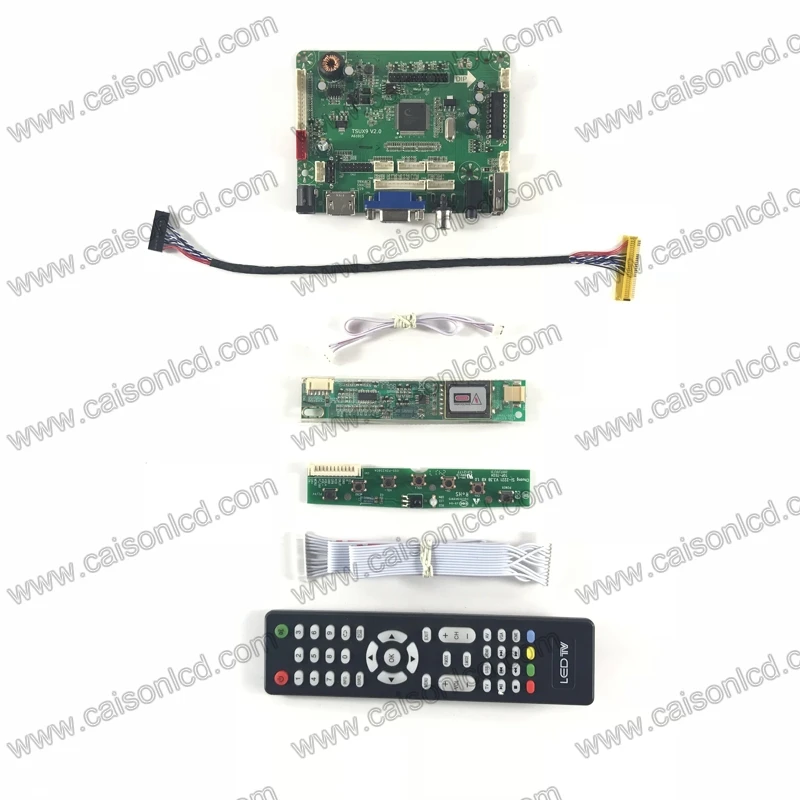

5.Package included:

1 x LCD controller board

1 x LVDS Cable

1 x OSD board with cable

1 x Remote control

1 x LCD inverter board with cable
