HD 1080 60 Game Capture
Quick Start Guide

Thanks for purchasing ezcap287 HD game capture. The following guides you how to set up. Hope this device will bring you nice digital experience.

With ezcap287

Full HD 1080 60 game capture, just plug to your PC (Windows, Mac, Linux), no need install driver, you can use any 3rd party software to capture or stream your HD game, or other HD video source.


Features:

ezcap287

1. USB3.0 Type- A port - To connect to computer with USB3.0 cable.

2. LED - Will be on when connect to computer.

3. HDMI input port - Connect video source with HDMI cable.

The only difference between ezcap261 and ezcap287 is ezcap261 with HDMI Output---Port 4:

This port is not necessary for capturing, only if you need for showing video on big monitor.

Work on windows
First of All

Set the audio capture sample rate to 48Khz:

Note: It is an important setting, otherwise will caused the bad audio quality

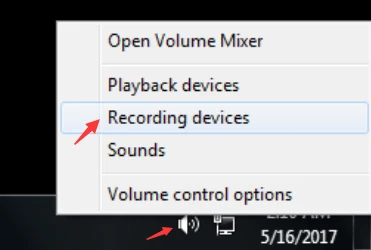

1), After connect the device to computer, right click on “Speaker” of your computer, choose “Recording devices”

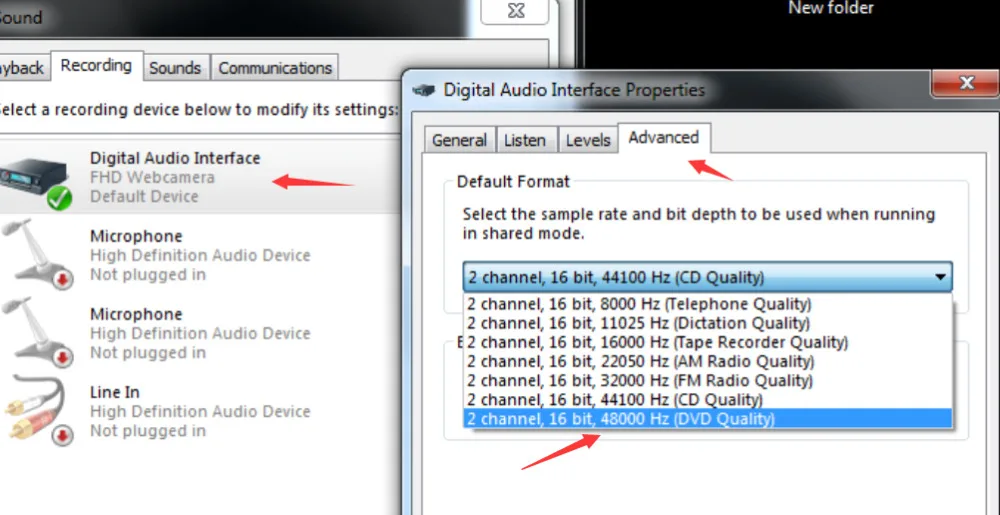

2), Double click “FHD Webcamera” ----At “Advanced” choose the sample rate to “2 channel 16 bit, 48000 Hz (DVD Quality)”

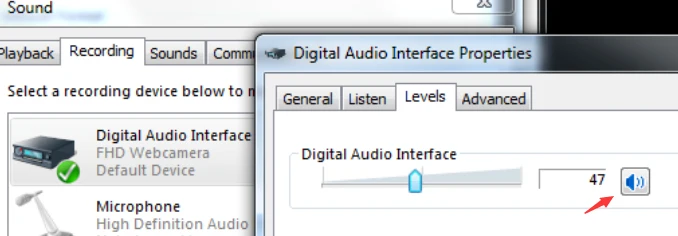

3), If need adjust the input audio level, or if no audio input, at “Levels”, set the value:

Work with OBS Studio:

1, Go to obsproject.com/download to download OBS Studio according to your computer's operating system, and install it on your computer.

Connect ezcap287 (ezcap261) to computer with USB3.0 cable, and connect video source with HDMI cable. Windows will install the driver automatically, and you will see “FHD Camera” in device manager. (For ezcap261 you can connect the output to TV monitor with HDMI cable if you need.)

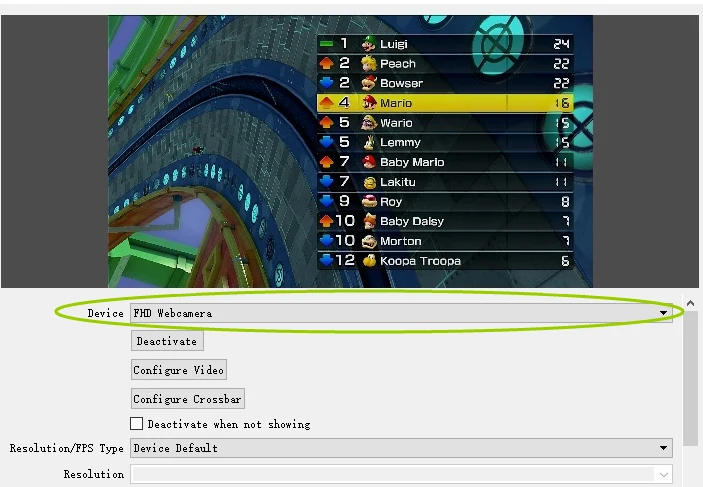

2, Run OBS Studio, Click “+” icon under “Sources” window, and select “Video Capture Device”, then select “FHD Camera” in the drop box next to “Device”:

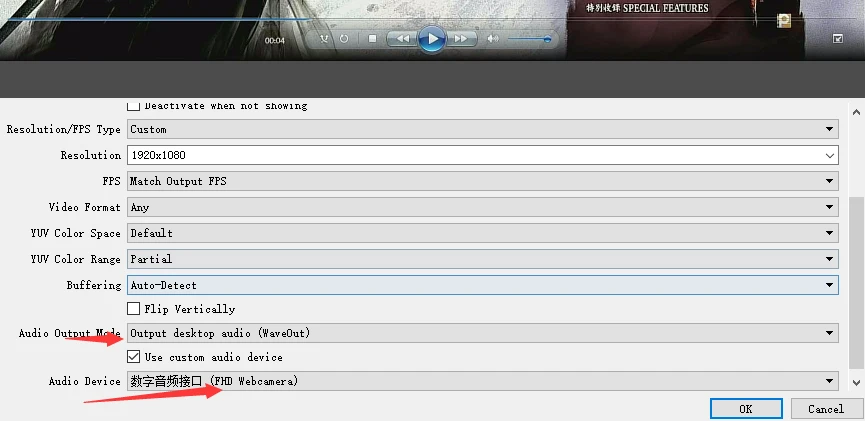

3, At Set Audio Output Mode to “Output desktop audio (WaveOut), Audio Device to “FHD Webcamera”:

4, Set the video latency for make the audio and video synchronized:

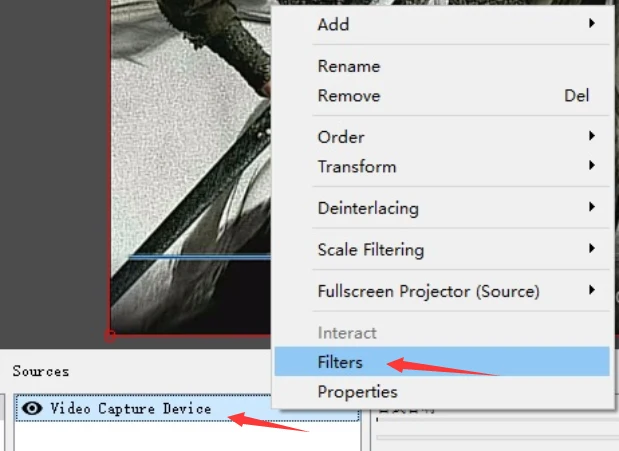

  1) Right click “Video Capture Device” then click “Filters”:

 2) Click to add “Video Delay (Async)” :

3) Set it to 470ms (You can adjust it smaller or bigger until you found the audio and video synchronized):

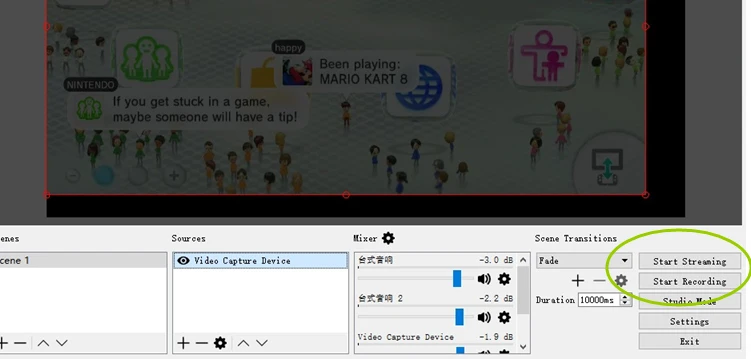

5, Then you can recording or streaming video:

Work with other applications (e.g. VLC, Media encoder, Protplayer...):

Just run the application then choose capture device to “FHD Webcamera”.

Work on MAC:

Work with OBS Studio:

Download and install OBS studio, then do the same as above on windows.

Work with QuickTime Player:

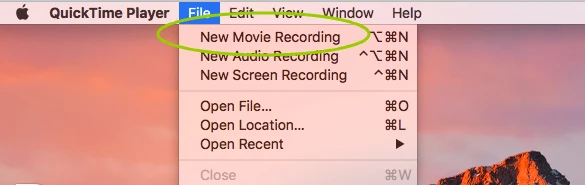

1, Run QuickTime player, select “New Movie Recording”:

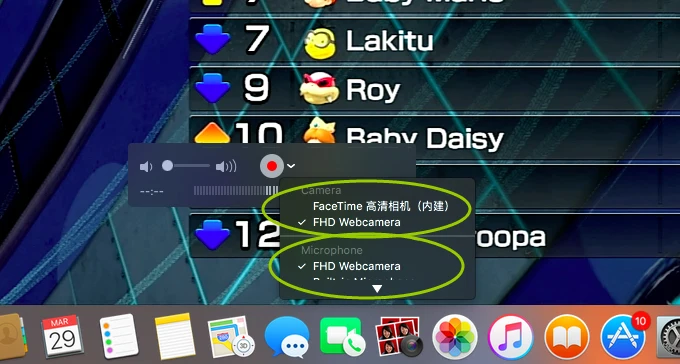

2, Choose “FHD Webcamera” under Camera and Microphone option:

Work on Linux:

Work with OBS Studio:

Download and install OBS studio, then do the same as above on windows.

(note: Your Linux should meet OBS requirements)

Work with OBS VLC (shows example for Ubuntu):

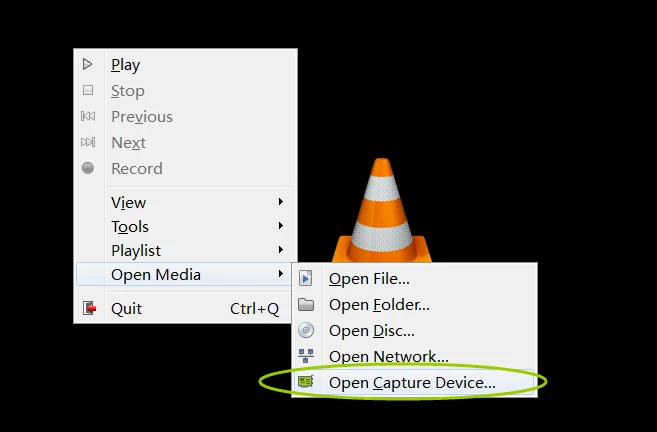

1, Right click on window, select “Open Capture Device”:

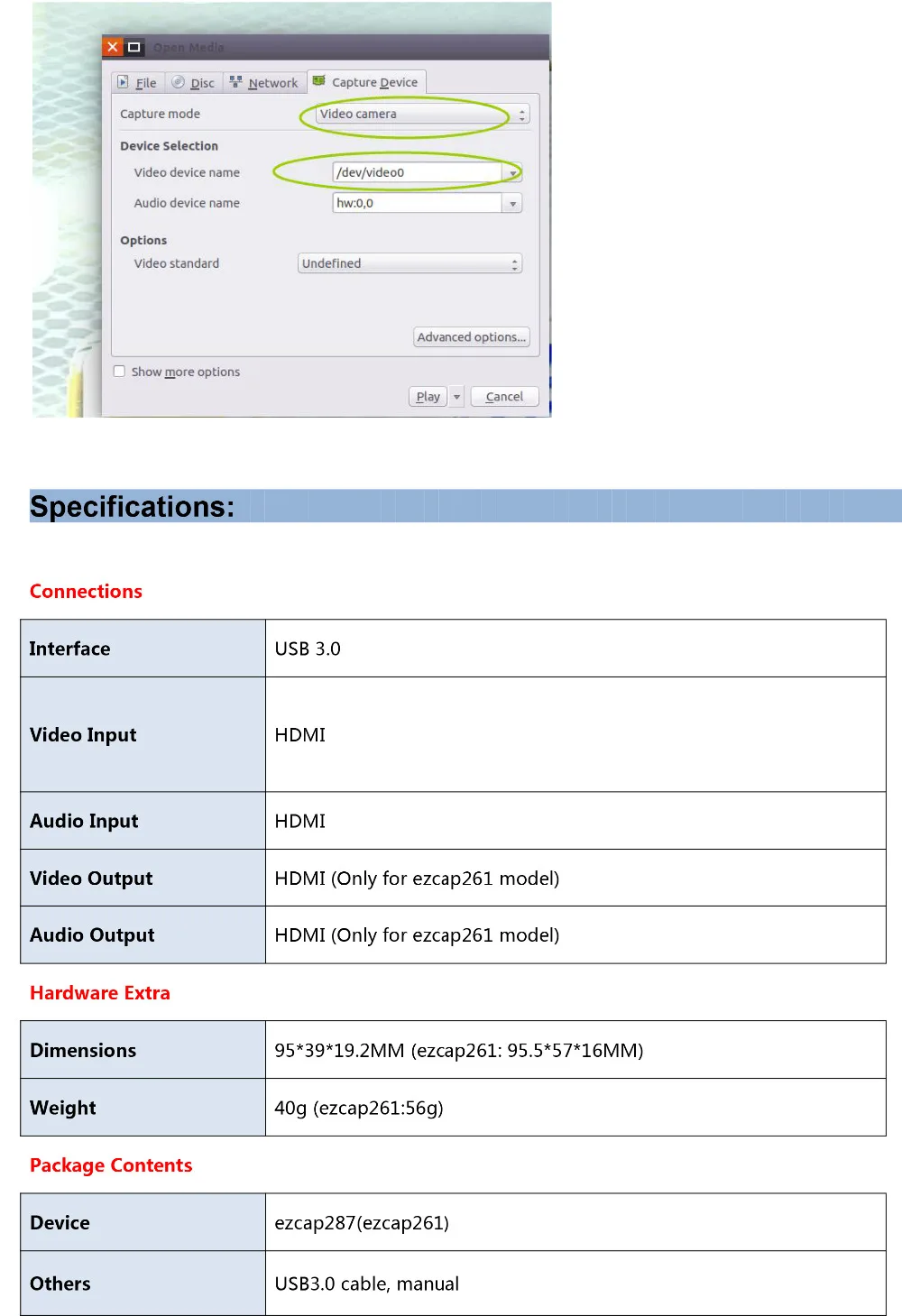

2, Choose “Video camera” ---“/dev/video0” then click “play”
