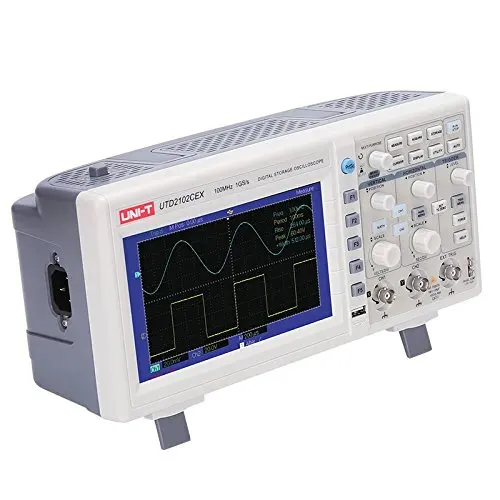

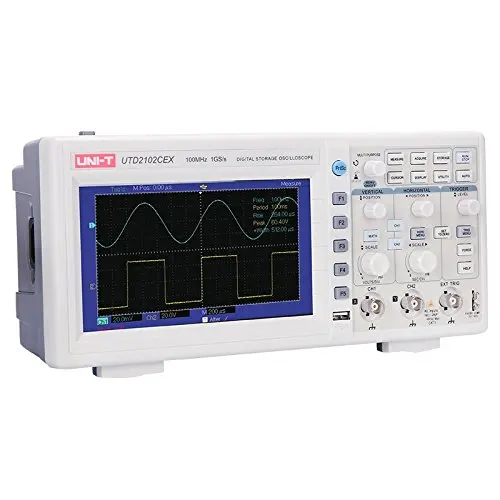

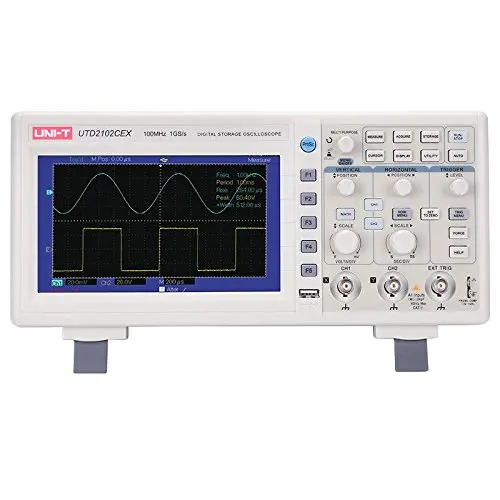

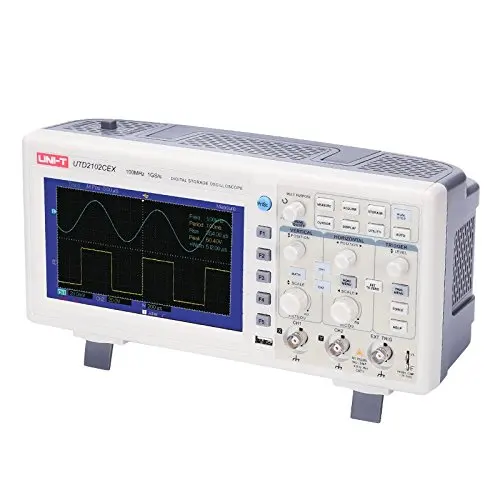

UNI-T UTD2102CEX-II Digital Storage Oscilloscope,100MHz bandwidth, 1GSa/s real-time sampling rate

Features & Benefits

1. 100MHz bandwidth, 1GSa/s real-time sampling rate

2. 2 channels

3. 25kpts memory depth

4. 20,000wfms/s waveform acquisition rate

5. 2ns/div~50s/div time-base

6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video

7. Calibration signal output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz

8. Input calibration signal only by pressing a button

9. 10Mpts waveform recording

10. 8-inch TFT LCD, WVGA (800×480)

11. USB OTG and Pass/Fail interfaces



Specifications UTD2102CEX-II Channels 2 Bandwidth 100MHz Sample rate 1GS/s (single channel), 500MS/s (dual channel) Rise time ≤3.5ns Memory depth 25kpts Waveform acquisition rate   ≥20,000wfms/s Vertical sensitivity (V/div) 1mV/div~20V/div (1MΩ) Time-base range (s/div) 2ns/div~50s/div Storage Setup, Waveform, Bitmap Trigger mode Edge, Pulse Width, Runt, Over amplitude, Video, Slope Trigger frequency 6 bits Trigger type Auto, normal, single Pluse Width range 100ns~10s Signal mode and Line/Field Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL) Auto measurement Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total Storage waveform 20 internal settings/waveform, 200 settings/waveform in U disc, deep storage CSV in U disc Interface USB OTG, Pass/Fail General Characteristics  Power 100~240VACrms, 50/60Hz Display 8-inch TFT LCD, 800×RGB×480 Product color White and gray Product net weight 3.35kg Product size (W×H×D) 336mm×164mm×108mm Standard accessory Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (with manual and application software inside)

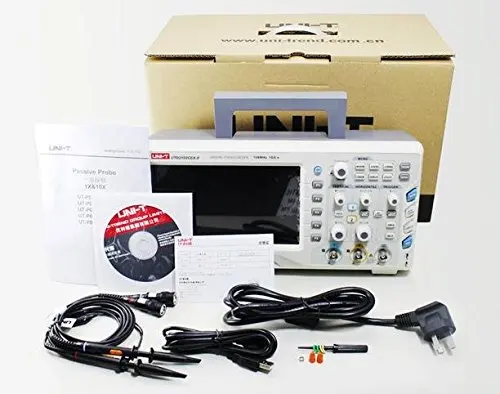

Notice:

The  standard package don't include batteries.Because,the international air  shipping forbid to ship liquid,powder and batteries,we can not put them  in the package box.Hope you can understand buy them in your local store  or supermarket.Thanks for your support!



Shipping:

 We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can.

Standard Shipping: To USA,UK and Australia by ePacket,need 7-12 working days.

Expedited/Standard  Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6  business days,To other countries,need 4-8 business days normally.But  sometimes int'l delivery is highly depended on the courier company and  local customs/duties.

Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.



Warranty&Reture Policy:

 We  encourage all customers to communicate with us through eBay messages.  If you have any questions or comments whatsoever regarding our products  or listing, we are waiting to hear from you

A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions

manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.

30  days evaluation and investigation takes placed after receiving your  return item.A brand new replacement unit will be sent to you at our  shipping costs if it meets our warranty requirements.
