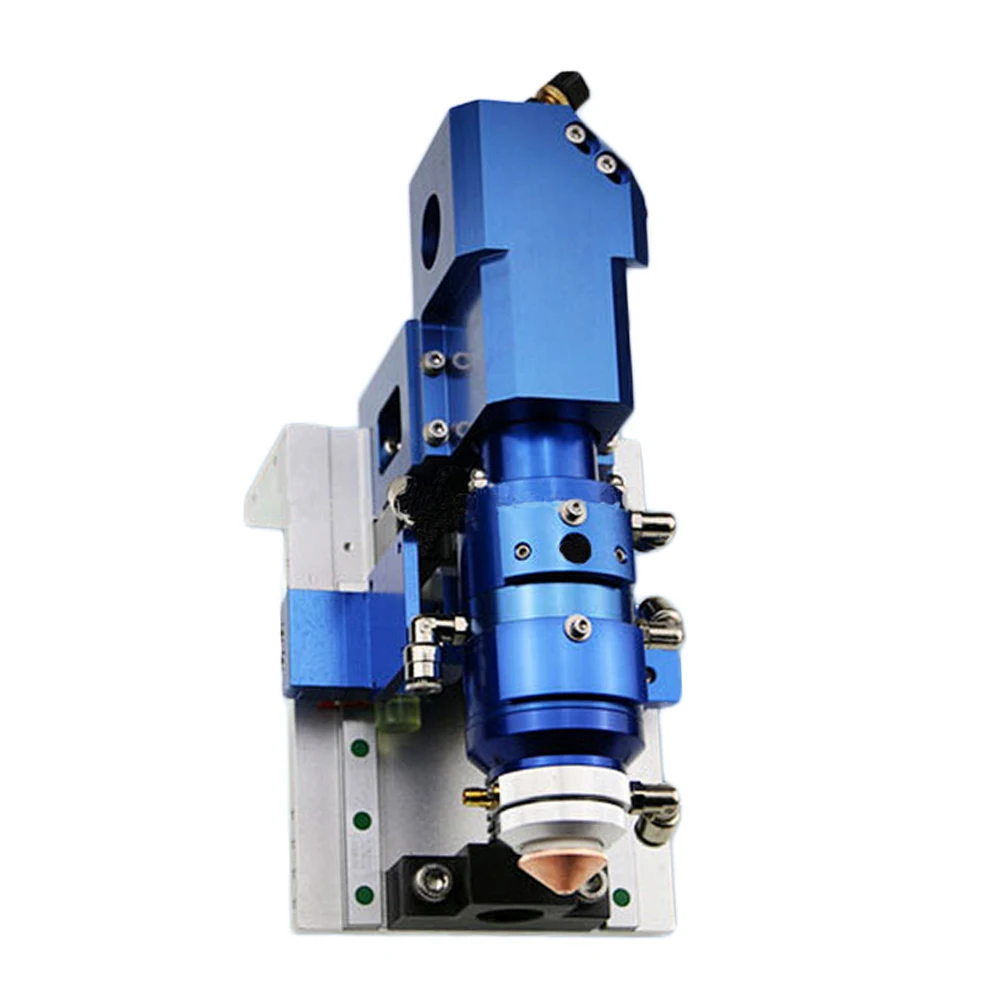

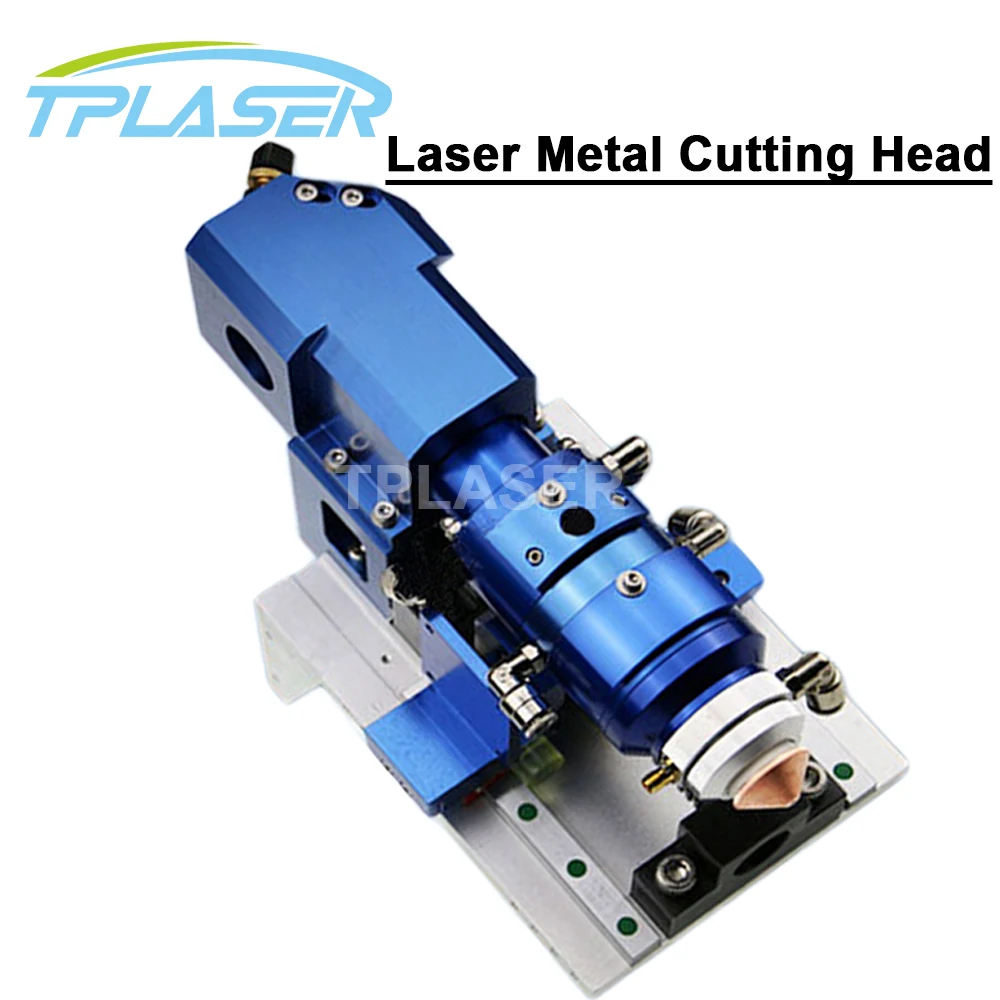

500W Auto Focus Metal Laser Cutting Head for CO2 Laser Cutting Machine

Features:

1.Moving automatically up and down, left and right according to the cutting material size and thickness

2. Auto focus the lase focus length.

3. With cooling, protect the lase lens and mirros don’t heat over, and prolong the lifetime.

4. Available for assemble with oxygen gas assistance.

5.High precision, high quality, high efficacy, high convenience.

6.Using for large power cutting.

Advantage:

1 Small and smart apperance

2 Small weight

3 double drawer structure

4 water-cooled structure

5 automatic sensor adjust the focus

6 can carry auxiliary gas

7 can be configured to seat part and the part of the Z-axis mirror according to customer requirements.

Metal and Non-metal Mixed laser cutting head auto- moving has a strong advantage in low-power CO2 laser cutting machine applications, supports up to 500W of laser power, With dual drawer structure, assemble with the short and long focal length, which can cut metal material, can also cut non-metallic materials , water-cooled structure prevents the lens from overheating, the use of simple tools can easily adjust the horizontal position of the focus.

Specifications:

1 Maximum laser power 500W

2 Focus Focal Length: 2.54 "and 4"

3 Horizontal position of adjustment range: + 1mm / -1mm

4 Effective aperture: 20mm

5 Dimensions: 300 * 130 * 130mm

6 Weight 3.8KG
