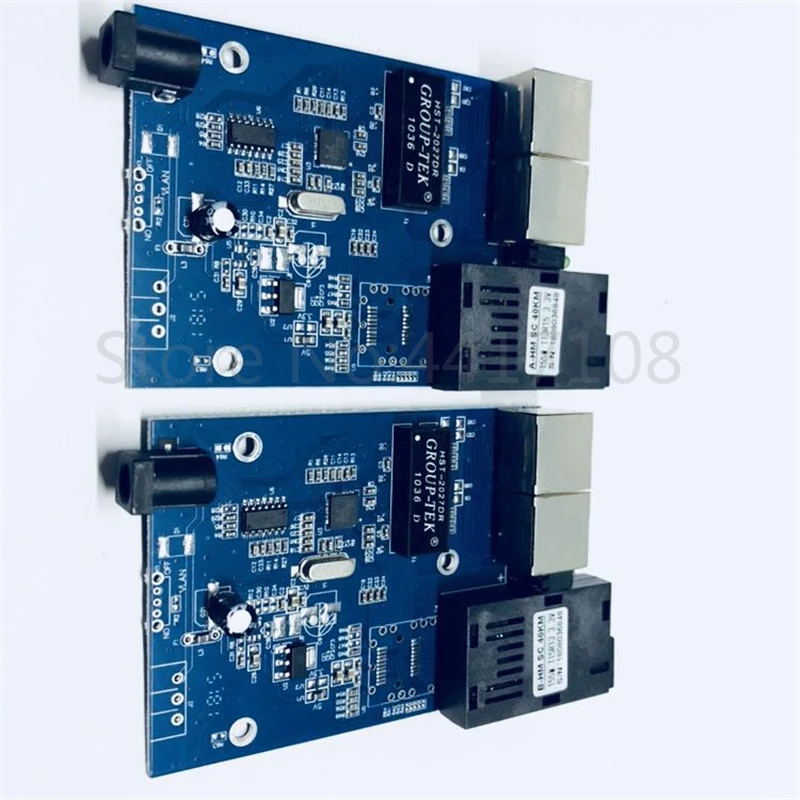

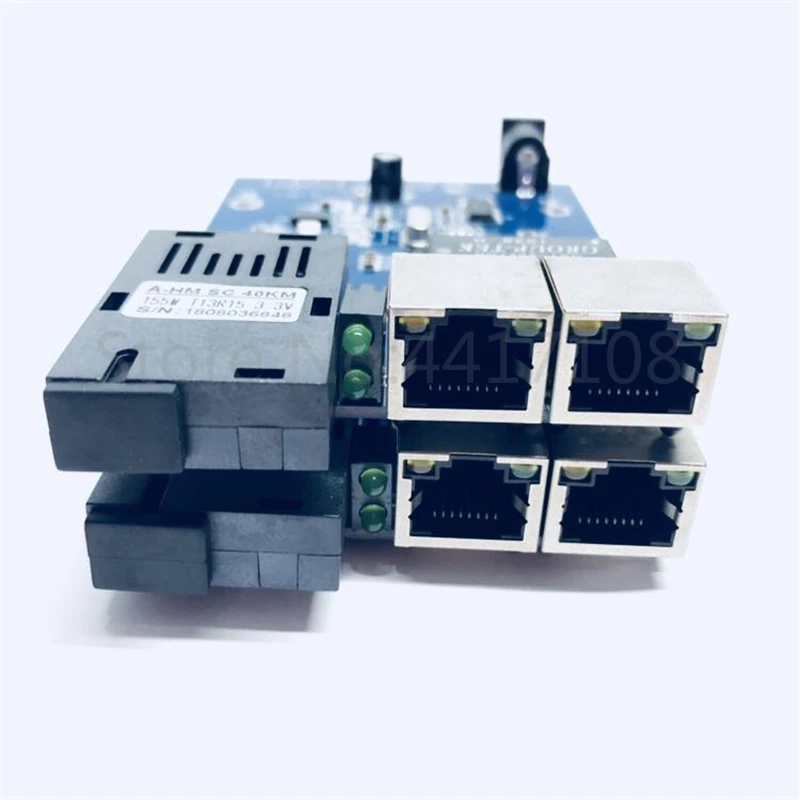

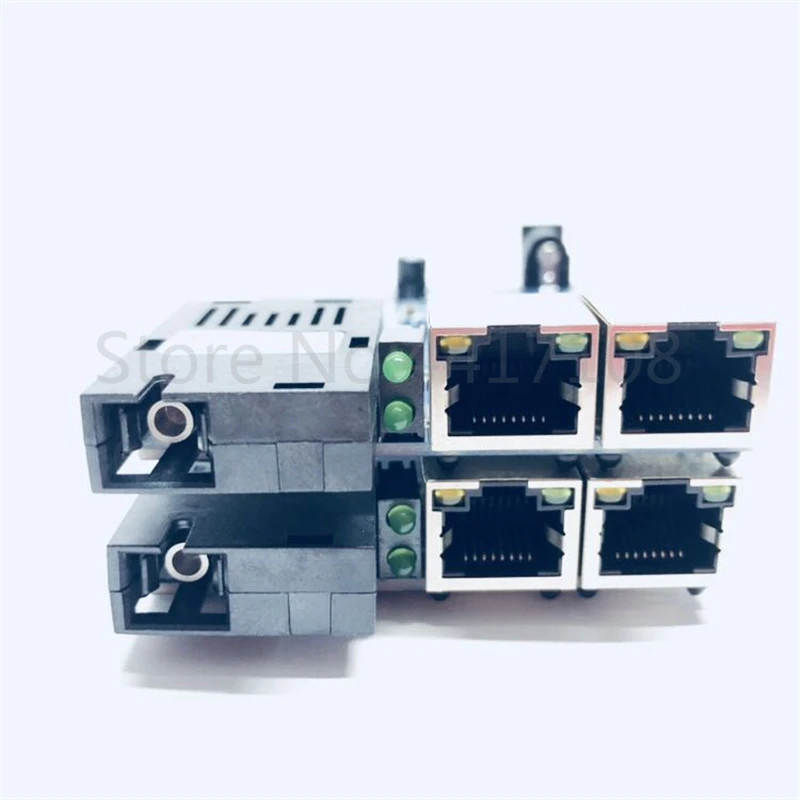

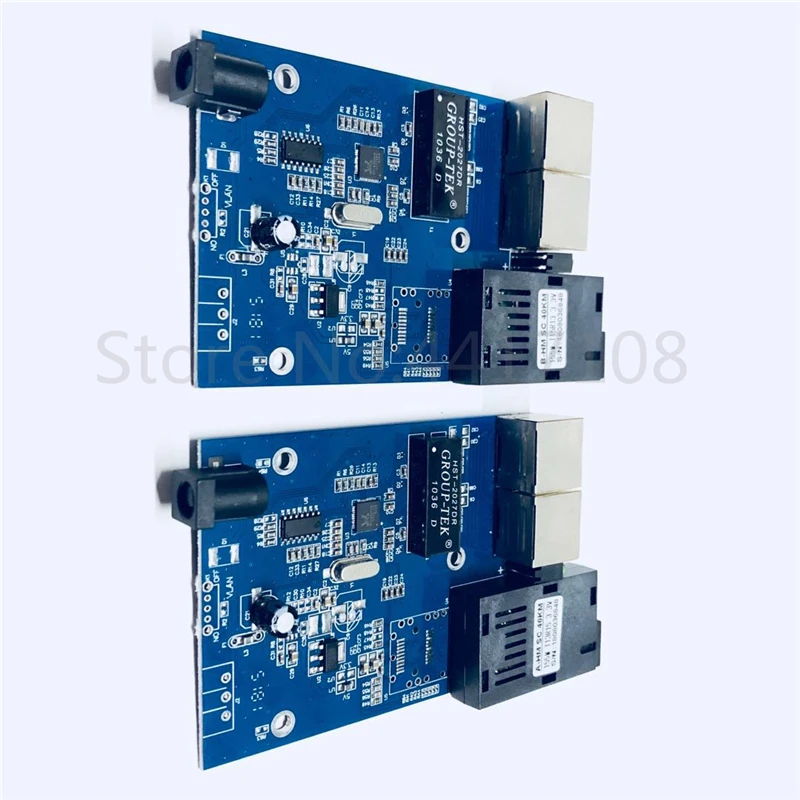

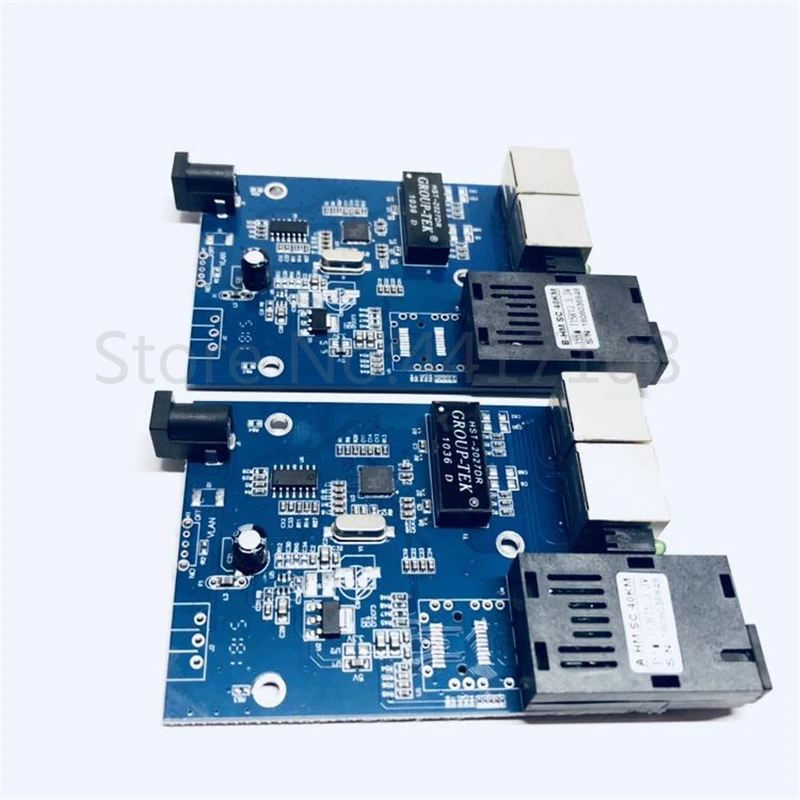

10/100M Fast Ethernet Switch Converter 20KM Fiber Optical Media Single Mode 2*RJ45 and 1*SC fiber Port PCBA | Мобильные телефоны и

please note:

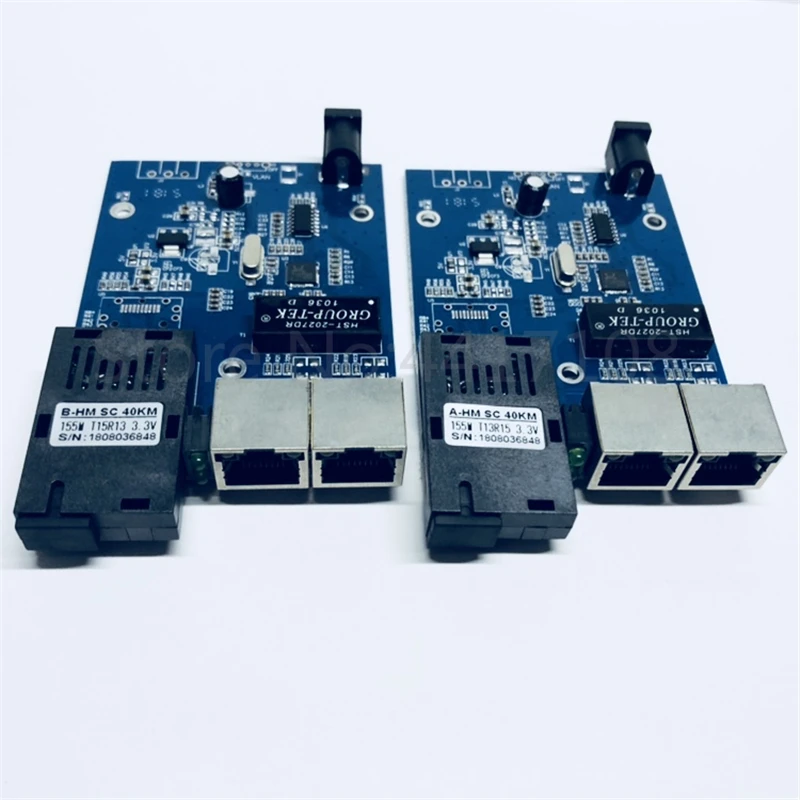

Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.

Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber Switch The Fast Ethernet Switch  is an Ethernet Fiber Switch which is specially designed for network monitoring. It has 2*10/100Mbps Ethernet ports and 1*155Mbps fiber ports. It adopts RTL8305NB chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance. Main Features: 1.Support the switch between 10/100Base-TX and 100Base-FX 2.1*155Mbps full-duplex fiber ports and 2*100M Ethernet ports with auto-negotiation function 3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function 4.Each port has the complete LED Indicator light 5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot 6.Support IEEE802.1d Spanning Tree 7.Support high performance QoS function on each port 8.Support 5V voltage input 9.Support IEEE 802.3x flow control and back pressure control 10.Require no configuration and will instantly operate as soon as you power it up 11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

Ethernet Port

Connector: RJ45

Data Rate: 10/100M

Distance: 100m

UTP Type: UTP-5E or higher level

Fiber Port

  Connector: SC

  Data Rate: 155bps

  Optical Wavelength: 850nm/1310nm/1490nm/1550nm

  Distance: 40km

Performance

Processing Type: Store and Forward

MAC Table Size: 8K

Buffer Space: 1Mbit

Jumbo Packet: 1518 bytes

Back bandwidth: 5.6G

Time Delay: ＜150μs

Power

Power type: external power supply

Input Voltage: AC100V～240V 50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 1.5W～2.5W

Transmissin Distance

  Twisted Pair: 100m (CAT5e, CAT6 cables)

   Single-mode: 40km

MTBF

        100, 000 hours

Warranty

        1 year

Environment

Storage Temperature: -40～70℃

Operating Temperature: -10～55℃

Relative Humidity: 5-90% ( no condensation)

Mechanical Structures

Dimension: 89×63mm

Weight: 0.15

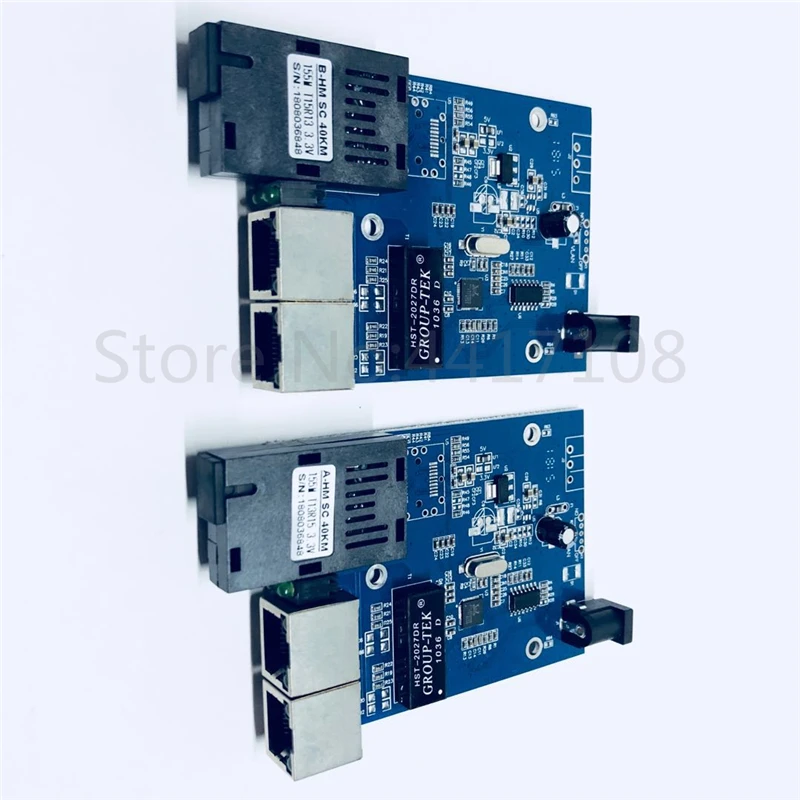

PCB  main board

OEM&ODM

Supportive
