Order included :

1 *3axis digital readout

1*user manual

1* suitable plug (US, AU, EU, UK different type plug)

1*all installation accessory (mounting plate ,screw...)

3 ways iutput signal of digital readout  (9-pin TTL/9-pin RS422/7-pin TTL ) for your choice. Pls leave the message after you place order.Thanks

9pin TTL

9PIN  rs422

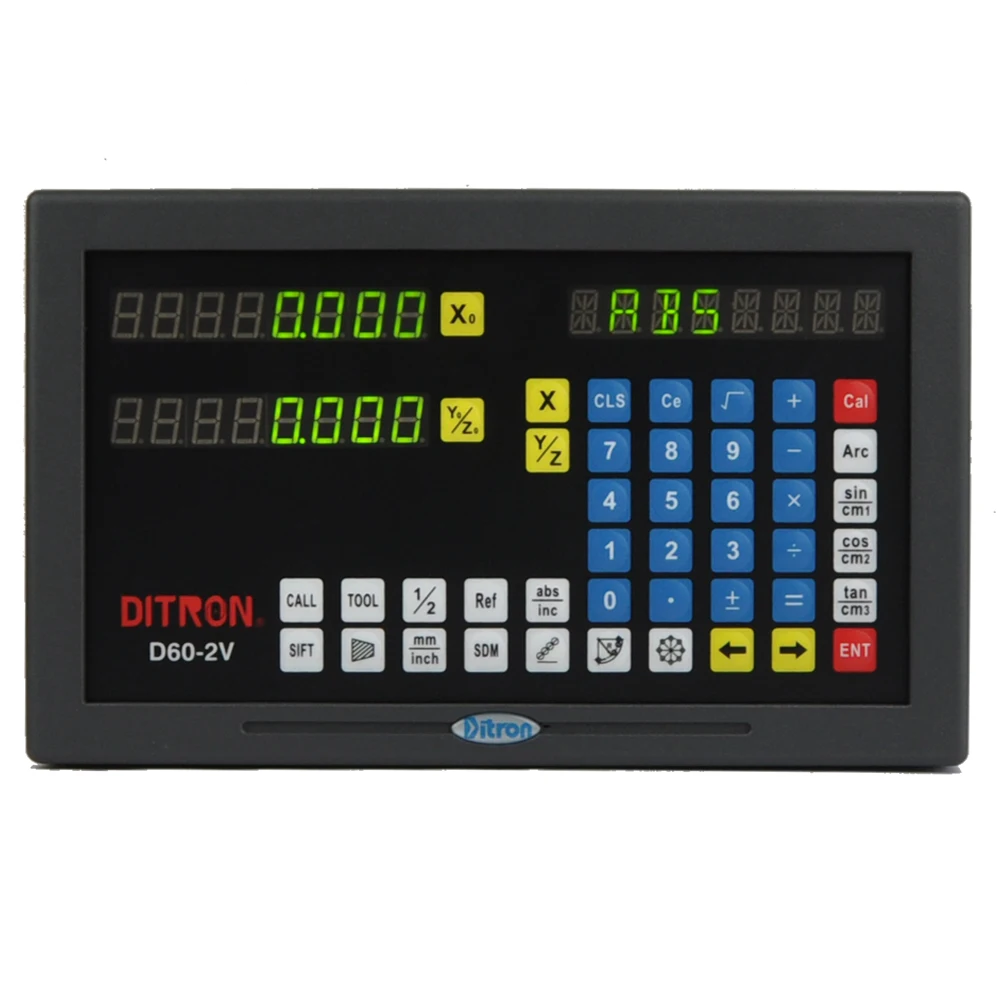

The technical parameter of DRO-D60

  1) Voltage range: AC 80V-260V/50HZ-60HZ

  2) Power dissipation: 20VA

  3) Coordinate number: 2Axis

  4) Display: 8 bit display with signed

  5) Times frequency: 4X

  6) Readout box input signal: TTL,EIA-422-A

  7) Input frequency:>100KHZ

  8) Resolution:10um, 5um, 1um, 0.5um, 0.1um

  9) Operating keyboard: light touch buttons

10) Linear scale Grating space: 0.04mm, 0.02mm, 0.01mm, power supply is +5V.the difference between

1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.

2. The wide voltage AC80-260V can be widely used in all over the world.

3. We offer US, AU, EU, UK different type plug suite for different countries if need.

4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

Function about our Linear Scale :

Bracket
