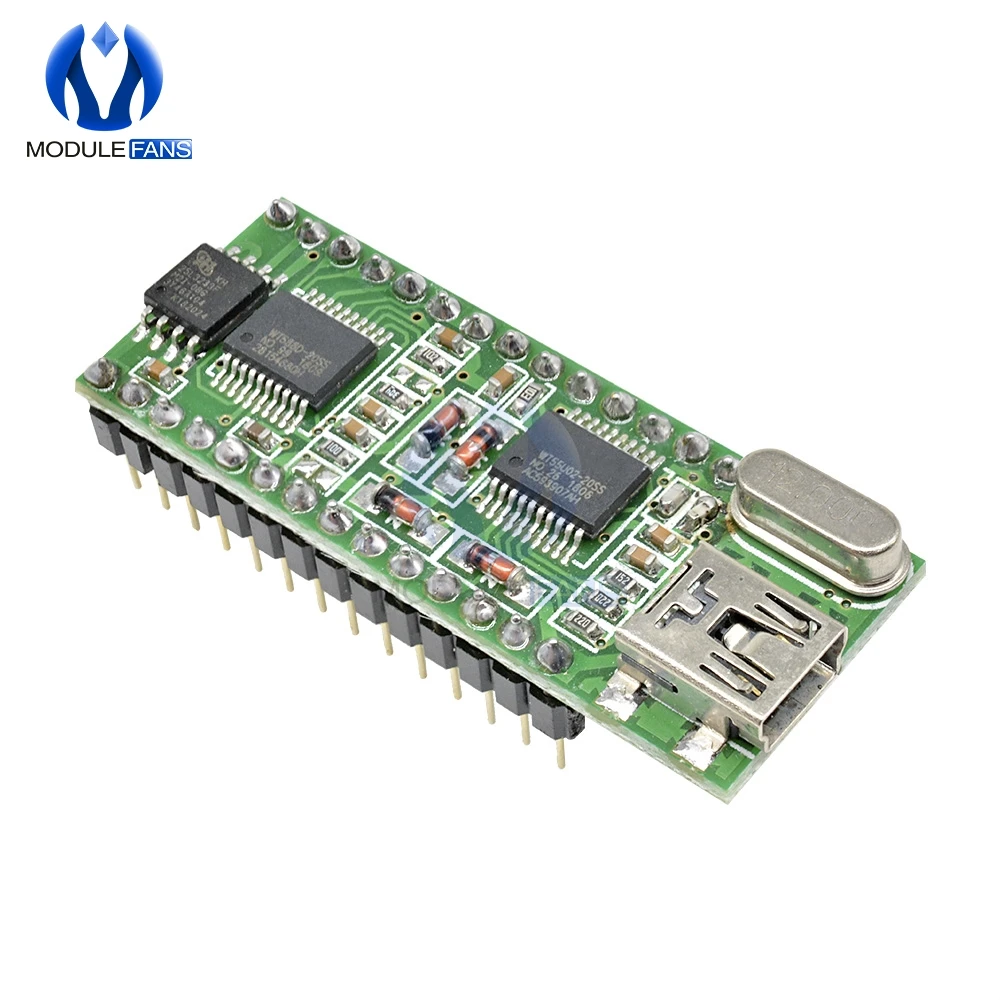

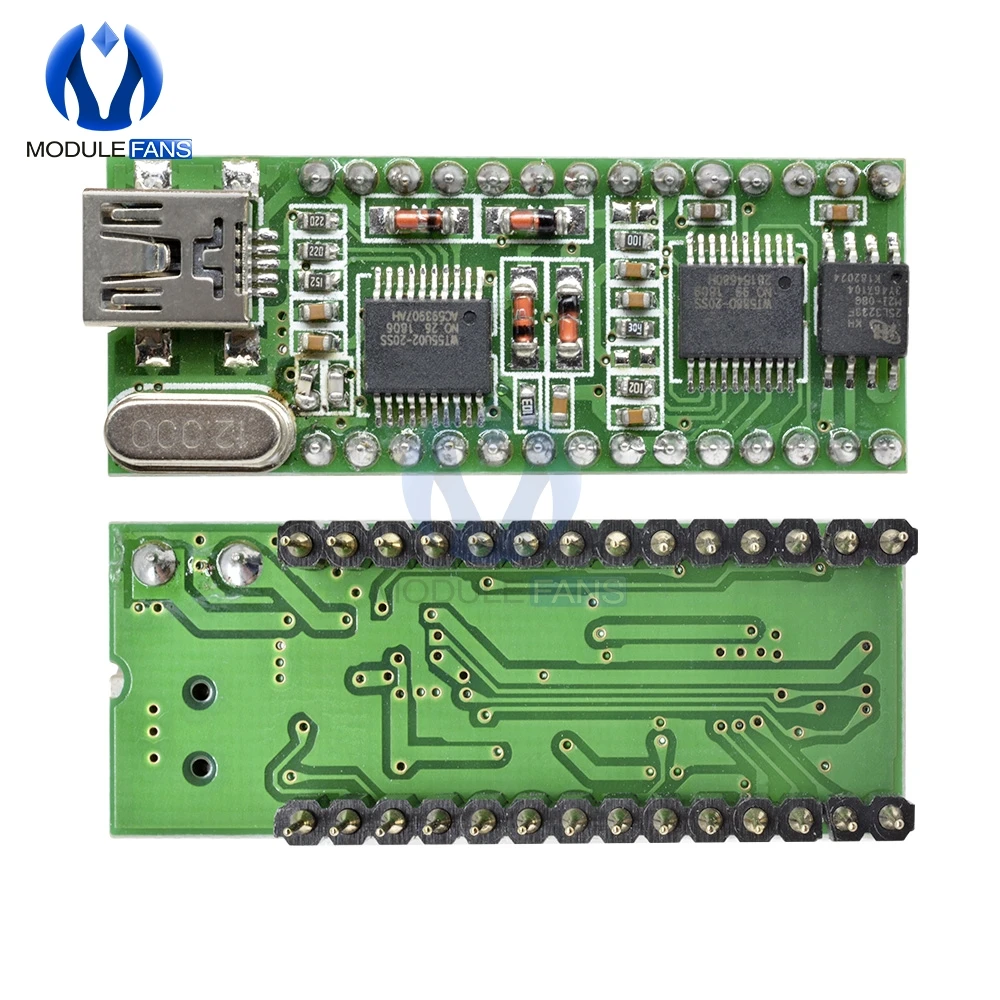

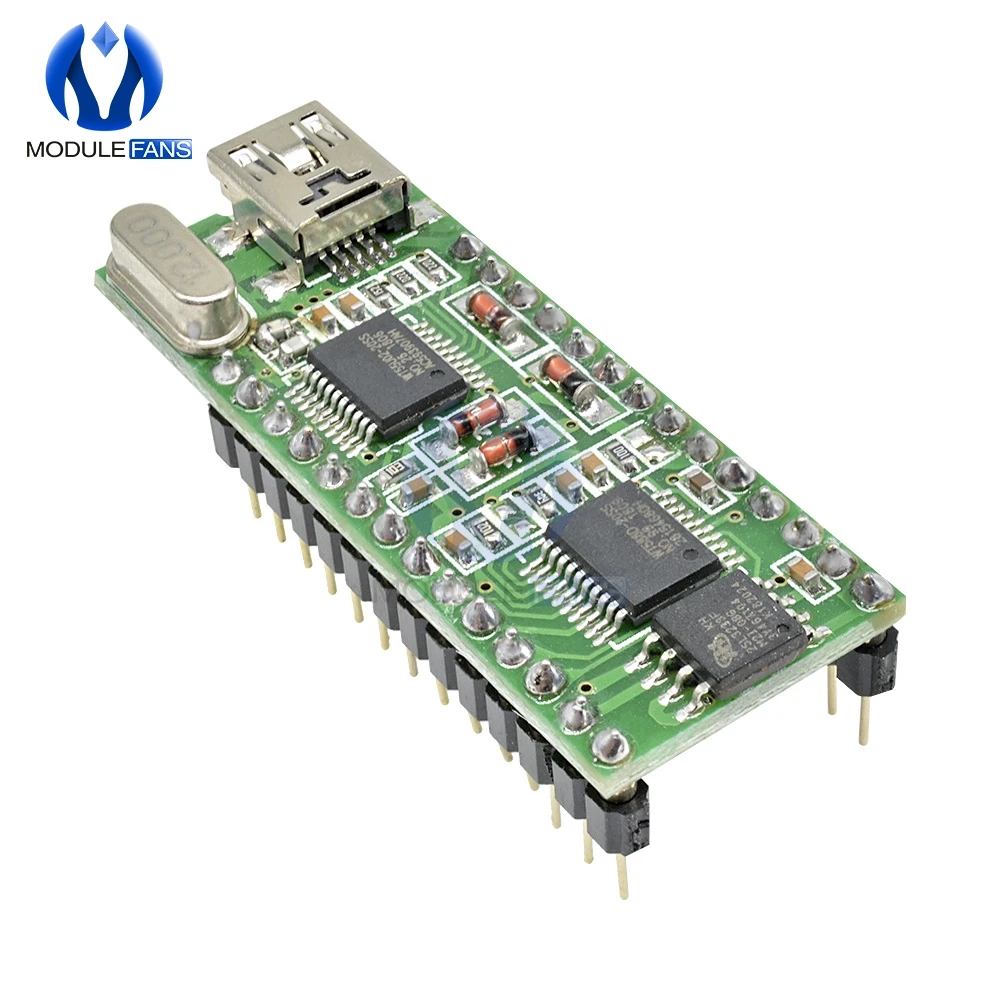

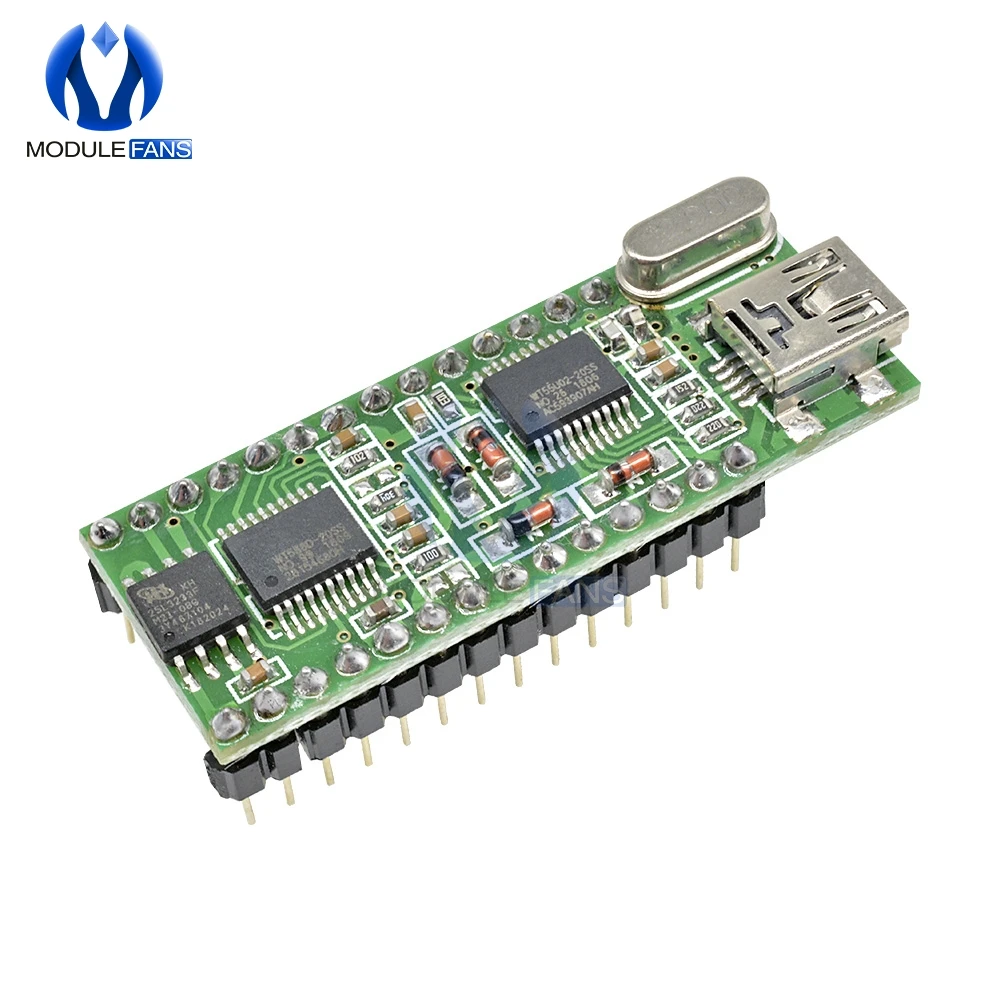

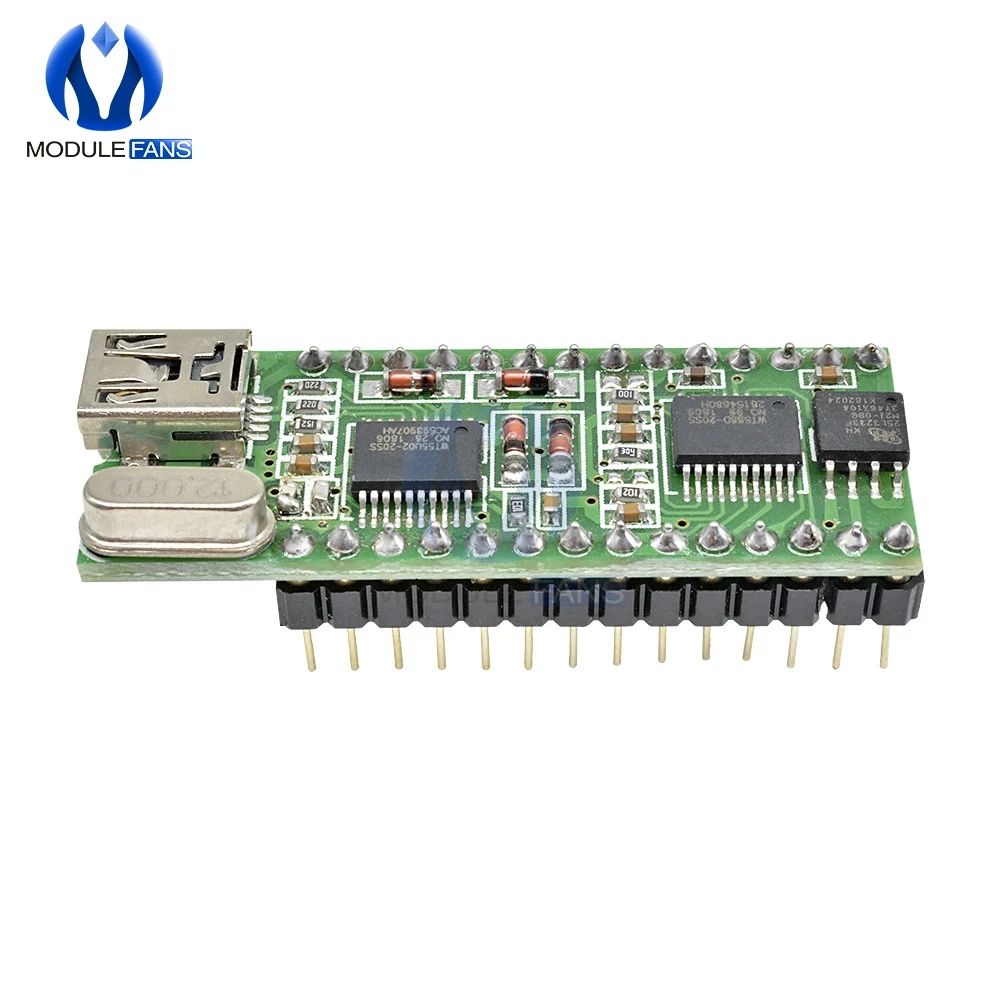

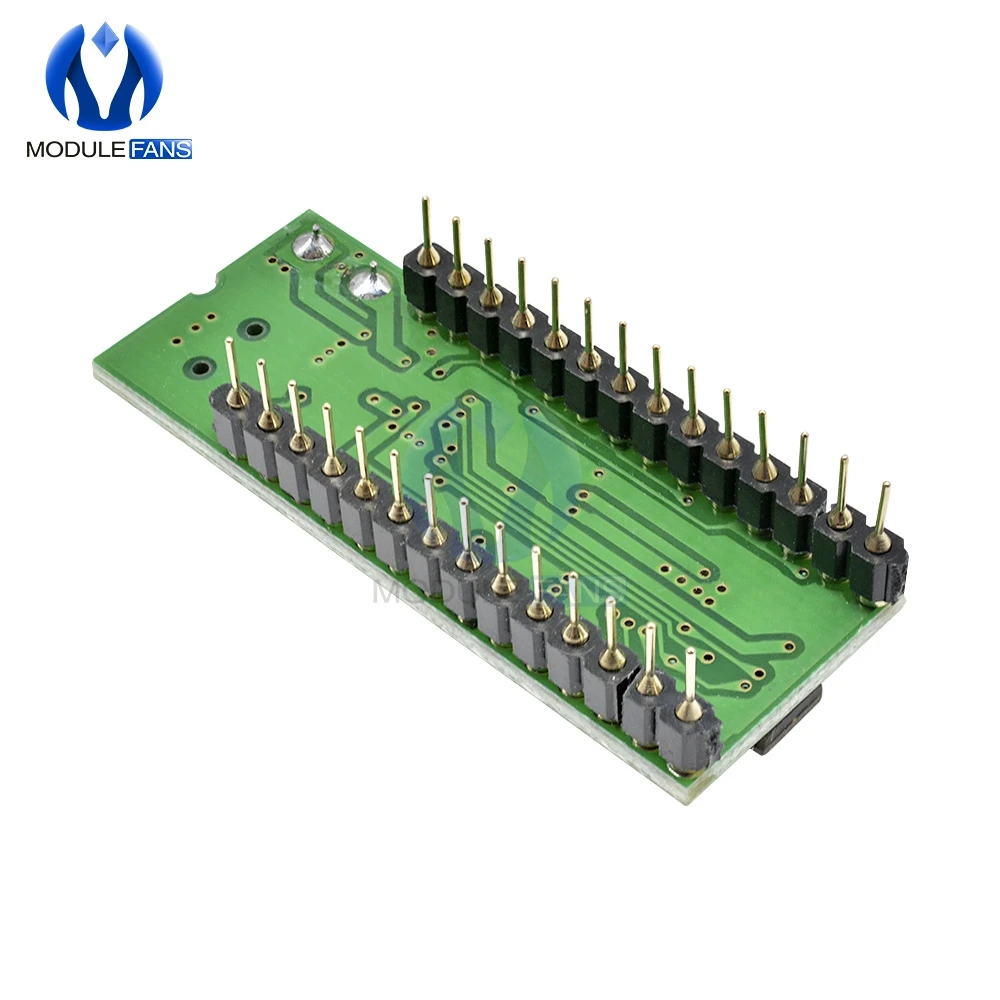

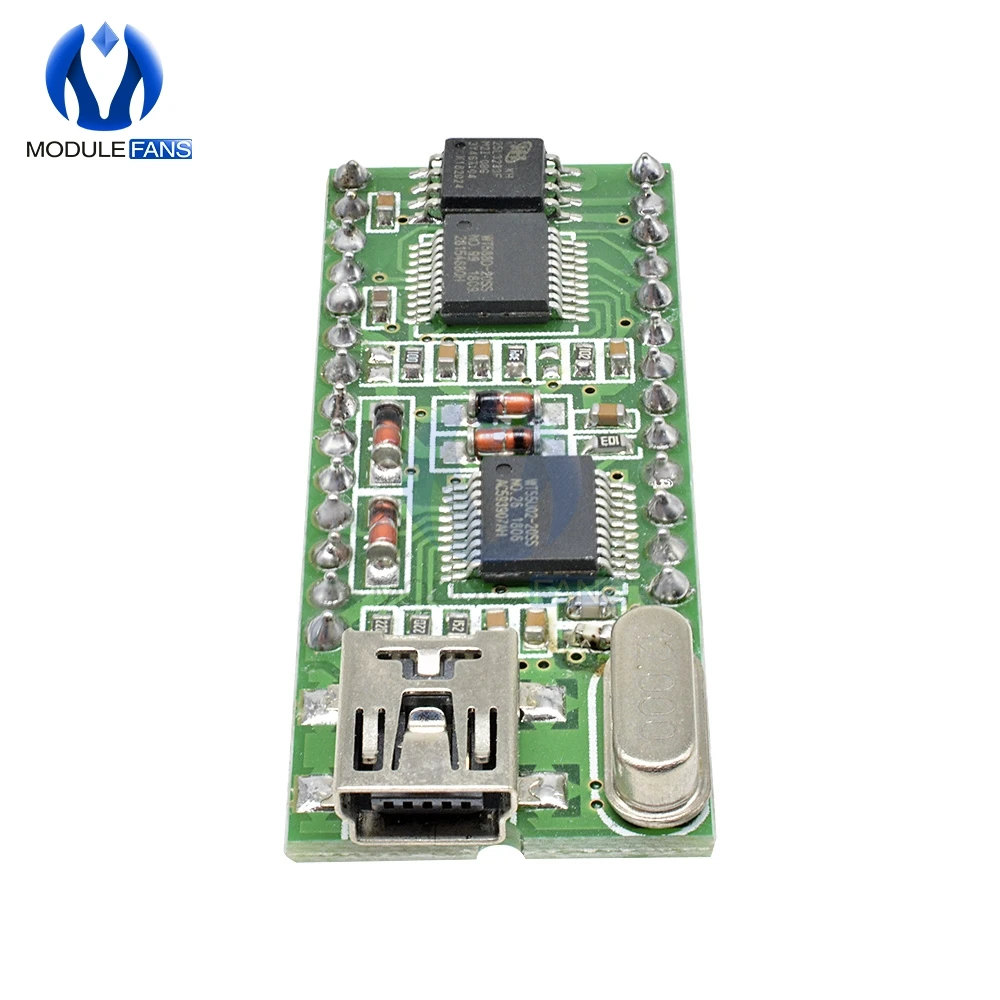

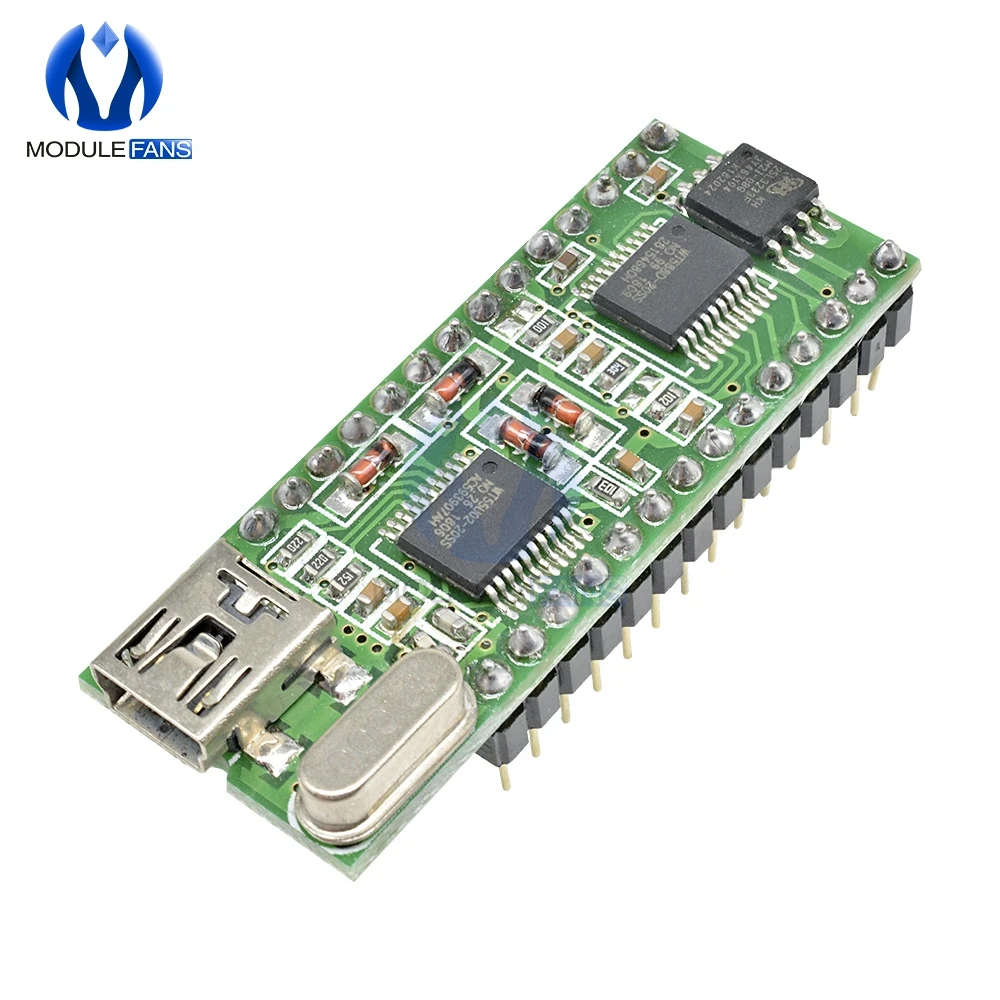

WT588D-U WT588D-U-32M Voice Control Board 5V Mini USB Interface Sound Controller Module 32M DC 2.8V 5.5V DAC PWM WAV Output | Электронные

WT588D-U WT588D-U-32M Voice Control Board 5V Mini USB Interface Sound Controller Module 32M DC 2.8V 5.5V DAC PWM WAV Output | Электронные

1. Package of 28 pins module, which can be replaced memory for gaining different lengths of storage time.

2. Supports 2M bit ~ 32M bit capacity SPI-Flash (Note: 1byte = 8bit)

3. WT588D-20SS voice used as a control core chip.

4. Embedded human voice processor, feel very natural and sweet.

5. Good audio quality output for 13Bit/DA converter and 12Bit/PWM processing of audio.

6. Support for loading 6K ~ 22KHz audio sampling rate.

7. PWM output can directly promote 0.5W/8 speakers and plenty of current.

8. Support DAC / PWM output.

9. Support for loading WAV audio format.

10. Support key control mode, one-wire serial control mode, three-wire serial control mode.

11. A variety of IO trigger ways can be seted to in button control mode.

12. The way of BUSY signal output can be set in a random manner.

13. Loading no more than 500 segments voice for editing.

14. Address bit is controlled by 220 segments voice, but a single address bit just can load up to 128.

15. Voice player to enter the sleep mode to stop immediately.

16. It is simple interface and convenient because of using WT588D Voice Chip that benefited to exert its functions.

17. A lot of operations can be finished in software. Such as setup control mode, inserting voice, compositing voice, calling voice, etc.

18. Free to insert mute, mute time range 10ms ~ 25min.

19. Support online USB download / offline USB download.?Moreover, it also can download data to SPI-Flash even if WT588D-U are working.

20. Operating voltage: DC2.8V ~ 5.5V.

21. Dormant current less than 10uA

22. Powerful anti-jamming. Widely used in the industrial field.

23. Memory:32M

Description

Button control mode is flexible to trigger and free to set any button to re-trigger .There are 15 trigger ways. Including trigger Impulse Repetition , trigger pluse Without Repetition , invalidation keys, no cycle Level , Recycled Level , Non-Maintained Cycle Level, Non-Cycle for The Last One ,Non-Cycle for The Next One , Cycle for The Last One , Cycle for The Next One, Volume +, Volume -, play / pause, stop, play / stop, etc .

One-wire serial control mode and three-wire serial control mode, not only can control voice play, stop, loop play and volume size by the MCU, but also can direct triggering any voice in address bit from 0 to 219.

Application

Widely range of applications. Almost related to all the voice places, such as Stop devices, annunciators , reminder, alarm clock, learning machine, intelligent home appliances, therapeutic equipment, electronic toys, telecommunications, reversing radar and a variety of automatic control devices, etc. Technology meet up to the requirements of industries application.

Package Included:

1 x module
