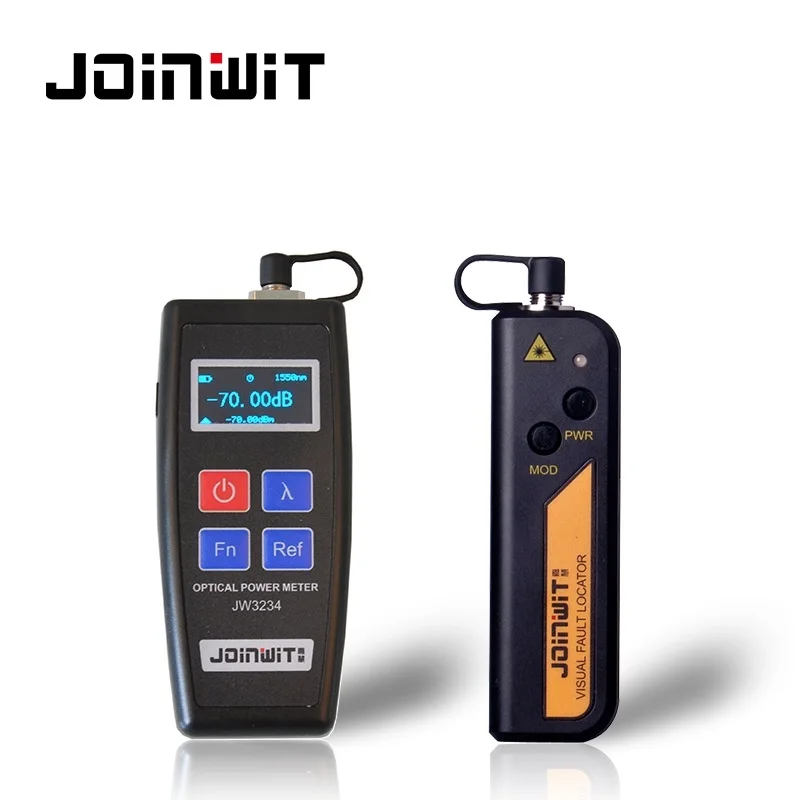

JoinWit JW3234C Mini OPM Optical Power Meter -50~+26dBm and JW3105N VFL Fiber Cable Tester 10MW Visual Fault Locator | Мобильные

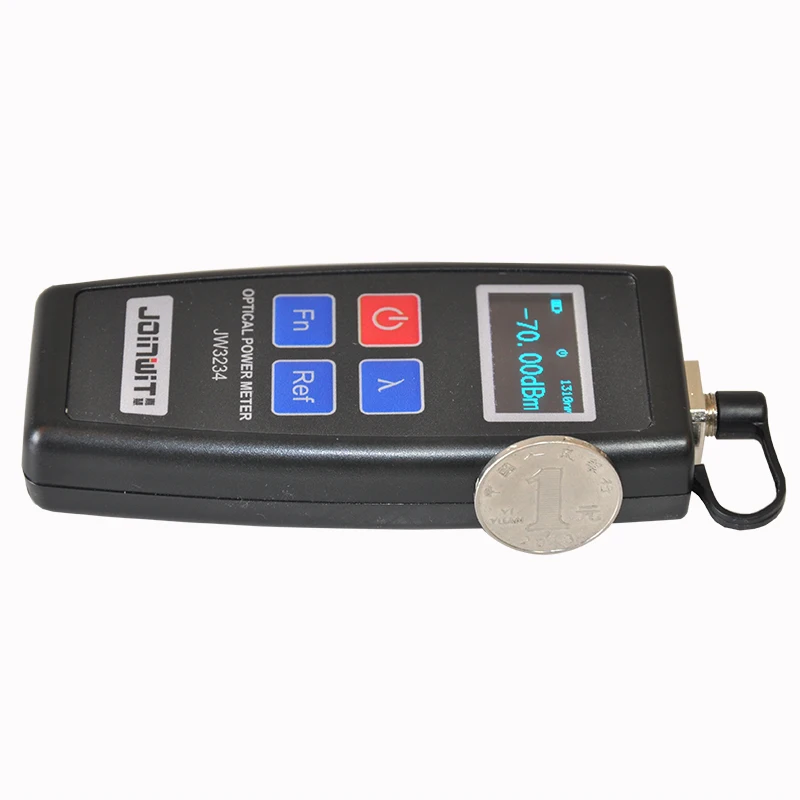

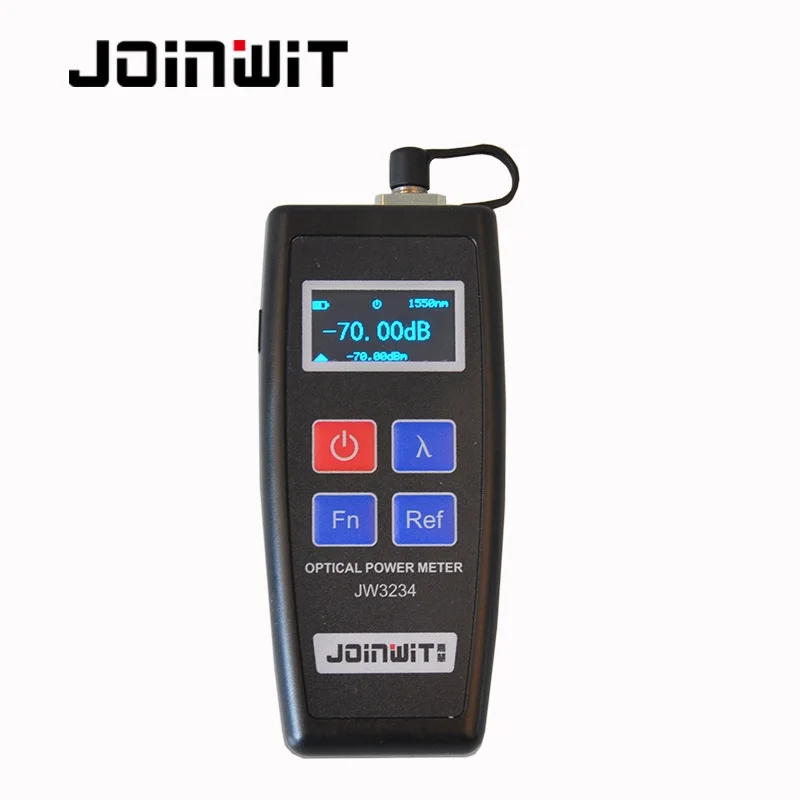

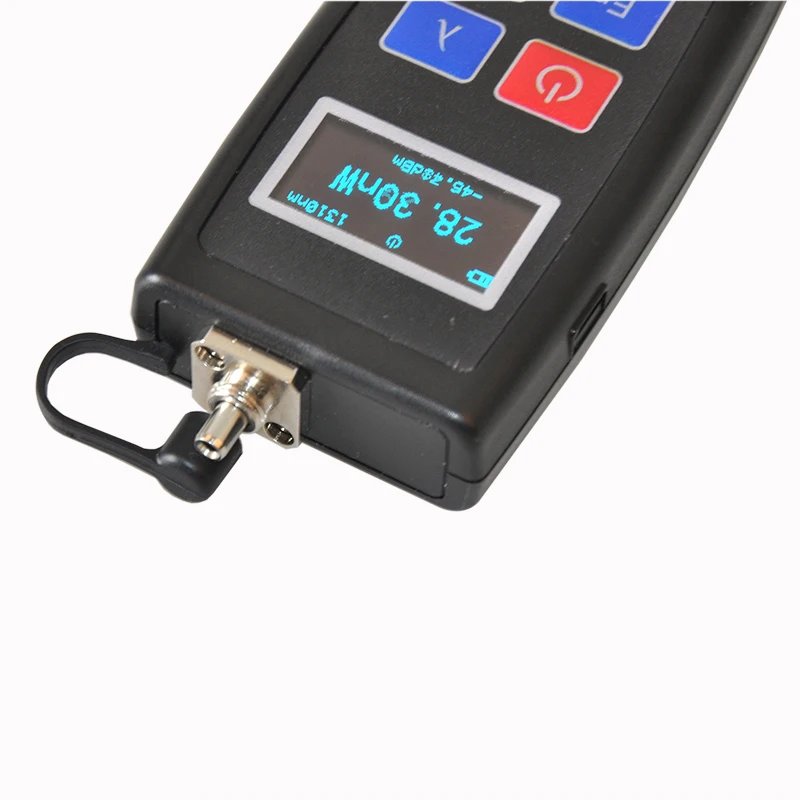

JoinWit JW3234C Mini OPM Optical Power Meter -50~+26dBm

Specifications

Model JW3234 Wavelength Range 850nm ~1700nm Measurement Rang -50~+26 Uncertainty（dB） ±0.3 Calibrated Wavelength 850,1300,1310,1490,1550,1625 Display Resolution（dB） 0.05 Operating Temperature（℃） -10~+60 Storage Temperature（℃） -25~+70 Auto-off Time（min） 10 Battery Operating Time（h) ≥130 Power Supply 3*AA 1.5V/micro USB Weigh（g） 70 (without battery) Dimensions（mm） 128x52x22   Standard Package for JW3234 Model JW3234 Includes W3234 Mini type optical power meter，User manual

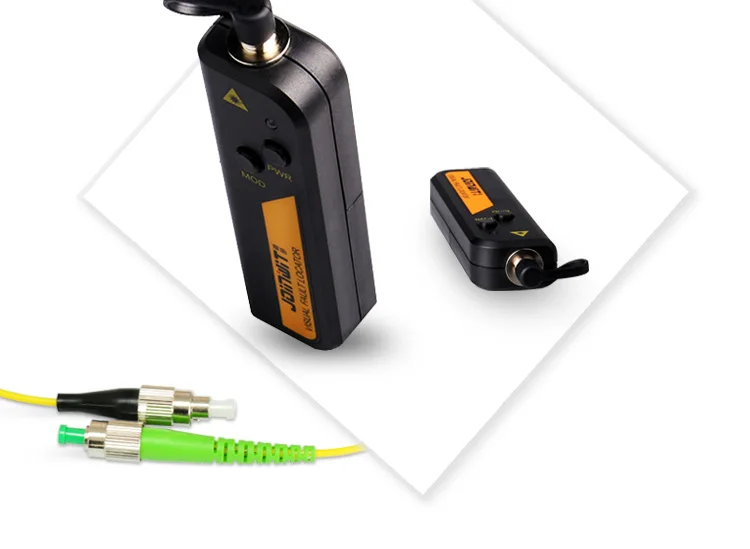

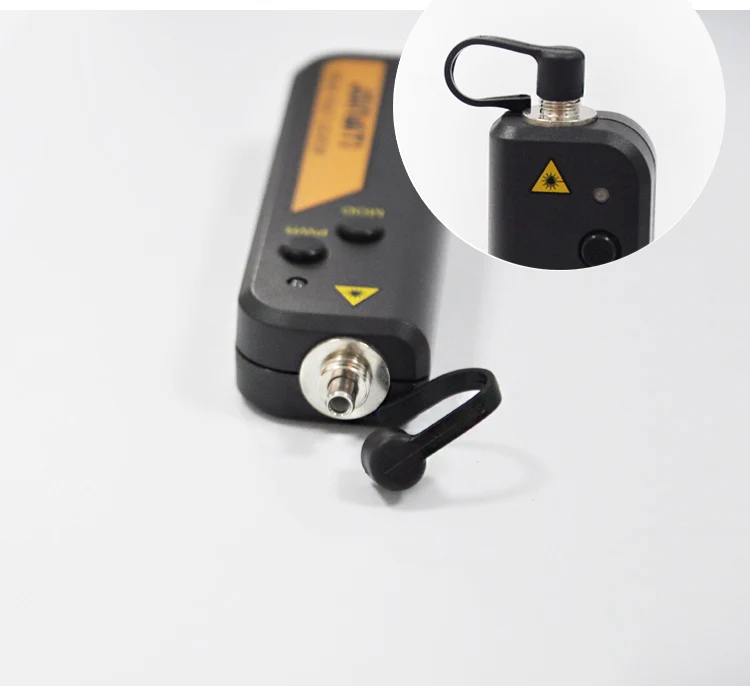

JW3105N Handheld Visual Fault Locator


Key Features

Constant & stable output power.
Special driver circuit design, to make sure the output power remains a constant power level as long as in an available battery voltage.
Low battery warning, reminds users to change the battery timely.
Long battery life(up to 40 hours with AAA batteries).
Operates either in CW or Pulsed.
Pocket size and light weight, easy to use.

  Specifications Type JW3105N Economical VFL Central Wavelength 650nm+-10nm Emitter Type FP-LD Output Power 10mw Optical Connector

FC/2.5mm universal connector

Operating Model Both CW and Pulse 2Hz available Power Supply Two AAA alkaline batteries(not included) Battery Operating Time 40hours Operating Temperature -10-+60

Storage Temperature

  -25-+70 Dimension mm 100*30*18mm Weight 37g
