The lcd controller board kit support the lcd model:

​

M190ETN01.0

LM190E0A-SLA1

MV190E0M-N10

M190EG02 V9

G190ETN01.0

HSD190MEN6-A00

G190EG02 VG

LM190E09-TLB1

​When you don't make sure the controller board kit whether support your LCD panel that please chat with us in any time!:)

 Product Description

1. GENERAL DESCRIPTION of LCD controller board

TSU59 V2.0 is a multi-purpose LCD controller board which support HDMI

VGA+AV+YPBPR(Optional) various of video signal input and dual channel 8bit LVDS output interface. LVDS output signal can up to 1920X1080@60Hz.

TSU59 V2.0 with Audio function, The power of the audio output is 2X8Ω*2W.

Support HDMI audio output.

TSU59 V2.0 can use internal pin connector to instead of standard connector .

Such as : DC jack , HDMI ,VGA,AV ,Ypbpr, Audio,USB connector . This will be easy for you to embed this board into your products .

2. FUNCTION LAYOUT of LCD controller board

3.Function Layout of LCD controller board

CHIPSET

TSUMV59XU-Z1(Mstar)

Support LCD Panel

Interface

Single/Dual LVDS

Resolution

Up to 1920X1080@60Hz

Power

For board

12V DC power supply

To LCD panel

3.3V,5V,12V

Management

Low power consumption mode

Standby

<0.5 W

OSD Language

English,Chinese,Korean,French,German,Portugues,Italian

Russian,Spanish, Other language can customize.

KEY Function

7 keys

Power , Menu, Vol-,Vol+,CH-,CH+,Input

5 keys

Power,Menu,Up,Down,Exit/Enter

Video Input

HDMI

480i,480p,576i,576p,720p

1080i,1080p

VGA

Analog RGB(0.7Vp-p)

V-H SYNC Separator(TTL)

Ypbpr(optional)

480i,480p,576i,576p,720p,1080i,1080p

AV(CVBS)

Video System

PAL/NTSC/SECAM

Video level

1.0 Vp-p ±5%

USB Input

Support firmware update and Media Player feature

Audio Input

0.2 – 1.5 Vrms

Audio Output

2X2W (8Ω)  THD+N<10%

Extend Function

IR control, Custom Boot LOGO,Factory Setting ,OSD Menu Key Lock. Multiple Display Mode(Normal,Left/Right Mirror, Up/Down Mirror, Flip 180 degree ), Adjust backlight brightness(DC dimming mode)

4. PCB DIMENSIONS of LCD controller board

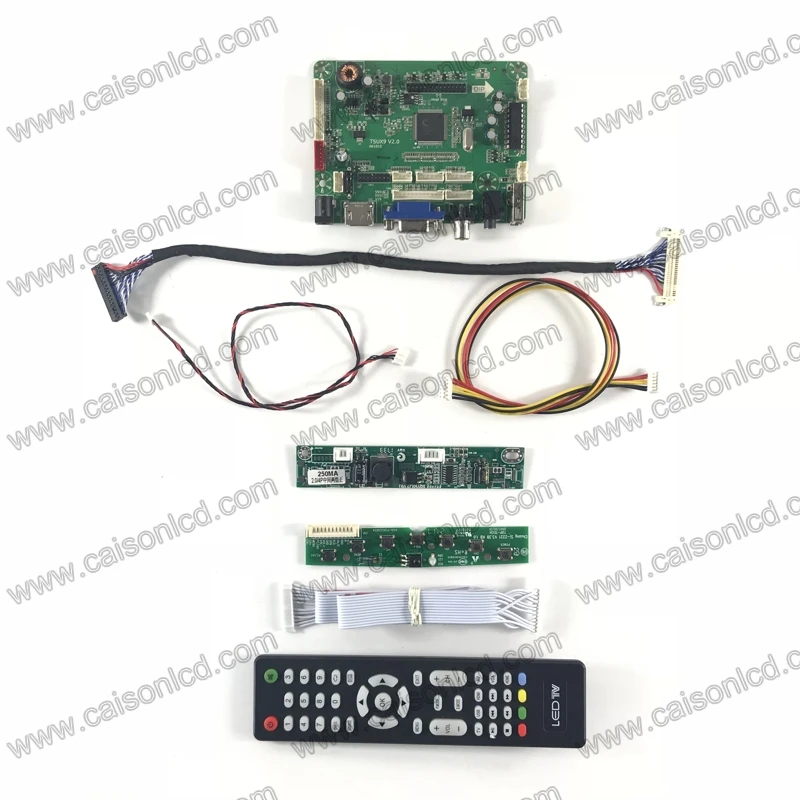

5.Package included:

1 x LCD controller board

1 x LVDS Cable

1 x OSD board with cable

1 x Remote control

1 x LCD driver board with cable
