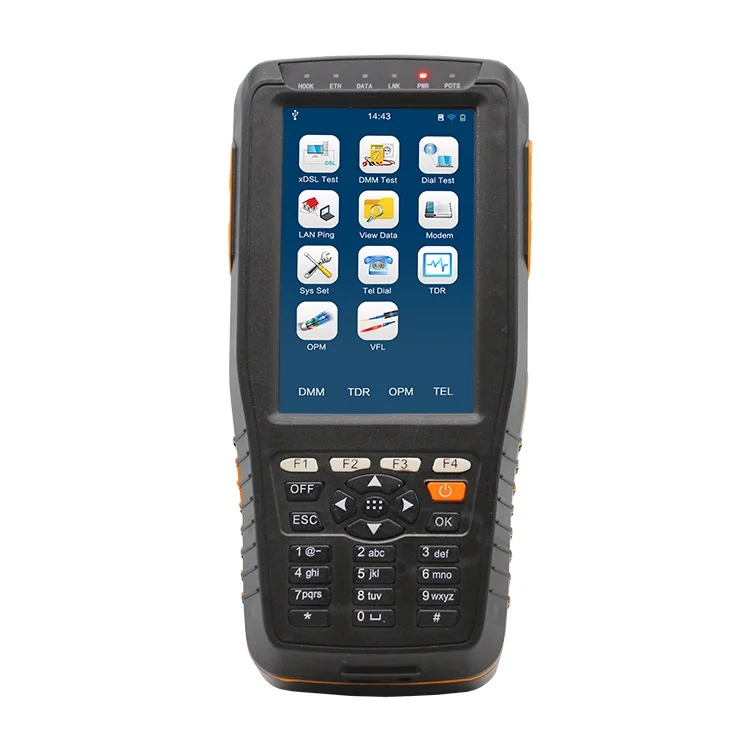

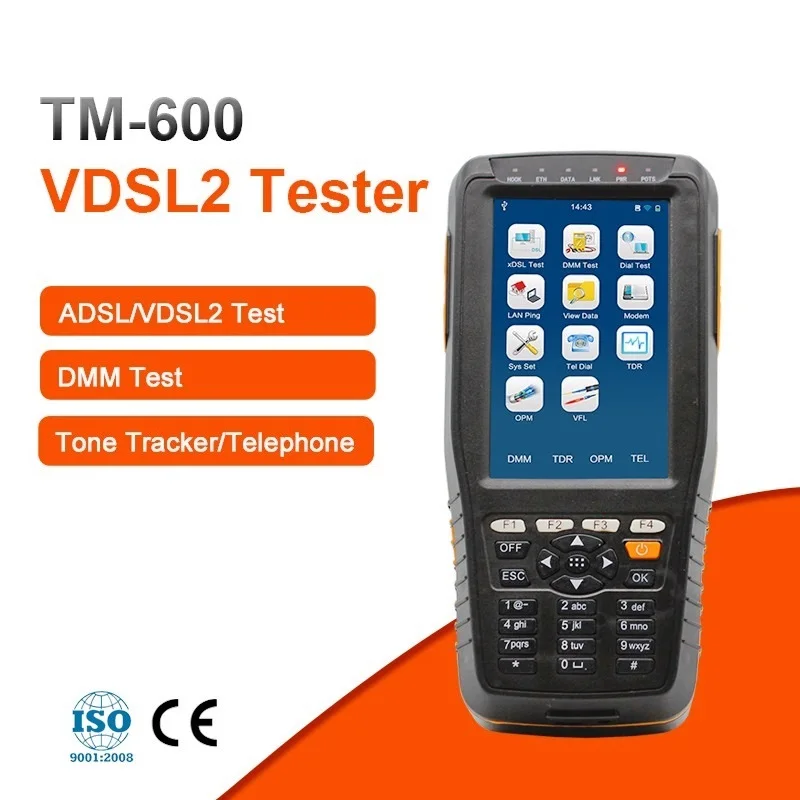

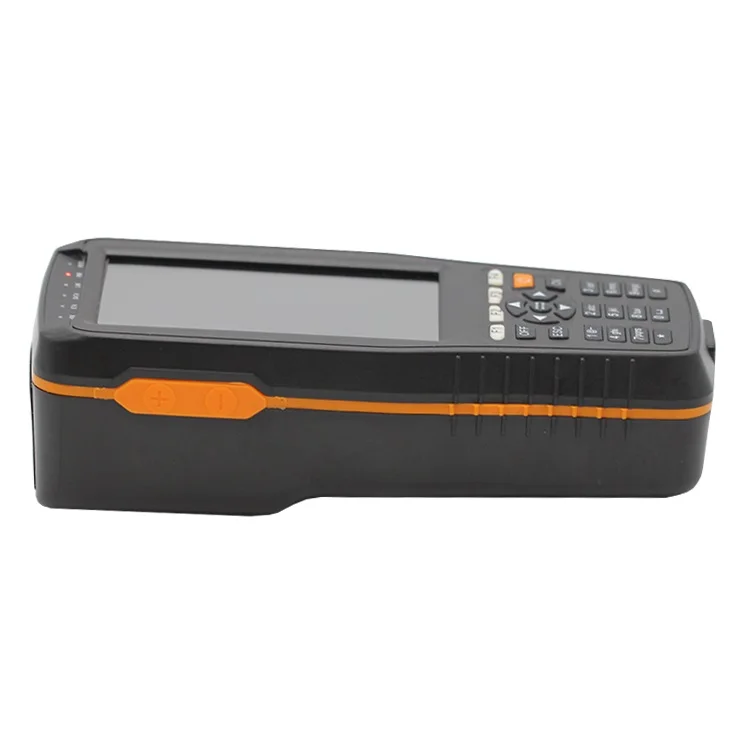

TM-600 VDSL2 Tester ADSL WAN & LAN Tester xDSL Line Test with Tone Tracker functions



Description: TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.   TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;   It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc     Features: Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2 Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance) Supports Modem emulation and simulating login to Internet  Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test) Supports all multi-protocol, PPPoE Connects to CO via alligator clip or RJ11  Rechargeable Li-ion Battery  Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)  Data memory fuction LCD display, Menu operation  Auto shut off if no any operation on keyboard  Compliant with all known DSLAMs  Software management Simple, portable and money-saved      Main Functions: DSL Physical layer test  Modem Emulation (Replace the user Modem completely) PPPoE Dialing (RFC1683,RFC2684,RFC2516) Telephone Function DMM Test Ping Function (WAN & LAN) Data upload to computer and software management Setup system parameter: backlight time, shut off automatically time without operation, press tone,  Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.       Check dangerous voltage Optical Power Meter (Optional) Visual Fault Locator (Optional) Tone Tracker (Support) TDR Cable Fault Locator ( Optional )     Specifications:

ADSL2+

Standards

ITU G.992.1(G.dmt),

ITU G.992.2(G.lite),

ITU G.994.1(G.hs),

ANSI T1.413 issue #2,

ITU G.992.5(ADSL2+)Annex L,

Up channel rate

0~1.2Mbps

Down channel rate

0~24Mbps

Up/Down attenuation

0~63.5dB

Up/Down noise margin

0~32dB

Output power

Available

Error test

CRC, FEC, HEC, NCD, LOS

Display DSL connect mode

Available

Display channel bit map

Available

ADSL

Standards

ITU G.992.1 (G.dmt)

ITU G.992.2(G.lite)

ITU G.994.1(G.hs)

ANSI T1.413 Issue # 2

Up channel rate

0~1Mbps

Down channel rate

0~8Mbps

Up/Down attenuation

0~63.5dB

Up/Down noise margin

0~32dB

Output power

Available

Error test

LCD, OCD, HEC, FEC, CRC

Display DSL connect mode

Available

Display channel bit map

Available

VDSL2

Be compatible with ADSL2+, ADSL standard.

DSL line attenuation

DSL line noise margin

DSL line up/down channel speed (Inter/Fast mode)

DSL line up/down maximum rate

DMT sub channel bit number: 0~15, and each sub channel frequency points

DSL line error number (CRC, HEC, FEC, LCD, OCD)

DSL line local output power

DSLAM information

Error Code Second

Impulse Noise Protection (INP)

Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a

DMM Test

DC voltage (V):

0~400

AC voltage (V):

0~400

Loop resistance(Ω):

0~20000

Capacitance (nF):

0~1000

Insulation resistance (MΩ):

0~50

General Specification

Power Supply

Internal Rechargeable 7200mAH Li-ion battery

Battery Duration

4 to 5 hours

Working temperature

10-40°C

Working moisture

5%-90%

Dimensions

170mm×70mm×52mm

Weight:

<0.6kg

    Optical Power Meter ( Optional)   Measurement range: -70~+10dBm or -50~+26dBm   Wavelength 850nm 1300nm 1310nm 1490nm 1550nm 1625nm   Visual Fault Locator (Optional)   Output Power 10mw   Wavelength 650nm ± 20nm    Tone Tracker (Optional)   Output Power 10mw   Wavelength 650nm ± 20nm    TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix)   Test Range <2.5km   Dead Zone <1m   Resolution Rate 1m   Note: ADSL , VDSL with DMM and Tone tracker function , if you need optional function ,please contact us, optional function needs to add price     ​
