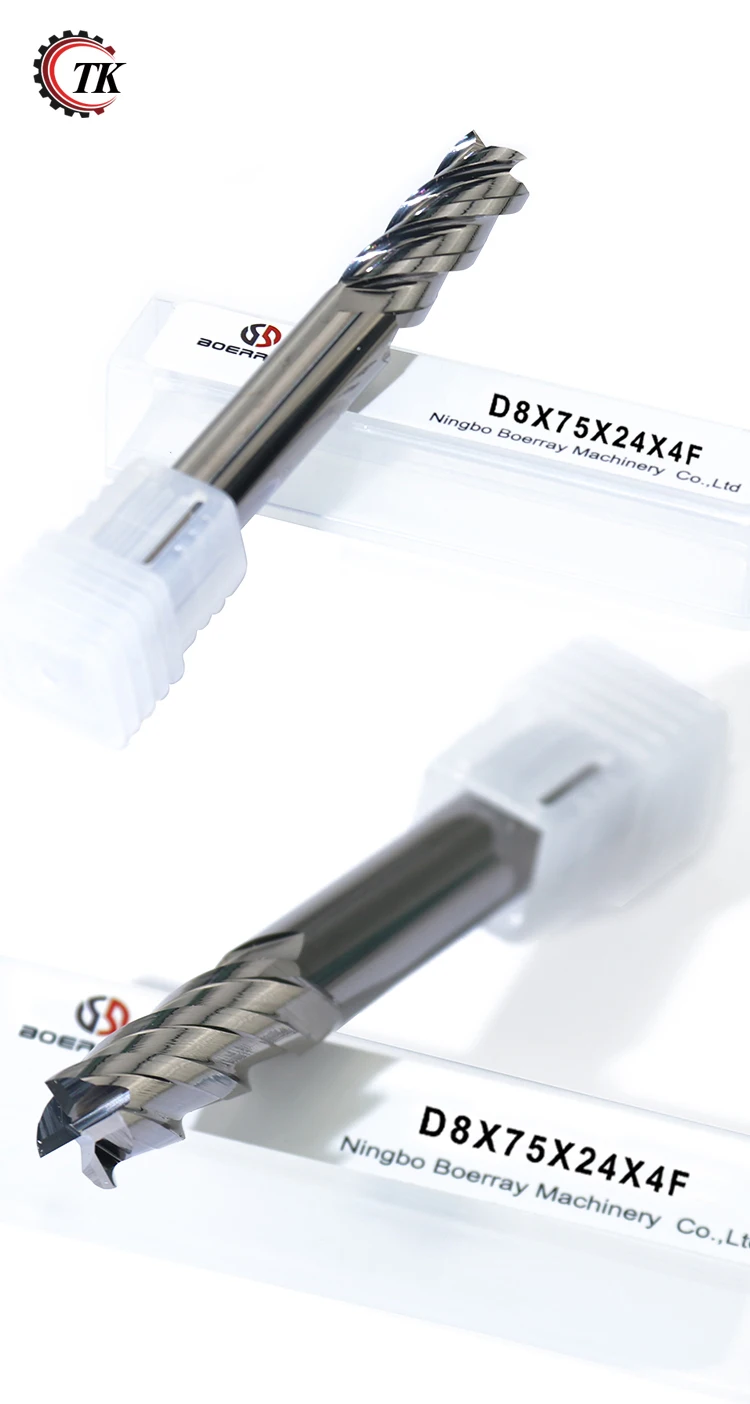

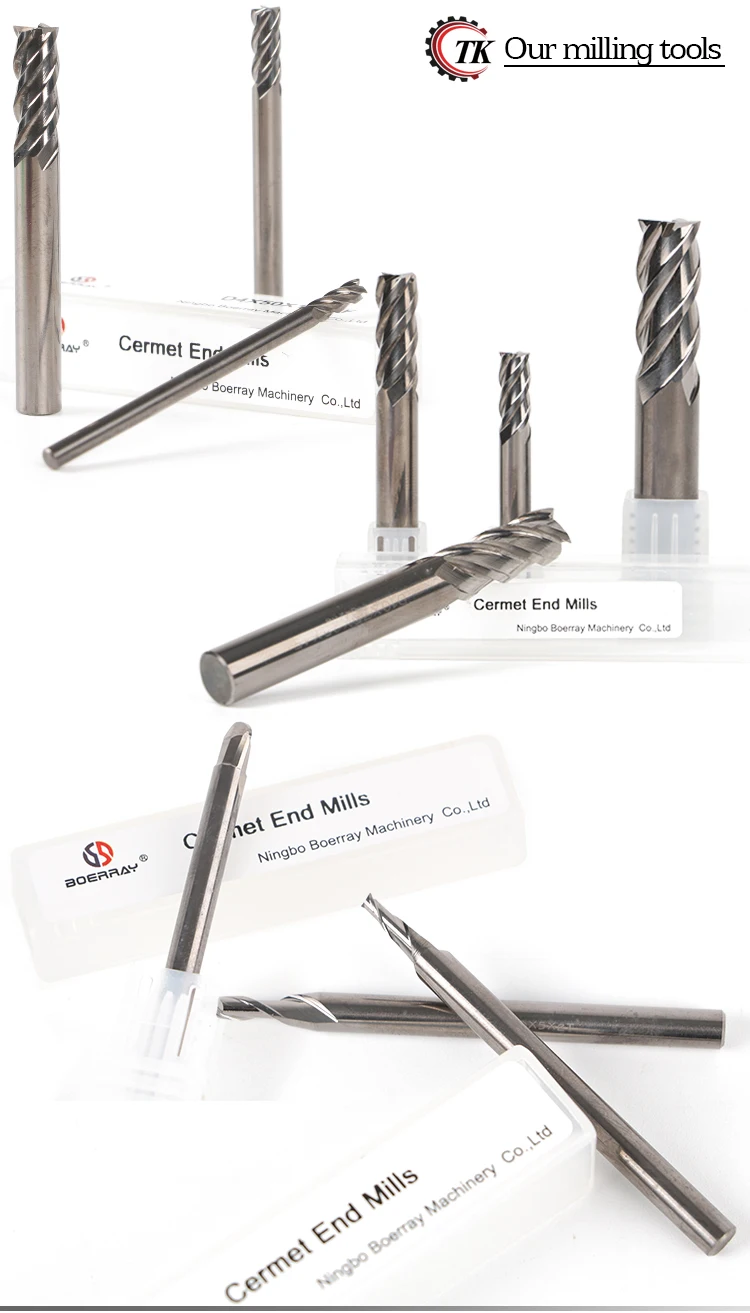

8mm Blade Diameter,Cermet 4 Flute Straight End Mill Cutter CNC Router Bits Cutting Milling Tools

Material:Cermet, long working life. The life of cermet end mills usually is 3-5 times times that of tungsten steel end mills and high speed steel end mills;

High hardness, high wear resistance, high strength. Have sufficient bending strength and wear resistance, also enhance surface finishing,like a mirror;

Cut diameter: 8mm; Shank diameter:24mm; Overall Length:75mm;

Hardness:92 HRA  Max Cutting material hardness:HRC65;

Packed in a plastic box, packaging during transport to ensure that products will not be damaged, lost, deformed, moisture and corrosion;

Usually designed to machine cast iron,steel(except Cr12), Power metallurgy materials

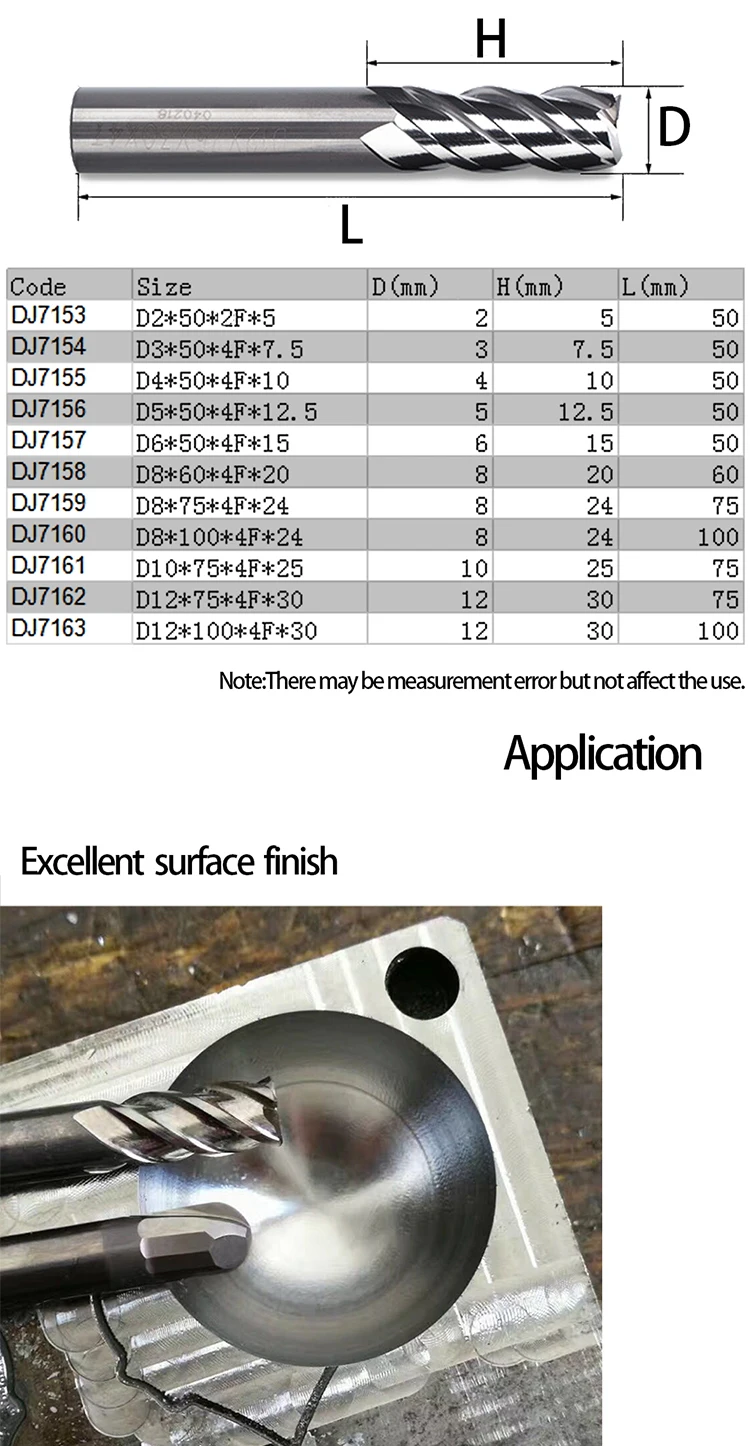

Code Size                      D(mm)  H(mm)   L(mm)

DJ7153 D2*50*4F*5         2              5         50

DJ7154 D3*50*4F*7.5      3              7.5      50

DJ7155 D4*50*4F*10       4              10       50

DJ7156 D5*50*4F*12.5    5             12.5     50

DJ7157 D6*50*4F*15       6              15       50

DJ7158 D8*60*4F*20       8              20       60

DJ7159 D8*75*4F*24       8              24       75

DJ7160 D8*100*4F*24     8              24       100

DJ7161 D10*75*4F*25     10            25       75

DJ7162 D12*75*4F*30      12           30       75

DJ7163 D12*100*4F*30    12           30       100

Note:
Please allow a bit hand measuring errors of 0-1mm.
