 Support the LCD model :

 Product Description

1. GENERAL DESCRIPTION of LCD controller board
M.NT68676.2A is a monitor control board, which is suitable for Asia-Pacific market. It can support LED/LCD panels which resolution is up to 2048×1152.
M.NT68676.2A can synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated.
M.NT68676.2A can support dynamic contrast control, headphone input and Digital volume control simultaneously.

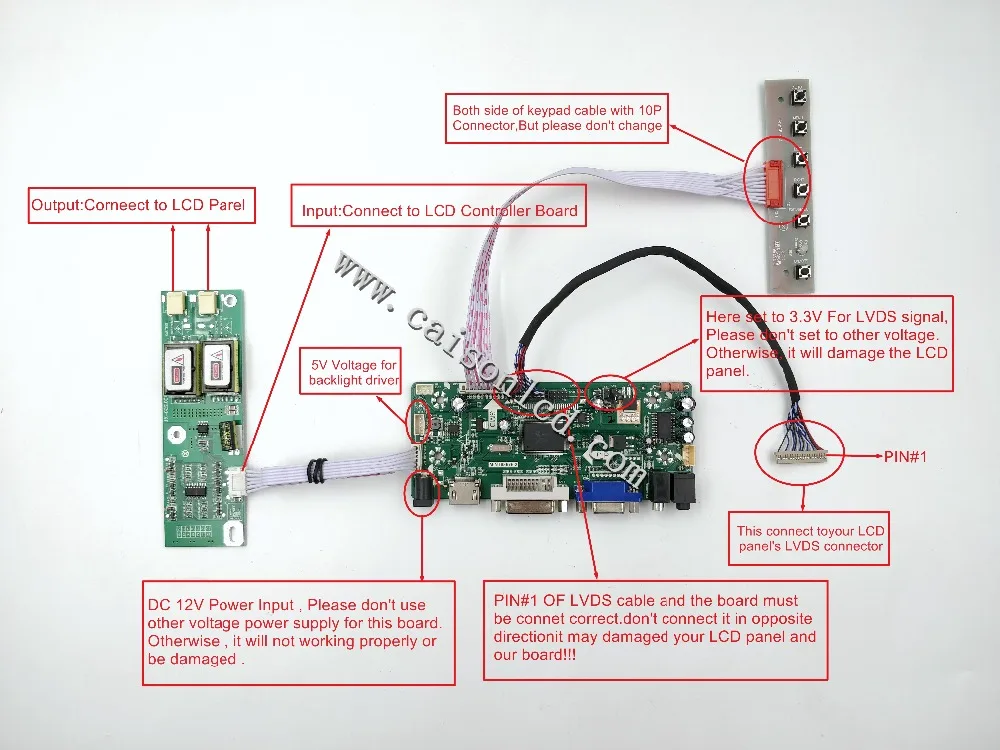

2. FUNCTION LAYOUT of LCD controller board

The picture is for a reference only, the actual item is the standard.
The optional connectors and terminals are marked with

TOP VIEW OF M.NT68676.2A

3.Function Layout of LCD controller board

CHIPSET

NT68676(UFG)

MARKET AREA

Asia-Pacific

OSD LANGUAGE

Simplified Chinese, Traditional Chinese, English, French, German, Italian,

Spanish, Portuguese, Japanese, Korean (optional)

PANEL

Panel Type

LED/LCD

Interface

Single/Dual LVDS (8bit)

Max Resolution

2048×1152

VIDEO INPUT

PC-RGB

Format

Up to 2048×1152     60Hz

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

AUDIO INPUT

PC Audio

Earphone Input

0.2 ~ 2.0 VRMS

AUDIO OUTPUT

Frequency Response

100Hz~15KHz  ±3dB (1KHz, 0dB reference signal)

Max Output power

2×1W(8 ) THD+N<10  1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER

Requirement

12V DC/12V(built)/12V,5V(built in)/12V,5V,5VSB(built in)

To Panel

3.3V/5V/12V

Management

Standby Power Consumption < 0.5W(Board Only)

KEY FUNCTION

POWER,MENU,VOL+,VOL-,ADJUST/EXIT

4. PCB DIMENSIONS of LCD controller board

Dimension(mm):139(L)*58(W)*17(H)

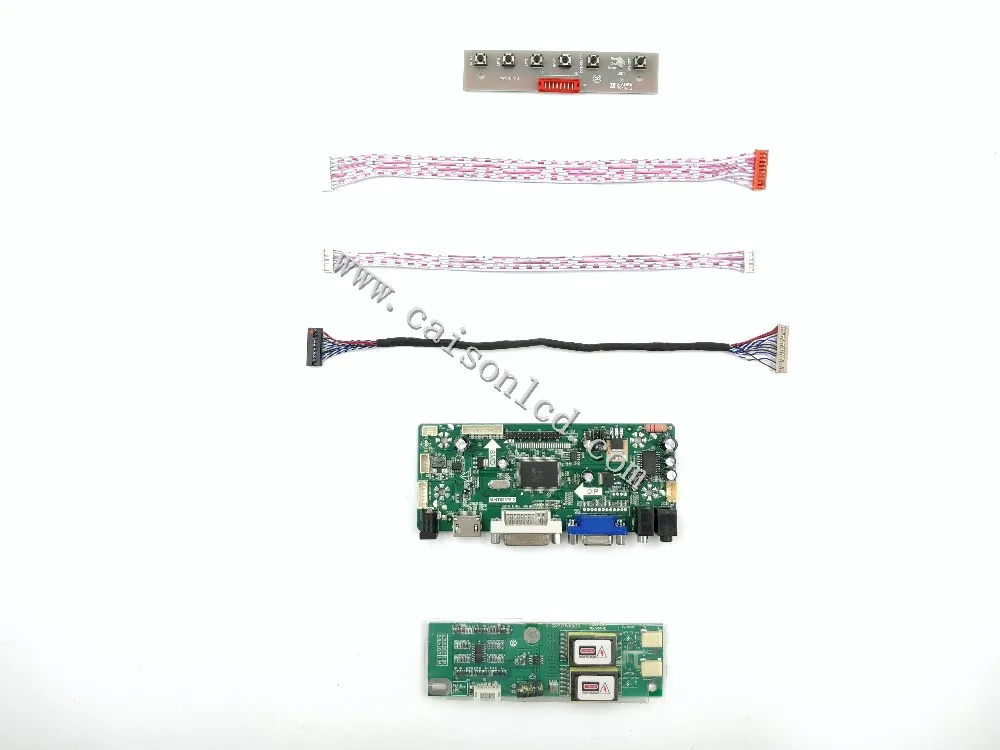

5.Package included:

1 x LCD controller board

1 x 1Ch 6 Bit 40Pins LVDS Cable

1 x 6 Key OSD board with cable

1 x Inverter board with cable
