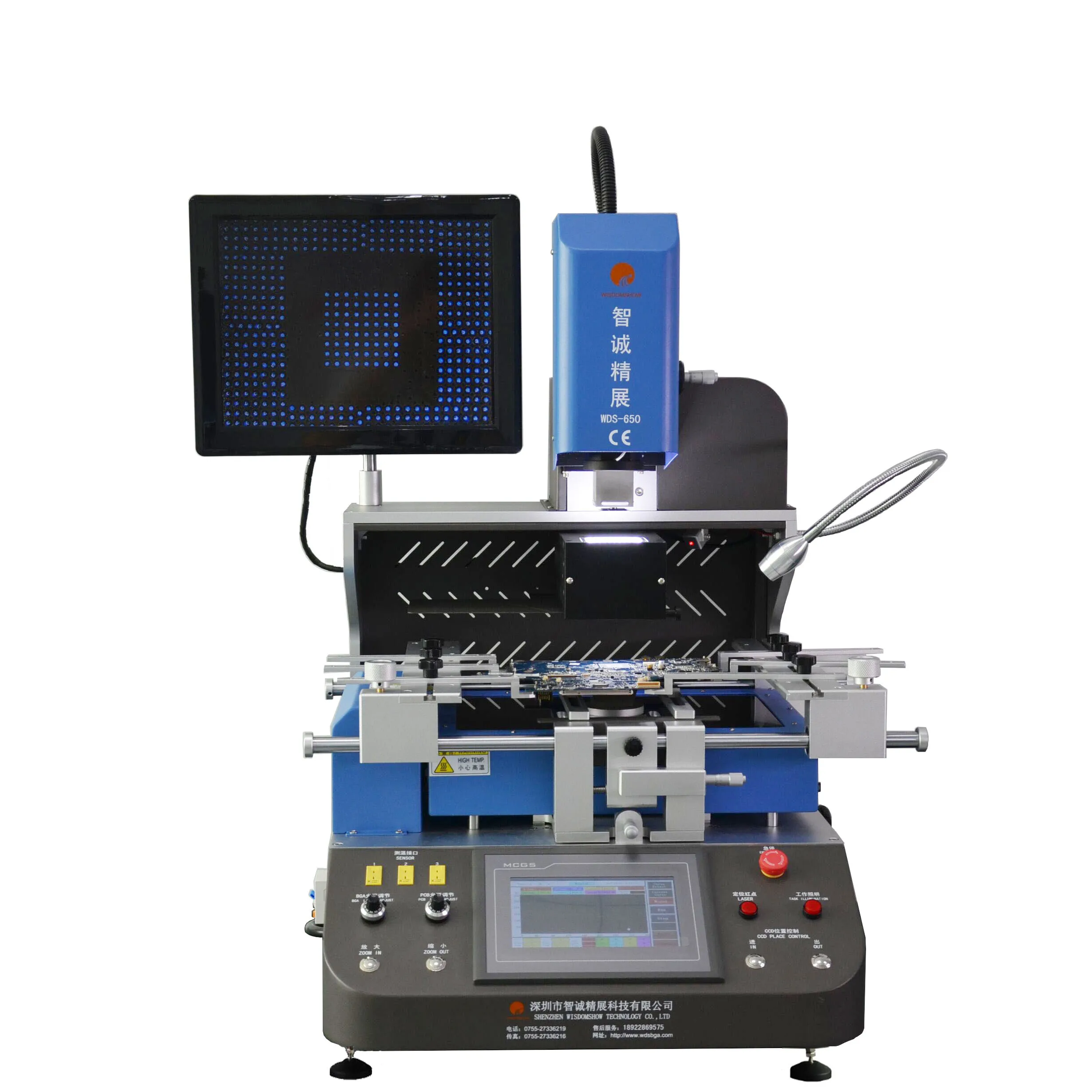

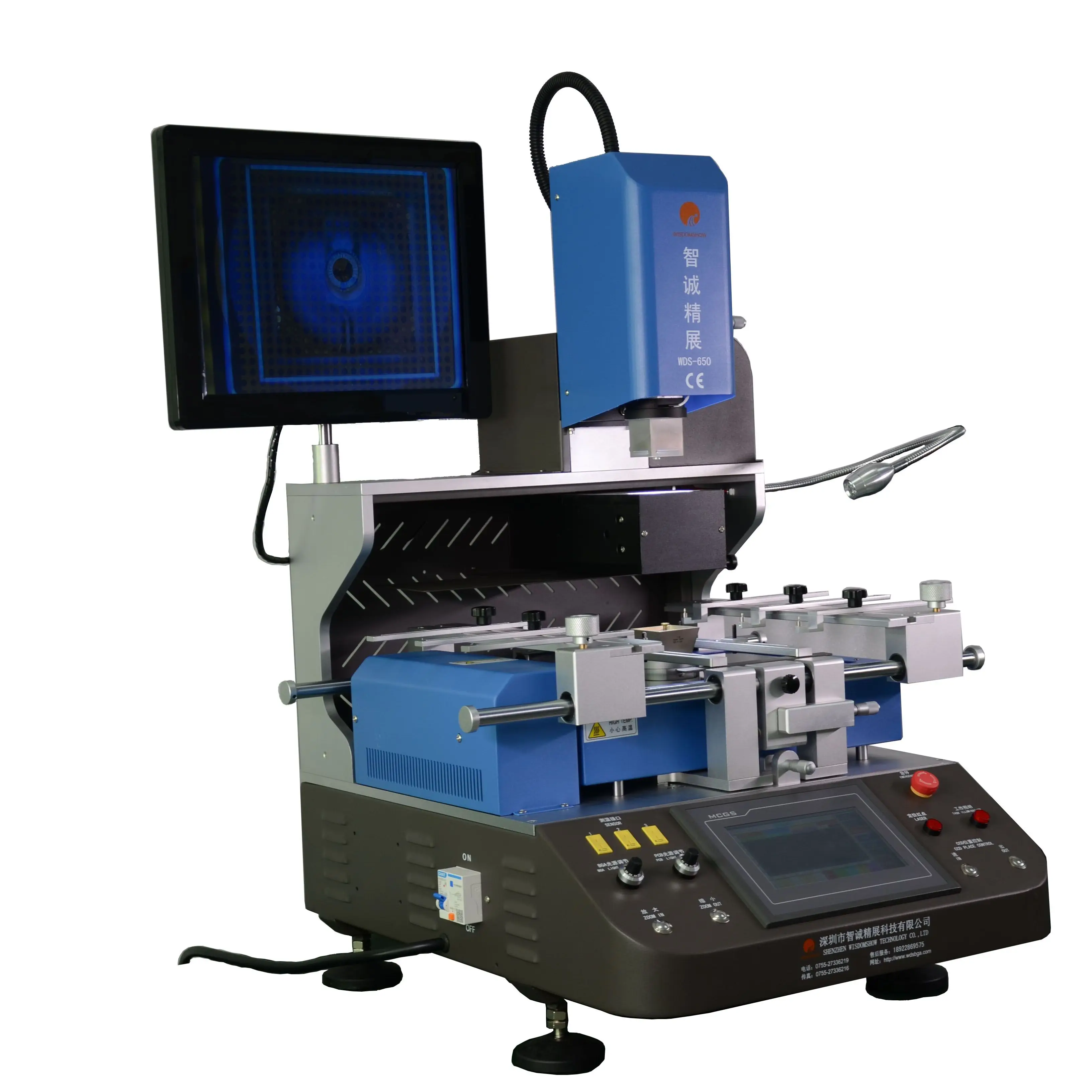

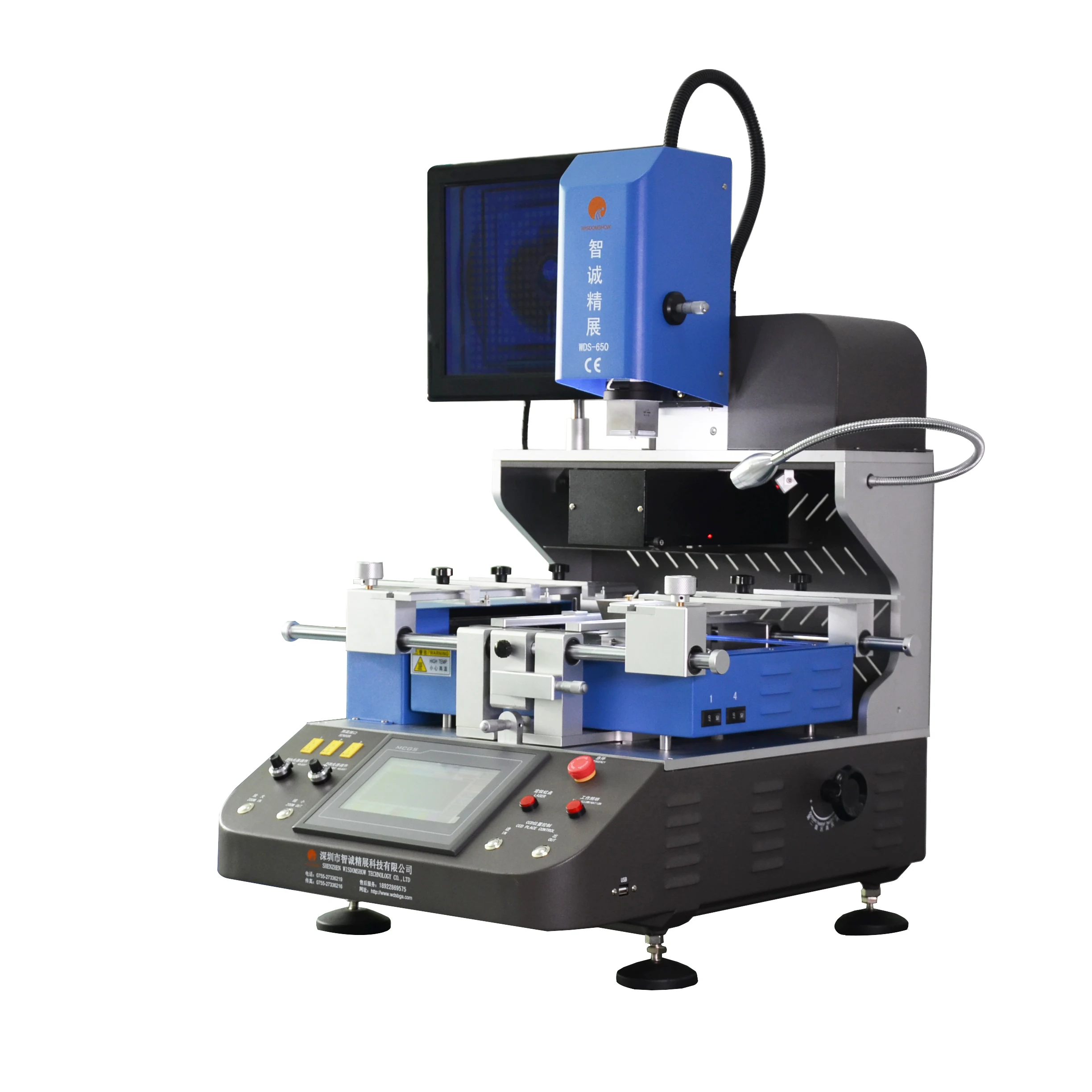

Automatic WDS-650 SMT Pick and Place Machine With Optical Alignment

Parameter

Total Power

Max 6400W

Upper Heating Power

1200W

Lower Heating Power

Second zone: 1200W, Third zone: IR 4000W

Power Supply

(Single Phase)AC 220V±10V 50Hz±3Hz 5.4 KVA

Machine Dimension

 L600*W640*H850mm

Positioning Way

Vshape card slot, PCB holder can be adjustable by X and Y axes

Temperature Controlling

K-type thermocouple closed loop control,

independent temperature control

PCB Size(Max)

410*380mm

PCB Size (Min)

10*10mm

PCB Blowup Diploid

2-50X

Weight of machine

60Kg

Thermocouple Ports

3units

Feature

»»  Independent 3 heating zones temperature control system

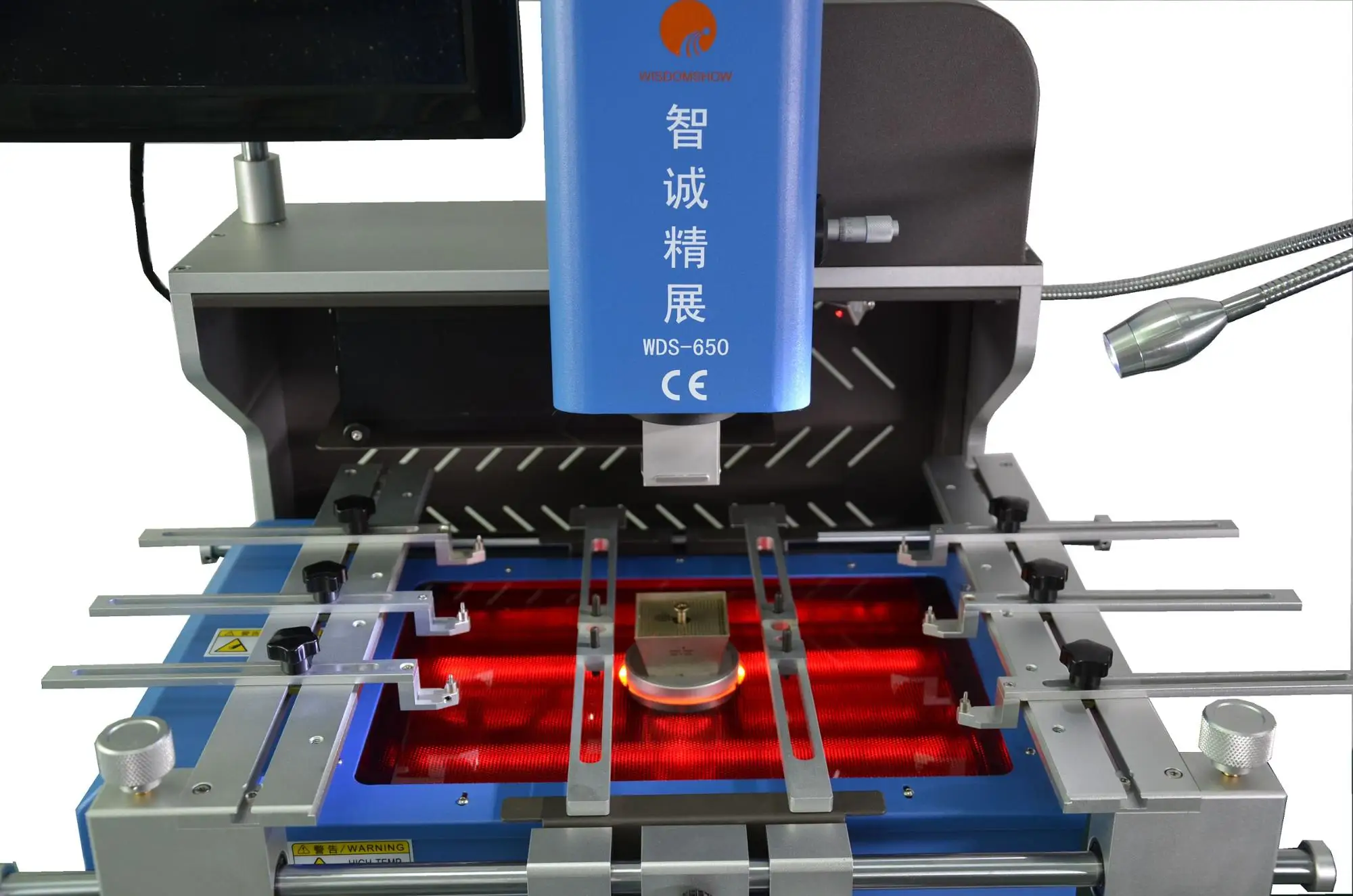

1.The upper and lower hot air heating, IR preheating zone adopts imported infrared gold-plated light tube to heat up quickly,which can heat up at the same time from the top of he component to the bottom of the PCB, to make the PCB board heated averagely,ensure welding effect;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.Infrared gold-plated light tube control heating independently.

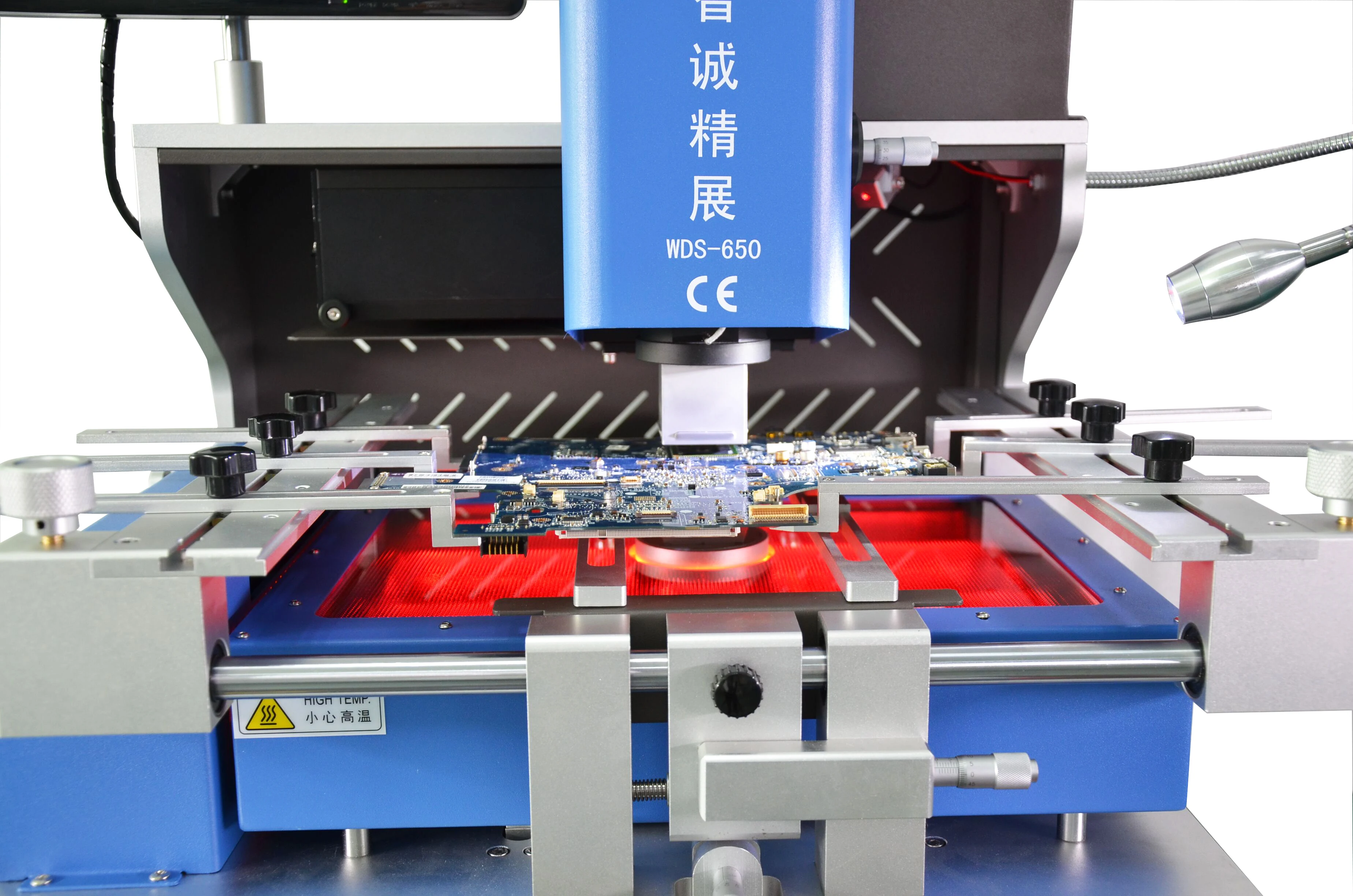

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4. temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

»»  Precision optical alignment system

 Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

»»  Multi-functional and humanized operation system

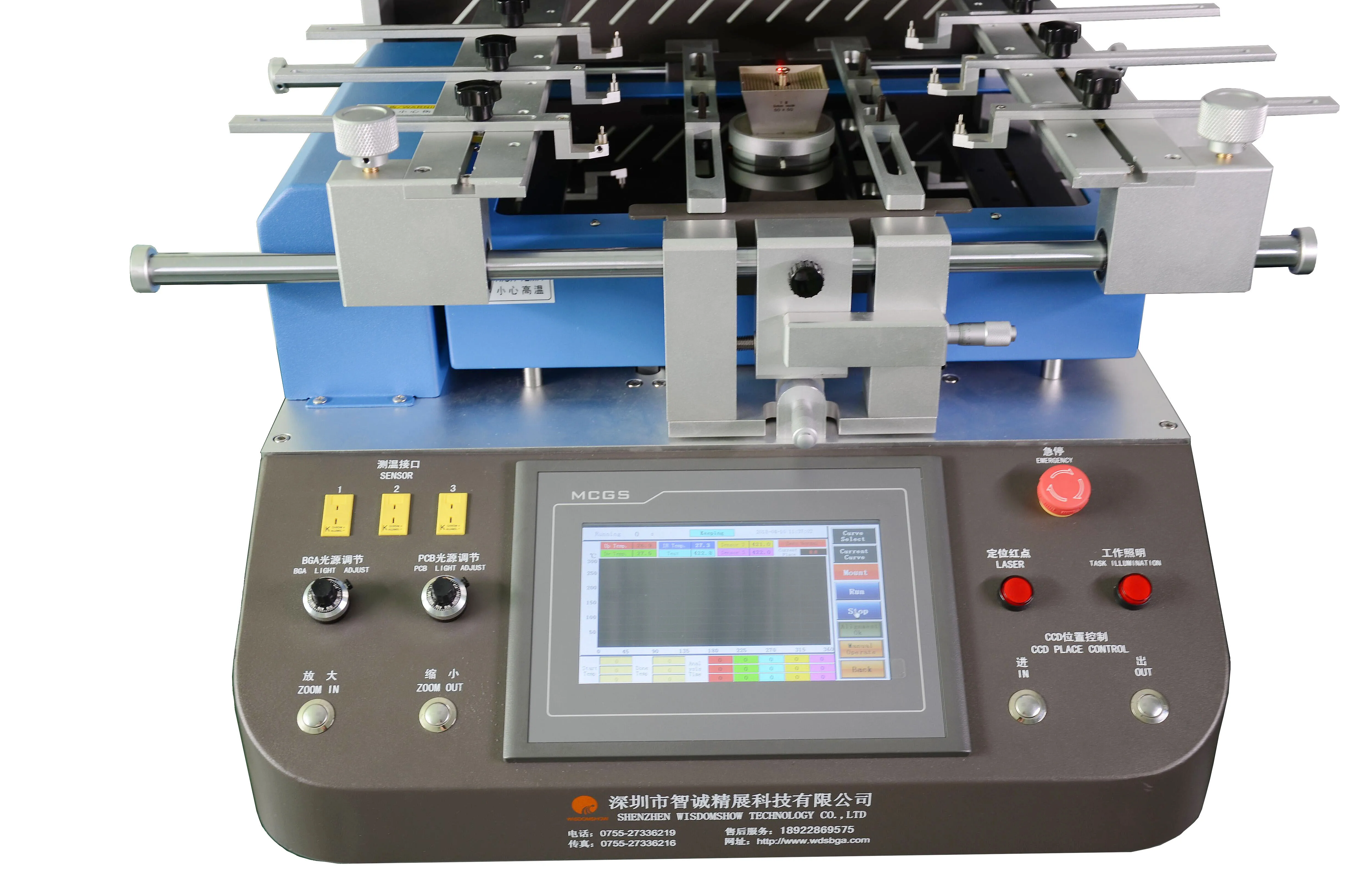

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation  and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

»»  Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of
temperature abuse, the circuit can power off automatically with the double over-temperature
protection.Temperature parameter having password protection to prevent any modification.
