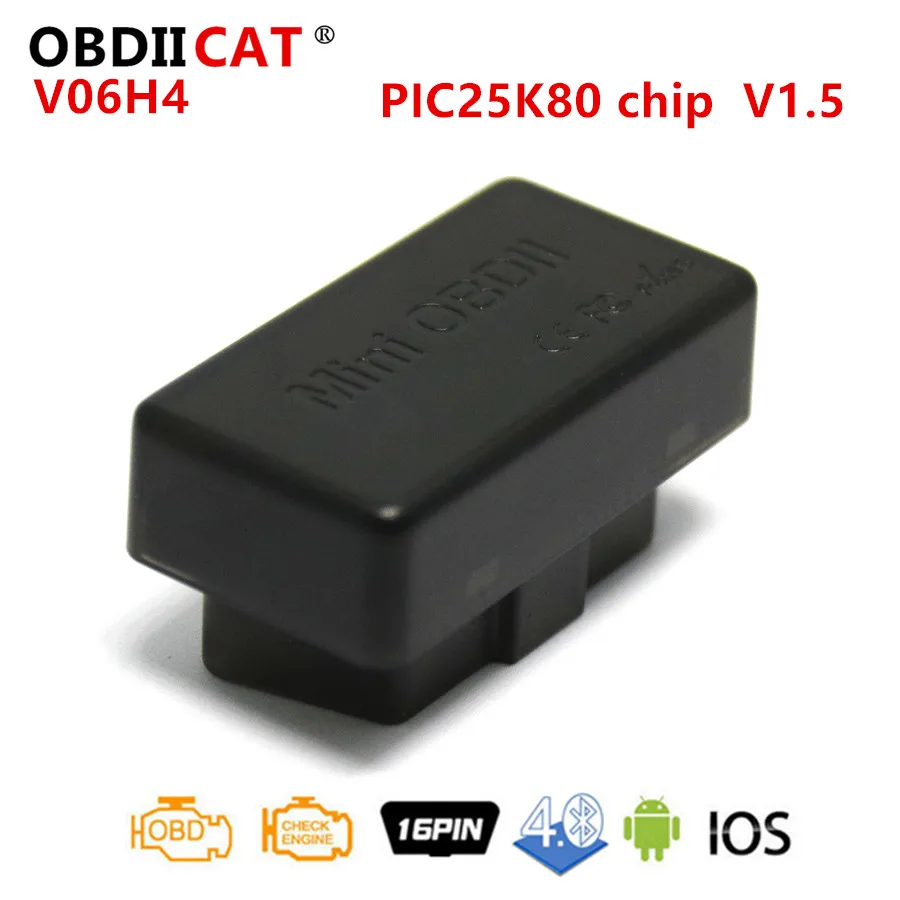

Mini OBDII ELM327 Bluetooth V1.5 V06H4/V06H4-1 support for Android/ Windows/iOS Car Diagnostic Scanner Tool | Автомобили и

Mini OBDII ELM327 Bluetooth V1.5 V06H4/V06H4-1 support for Android/ Windows/iOS Car Diagnostic Scanner Tool | Автомобили и

Feature:

Compact design, mini size, lightweight and portable, easy to carry.
It transfers data rapidly by Bluetooth.
Plug and play, easy to operate.
With stable performance and low power dissipation.
Using this tool you could know more about your car and get the information freely.
Software support: for Android / for Windows/ for iOS
Great for us to find the fault information in shorter time and deal with them in time.

Supports OBD-II protocols:

SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
for ISO 9141-2 (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (fast init, 10.4 kbaud)
for ISO 15765-4 CAN (11 bit ID, 500 kbaud)
for ISO 15765-4 CAN (29 bit ID, 500 kbaud)
for ISO 15765-4 CAN (11 bit ID, 250 kbaud)
for ISO 15765-4 CAN (29 bit ID, 250 kbaud)


Connection Operation：

①.Open the setting of your Android , and search Bluetoothfrom ELM327 : OBDII ，then input password 1234

②.

1.Open your Torque---setting

2.OBD2 Adapter Settings

3.Connection Type---choose Bluetooth---back

4.Choose Bluetooth DEVICE---OBDII[00: 1 D: A5: 02: 6F: 03]

5. Select Quit, then reopen the software and waiting for connection

  Software Address:

Android: ELM327 dentifier/Torgue/Dashcommand/Auto Doctor

PC: Scanmaster(www.elm327.com)

​

Specification:

Model: V06H4-1/V06H4

Connection: Bluetooth 4.0

Master chip: ST / PIC18F25K80

Hardware version: 1.5

Working temperature: -40°~85°
Working humidity: less than 60%
Working voltage: 9V~16V
Working current: 35mA
Standby current: 25mA
Color: black
Size: 43*25*23mm
Package size: 66*26*100mm

1pcs Car Diagnostic Scanner

​
