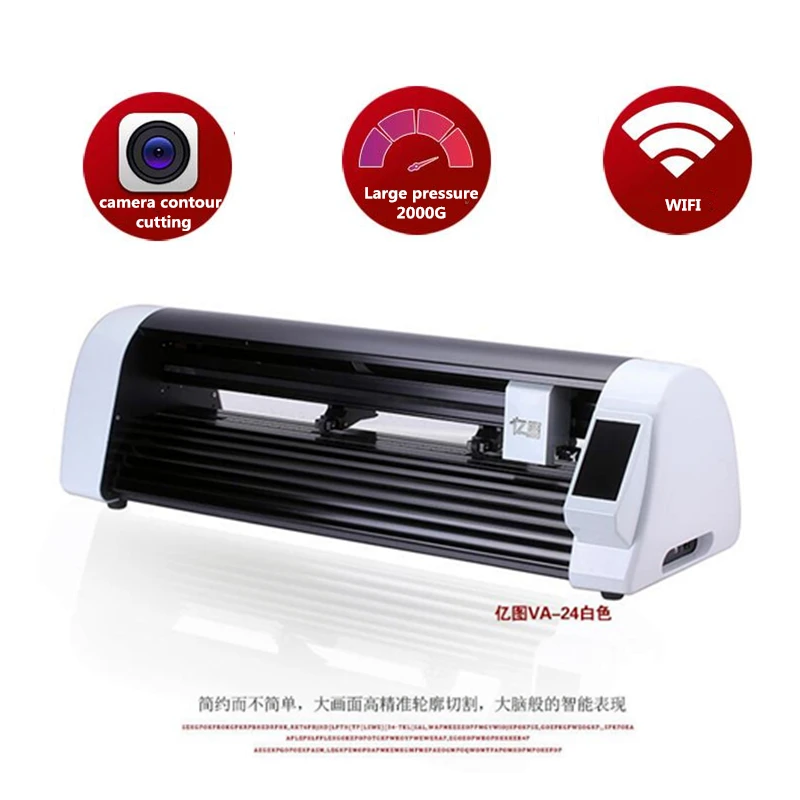

600mm laser cnc Cutting Plotter machine Digital Vinyl Sticker Camera profile die cutting machine with wifi for Industrial production

Product advantage:

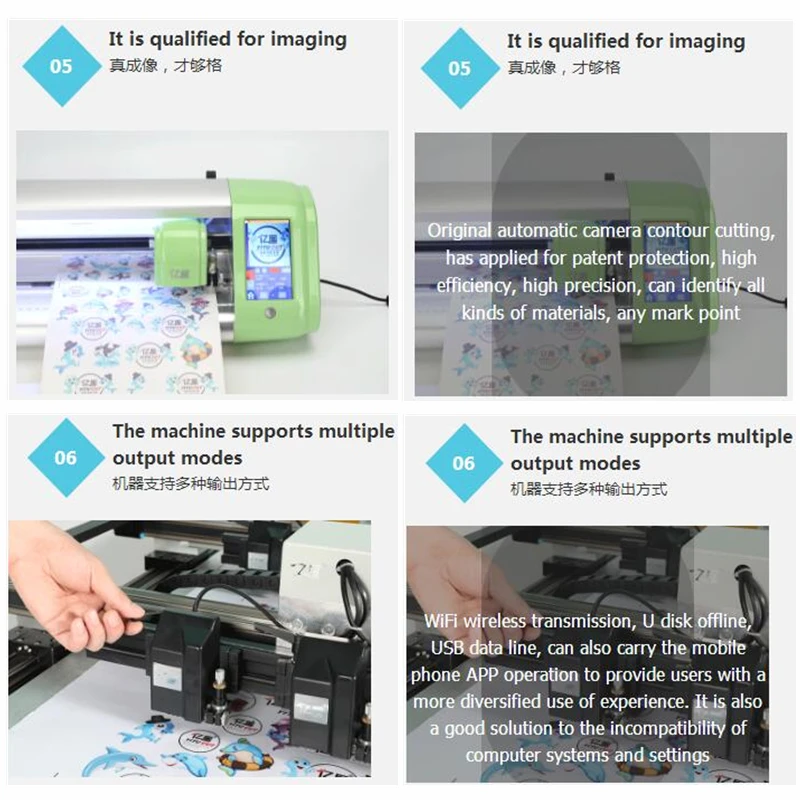

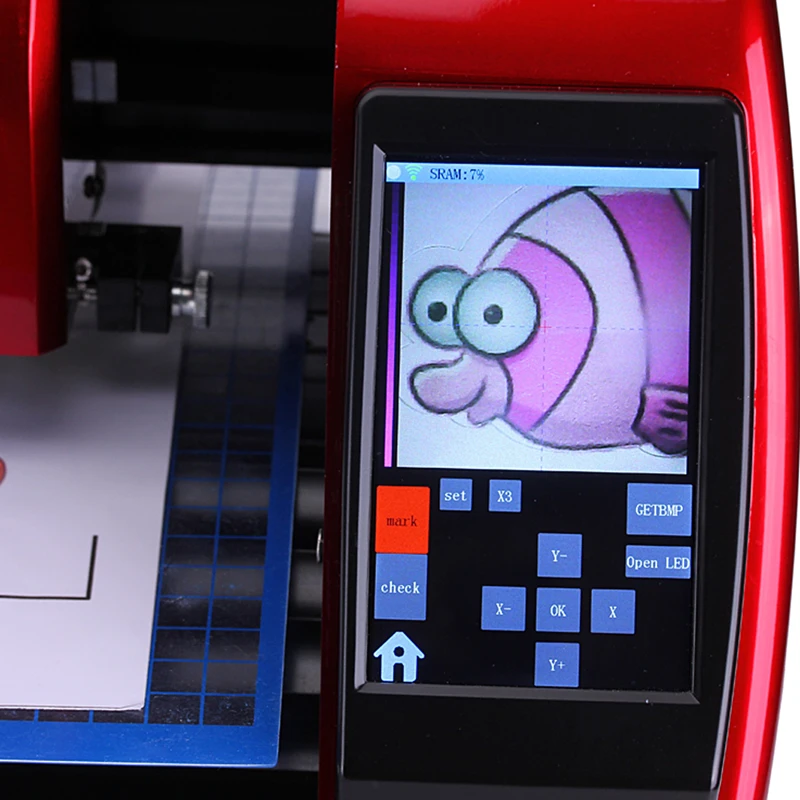

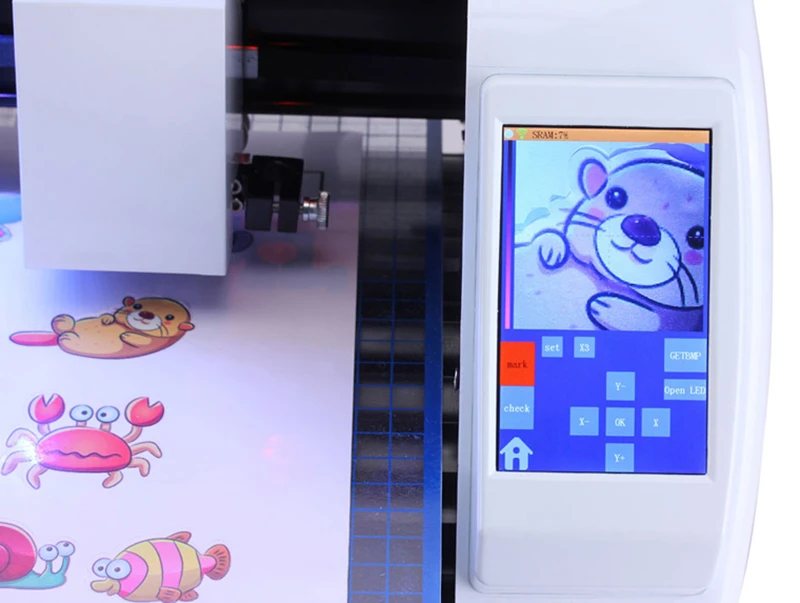

1. original automatic camera contour cutting, which has applied for patent protection, high efficiency and high precision

2. optimize the patrolling function, the camera can identify transparent and reflective materials, any color mark point

3. real USB, free drive, plug and play

4. built-in WIFI, analog phone setting interface, one button connection route

5. perfect support U disk offline cutting and batch inspection

6., image contour recognition technology can automatically generate contour lines by importing pictures, and save time for delineation of contour lines, especially for users who are not familiar with vector software.

7. multi mark point cutting edge cutting, segmented sweep point cutting, cutting large size pictures, the precision is very high, 5 meters cutting edge cutting error 0.2mm

8. mobile APP provides the best user experience, the most gorgeous interface

9. low noise, high speed, high precision, small print without jagged moment 2mm

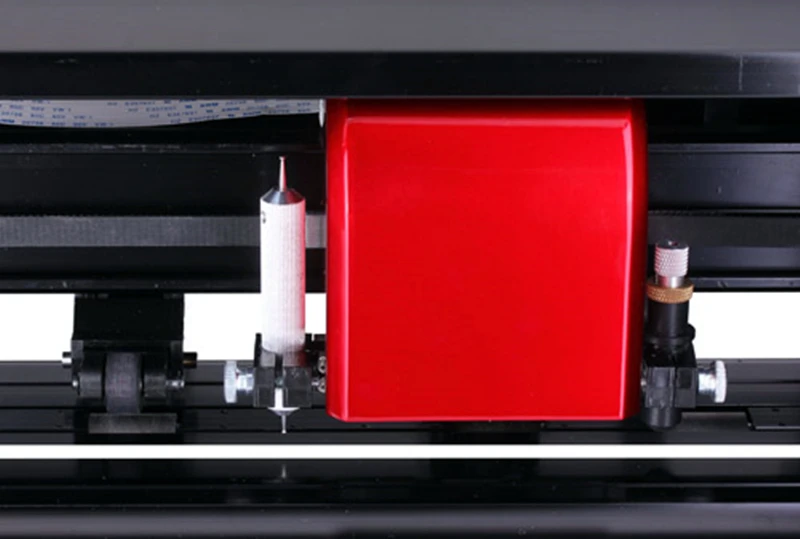

10. double head function, open cutting indentation semi cut high efficiency mode

Technical parameters :

Model

VA24

DA24 (dual heads)

MAX Paper width

720mm

720mm

MAX Cutting width

630mm

600mm

MAX Cutting linear speed

960mm/s

MAX Cutting Curves speed

750mm/s

Knife pressure

0-2000g

Cutting precision

+/-0.01mm

Repetition precision

0.082mm

Interface

USB Flash / WIFI / USB cable

Power waste

＜100w

Operating environment

temperature：+5-+35，Relative temperature 30%-70%

Packaging size (mm)

1000×375×370

Weight

16.8/14KG

Add Laser

(2.5W blue light)

Optional
