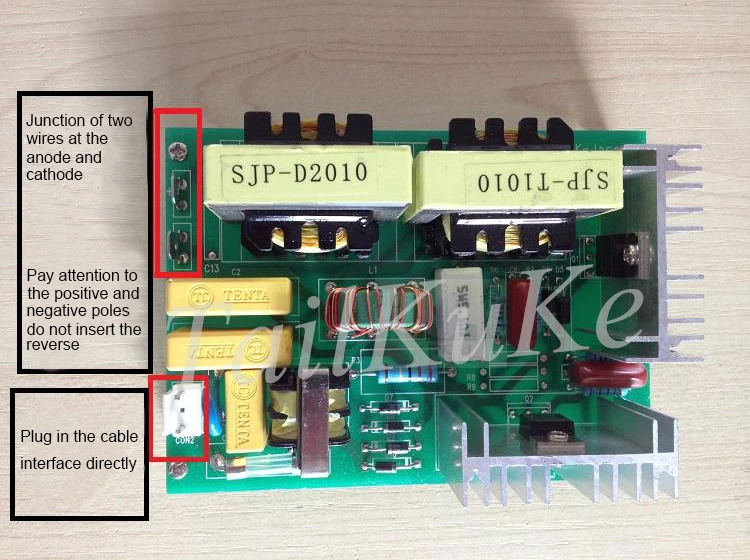

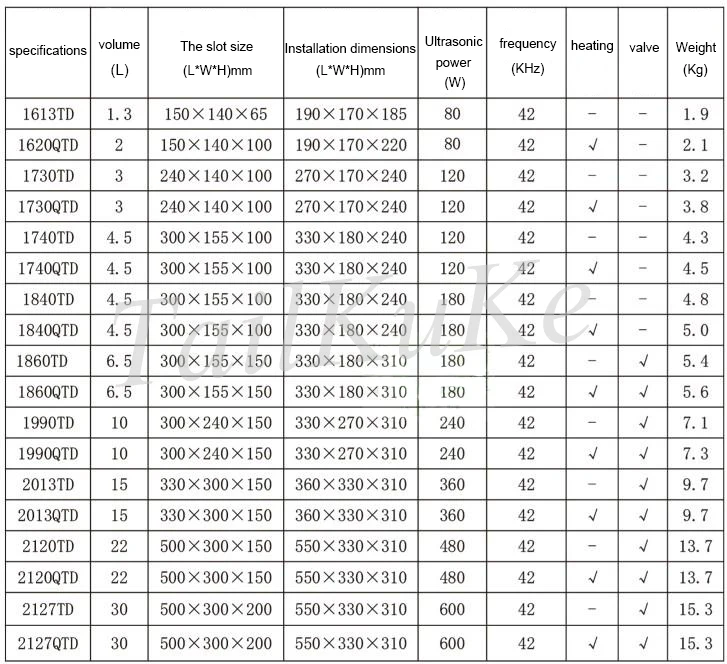

The main board of the ultrasonic cleaner is 120W high power PCB driver board. | Counters

The main board of the ultrasonic cleaner is 120W high power PCB driver board. | Counters

Circuit Board and Earthquake Head(Ceramic transducer)Wiring instructions:

1. The circuit board shall not be electrified without load.

2. Cleaning fluid should not be electrified without cleaning fluid.

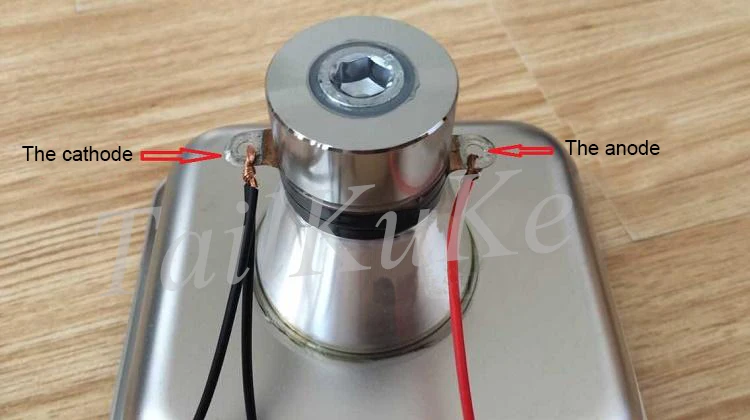

3. The two connection pieces of the shock head are divided into positive pole and negative pole, and can not be connected in the opposite direction.

4. Shaking headWelding power cord must be welded on one side with two silver layers and on the other side with vibration surface, which can be pasted under the cleaning basin.(This is a description of the components for purchasing ceramic transducers.)The silver layer on the ceramic sheet is not resistant to high temperature, and the soldering temperature of the soldering iron should not exceed that of the soldering power wire.280It is better to use constant temperature soldering iron. Set the temperature of soldering iron to 0.250Degree can

5. The larger side of the shaker head (with a screw hole) is that the shaking surface can be adhered to the bottom of the cleaning container. If the screw is welded by argon arc welding and glue is added, the steel plate is tightened to the bottom.

6. There should be no gap at the bottom of the bond.

The output positive and negative poles are respectively connected with the positive and negative poles of the shocks, so they can not be misconnected. If there is any doubt, timely consultation is needed to ensure safety.
