Product constitute
1. LED Wifi controller, it is the core of product, responsible for receive control signal and control led requipment;
2.RF Remote Controller, In the condition of not use smart phone as remote, you could choose it controller strip;
3.A Disk, include IOS Operating system and android operatiing system mobile soft.
4.A user manule.


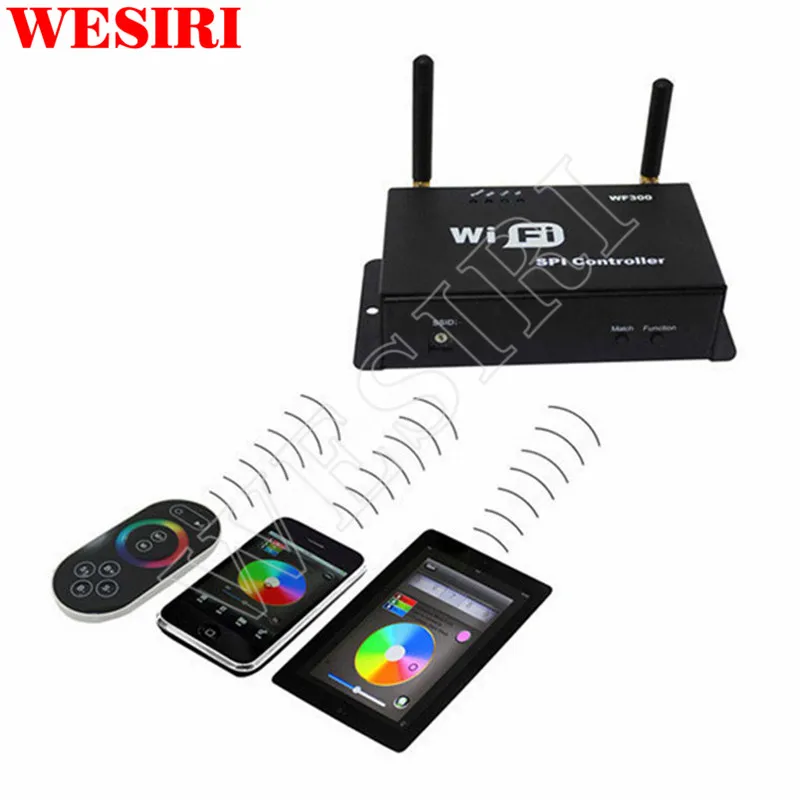

Summarization

     LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.

 Use WiFi technology can make our control range more wider, can get rid of narrow space constraint,

Summarization

     LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.

in building can control more than 50m, in outdoor can control more than 100m.

 In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.

 Use WiFi technology can make our control range more wider, can get rid of narrow space constraint,

 Technical Parameters

   1:Working temperature:-20-60

        2:Power supply method:AAA*3

        3:Supply voltage:1.5V*3

   4:Standby power:0.015mW

        5:Standby current:3uA

        6:Working current:200uA

        7:Emission current:10mA

        8:Remote control distance:about 30m

        9:Standby time:6 month

        1:Name:Magic Color

        2:Runtime platform: Android version support Android system(better one can support Samsung,

           HTC), IOS version support IOS system, equipment must have WiFi function.

        3:Language: English

4:Category: communications

    5:Free, green, no plug-ins

    1:Working voltage: DC5--24V

    2:Output control: SPI signal output

    3:Output current: 4A*3

    4:Connect mode: SPI signal wires(DATA, CLK)

    5:External dimension: L107*W65*H30(mm)

    6:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g

       OFDM(-15dBm)

After power on the controller, open the cellphone set of WIFI, search WIFI network, you will check WIFI equipment is named LN+number, for example"LN001", "LN003" and so on, as picture:

  The number after LN is controller SSID code, same controller can set different code, when in the same network environment have many controllers, it can distinguish. About the SSID setting, will be in details below.

Indicator light

Function table

Power

Power indicator light, long-time bright shows power supply normally

Wifi

Free time long-time bright, have wifi data enter flicker, configuration wifi Ssid off

Link

Have wifi date enter, then flicker, no wifi data, then off.

RF

Have RF remote data or press key operate, then flicker, free time off.

 The dial code is used for setting LED-WiFi controller Ssid number, corresponding table as below. Form 0 to 15, have 16 code in total, so our Ssid number fasten to LN001 to LN016. That means use our product in same small area can set 16 mutual isolation LAN, once the dial code changed after switch was dialed, Ssid number immediately be modified, so you need to note that it need to search and connect again.

code

SSID

0

LN001

1

LN002

2

LN003

3

LN004

4

LN005

5

LN006

6

LN007

7

LN008

8

LN009

9

LN010

A

LN011

B

LN012

C

LN013

D

LN014

E

LN015

F

LN016

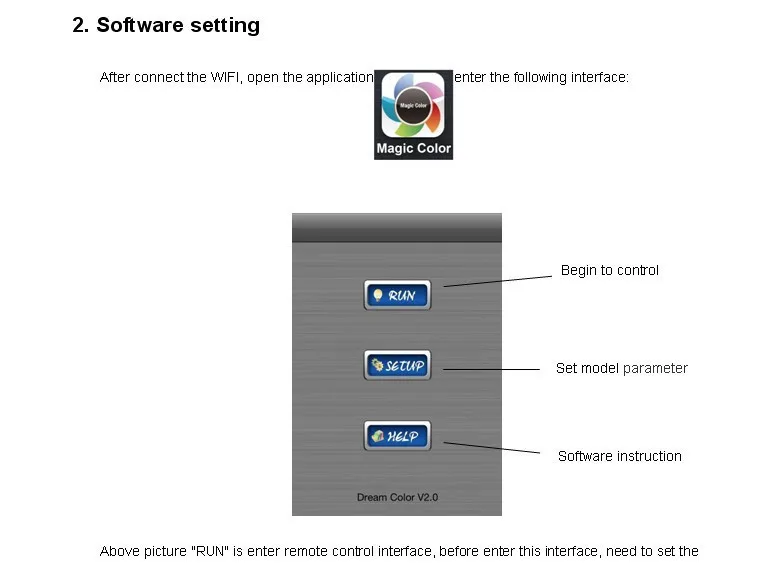

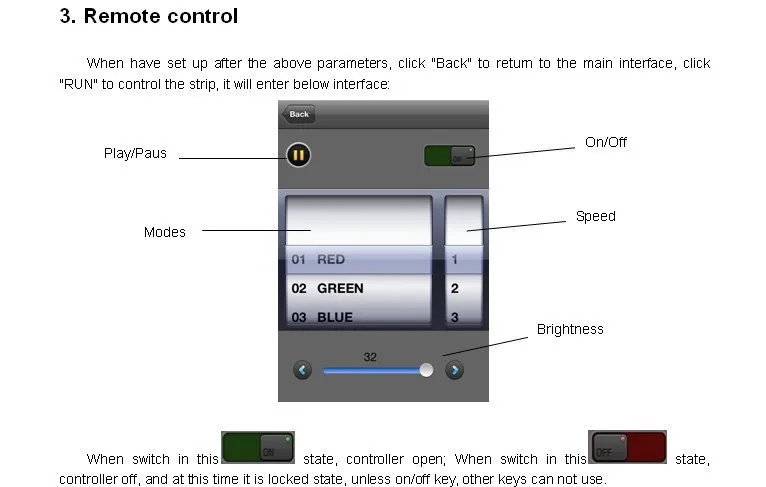

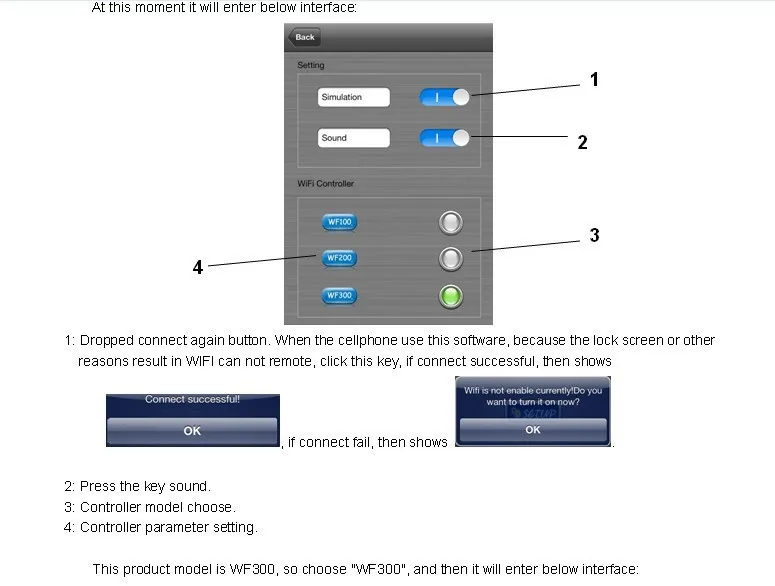

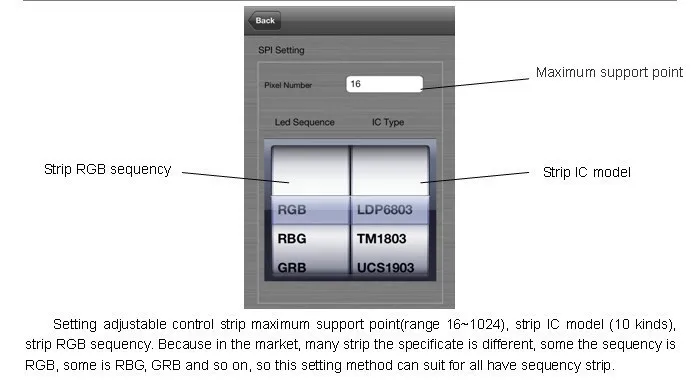

LED Strip according model connect corresponding port.

The first time use the controller and remote control, maybe because the controller address and remote control address is not match, it will cause the remote control can not control, at this time, it need to use this button to make this 2 address matched.

    Use method: first, press the controller "Match" key, at the same time press any key of the remote control, more than 2s, now the remote control indicator light RF will flicker 3 times, release "Match" key, then finished.

     “Function” key is a composite button, it have switch and mode change function.

Function instruction: long-time(more than 2s): on off;

                Short press(less than 1s): mode change.

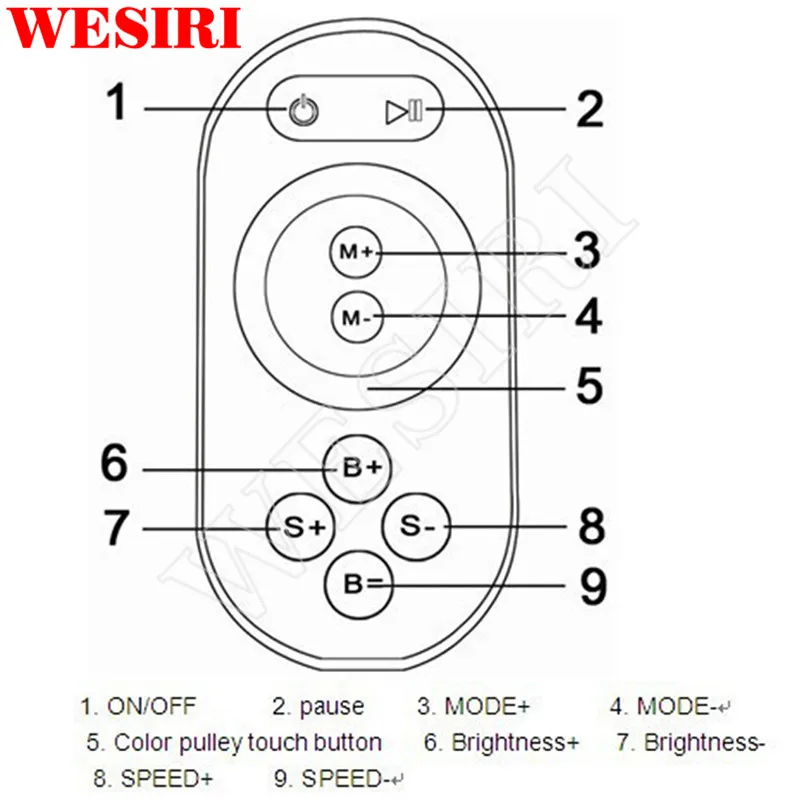

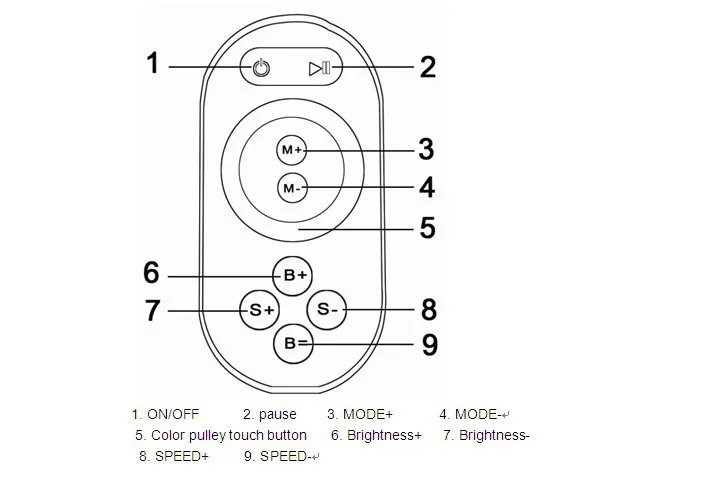

1. Controller panel have 64 touch point, and the function as follow:

            1. ON/OFF,you can turn on/off controller output at any time;

2. Pause,at dynamic mode, you can stop the controller at the current state;

3. This button have 2 functions :

                    Mode + choice key, when current control pattern is pulley pattern (color), if must

                      realize the pattern (color)in the controller, can press this key.

                    mode switch button, for the current control mode, you can switch M + key which

                      is specified mode (color) in the table.

4. This button have 2 functions :

        Mode - choice key,when current control pattern is pulley pattern (color), if must

          realize the pattern (color)in the controller, can press this key.

                   mode switch button,For the current control mode, you can switch M + key which

                      is specified mode (color) in the table.

5. The output brightness control key,every time you press this button, the brightness series

   add 1,altogether 32 levels.

6. The output brightness control key,every time you press this button, the brightness series

   minus 1, altogether 32 levels.

7. The output speed control key,every time you press this button, the brightness series

               add 1, altogether 99 levels.

8. The output speed control key,every time you press this button, the brightness series

               minus 1, altogether 99 levels.

9. Color pulley touch button, static mode choose button, up to 55 touch points.

this button have 2 functions:

                     static color choose button, when current control mode is the mode of M

                       key(color), if you want to realize static color ,can press this button.

                     pulley color choose button, can choose from 55 kinds of static mode

                       (the color from pulley).

        2. Power supply management: stop to use the remote more than 20s, the remote will enter the

  standby state (untouchable state), to extend the battery life; slightly shake once, then the

  remote will come back to the normal working state (touchable state).

  Notice:This remote control only can change the pattern, the brightness, the speed, if you want

         to change the controller IC model, the IC support point, the RGB sequency, then must

         connect WIFI through cell phone to change.

7. Controller built-in mode table

Modes

Mode instruction

1

Static red

2

Static green

3

Static blue

4

Static yellow

5

Static purple

6

Static cyan

7

Static white

8

Red horse race to right

9

Red horse race to left

10

Green horse race to right

11

Green horse race to left

12

Blue horse race to right

13

Blue horse race to left

14

Red horse race lower curtain

15

Green horse race draw curtain

16

Three base color horse race brush forward direction

17

Three mixing color horse race brush

18

Three base color horse race brush draw curtain

19

Three mixing color horse race brush lower curtain

20

Seven-color horse race brush forward direction

21

Seven-color horse race brush backward direction

22

Seven-color horse race brush draw curtain

23

Seven-color horse race brush lower curtain

24

Three base color brush forward direction

25

Three base color brush backward direction

26

Three mixing color brush forward direction

27

Three mixing color brush backward direction

28

Seven-color brush forward direction

29

Seven-color brush backward direction

30

Three base color brush draw curtain

31

Three base color brush lower curtain

32

Seven-color brush draw curtain

33

Seven-color brush lower curtain

34

Three base color stroboflash

35

Seven-color stroboflash

36

Three base color jumpy change

37

Three mixing color jumpy change

38

Seven-color jumpy change

39

Green-blue-yellow three color wave by wave running forward direction

40

Blue-yellow-cyan three color wave by wave running backward direction

41

Three mixing color  three color wave by wave running forward direction

42

Three mixing color  three color wave by wave running backward direction

43

Blue-yellow-cyan three color wave by wave running forward direction

44

Green-blue draw curtain

45

Blue-yellow lower curtain

46

Seven-color wave forward direction

47

Seven-color wave backward direction

48

Blue trail backward direction

49

Red trail forward direction

50

Red trail backward direction

51

Green trail forward direction

52

Green trail backward direction

53

Blue trail forward direction

54

Yellow trail forward direction

55

Cyan trail forward direction

56

Purple trail backward direction

57

White trail forward direction

58

White trail backward direction

59

Seven-color running trail backward direction

60

Seven-color running trail forward direction

61

Change color cyan-red-cyan forward direction

62

Change color purple-red-purple forward direction

63

Change color purple-red-purple backward direction

64

Change color yellow-green-yellow forward direction

65

Change color yellow-green-yellow backward direction

66

Change color cyan-green-cyan forward direction

67

Change color cyan-green-cyan backward direction

68

Change color purple-blue-purple forward direction

69

Change color purple-blue-purple backward direction

70

Change color cyan-blue-cyan forward direction

71

Change color cyan-blue-cyan backward direction

72

Change color white-red-white forward direction

73

Change color white-red-white backward direction

74

Change color green-red-green forward direction

75

Change color blue-red-blue backward direction

76

Change color yellow-red-yellow forward direction

77

Change color yellow-red-yellow backward direction

78

Change color red-yellow-red

79

Change color red-purple-red

80

Change color green-cyan-green

81

Change color green-yellow-green

82

Change color blue-purple-blue

83

Automatically play 8-82

This connector structure belong to drawer structure, the device interface of power supply and LED is together, four interface one the left side (GND,CLK,DATA, LAT)is connect led equipment, the fifth interface is connect the anode V+ of power supply, the sixth interface is connect the cathode V- of power supply. This controller now can support 10 kinds of SPI strip in market, As follows:

Number

Model

Signal line

1

LPD6803

DATACLK

2

TM1803

DATA

3

UCS1903

DATA

4

WS2811

DATA

5

TM1812

DATA

6

TM1809

DATA

7

WS2801

DATACLK

8

TLS3001

DATA

9

TLS3008

DATA

10

P9813

DATACLK

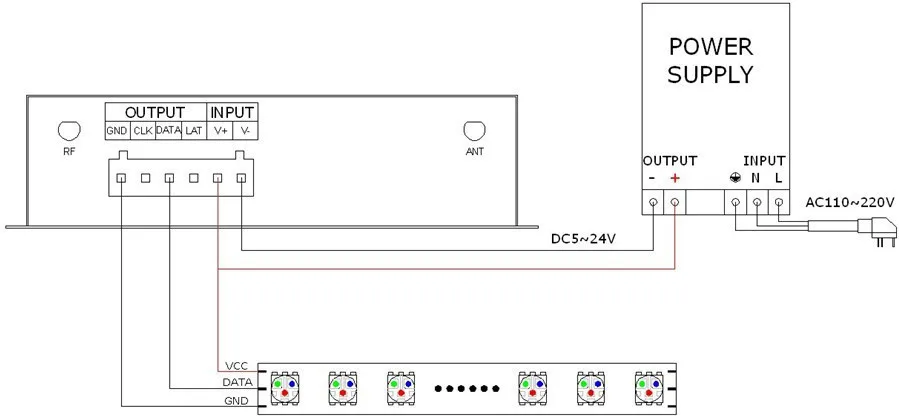

Wiring as WS2811 UCS1903

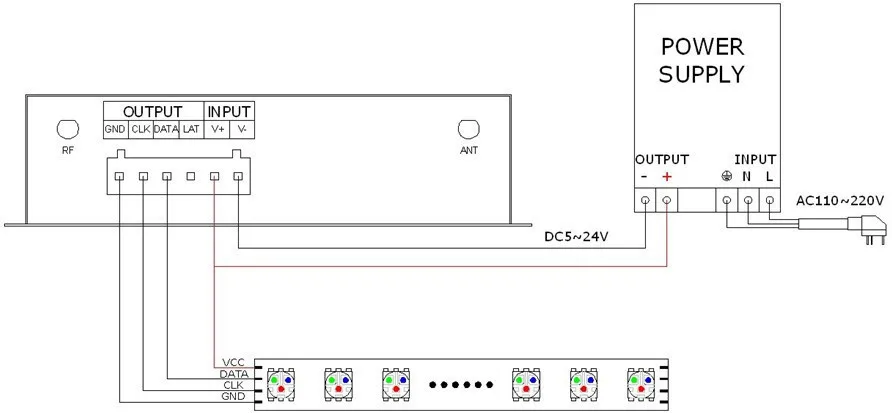

Wiring as WS2801 LPD6803 etc.
