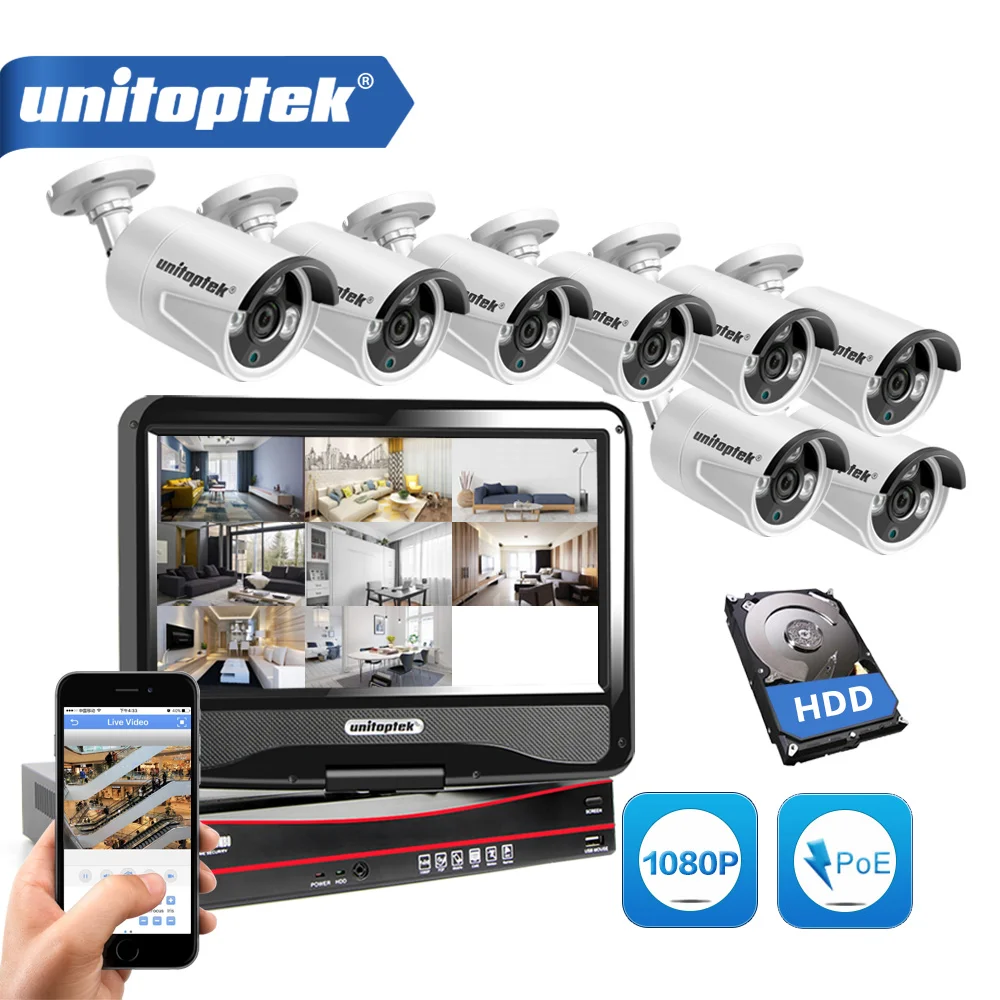

8CH 1080P CCTV System POE NVR System Kit With 10.1 LCD Monitor Screen 8Pcs Outdoor PoE IP Camera Onvif Security Surveillance Kit

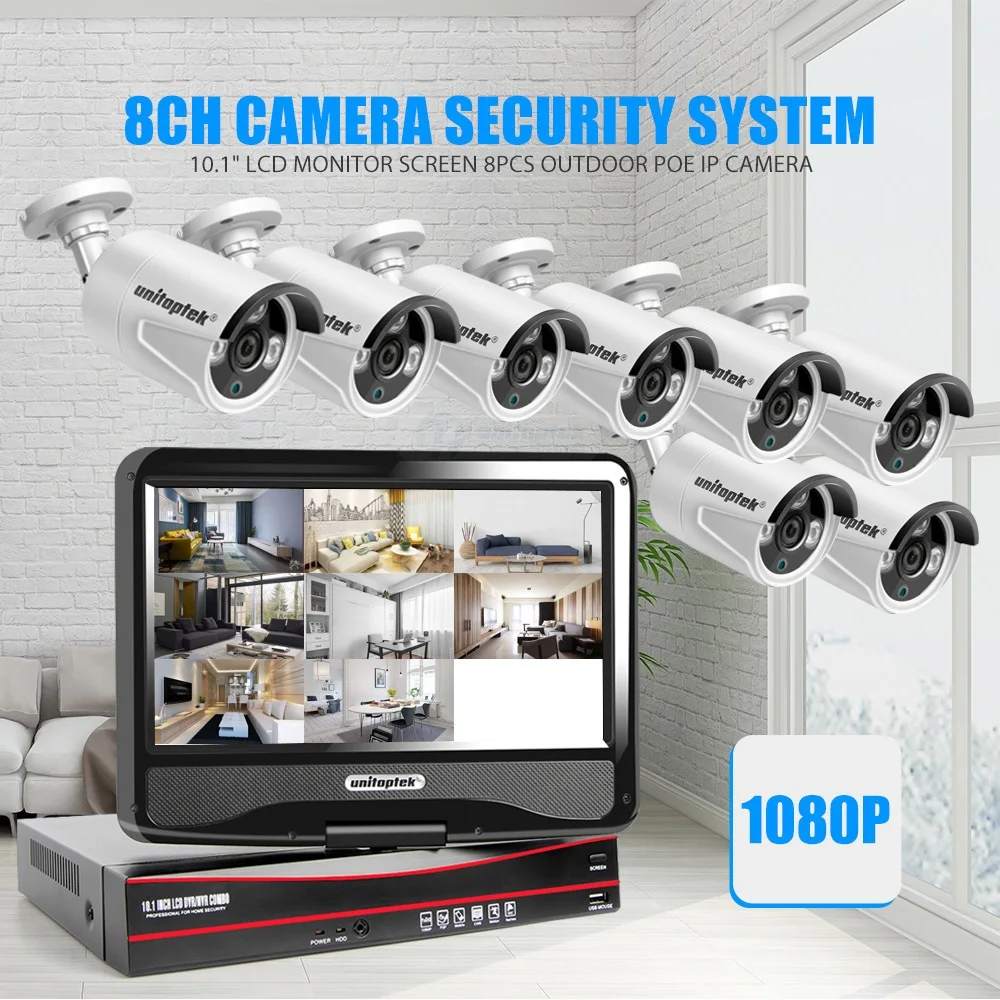

8Ch Camera Security System

10.1'' LCD Monitor Screen 8Pcs Outdoor POE IP Camera

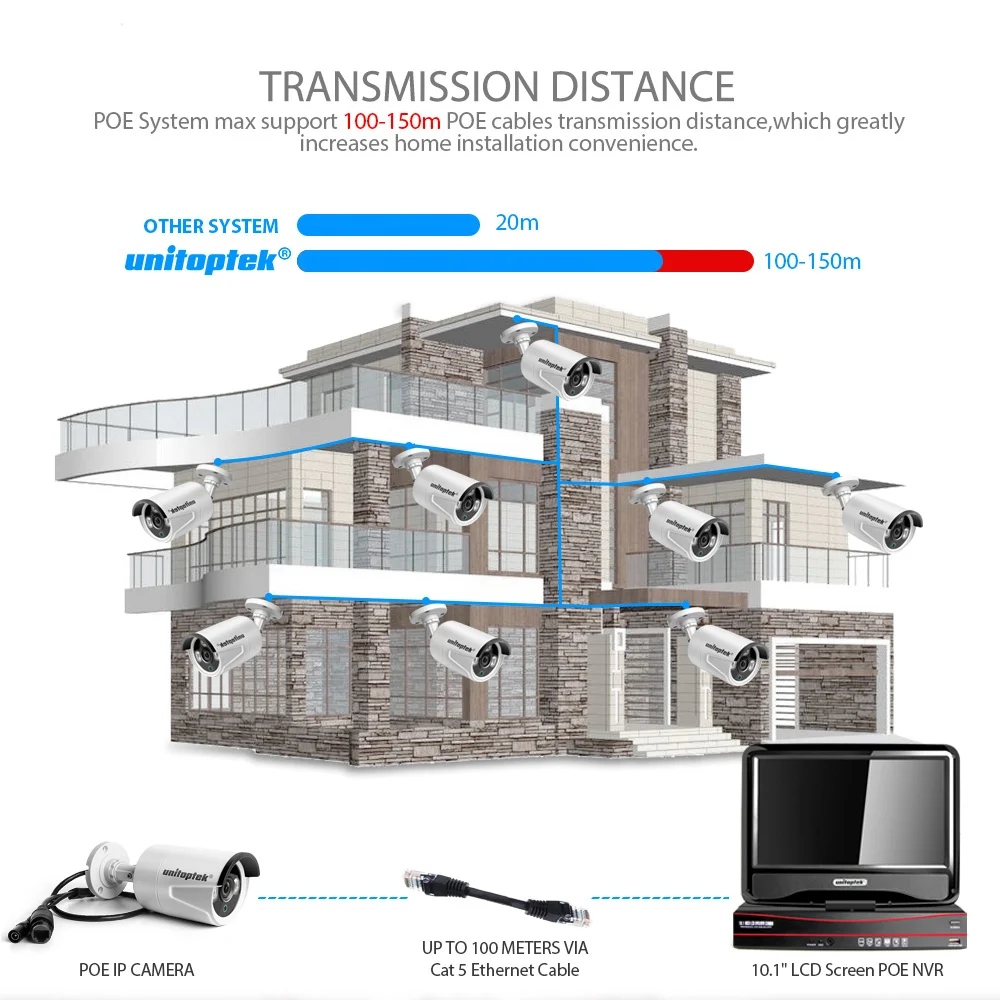

Transmission Distance

POE System Max Support 100-150m POE Cables Transmission Distance,

Which Greatly Increase Home Installation Convenience

Video With Smart Playback

Simultaneous Multi-Channel Real-time Recording, Playback, Network Operationm USB Backup

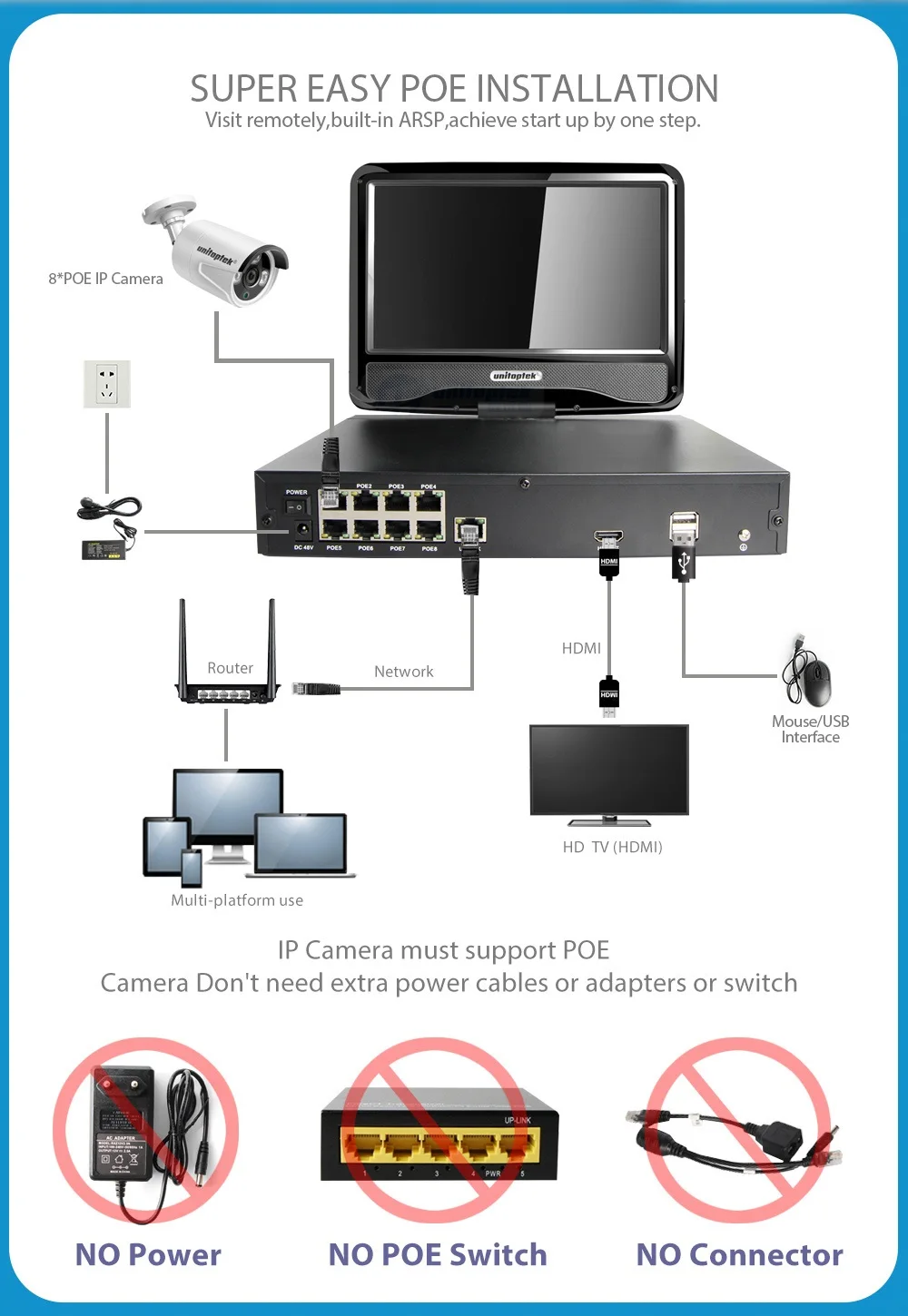

Super Easy POE Installation

Visit Remotely, Built-in ARSP, Achieve Start Up By One Step.

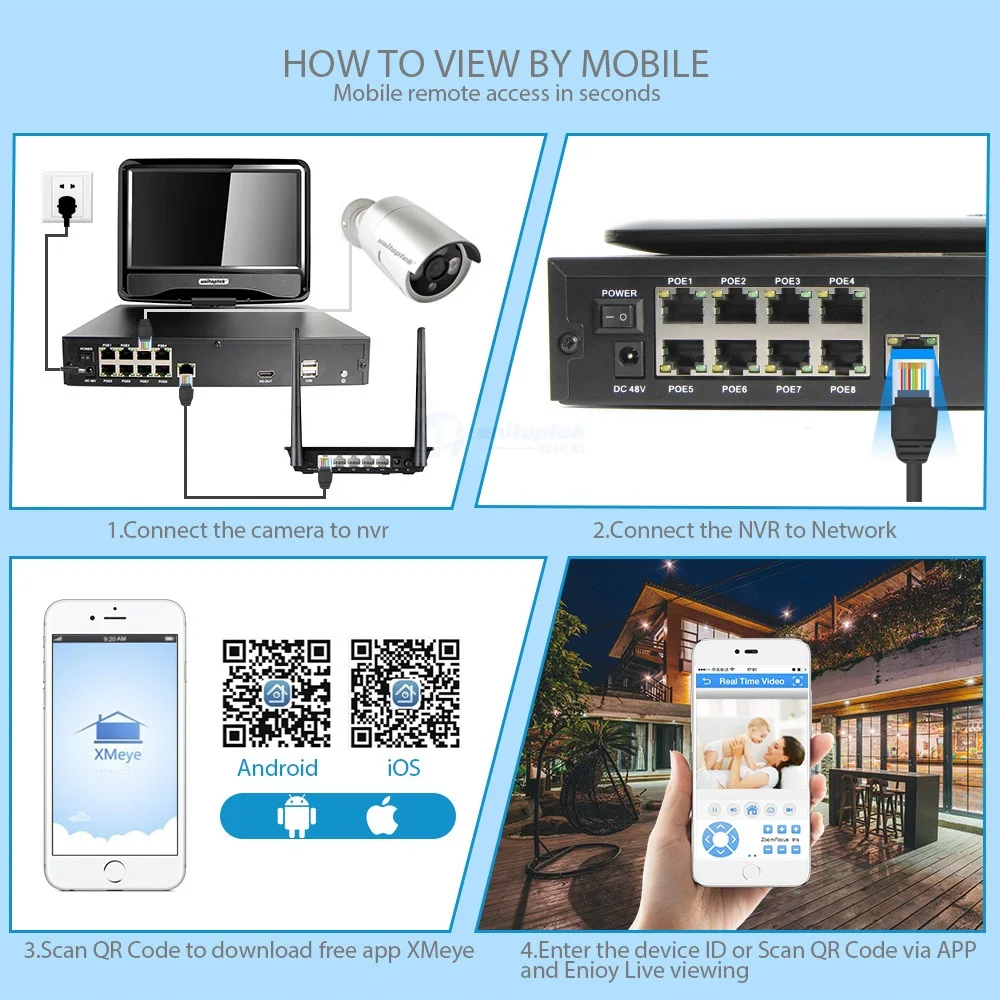

How To View By Mobile

Mobile Remote Access In Seconds

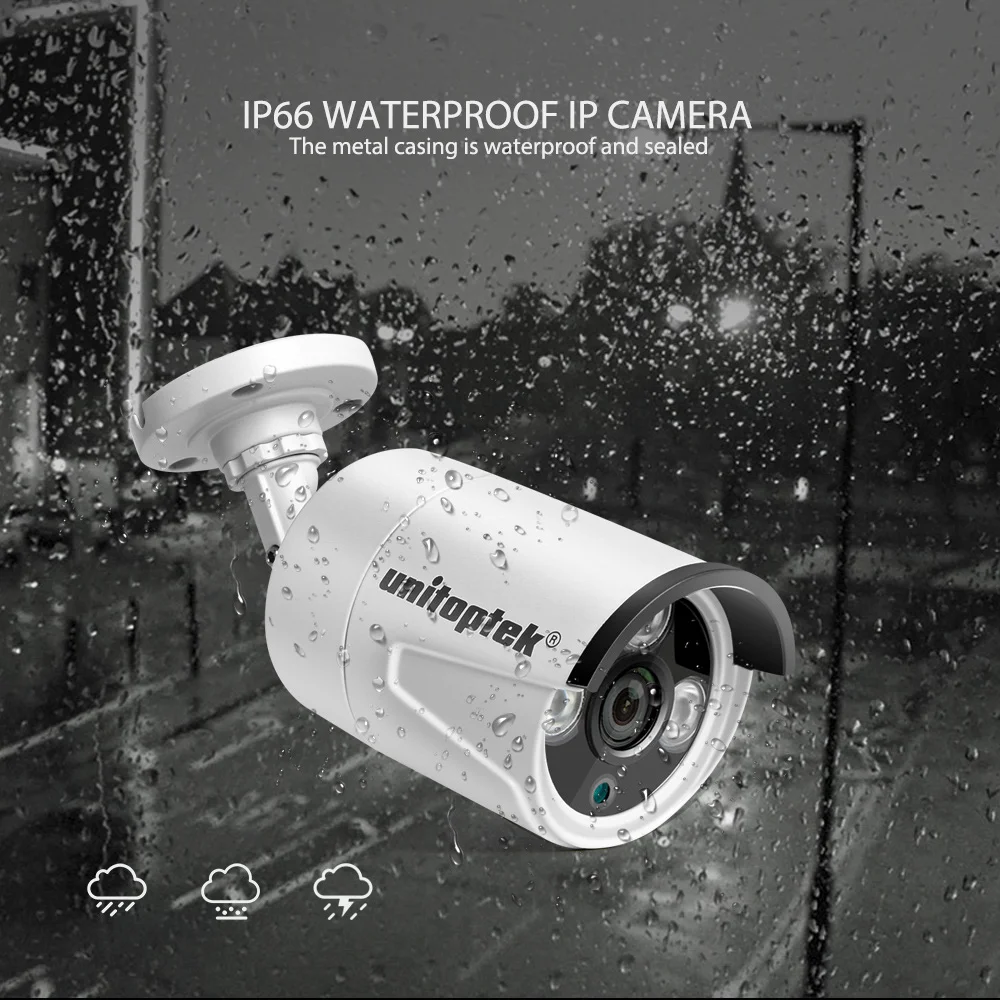

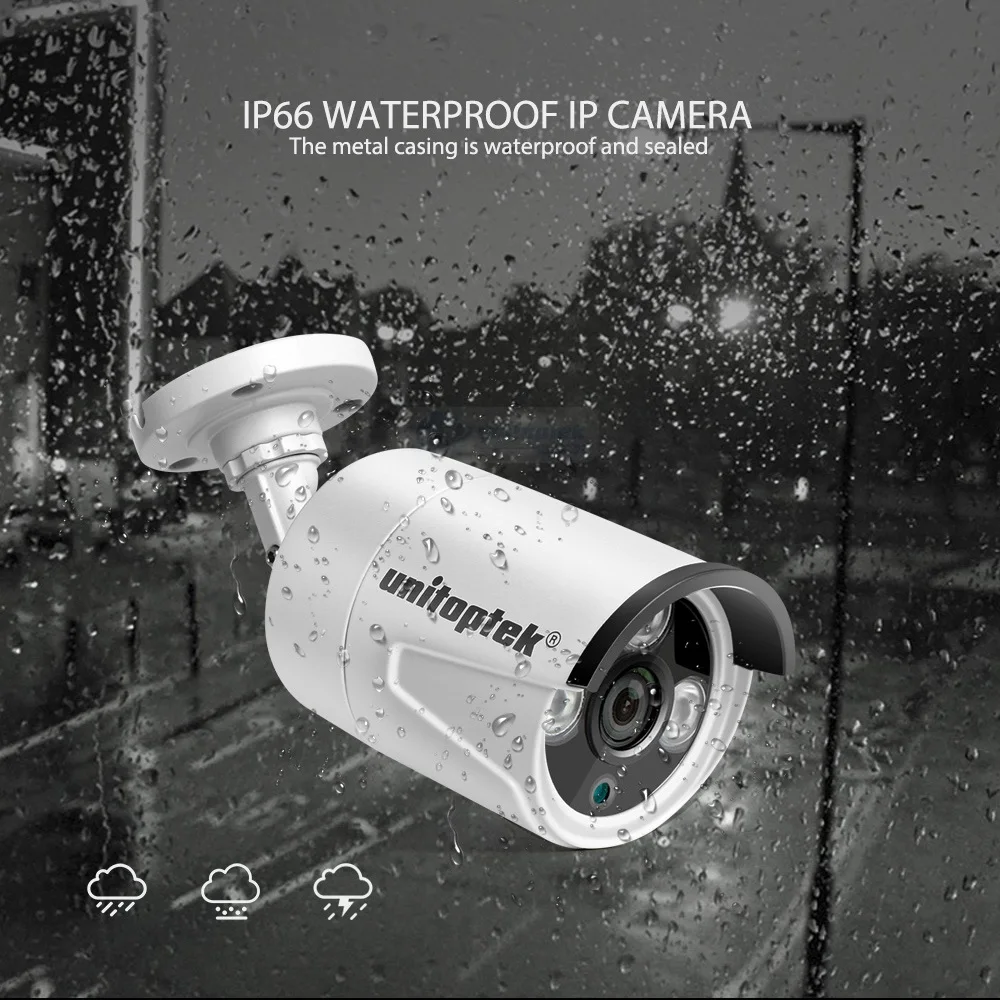

IP66 Waterproof IP Camera

The Metal Casing Is Waterproof And Sealed

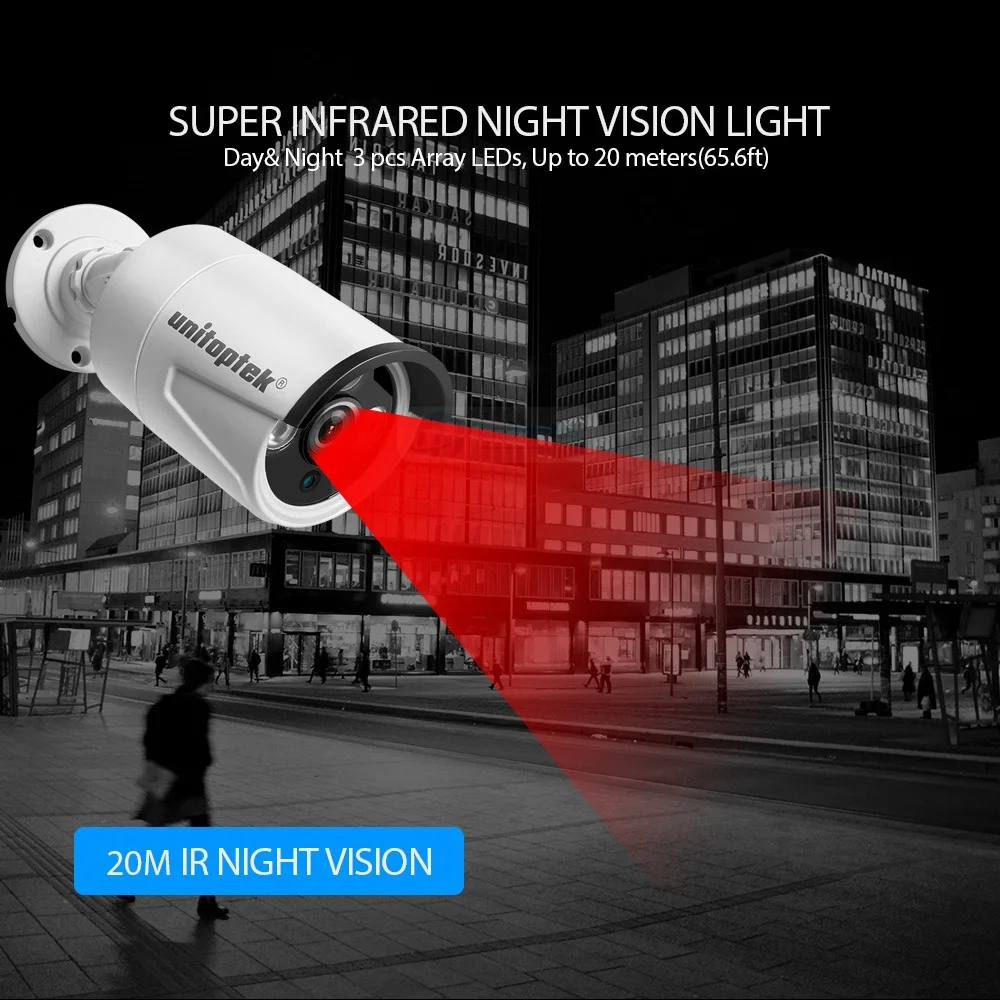

Super Infrared Night Vision Light

Day & Night 3Pcs Array LEDs , Upto 20 Meters (65.6ft)

Alarm Information Pushed To Phone

Support Multiple Cloud Technology, Network Penetration, Alarm Information

Pushed To Your Phone And Other Functions

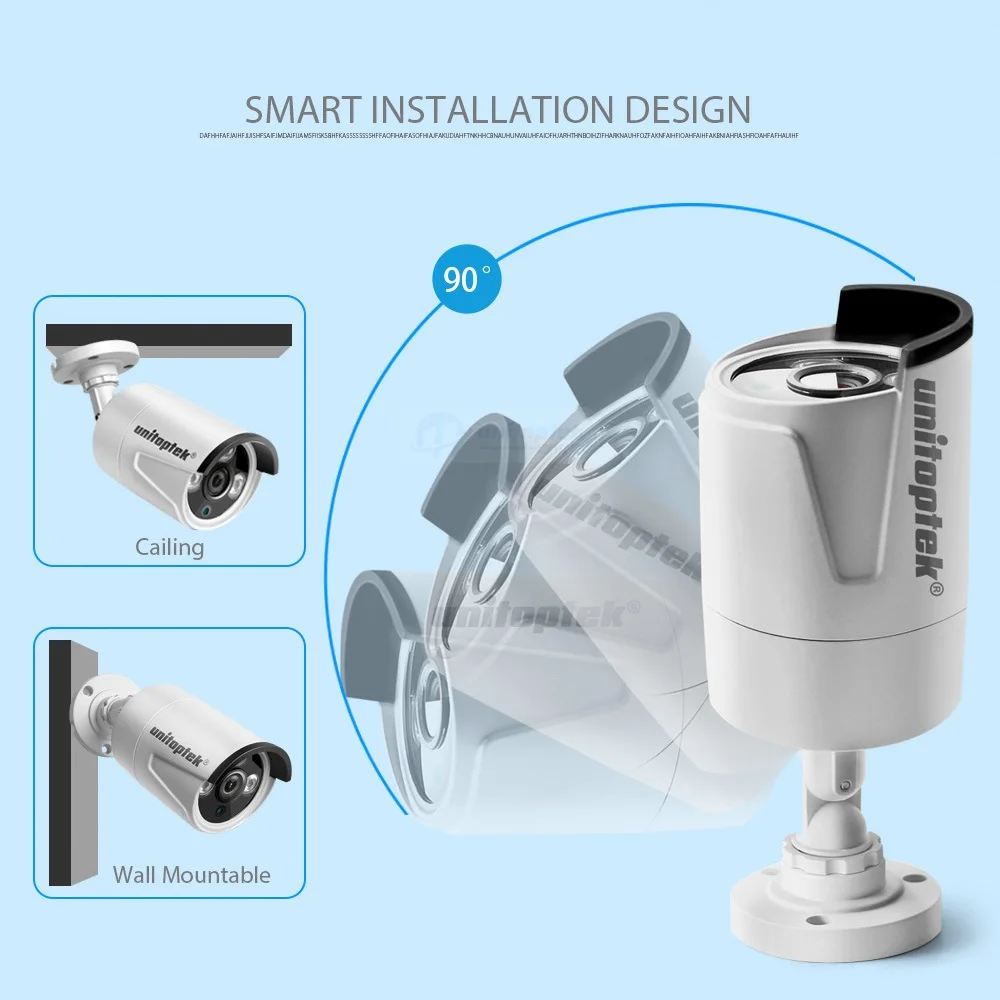

Smart Installation Design

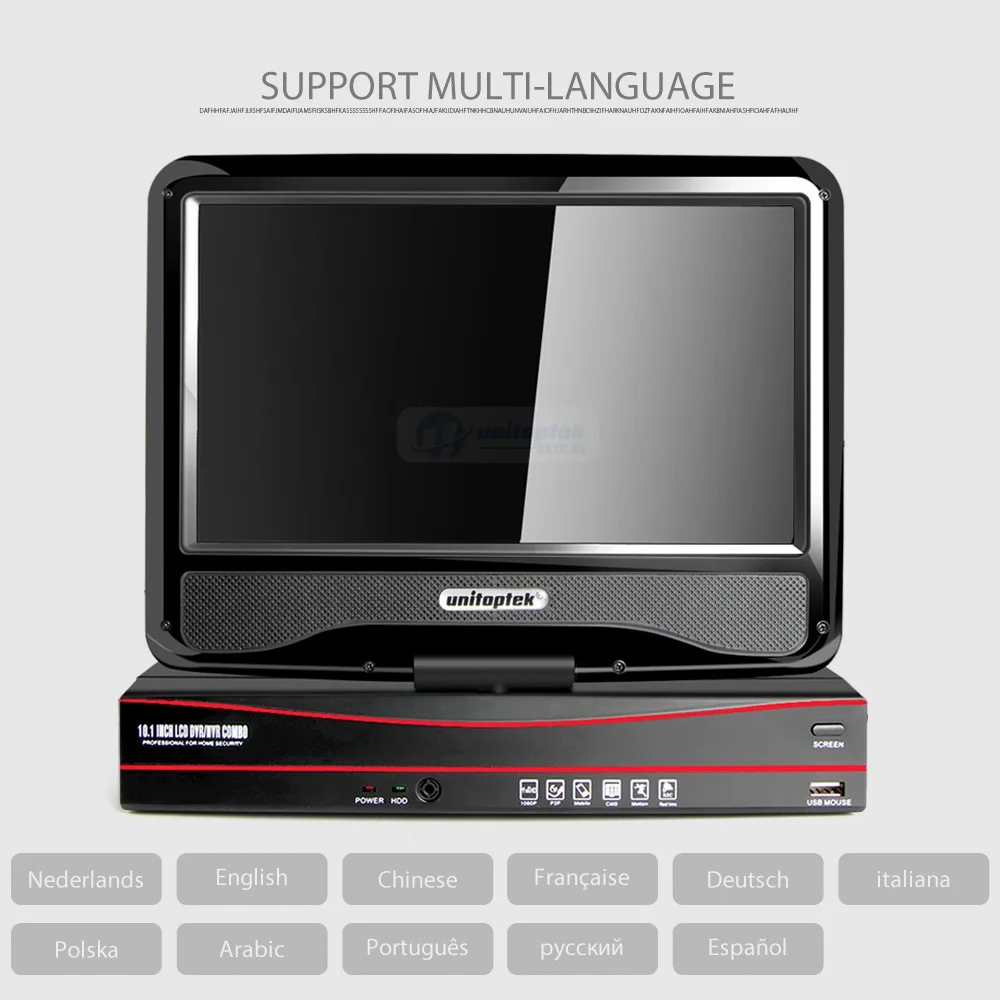

Support Multi-Language

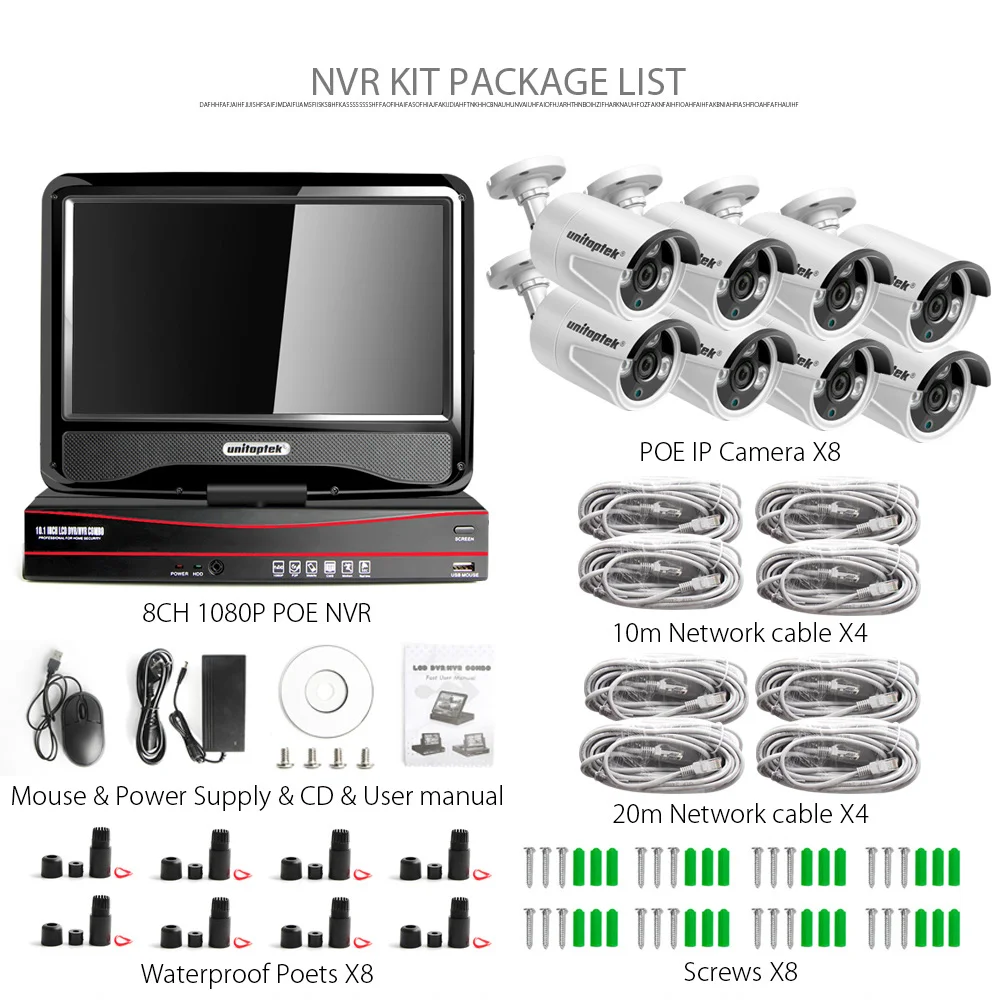

NVR Kit Package List

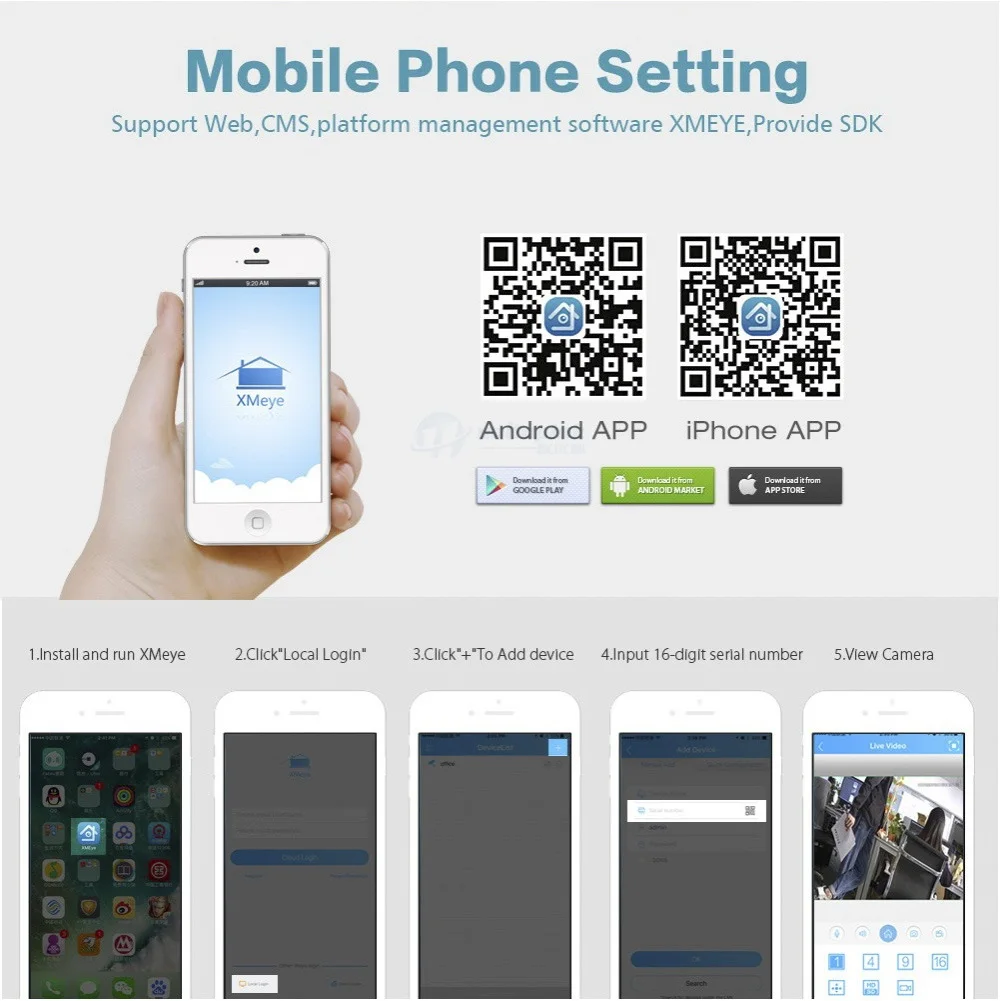

Mobile Phone Setting

Support Web, CMS, Platform Management Software XMEye, Provide SDK

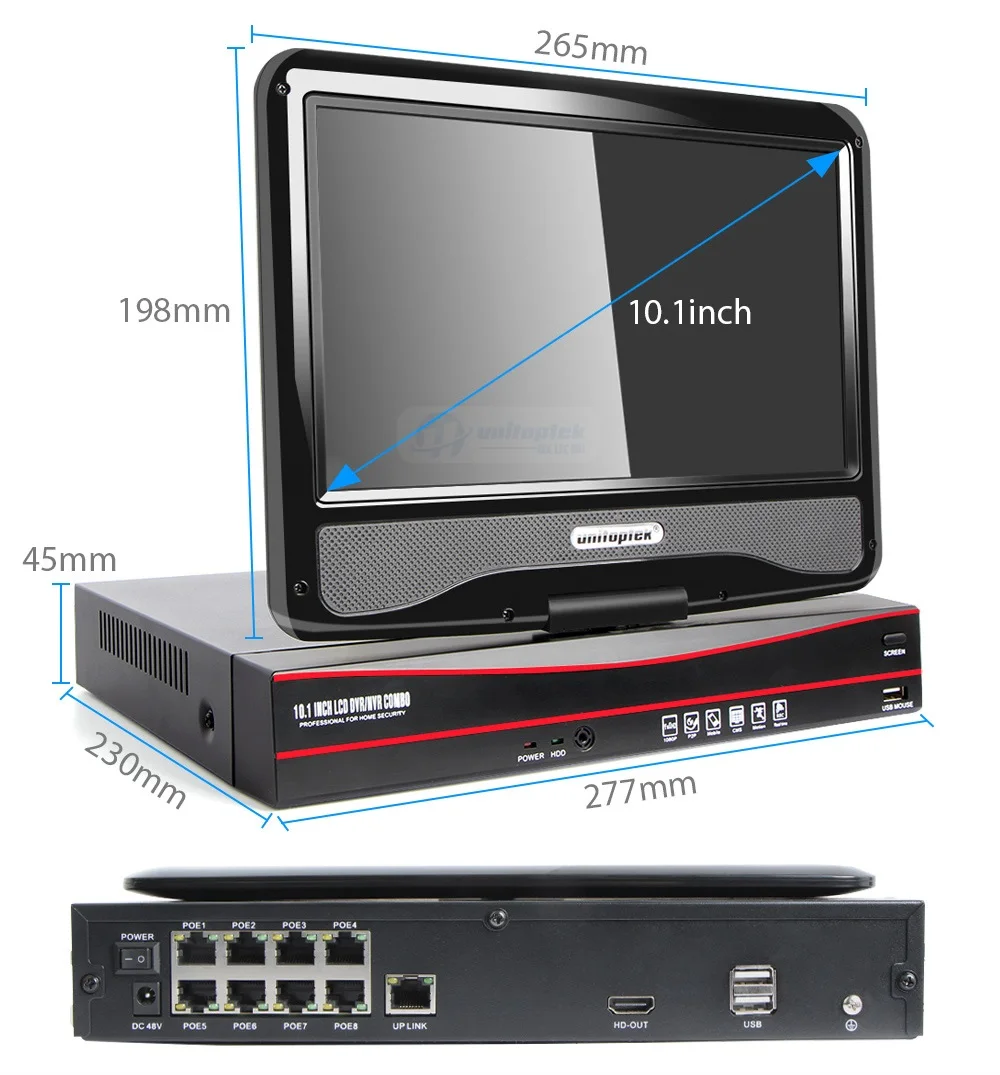

NVR Specification(N5508FN-POE) :

With 10.1'' LCD Monitor built-in LCD Screen resolution

Main processor : HI3520D

Operating System : Embedded Linux

System Resources : Simultaneous Multi-channel real-time recording, playback, network operation, USB backup

Operator interface :16-bit true color graphic menu operation interface, support mouse operation

Preview :  1/4/8

Video input (IP) :  8*1080p

Video standards : PAL(625TVL,50f/s);NTSC(525TVL,60f/s)

Video compression H.264

Display quality Max:Max 1080P

Playback quality : 2*1080P

Decode :  2*1080P

Motion detection : Supports

Recording mode :Manual>Alarm>Video Detection>Continuous

Search mode search by Time/calendar/event/channel

Record Storage :HDD ,network

Backup mode : Network backup, USB hard disk, USB burner, SATA burner

Video output : 1ch HDMI HD output

Network interface : 1* 10M/100M Adaptive Ethernet port,8 POE ports

USB interface :2*USB2.0 port

Hard disk Port: 1*SATA(Up to 8TB )

PTZ control :Control PTZ device by network

ONVIF : Support

PoE Standard :IEEE802.3af With 15.4W Output Each Port

LCD Monitor : HD 10.1'' High Quality monitor

Power supply : 48V 2.5A/ 3A

*Language Available:Dutch, English, Chinese, French, German, Italian, Polish, Arabic, Portuguese, Russian, Spanish.

IP Camera Key Features(IPCX-H62-2MP-P):

1.High sensitivity CMOS Image sensor.

2.Mobile surveillance: Android,iPhone OS.

3 Mobile APP(IOS,Android):XMEye

4.Support ONVIF 2.0

5.Support POE Power Supply(802.3af)

IP Camera Specifications(IPCX-H62-2MP-P):

Model

IPCX-H62-2MP-P

Minimum Illumination

0.001Lux; 0Lux(IR on)

Electronic Shutter

Auto/Manual

Lens

4mm standard

Day& Night

3 pcs Array LEDs, Up to 20 meters(65.6ft),Depends on the size of lens

Digital noise reduction

3D DNR

Synchronization

Internal Synchronization

Video Compression

H.264

Max. Image Resolution

1920×1080 (1080P) for 2.0MP vesion

Frame Rate

25fps

Backlight compensation

Auto

White Balance

Auto

Motion detection

Support

Protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,

PPPoE, SMTP, NTP, UPnP,ICMP, FTP, 802.1X, HTTPS

Network Transmission

P2P penetrate automatic forwarding

System Compatibility

ONVIF 2.0

Detection and alarm

Client alarm,E-mail alerm

Communication Interface

1 RJ45 10M / 100M ethernet interface

Operating Conditions

-30 °C ~ 55 °C (-22 °F ~ 131 °F)

Humidity 10%~90%

Power Supply

DC 12V 1A or 2A (Not included) or POE Power Supply(802.3af)

Power Consumption

Max. 8 W

Waterproof

Yes

Connector

RJ45 & 5.5mm DC Plug

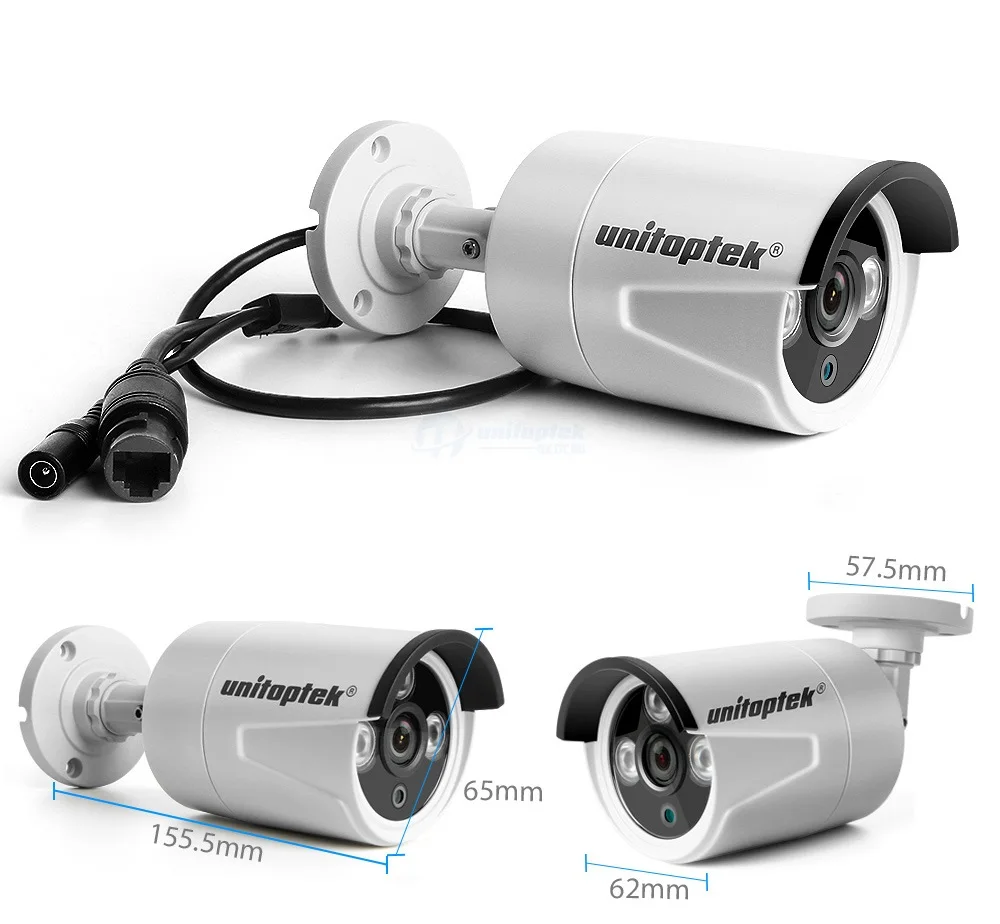

Camera Weight / Size

350g / 155.5*65*62mm

Packing Weight / Size

450g / 160*90*80 mm

Package Includes:     This is 1080P 2.0MP HD IP Camera NVR System

1 x 8CH 10.1'' LCD Monitor 1080P PoE NVR With 48V Power Adapter

1 X USB Mouse for NVR
1 x User manual (English) or CD SOFTWARE for NVR

8x 1080P POE Bullet IP Camera

4x 10m Network Cable

4x 20m Network Cable
