Basic Parameters

Heating

IR and HR

Dimension

L550mmx W550mmx H500mm

Weight

45kg

Total weight

About 70 kg, vary with the differen need of the users

Electrical Parameters

Power

220V AC

Upper Heating

IR and HR

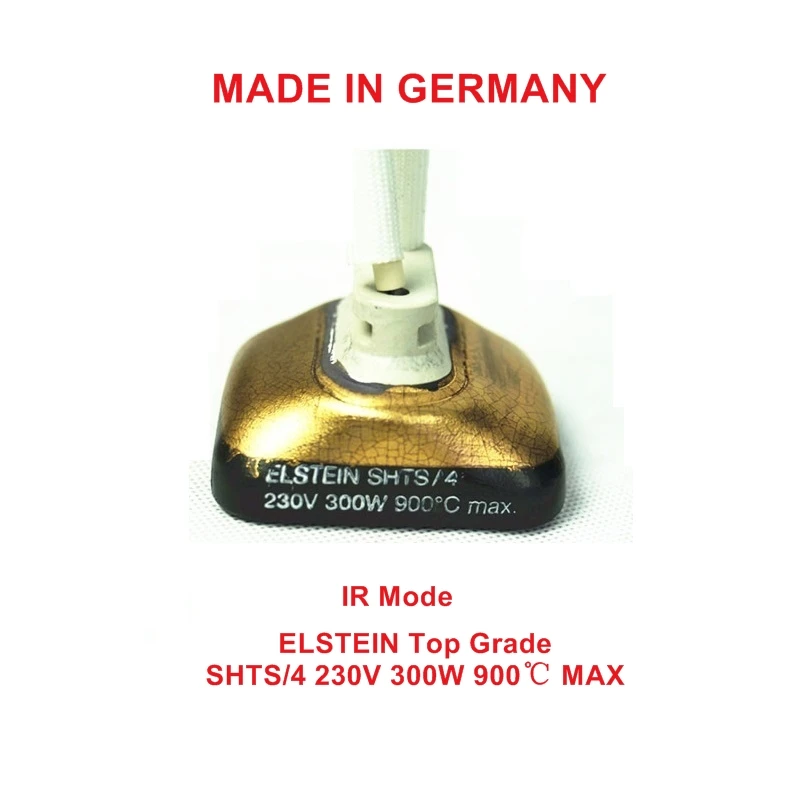

Size of upper (IR)

80*80mm

Consumption of upper (IR)

Nozzle of upper(HR)

4 pcs: 15x15, 31x31, 38x38, 45x45mm

Consumption of upper (HR)

800W

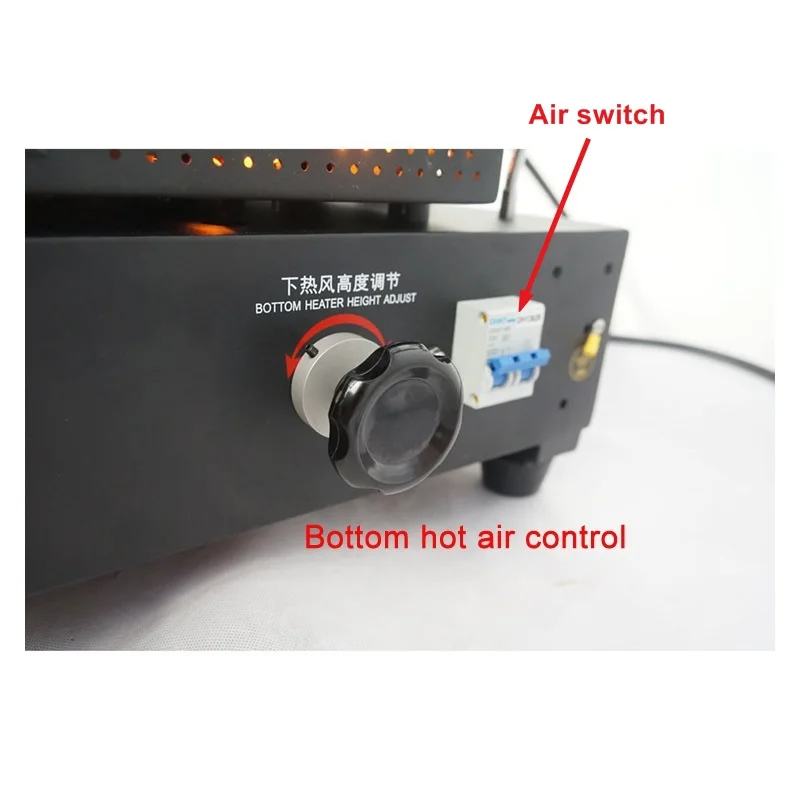

Bottom Heating

HR

Nozzle of bottom(HR)

1 pcs  58x58mm

Consumption of bottom (HR)

800W

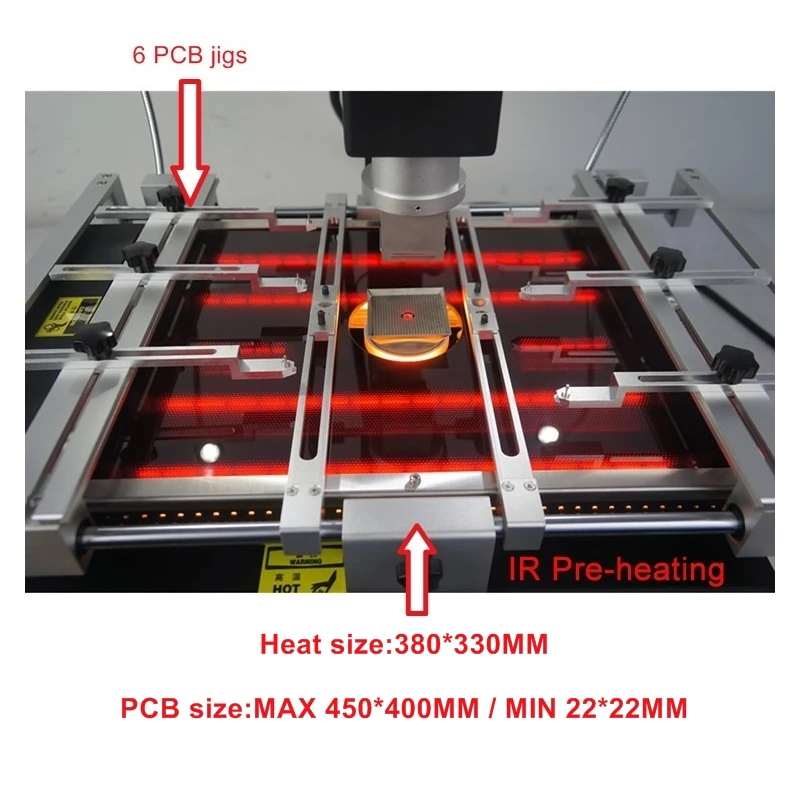

Bottom Preheat

IR

Consumption of preheat (IR)

4600W

General power

5.5KW

Temperature Control

Control mode of Upper

Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm

Control mode of Bottom

Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm

Rework Function

SMD

Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Rework welding

Size of applicable chips

≤80mm x80 mm

Size of applicable PCB

≤450mm x350mm

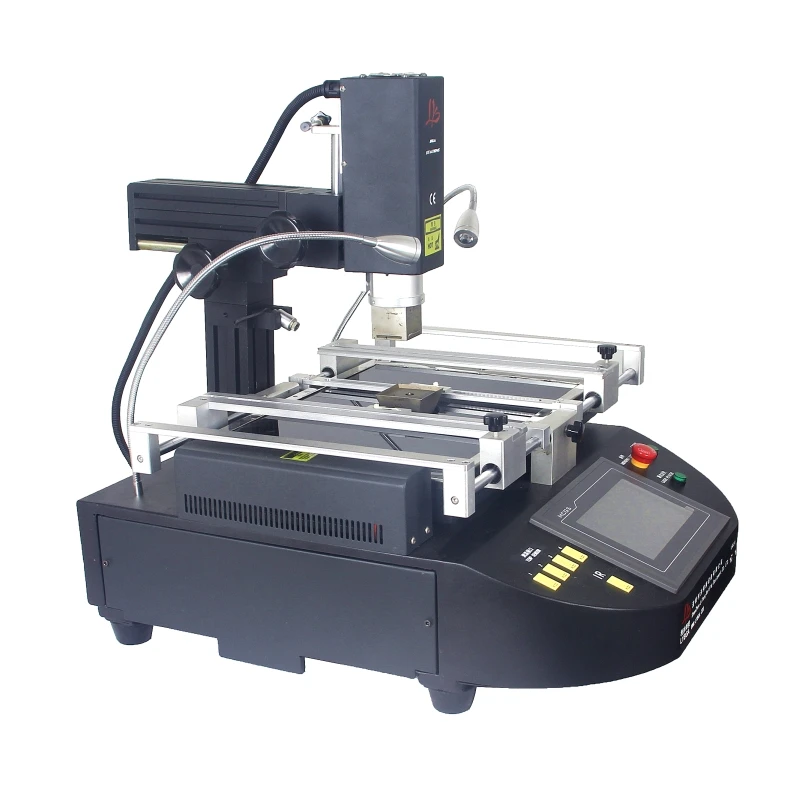

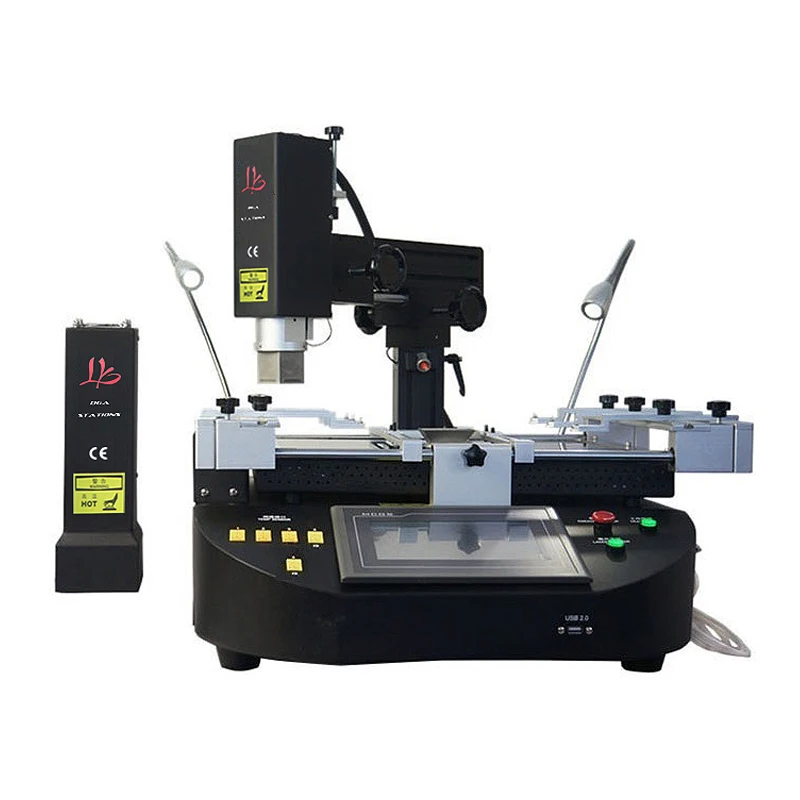

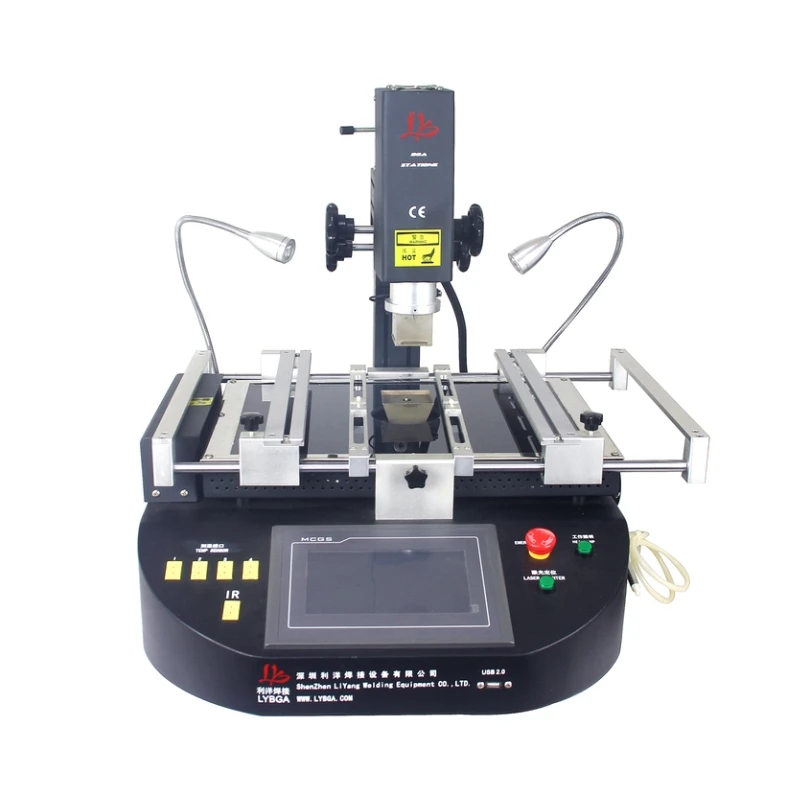

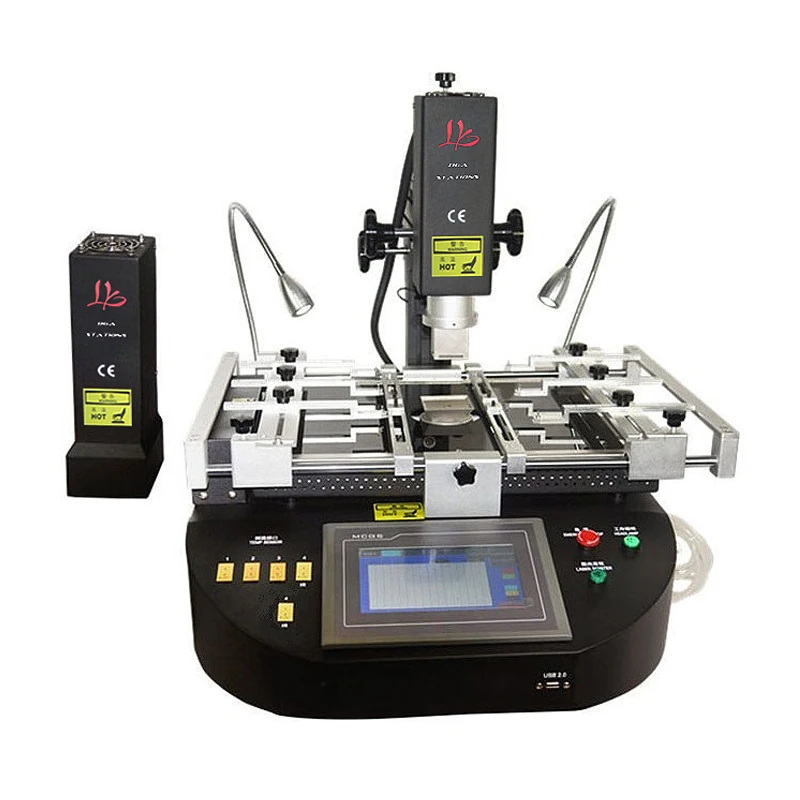

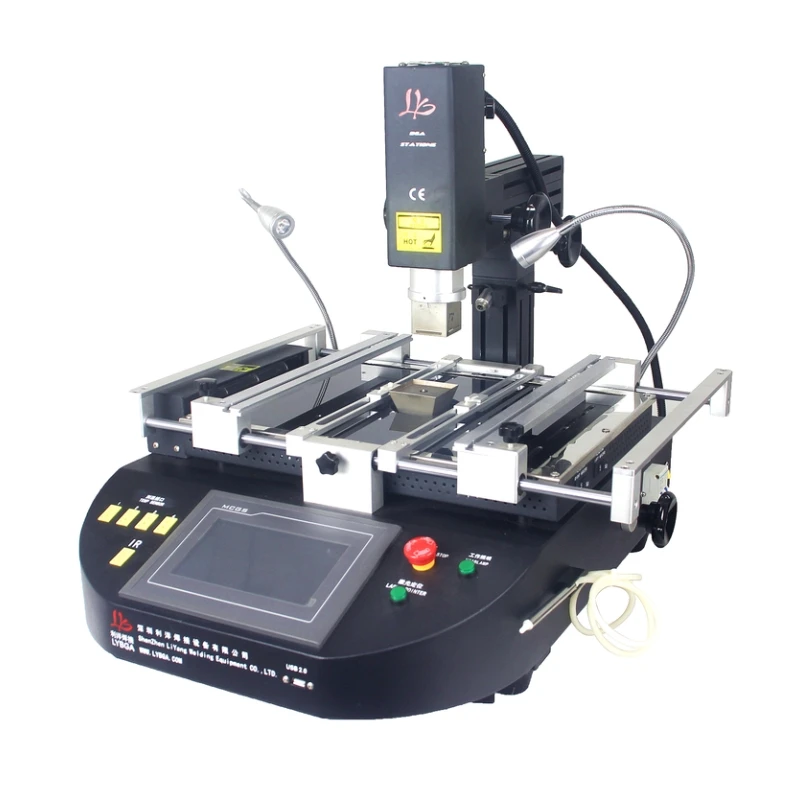

1× bga rework station (with IR Top and Hot air Top)

2× pcb bottom support

6× pcb jig (with screw)

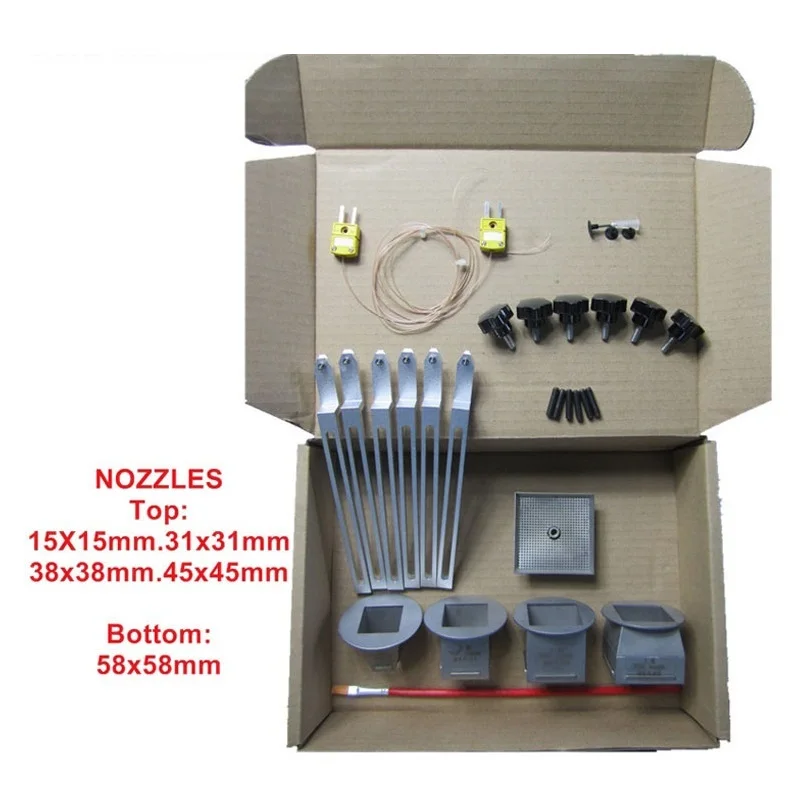

5× nozzles (4 pcs for top 1 pcs for bottom)

2× k-type Omega thermocouple

1× brush

1× CD of manual and software (if not get, may be lost in customs, please contact us)
