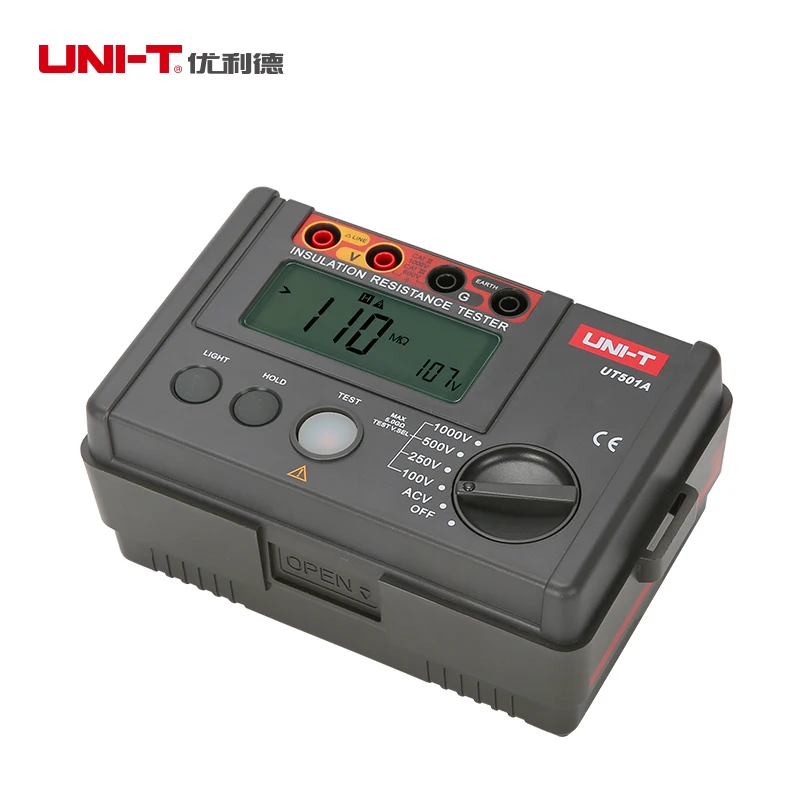

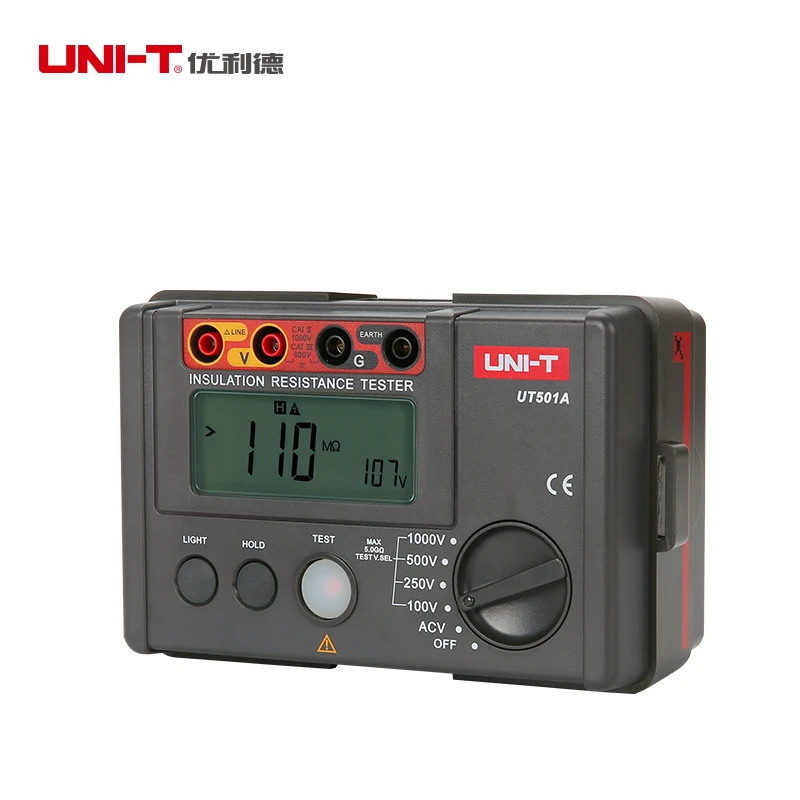

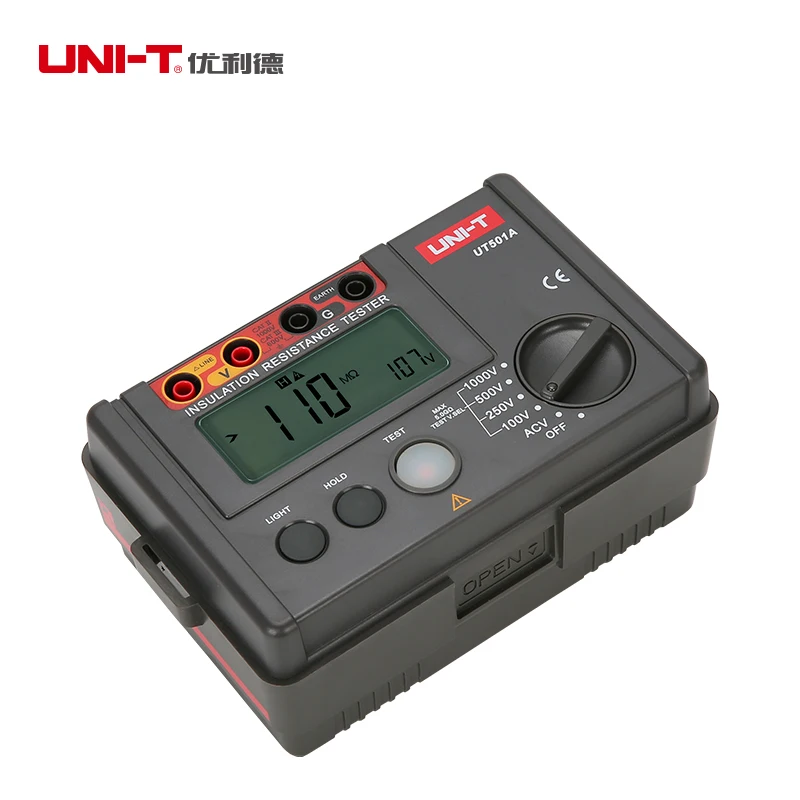

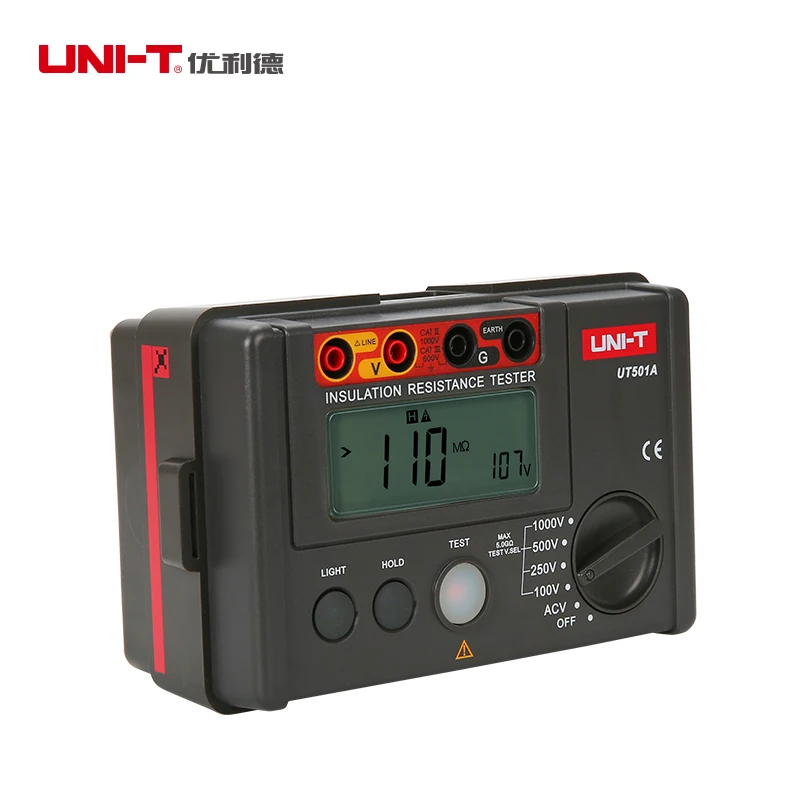

UNI-T UT501A Insulation Resistance Megohmmeter Voltmeter 1000V Test  Continuity Tester w/LCD Backlight

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal tools for ensuring transformers, genera-tors, high voltage motors, power capacitors, power cbles, arresters and other electrical equipment that can oprate in a safe and accurate manner.

Features:

1. 2000 count LCD display, overload indication, backlight

2. AC voltage measurement, auto power off

3. Auto discharge

4. Continuous measurements mode, red warning light and buzzer function

5. Continuous low resistance measurement

6. PI and DAR measurement, auto resistivity calculation

7. Low resistance returning to zero function to improve accuracy

Specifications:

Specifications

Range

UT501A

UT501B

UT502A

Insulation resistance (Ω)

Test voltages

100V/250V/500V/1000V

0%~10%

250V/500V/1000V

0%~10%

500V/1000V/2500V

0%~10%

100V

0MΩ~100MΩ

±(3%+5)

250V

0MΩ~99.9MΩ

±(3%+5)

±(3%+5)

100MΩ~5GΩ

±(5%+5)

±(5%+5)

500V

0MΩ~99.9MΩ

±(3%+5)

±(3%+5)

±(3%+5)

100MΩ~5GΩ

±(5%+5)

±(5%+5)

±(5%+5)

1000V

0MΩ~99.9MΩ

±(3%+5)

±(3%+5)

±(3%+5)

100MΩ~5GΩ

±(5%+5)

±(5%+5)

±(5%+5)

2500V

0MΩ~99.9MΩ

±(3%+5)

100MΩ~9.9GΩ

±(5%+5)

10GΩ~20GΩ

±(10%+5)

Load current

50V (R=50kΩ) 1mA

0%~10%

0%~10%

0%~10%

100V (R=100kΩ) 1mA

0%~10%

0%~10%

0%~10%

250V (R=250kΩ) 1mA

0%~10%

0%~10%

0%~10%

500V (R=500kΩ) 1mA

0%~10%

0%~10%

0%~10%

1000V (R=1MΩ) 1mA

0%~10%

0%~10%

0%~10%

2500V (R=1MΩ) 1mA

0%~10%

Short-circuit current

<2mA

<2mA

<2mA

Low resistance (Ω)

0.01Ω~200Ω (about 5.0V/>200mA）

±(2%+3)

±(2%+3)

AC voltage (V)

30V~750V

±(2%+3)

30V~600V

±(2%+3)

±(2%+3)

Features

Display count

2000

2000

2000

DAR

60s/15s and 60s/30s

√

√

PI

√

√

Auto range/Low battery indication

√

√

√

LCD backlight/Light alarm

√

√

√

Buzzer alarm/High voltage indication

√

√

√

Over load indication/Auto discharge

√

√

√

Test voltage secondary display

√

√

√

10MΩ internal resistance test

√

√

√

Meets IEC 61557

61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only)

General Characterisitics

Power

1.5V battery (LR6) x 6

Display

70.6mm x 34mm

Product color

Red and grey

Product net weight

500g

Product size

150mm x 100mm x 71mm

Standard accessories

Batteries, test leads, alligator clips, gallus, test probes (UT502A)

Standard individual packing

Gift box, carrying bag, English manual

Standard quantity per carton

20pcs

Standard carton measurement

500mm x 380mm x 330mm (0.063 CBM per standard carton)

Standard carton gross weight

500g

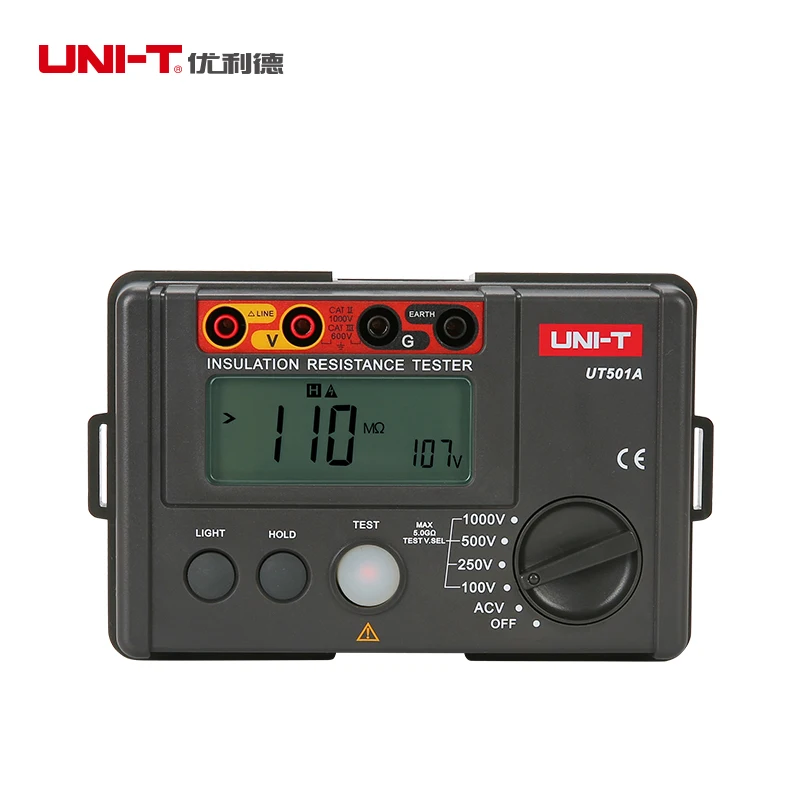

Closer Look:

Package Includes:

1.Batteries

2.Test leads

3.Alligator clips

4.English Manual

5.Carring bags

6.Meter
