8pcs 100W Flexible Solar Panel Module with 1000W inverter800W Grid tie System solar panel home system kit

Local delivery to France, UK, Spain, USA, No tax!!!

Fast shipment to EU countries!!!

Russian warehouse come soon!!!

kindly note: Delivery support to below 51 States in USA!

Excluded: Puerto Rico .

Included: AL，AK，AZ，AR，CA，CT，DE，FL，GA，HI，ID，IL，IN，IA，KS，KY，LA，ME，MA，MI，MN，MS，MO，MT，NE，NH，NC，ND，NJ，NM，NV，NY，OH，OK，OR，PA，RI，SC，SD，TN，TX，UT，VA，VT，WA，WI，WV，WY+ DC （District of Columbia）

Features:

High efficiency: Outstanding efficiency using monocrystalline flexible solar cells

Flexible: It can be curved to a maximum 30 degree which makes it ideal for tight spaces or crowded areas.

Extremely light weight: 2.5mm thickness, 100w flexible solar panel has only 2kg, easier to hang and install on tight spaces or crowded areas that are typically off limits for traditional glass.

Easy Installation: 6 holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.

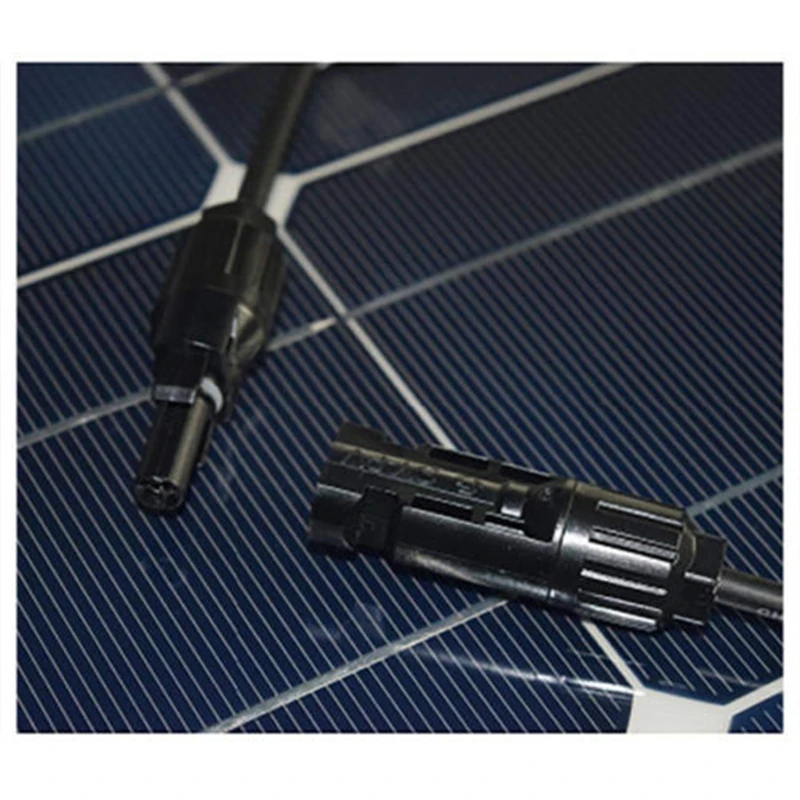

Ready for Connection: Panel arrives ready for connection with pre-attached MC4 Connectors and cable.

Wide Application: Solar car, solar tour bus, golf car,solar bus, yacht and speedboat etc.

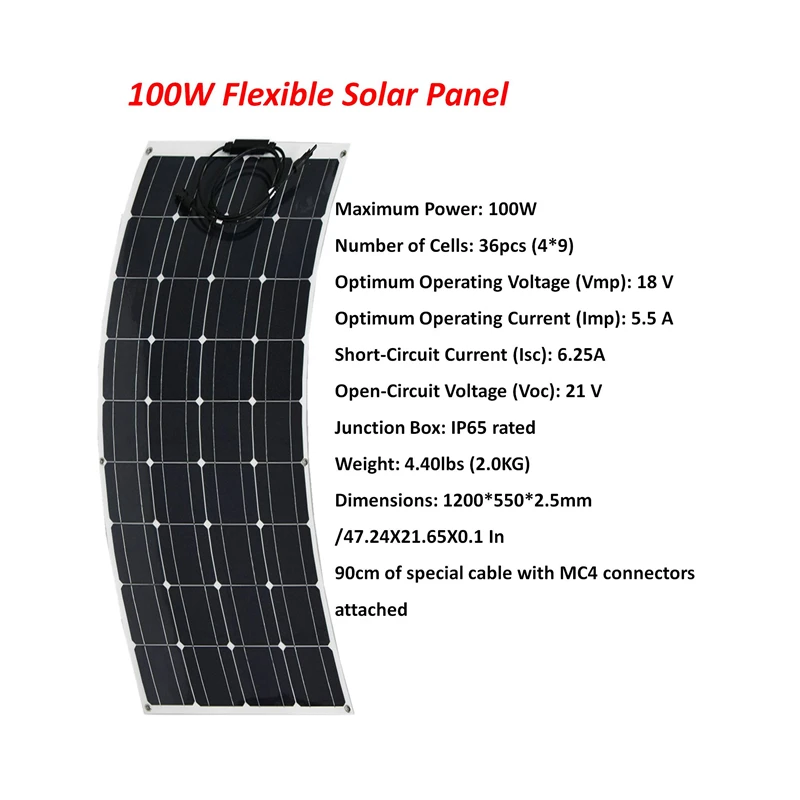

100W Flexible Solar Panel

Technical Specification:

Maximum Power: 100W

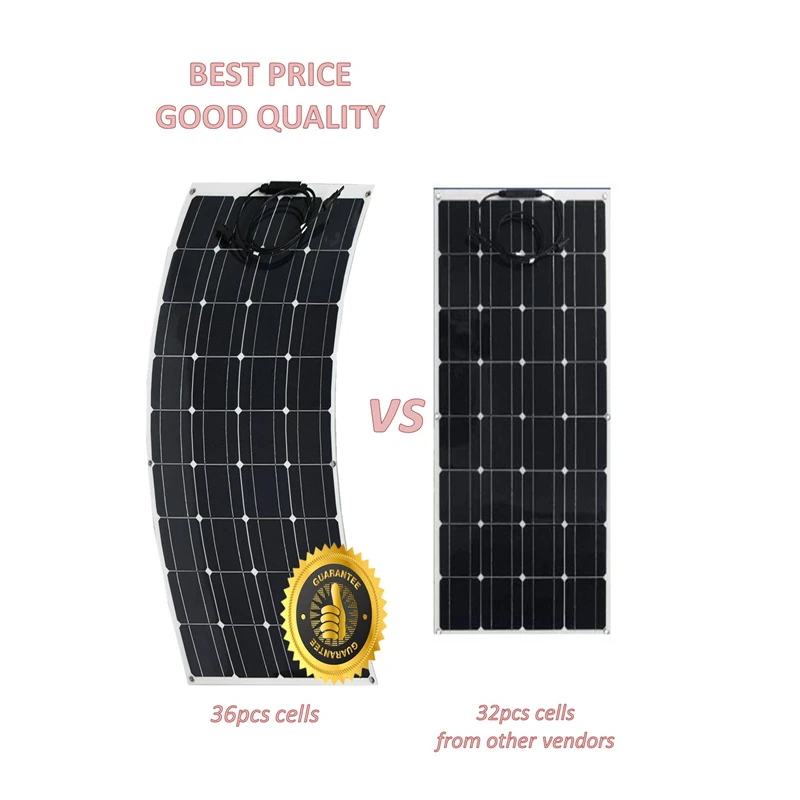

Number of Cells: 36pcs

Optimum Operating Voltage (Vmp): 18 V

Optimum Operating Current (Imp): 5.5 A

Short-Circuit Current (Isc): 6.25A

Open-Circuit Voltage (Voc): 21 V

Junction Box: IP65 rated

Weight: 4.40lbs (2.0KG)

Dimensions: 1200*550*2.5mm /47.24X21.65X0.1 In

90cm of special cable with MC4 connectors attached

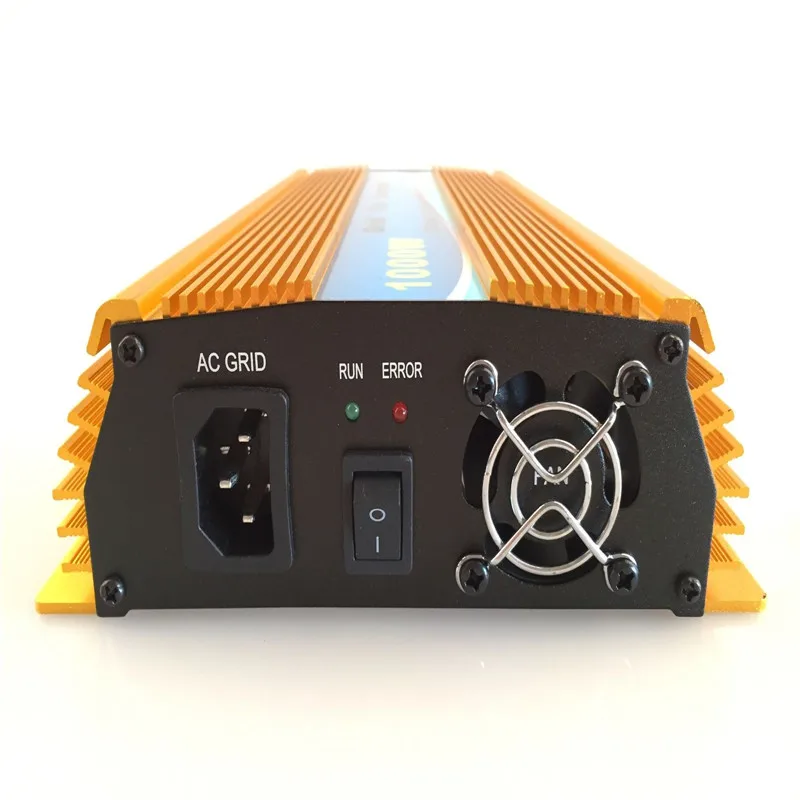

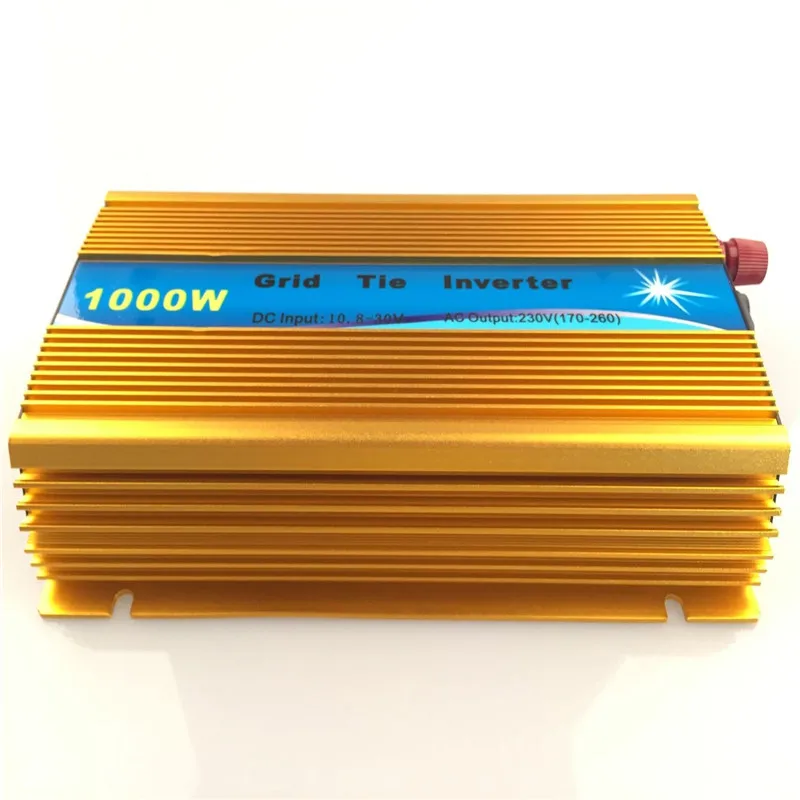

1000W Grid tie power inverter:

If inverter with higher power or other accessories are needed, please feel free to contact us.

We offer one-stop solution.

We will ship with appropriate specification based on different countries as below:

USA: 110V

UK: 220V

EU: 230V

AU: 240V

Model: GTI1000W

Rated Power:1000W

Solar panels:36cells-Vmp:18-21V;Voc:20-24V

DC input range:10.8-30VDC

MPPT Voltage:15-22VDC

DC MAX current:70A

AC output range:110VAC(90-140VAC) Or 230VAC(190-260VAC)

Frequency range:50Hz/60Hz(Auto control)

Power Factor:>98%

THD: <5%

Phase Shift:<2%

Efficiency:110VAC(90-140VAC) Version

Peak Efficiency:85

Stable Efficiency:83

Efficiency: 230VAC(190-260VAC) Version

Peak Efficiency:88

Stable Efficiency:83

Protection: Islanding; Short-circuit; Low Voltage; Over Voltage; Over temperature Protection

Work Temperature :-20℃-65℃

Work Humidity:0%~90%RH non-condensing

Grade of Waterproof: Indoor design

Show:LED

Cooling:Fan

Stand-by Power:＜1W

Dimension:310 x 165 x 53mm/12.20x6.50x2.09 In

Net Weight/pcs:4.4lbs(2kg)

EMC: EN61000-6-3:2007 EN61000-6-1:2007

Grid Disturbance: EN 50178+EN 62109-1+VDE0126-1-12

Grid Detection:DIN VDE 1026 UL1741

Certificate:CE

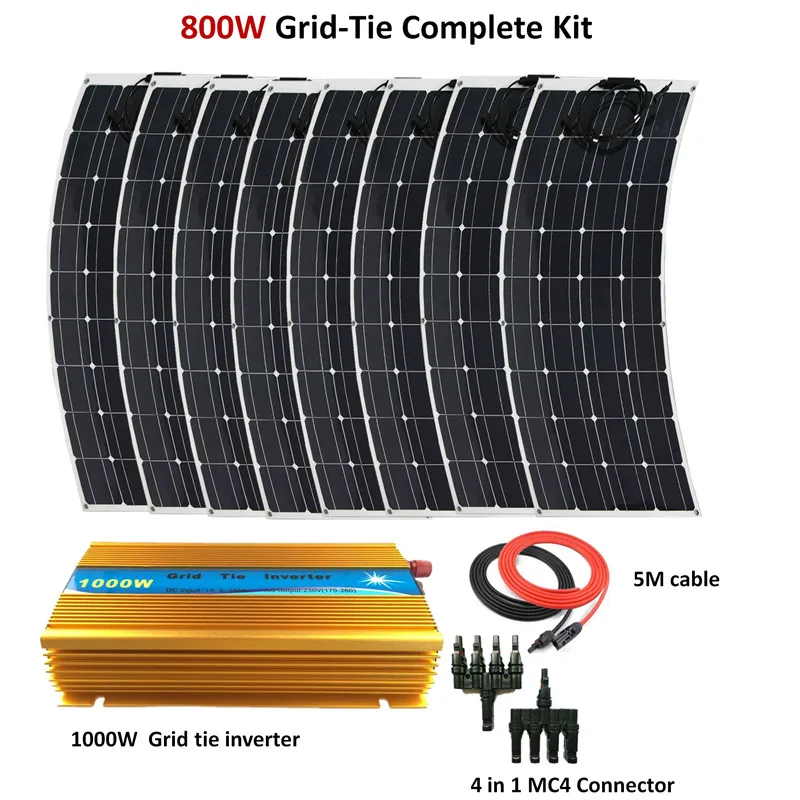

Package included:

8 x100W Flexikble solar panel with 90cm of special cable with MC4 connectors attached to the junction box

1 x 1000w grid tie power inverter

1 x total 5m solar cable with MC4 connectors

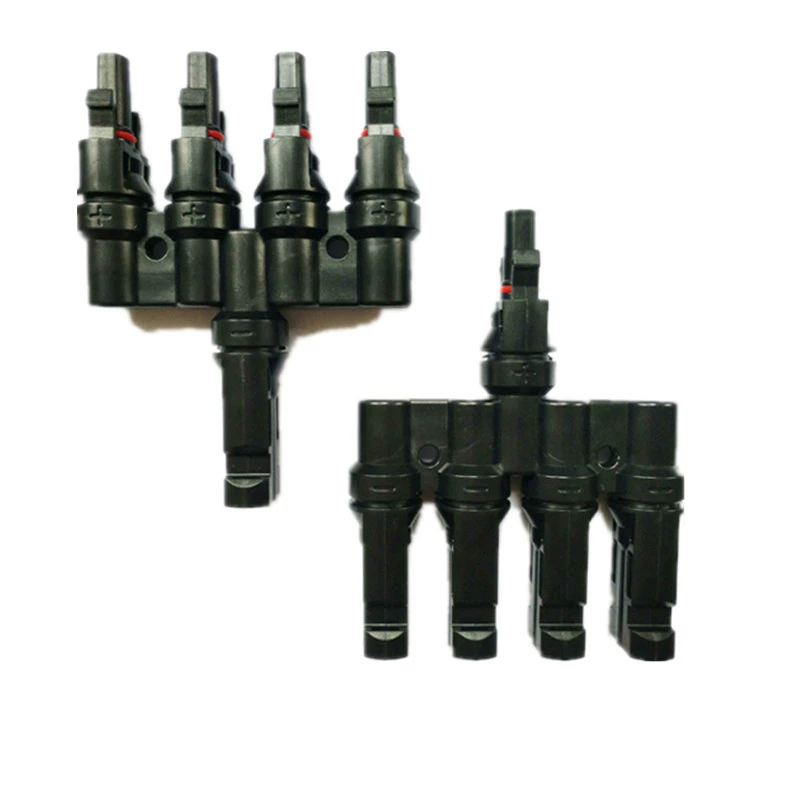

2 pairs 4 in 1 MC4 connector

Pictures:

​

Shipment:

1. All goods are in stock. We will arrange accordingly after order placing.

2. we have overseas warehouse in France, UK, USA, China (and Russia soon). We will ship the panels from appropriate country to exempt tax for customers.

3. Please incude your phone number and post code along with delivery address in details, ensuring easy contact from express company.

4. Kindly note for shipment from China, tax and duties are not included in price. Thank you for your kind understanding.

Gurantee:

We will check the goods quality before shipment and ensure the quality. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly.

If it's our responsibility, we will refund payment or re-send goods to buyer after identification and negotiation.

Warmly welcome to visit our store.

​Hope what we're doing for is what you're looking for.
