DESCRIPTION



Atmel-ICE-C Kit, Powerful development tool for debugging and programming Atmel SAM and AVR microcontrollers, original ATMEL-ICE-PCBA inside, durable aluminium alloy enclosure

Overview

Atmel-ICE-C is the cost effective solution for the powerful Atmel-ICE, it adopts the original ATMEL-ICE-PCBA and comes with a durable aluminium alloy enclosure.

Atmel-ICE-C delivers the same functionality and usability just as the ATMEL-ICE Full Kit, it is capable of debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.

Key Features Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces Full source-level debugging in Atmel Studio Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target) Up to 128 software breakpoints 1.62 to 5.5V target operation USB powered Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out Supported Software Perfectly supports Atmel Studio 6.2 or higher version Directly supports ICC8AVR or higher version Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc. Supported Devices Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface

For more details, please visit UC3, Mega, SAM , Tiny, Xmega

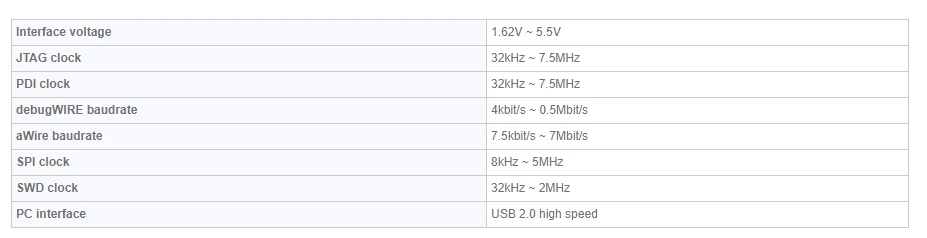

Specifications

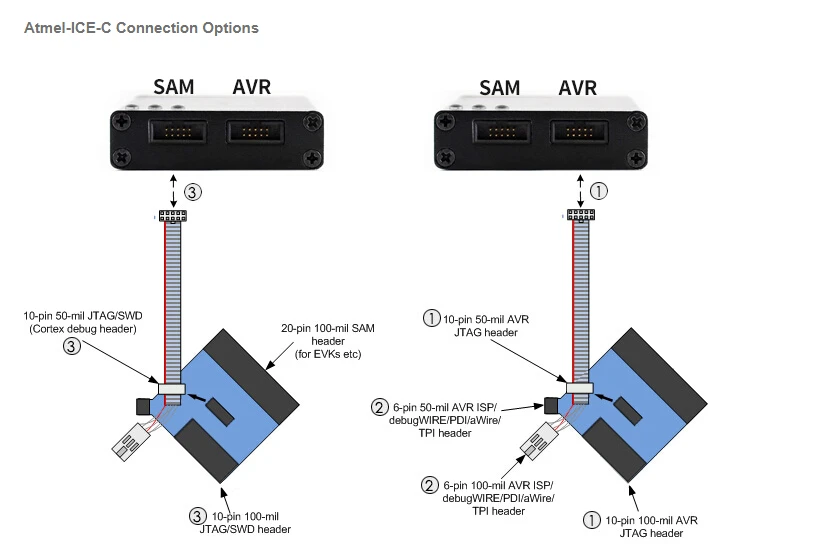

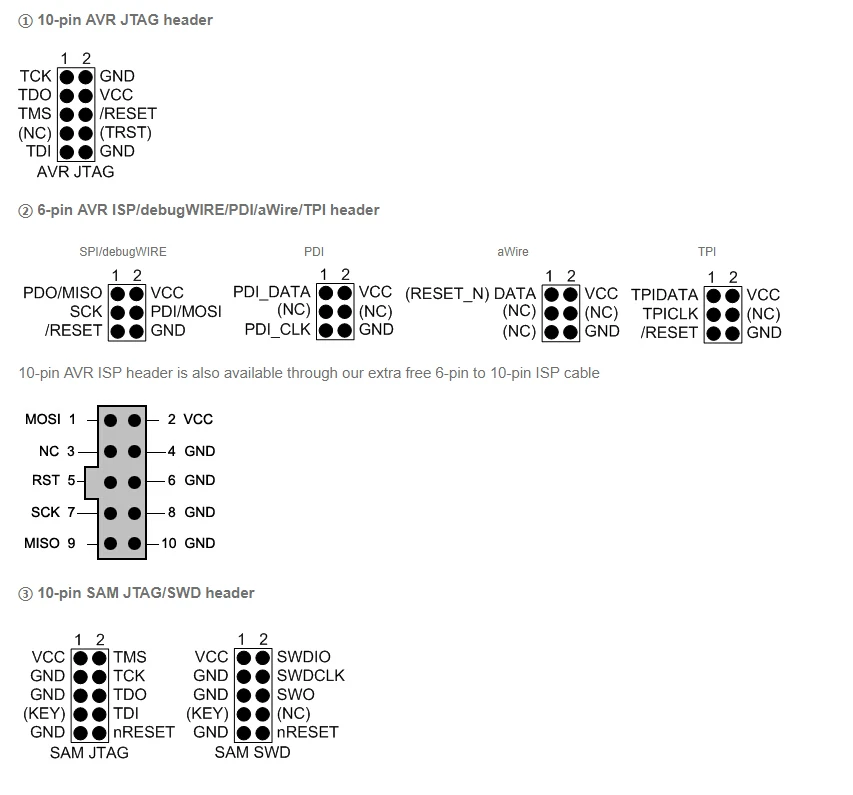

Physical Interfaces



Note :
While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad).
The adapter board included in Atmel-ICE-C is compatible with the official one in the Atmel-ICE Full Kit.

  Development Resources

Wiki : www.waveshare.com/wiki/Atmel-ICE-C

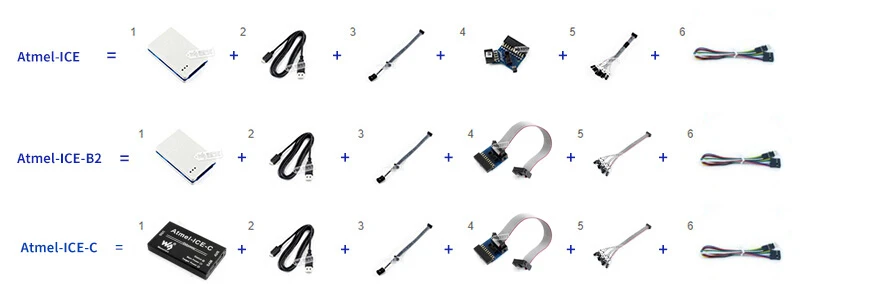

Selection Guide

Atmel-ICE: includes everything in the official Atmel-ICE Full Kit, and an extra free 6-pin to 10-pin ISP cable.
Atmel-ICE-B2: includes everything in the official Atmel-ICE Basic Kit, and more adapter and cables from Waveshare, provides the same functions as Atmel-ICE Full Kit in lower price.
Atmel-ICE-C: adopts the original Microchip ATMEL-ICE-PCBA board, comes with aluminium alloy enclosure, more durable and cost effective.

PACKAGE CONTENT

Weight: 0.129 kg

Atmel-ICE-C unit x1 USB type A plug to micro B plug cable x1 IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1 Multi-functional adapter board x1 10pin flat cable x1 10pin 100mil squid cable x1 6-pin to 10-pin ISP cable x1
