 When you don't make sure the controller board kit whether support your LCD panel that please chat with us in any time!:)

 Product Description

Supported LCD Model List ：

G104S1-L01

G104AGE-L02

G104STN01.0

G104SN03-V5

G104SN02 V2

G104SN02 V3

G121SN01 V4

G121SN01 V402

G121SN01 V403

G121STN01.0

Note:

1.If your LCD panel included in above list , You can use current link to create your order directly. But it is better to leave a message to let us know the exact model number of your LCD panel too .

2.If your LCD panel not included in above list , please don’t use current link to create order directly. You can leave a message or contact us directly, and let us know the model number of your LCD panel , our technician will help you to select a best link to create your order.

 Product Description

1.  GENERAL DESCRIPTION

M.NT68676.2 is a multi-purpose LCD controller board which support HDMI+DVI+VGA various of video signal input and dual channel 8bit LVDS output interface. LVDS output signal can up to 1920X1200@60Hz.

M.NT68676.2 with Audio function, Support direct Audio signal from HDMI input or external Audio signal input from Audio Jack . The output speaker is 2X1W (8Ω).

NT68676.2 Also support Infrared remote control , Backlight Brightness Control(Optional , Need custom firmware), Earphone output .

2 .Function Layout of LCD controller board

CHIPSET

NT68676(UFG)

MARKET AREA

Asia-Pacific

OSD LANGUAGE

Simplified Chinese, Traditional Chinese, English, French, German, Italian,

Spanish, Portuguese, Japanese, Korean (optional)

PANEL

Panel Type

LED/LCD

Interface

Single/Dual LVDS (8bit)

Max Resolution

2048×1152

VIDEO INPUT

PC-RGB

Format

Up to 2048×1152     60Hz

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

AUDIO INPUT

PC Audio

Earphone Input

0.2 ~ 2.0 VRMS

AUDIO OUTPUT

Frequency Response

100Hz~15KHz  ±3dB (1KHz, 0dB reference signal)

Max Output power

2×1W(8 ) THD+N<10  1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER

Requirement

12V DC/12V(built)/12V,5V(built in)/12V,5V,5VSB(built in)

To Panel

3.3V/5V/12V

Management

Standby Power Consumption < 0.5W(Board Only)

KEY FUNCTION

POWER,MENU,VOL+,VOL-,ADJUST/EXIT

CHIPSET

NT68676(UFG)

MARKET AREA

Asia-Pacific

OSD LANGUAGE

Simplified Chinese, Traditional Chinese, English, French, German, Italian,

Spanish, Portuguese, Japanese, Korean (optional)

PANEL

Panel Type

LED/LCD

Interface

Single/Dual LVDS (8bit)

Max Resolution

2048×1152

VIDEO INPUT

PC-RGB

Format

Up to 2048×1152     60Hz

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

AUDIO INPUT

PC Audio

Earphone Input

0.2 ~ 2.0 VRMS

AUDIO OUTPUT

Frequency Response

100Hz~15KHz  ±3dB (1KHz, 0dB reference signal)

Max Output power

2×1W(8 ) THD+N<10  1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER

Requirement

12V DC/12V(built)/12V,5V(built in)/12V,5V,5VSB(built in)

To Panel

3.3V/5V/12V

Management

Standby Power Consumption < 0.5W(Board Only)

KEY FUNCTION

POWER,MENU,VOL+,VOL-,ADJUST/EXIT

3.FUNCTION LAYOUT

The picture is for a reference only, the actual item is the standard.

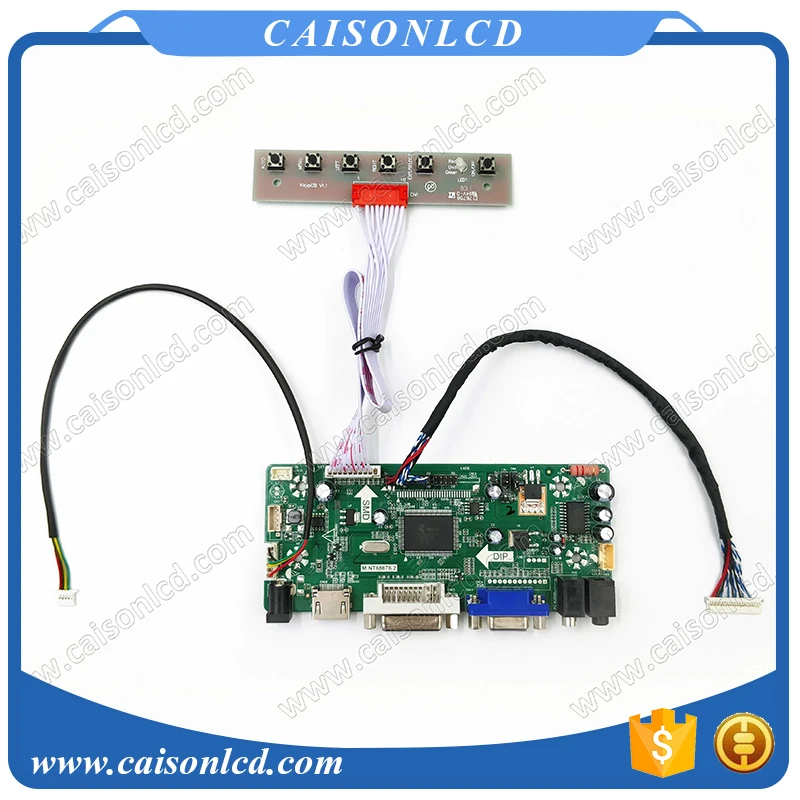

Side View:

3.FUNCTION LAYOUT

The picture is for a reference only, the actual item is the standard.

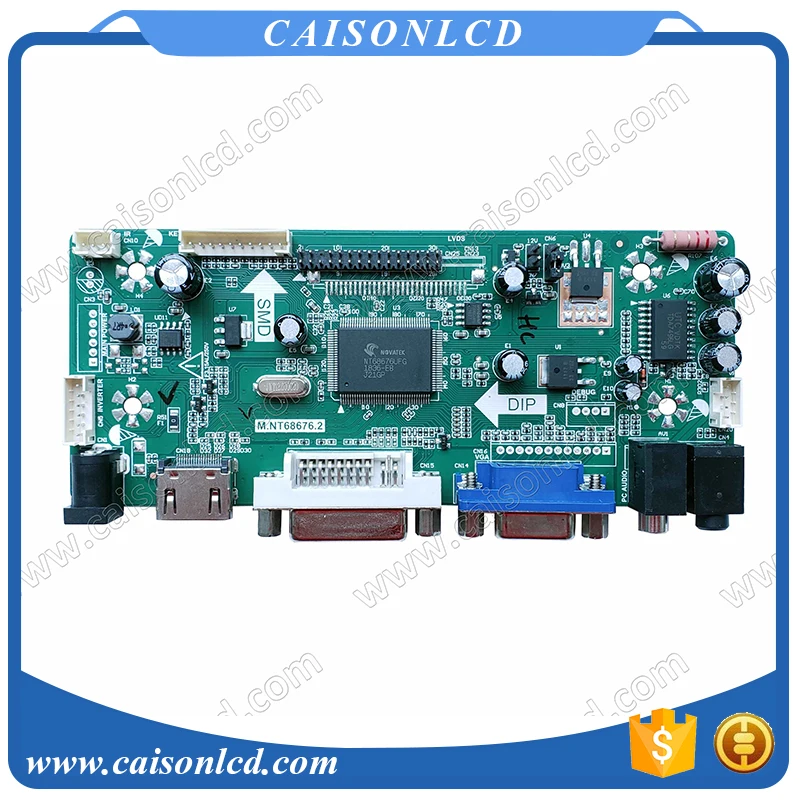

Top View:

4. PCB DIMENSIONS of LCD controller board

5. Detail Diagram Display

7.Package included:

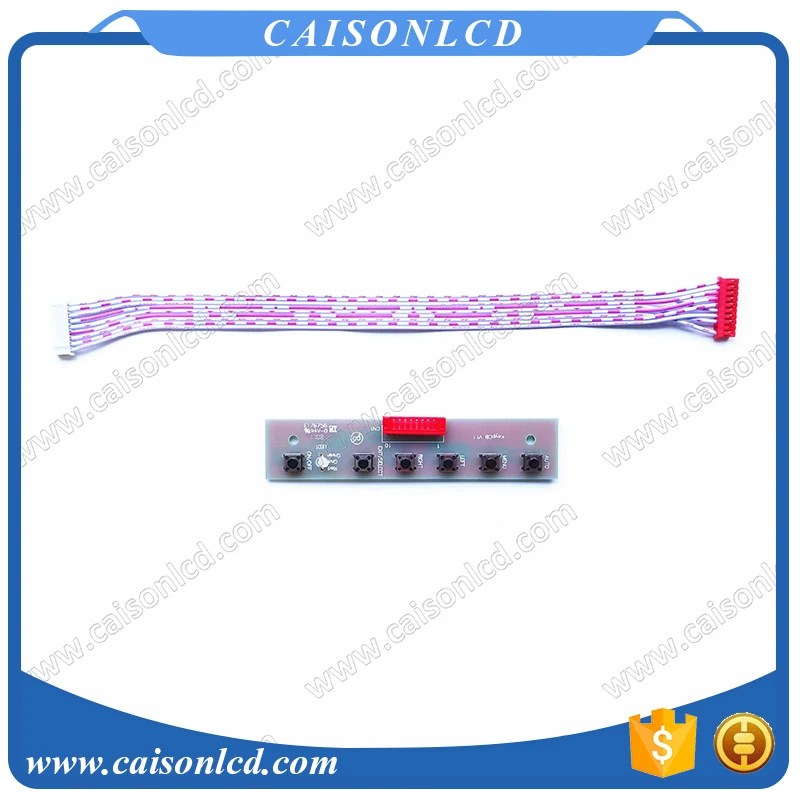

1. OSD keypad X 1Pcs;

2. LCD Controller Board X 1Pcs;

3. Keypad cable X 1Pcs;

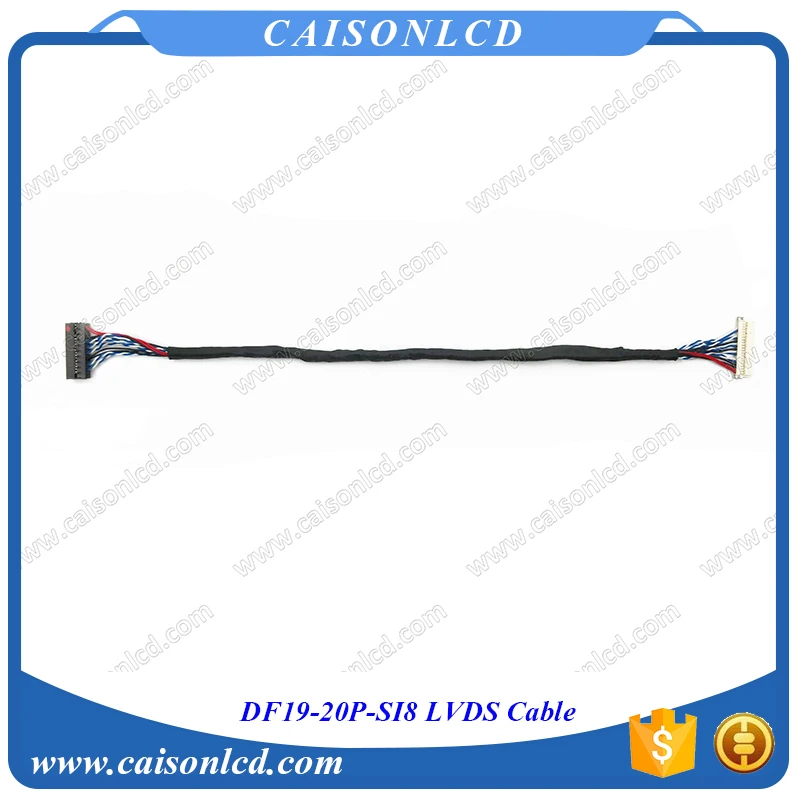

4. LVDS Cable X 1Pcs;

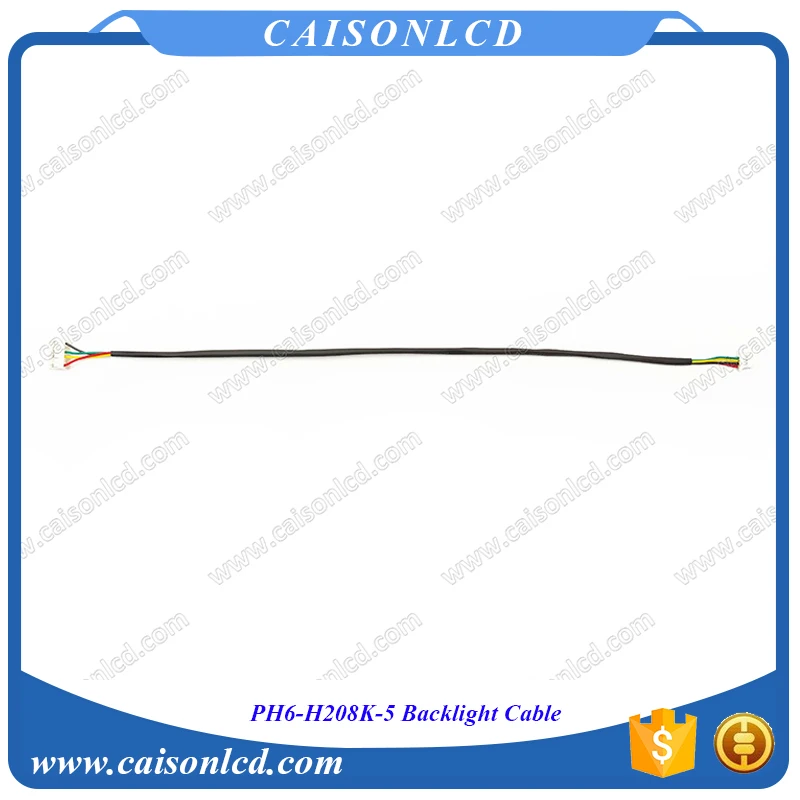

5.Backlight Cable X 1Pcs；

PCB DIMENSIONS

Dimension(mm):139(L)*58(W)*17(H)
