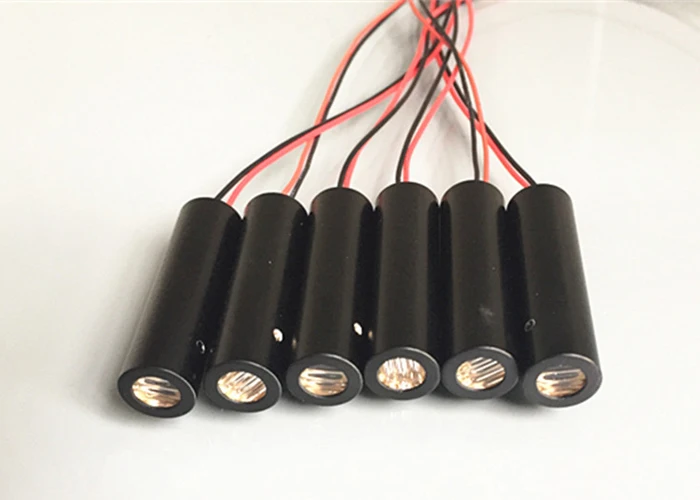

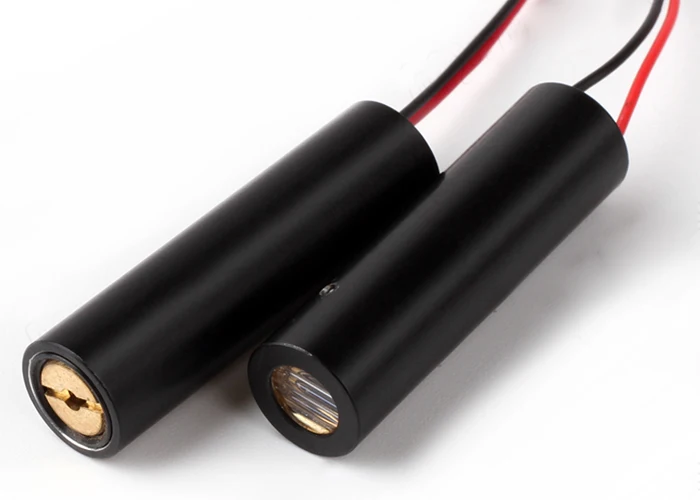

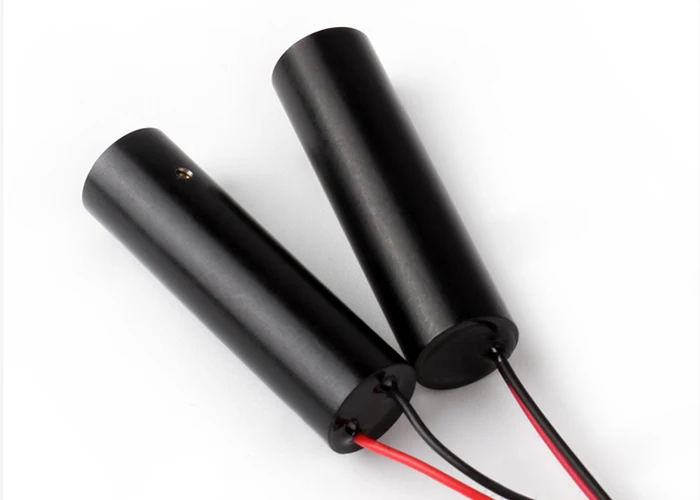

Пользовательский 10мм 520нм Зеленый 1мВт 5мВт 10мВт 30мВт 50мВт 80мВт Стеклянная линза 110 градусов Крестовой лазерный модуль промышленного класса с АРС-драйвером.

Пользовательский 10мм 520нм Зеленый 1мВт 5мВт 10мВт 30мВт 50мВт 80мВт Стеклянная линза 110 градусов Крестовой лазерный модуль промышленного класса с АРС-драйвером.

Using Glass cross line lens for the line

 Application

  Industrial areas / Medical / Biochemical / Laser Tag

Any part or specification of each module can be modified.

We divide a laser diode module structure into 4 main sections:

- a laser diode
- an optical lens
- a laser driver circuit
- optical and mechanical properties

1. Laser diode:

-Main characteristics of laser diode: wavelength, output power, and operating temperature

2. Optical Lens:

- Main characteristics for the beam collimation: divergence angle, laser spot size

- Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE

Spot size:  The laser spot size has a direct relationship to the distance of projection.

3. Laser Driver Circuit:

The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).

An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.

An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.

4. Optical and mechanical properties:
