Features:
Convenient battery access.
Low Battery Indicator.
Simple one button test.
Fast speed testing.
Test installed wiring or patch cables.
Tests shielded (STP) or unshielded (UTP) LAN cables.
Test shields in USB cables.
Can test from 2 remote points.
Beeper provides audible annunciation of test results.

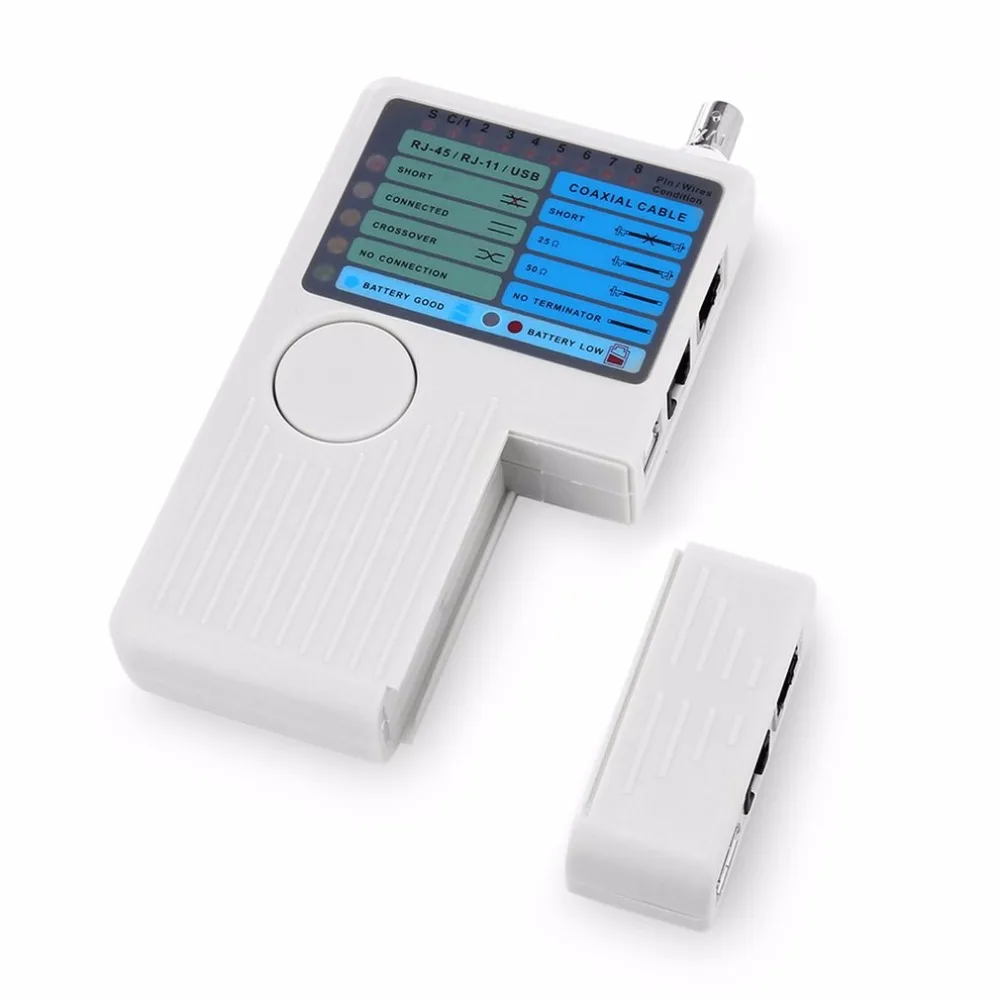

Remote unit stores in Main unit.
BNC terminator 25/50 Ohm indications.
Straight or crossover indications.

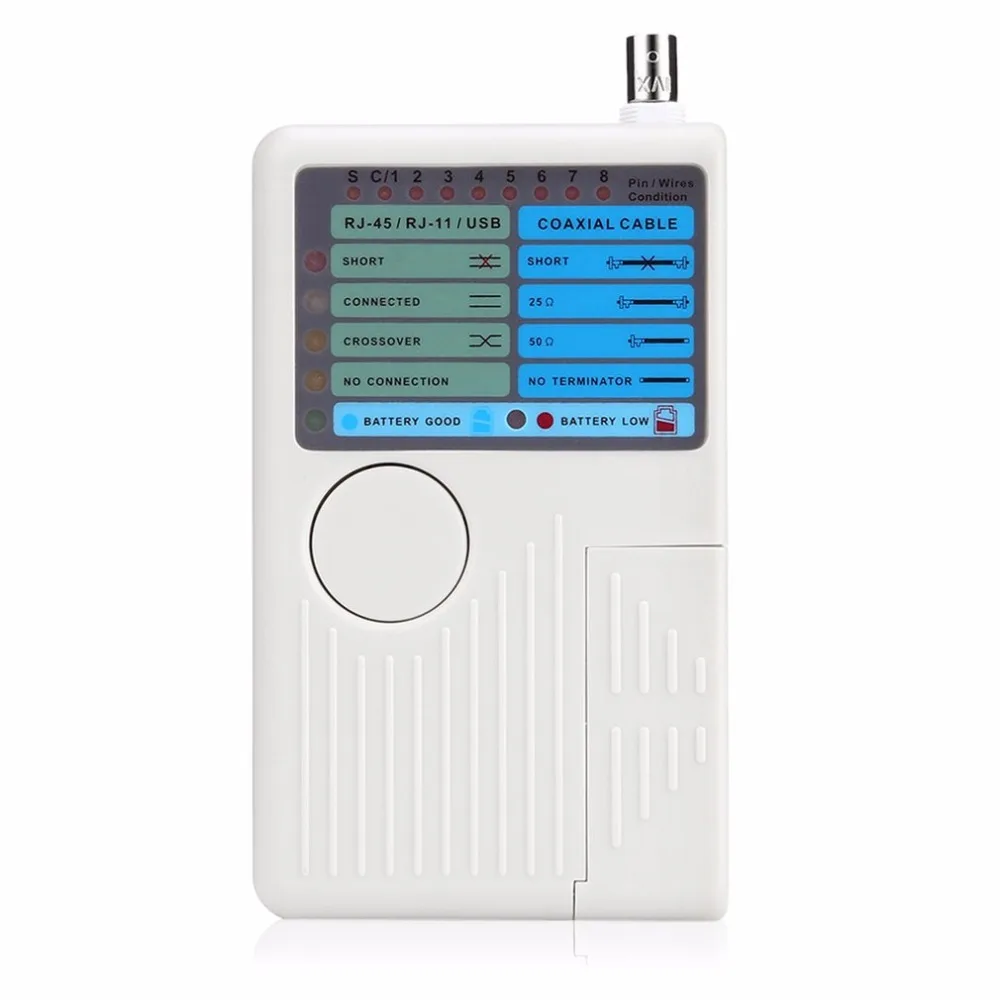

LEDs indicate connections and faults of wire and pins.
RJ-11/RJ-45 are equipped with 50u gold plating.
300 feet test distance (RJ-45/RJ-11/BNC).

Description:
Cable Tested: UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568);
RJ-11 cables with male connectors, 2 to 6 conductors installed;
USB cables with Type A flat plug on one end and type B square Plug on other end;
BNC cables with male connectors.

Specifications:
Color: Grey
Item dimensions: 162 x 85 x 25mm
Test 4 types of cables: RJ-45, RJ-11, USB and BNC.
Faults Indicated: No Connections, short circuit , Opens and Crossover
Low Battery Indicator: LED lights to indicate low battery
Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)

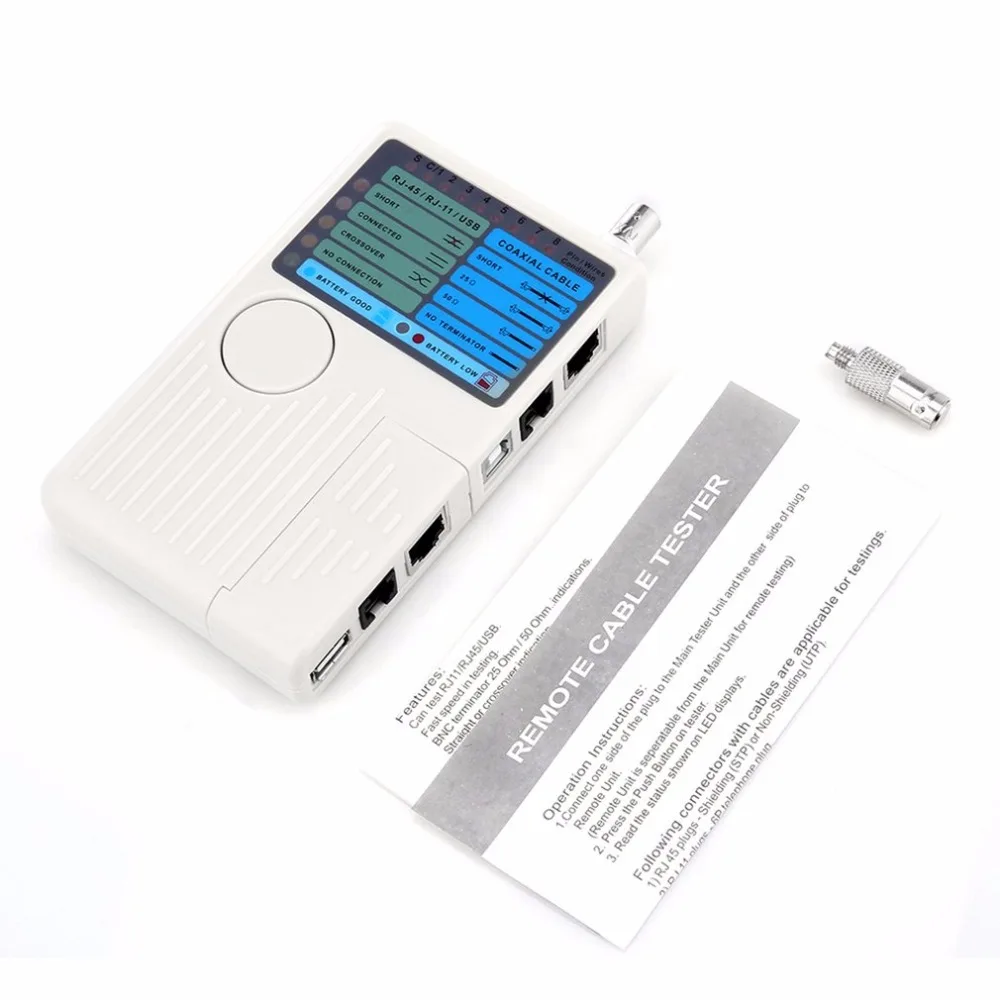

Package Included:
1 x 4-in-1 Network Cable Tester
1 x Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
1 x BNC Remote Jack
1 x Instruction Manual

Notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
