cnc router woodworking/1325 stone/

marble carving machine china stone cnc router

Product description:

Features:

1. The whole machine adopts robust structure, powerful spindle motor, precise

and efficient control system, coming with professional software. It is easy to

install and operate.

2. 32M memory capacity can store many files and read at Random  .

3.Gantry movement, casting table is more durable. It will not bend after long

time use. The position precision is much better.

4. Compatible with CAD/CAM software,such as TYPE3/ARTCAM/ARTGRAVE

/UCANCAM/CORELDRAW etc.

5.Main parts are high stability imported parts.

6.A variety of sizes models is available to choose.

7.Can change the parts according to your requirements.

parameters:

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Repositioning Accuracy

±0.05mm

Table Surface

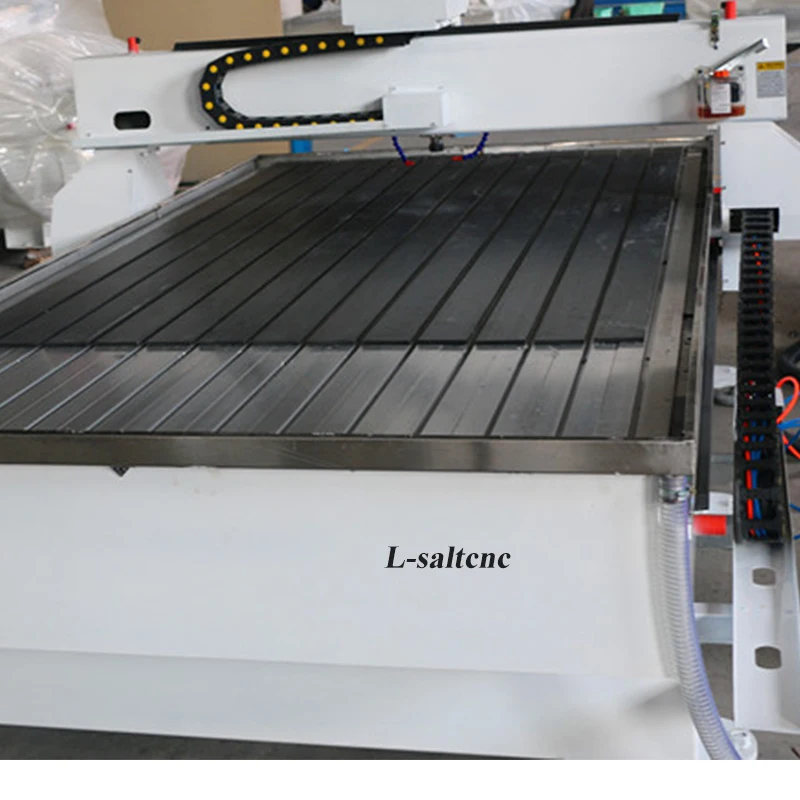

T-slot Table

Frame

Welded structure

X, Y axis transmission

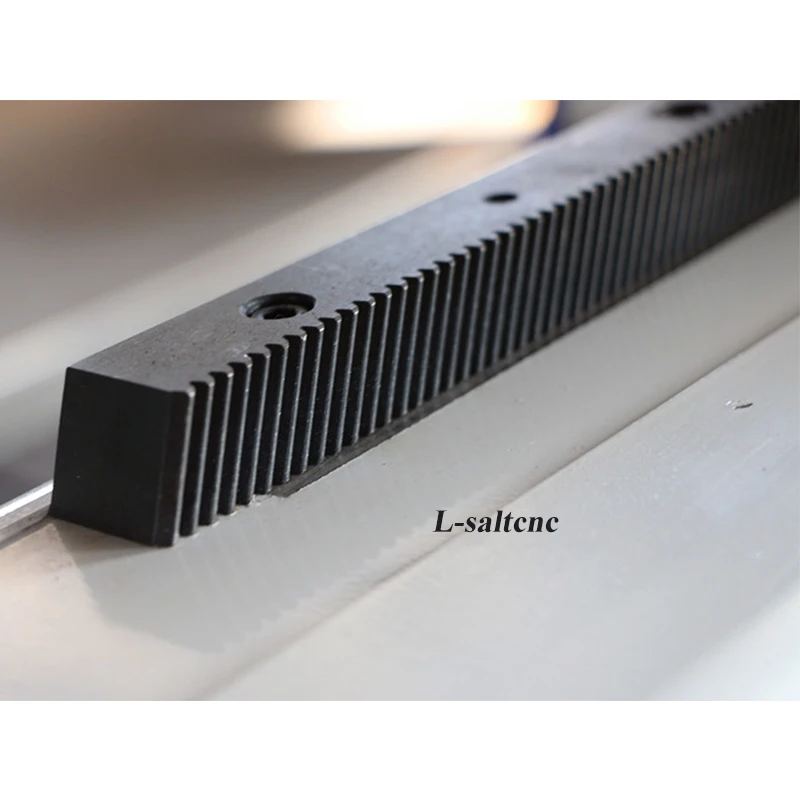

Rack and Pinion gear

Z transmission

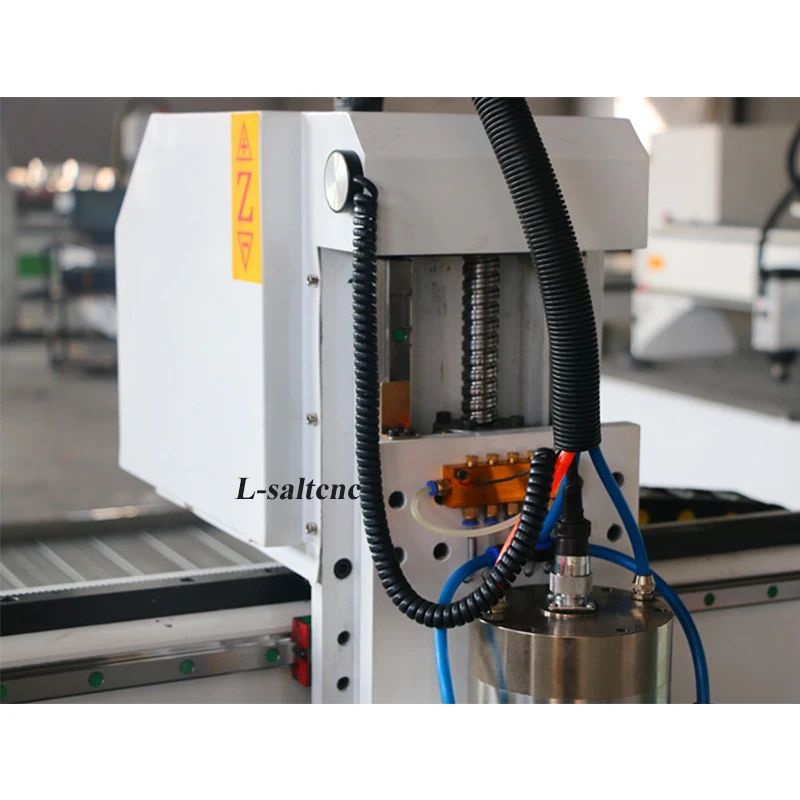

Ball Screw

Rail Configuration

20 square rail

Max. Traveling Rate

25000mm/min

Max. Working Speed

15000mm/min

Spindle Power

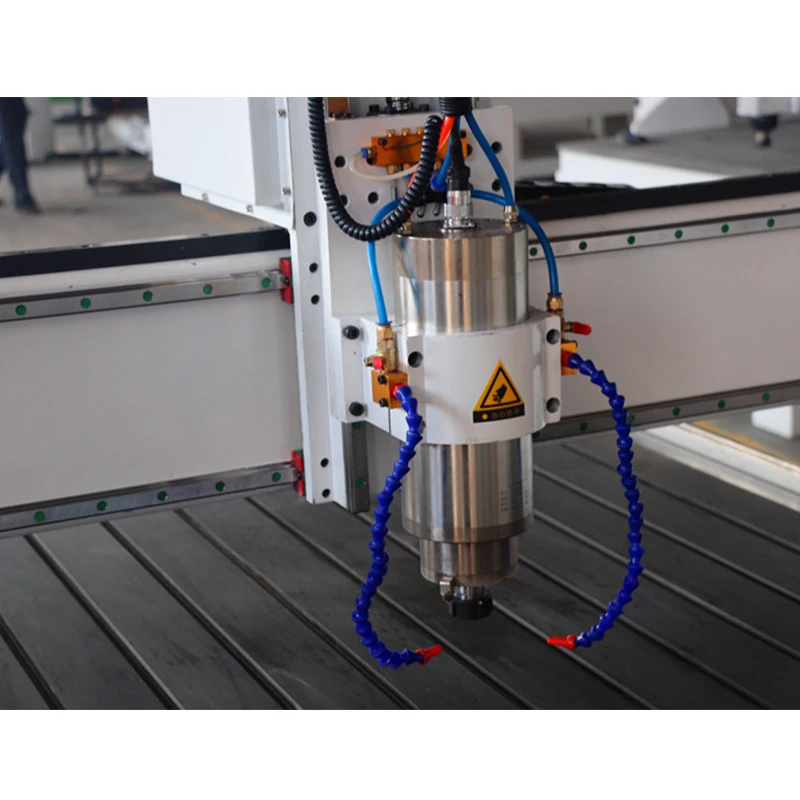

Water cooling 3KW(Opitioinal 4.5/5.5kw) spindle

Spindle Speed

24000RPM

Drive Motors

Stepper System  (Optional Yaskawa/

Panasonic Servo motors)

Working Voltage

AC220V/50Hz/3PH

Command Language

G Code

Operating System

Nc studio System (Optional:DSP)

Computer Interface

USB

Software Compatibility

Type3, UCANCAM

Packing Size

plywood case

Applicable industries:

Woodworking industry:

wood crafts, picture frames cutting, handicraft carving wave plates, wooden door

production and processing.

Advertising industry:

advertising materials such as PVC, acrylic, double color plate

Stone working industry :

This machine is widely used in stone industry, such as natural marble, granite,

artificial stone, tombstones, milepost, ceramic tile, glass and other materials.

Details:

Production process:

Samples:

Company information:

Shipping and packaging:

Our service:

1.Offering the specification of the machine, two years warranty

2.English software, user manual and operation CD

3.24 hours technical support by e-mail, calling

service If you have any problems ,we will within 12 hours to solve it .

4.If you need any component of the machine later ,we will provide the best price

for you.

5.7~12working days to produce the machine ,in the meanwhile , we will report

the production process in time.

FAQ:

Q1.How to get the most suitable machine and best price.

Please tell us the material you want to working on ?

How to working on it ? Engraving, Cutting, Or other?

What’s the MAX size of these material ?( length, Width and Thickness?)

Q2.Do you have the manual of machine?

Yes,we have

Q3.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can

use machine freely.And if you are busy ,we will have the special engineer to your

country,but you need to bear some fee,like tickets, hotel and meal.

Q4.How about your guarantee period?

Two years. If you have  any questions during this time, we will solve it for free.
