· Smooth and Precise Engraving and Cutting.

· Output from RDdraw directly,also supports CoreDraw and Auto CAD .

· Optimization of mechanical and electrical design.

· More friendly control panel with Color Screen.

· English, French, German, Italian, Spanish and more languages updating.

· One key to install, more convenient.

· Use virtual array list and additional off-cut graph to realize the off-cut function.

· Machines with feeding devices can realize the cyclical model of working-feeding-working.

· USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.

· Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

· Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style

· 2 years free warranty and life time free maintenance service.

· Control system:DSP

· Working size: 35.4"x23.6"(900mm x 600mm) with double side open door

· Up and down work plate: 15.7" (400mm)

· Laser tube type: Co2 Glass sealed laser tube

· Laser power: 100W

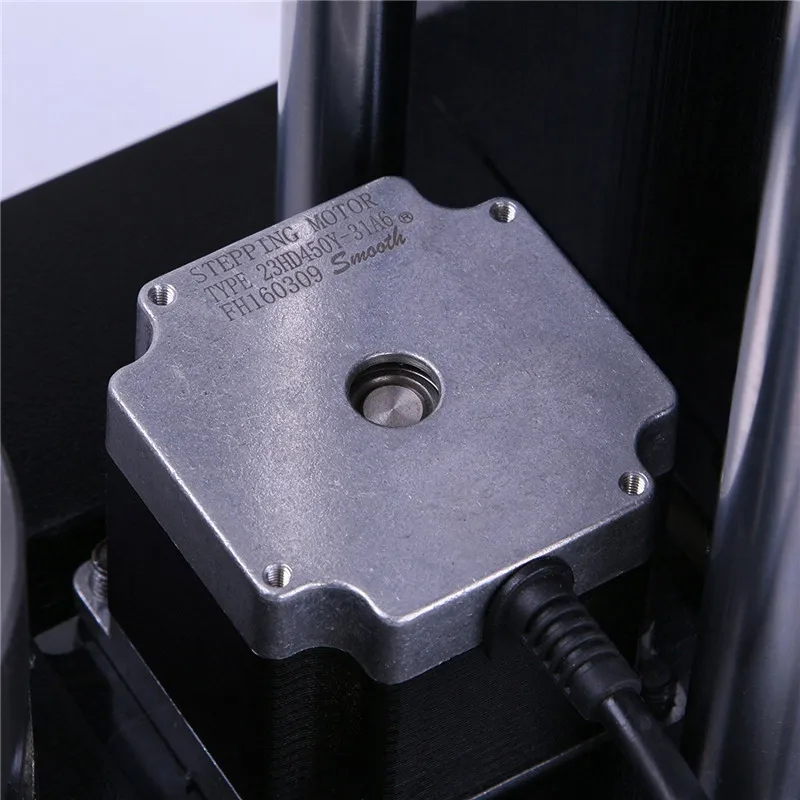

· Driver type: Micro Stepping Motor

· Max speed: 1000mm/s

· Resolution: 1000 DPI

· Location precision: 0.01mm

· PC Interface: USB2.0 and USB Disk

· Software: Auto Laser

· Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI

· Machine Dimension(L/W/H): 1500*1080*1100 (mm)

· Package Dimension(L/W/H): 1590*1560*1310 (mm)

· Package: Standard Wooden case for export

· N.W.: 270KG

· G.W.: 400KG

Description

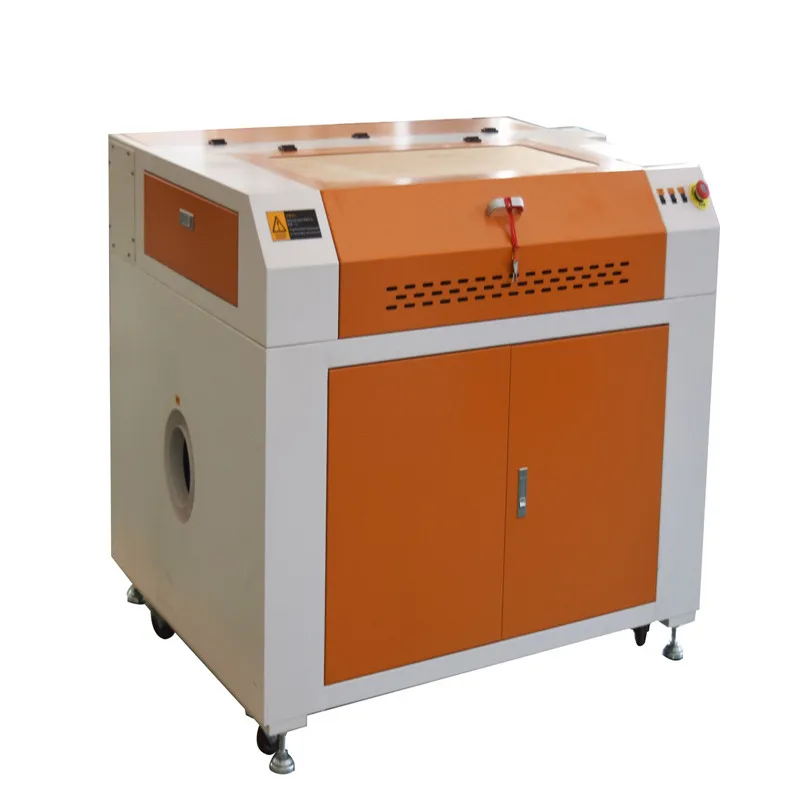

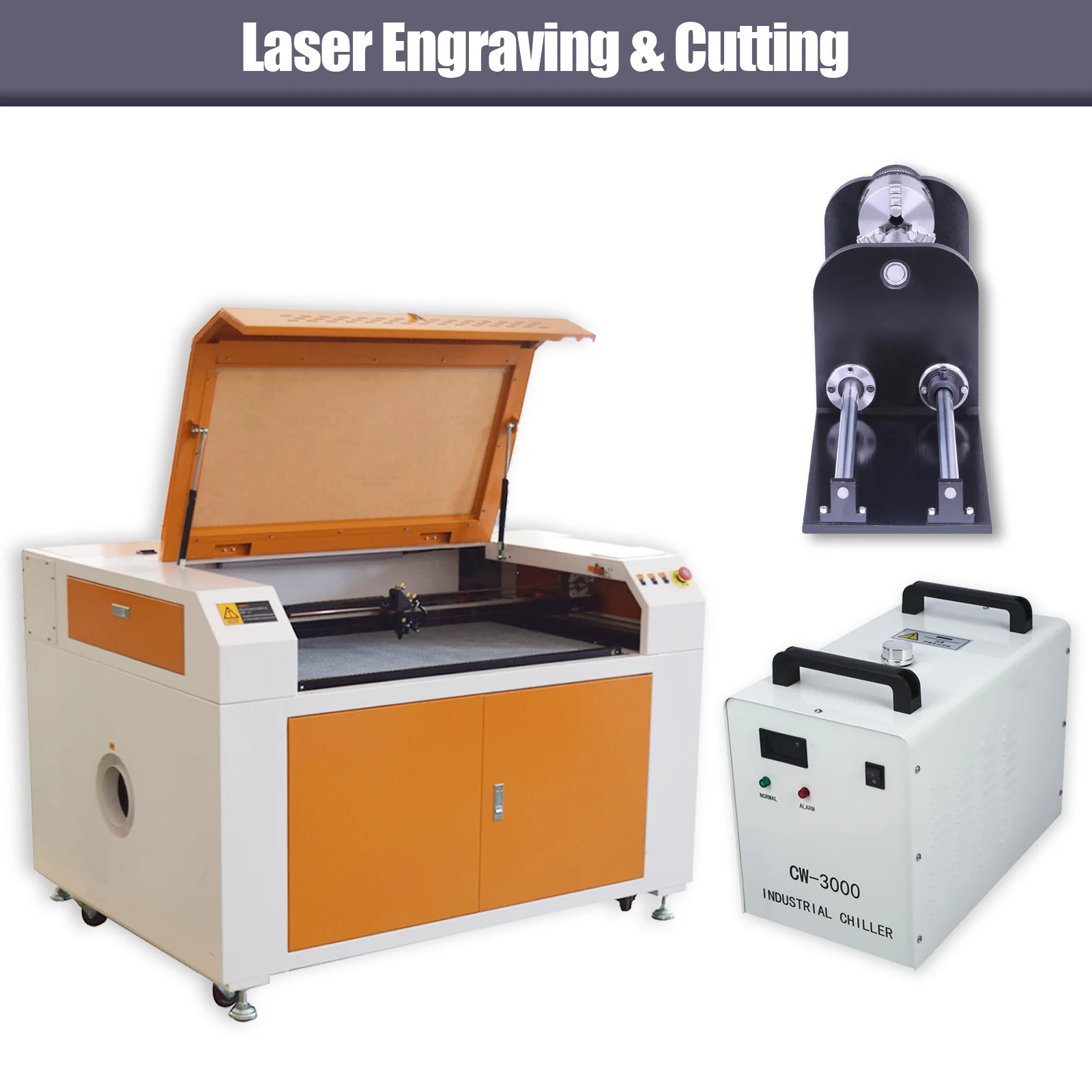

100W CO2 LASER ENGRAVERING MACHINE 900X600MM USB CE AND FDA CERTIFICATE

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc.
This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
Applicable Material:
Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.
Applicable Industry:
Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.

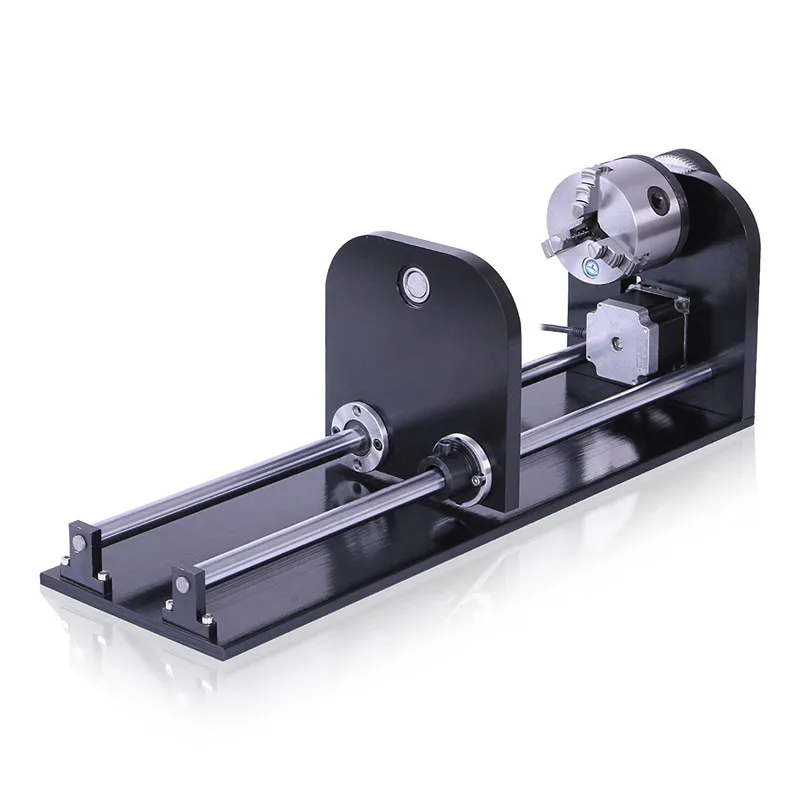

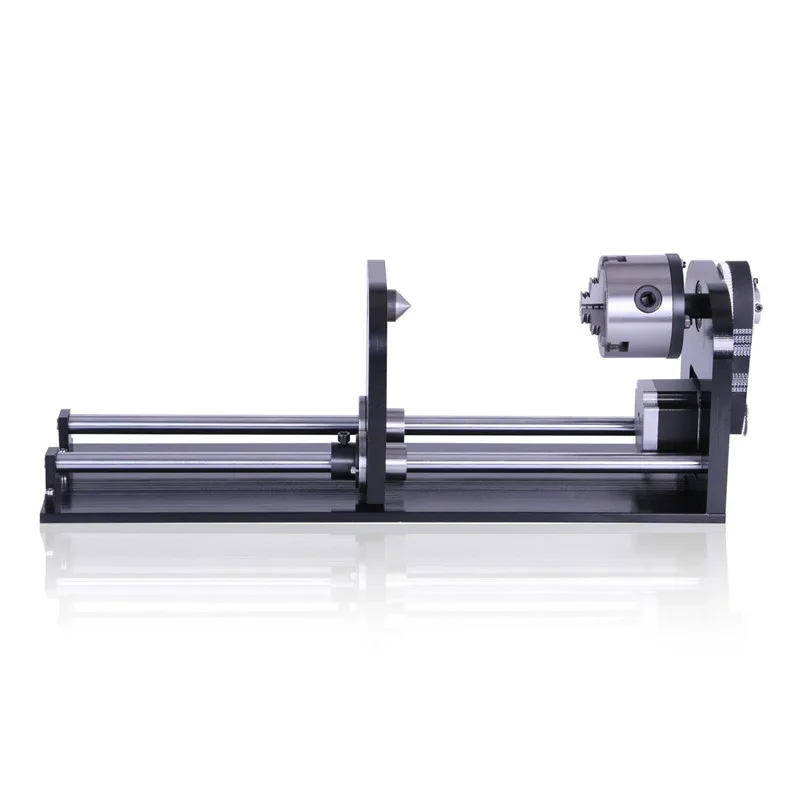

This laser machine rotary attachment can add rotary laser processing capability to your laser engraver. The rotary attachment can quickly and easily adjust to size for a wide variety of products,such as glassess, mugs, wine bottles, flashlights. Our standard rotary attachment is ideal for engraving cylinder items with your laser engraver.

Specifications:

Package Content

· Laser Engraving software Package(English Version)

· User Manual (CD)

· Water pump

· Air exhaust fan

· Air Pump

· Communication cable

· 3 Reflect optics (installed in the machine)

· 1 Focus optics (installed in the machine)

· 1 Laser tube

· Other tool

· 1x Rotary axis

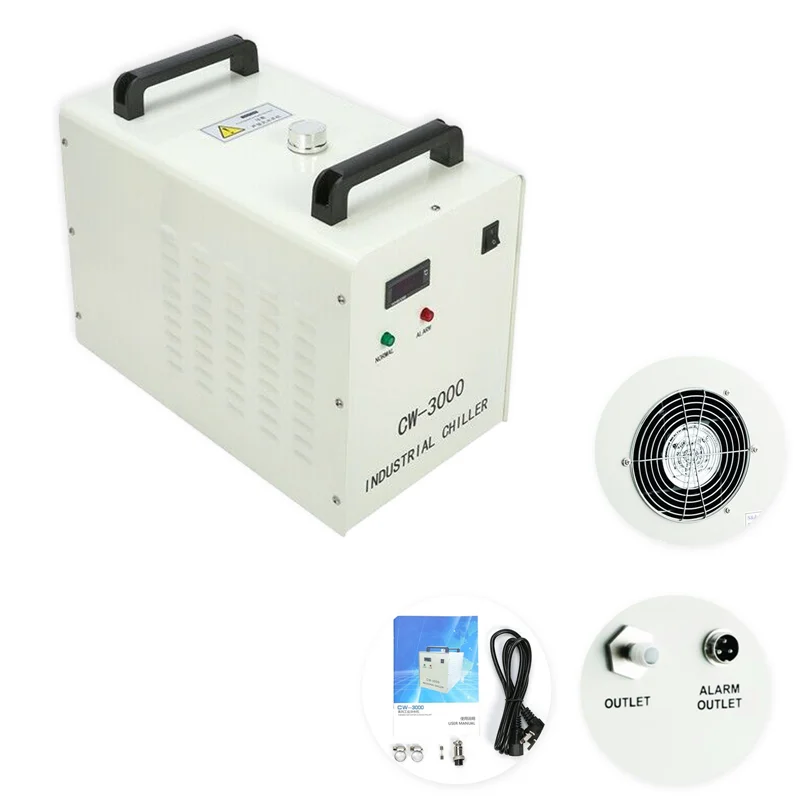

CW-3000 laser water chiller is suitable for small water cooling device;
• Provide stable working conditions for laser devices;
• Water can be used for a long time;
• High heat dissipating capacity and not easy to be blocked;
• Alarm output port can quickly protect sensitive components.

Model

CW-3000AG

Power Supply

AC220V-240V, 50/60Hz

Current

0.45A (AC220 – 240V)

Tank Capacity

9L

Cooling

Radiator that forces the wind cooling

Amount of Cooling

50W / ℃

Way of Circulation

Water pump forces circulation

Maximum Flow

9L / min

Maximum Pumping Lift

10m

Inlet and Outlet

External Dia.: 10mm brass connector

Protection

Flow alarm

PACKING LIST:

1.1 UNIT OF INDUSRIAL CHILLER.

2.1 COPY OF USER MANUAL.

3.1 PC OF POWER CORD.

4.1 PC OF ALARM SIGNAL OUTPUT PLUG.

5.1 PC OF SPARE FUSE.

(Held in the spare fuseholder of power socket.)
