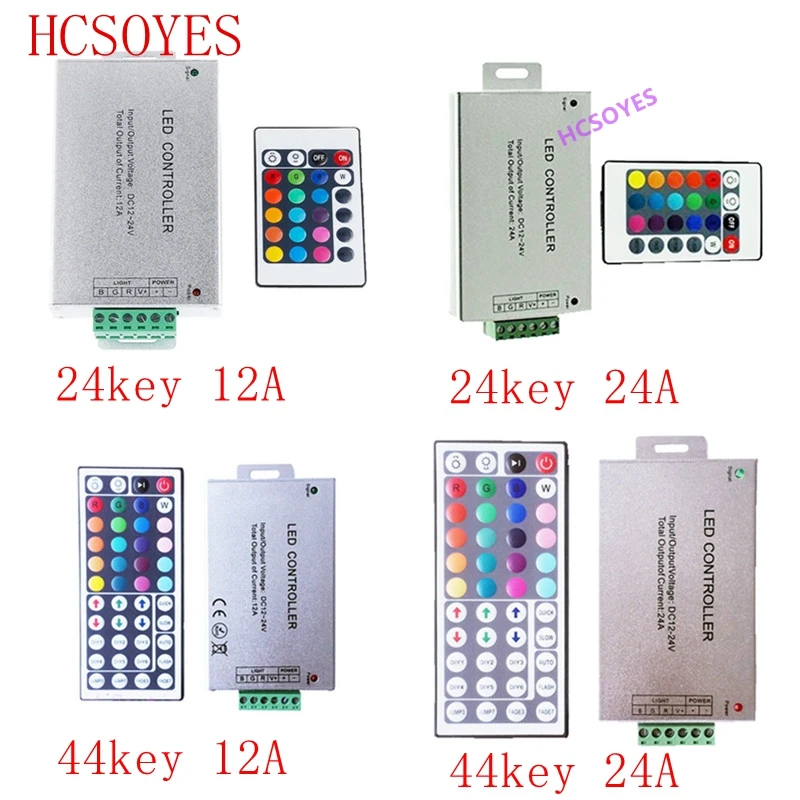

DC12-24V 24key 44key 24key 12A IR RF Remote Wireless RGB led controller Aluminum+ plastic 3CH 5A  for 5050 3528 strip

24key 12A/24A:
Input/output voltage: DC12V-24V
Total output of current: 24A(8A x 3),12A(4A x 3)
Connection mode: Common Anode(+).
Working Temperature: -20degrees-60degrees.
Remote controller battery: 1 x CR2025(not include).
Support 20 meters of SMD5050 30LEDs/m or 10 meters of SMD5050 60LEDs/m or Max Load 12V-288W,24V-576W
Control box dimension: approx. 10.3cm x 6.5cm x 2.5cm.
Remote controller dimension: approx. 6.3cm x 3.5cm

Typical Applications

It is used to control the following LED Strip Lights:
Control range: 10cm - 1000cm RGB LED Strips
20 Meters 5050 SMD 30LEDs/M LED Strips
Or 10 Meters 5050SMD 60LEDs/M LED Strips
Or 20 Meters 3528SMD 60LEDs/M LED Strips
Perfect for controlling LED lights, flexible light strips, wall washer lamps, and glass curtain wall lights, etc.
Could adjust brightness, static colors and various dynamic changes in lighting effects

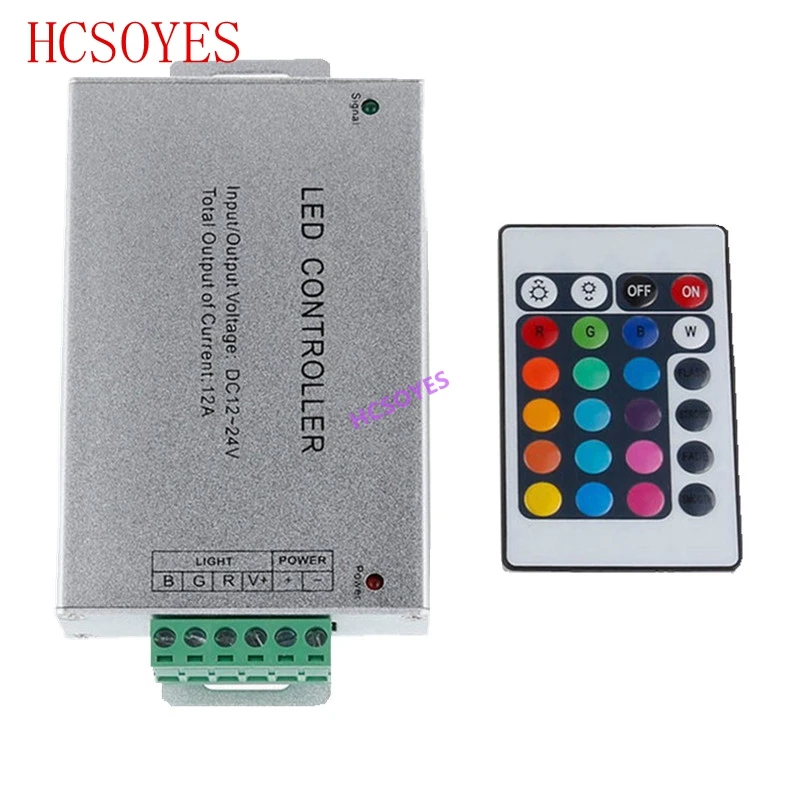

24key 12A:

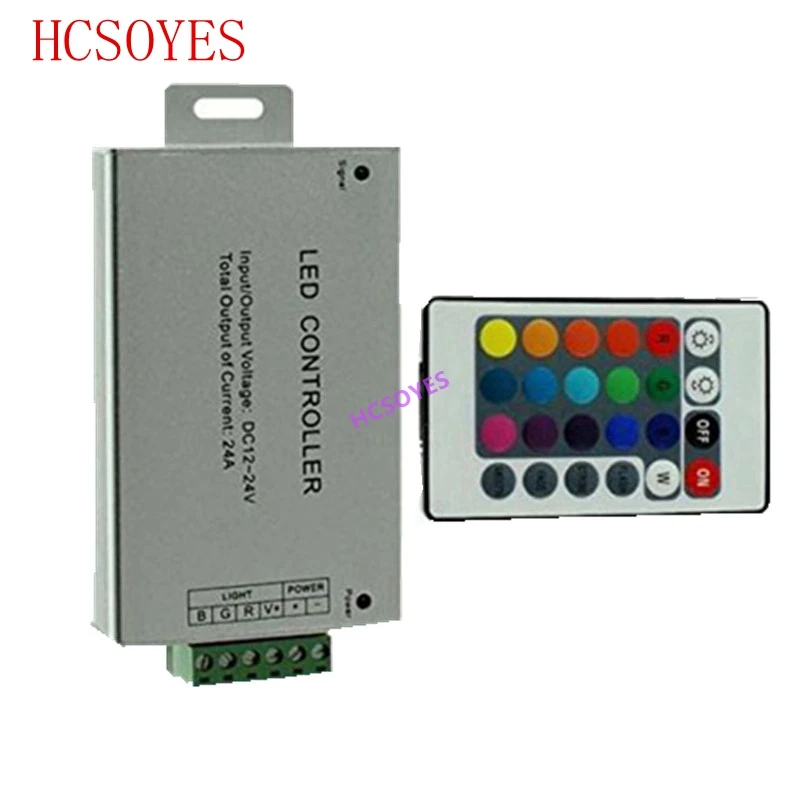

24key 24A:

44key 12A/24A:

● Working temperature: -20-60 °C
● Power supply voltage: 12-12V (wide pressure)
● Output: 3 way
● Product net weight: 190g
● Product size: L130*W65*H25 mm
●Remote size : L125*W56*H7 mm
● Static power consumption: <1W
● Maximum load current <12A
● Output power: 12V<144W, 24V<288W

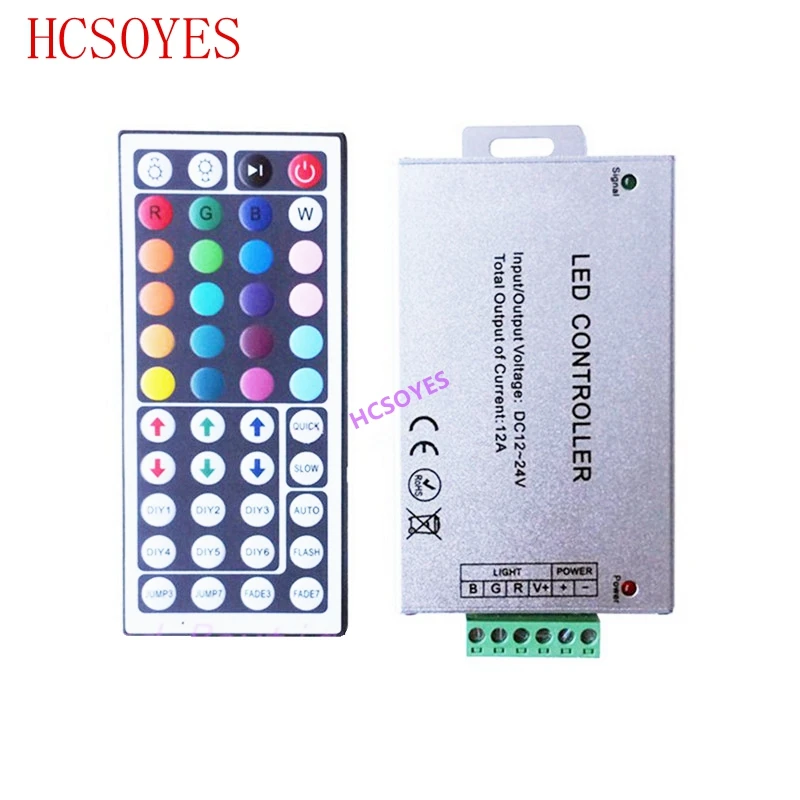

44key 12A:

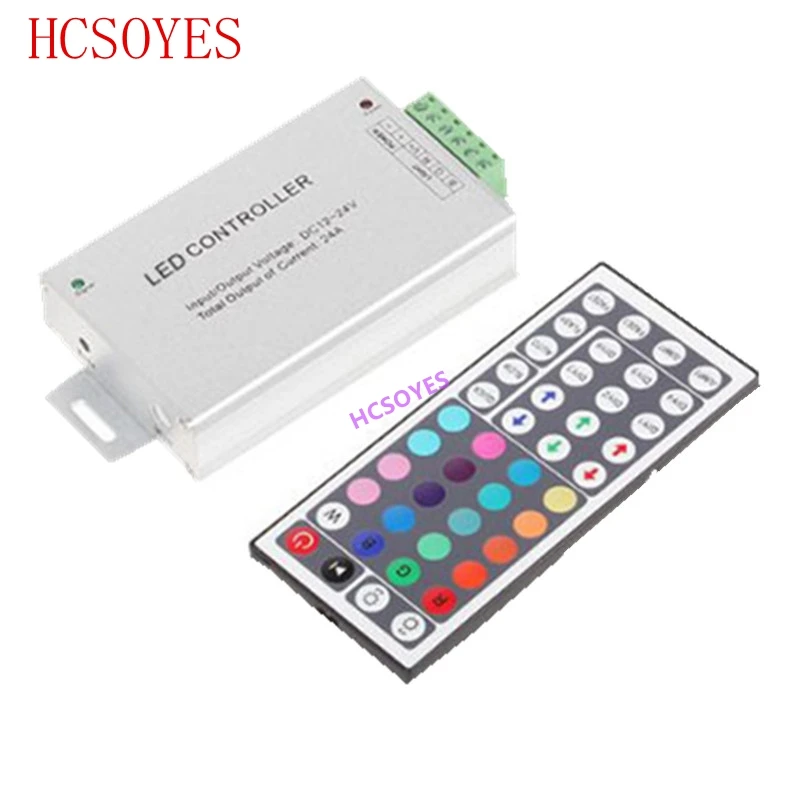

44key 24A:
