Мини Zx620 Pcb Gps навигация Wifi Lbs Gsm трекер Позиционирование автомобиля положение в

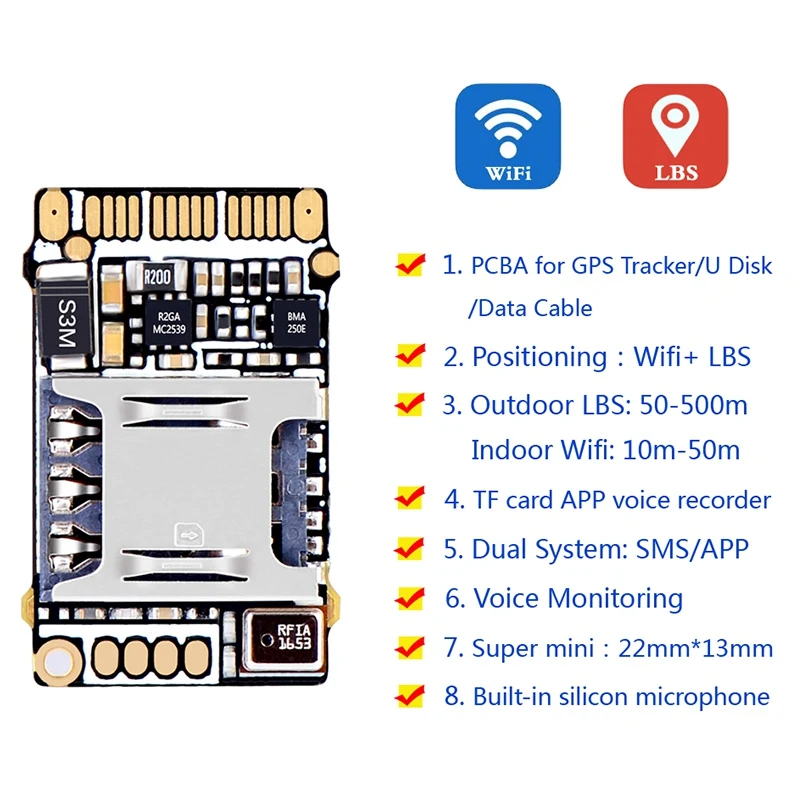

GPS type:GPS Tracker; Voltage:5V; Model Name:ZX620; Gps Module:GSM; Colour: Black; Material: ABS; GPS Geographic Location:Europe;Special Feature:Internet Connected; Item Size:22*13mm; Screen Size:Under 2 Inches; Battery Life:1 To 4 Hours; Out Power:3.7V-4.2V; WIFI + LBS positioning + recording (priority WIFI positioning accuracy);
Recording format WAV / recording time with the Beijing time synchronization / recording path to take out the TF inside the MP3 can play directly / even the computer to read the disk; 000 # number # number # number # (binding three phone numbers); 111 (SMS recording 10 minutes pause); 222 (voice recording 5 minutes pause);333 (voice-activated telephone)
444 (delete all contents of memory); 555 (turn off all features); 666 (vibration alarm SMS); 777 (vibration alarm telephone); 888 (play the memory recording --- such as the next play then pause after the broadcast --- if the switch key short press pause)
999 (positioning made with 606 can be the same)Language automatically switches
1.1 factory password:Edit the message "pwrst" to the device number to reply to "password clear"; 1.2 Restore factory:Edit the message "1122" sent to the device number reply "factory success"
1.3 Query IMEI
Edit the message "imei #" sent to the device number, reply SMS IMEI number (200000000000001)
1.4 Modify IMEI
Edit the message "imei # + effective imei number" (IMEI # 200000000000001) sent to the device number reply "IMEI set successfully"
1.5 Set the Led lamp
Edit the message "led # on / led # off" sent to the device number, open the led lights / off led lights
1.6 Modify minutes to position the upload interval
Edit the message "time # + number" (time # 1 can be set 1-60 points) sent to the device number reply "time # + number"
1.7 Modify seconds to position the upload interval
Edit SMS "MD # +number #" (MD # 10 # can be set to 10-60 seconds) Send to device number Reply "MD # + number #"
1.8 Modify IP
Edit the message "DOMAIN # domain name or IP # port number #" to the device number Reply "DOMAIN # domain name or IP # port number #"
1.9 Set APN
Edit SMS "APN # Parameter # Account # Password #" Send to Device Number Reply "Set Success"
2.0 instruction restart
Edit the message "SYSRST #" to send to the device number
2.1 automatic boot
Equipment, low power off state, connect the power supply to 3.7V can automatically boot
2.2 fixed IP
Edit the message "SERVER # address # port #", modify the server. Rom if it does not return to the default server
Package Content:
1* GPS tracker
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
