Waterproof IP 65 1000W Grid Tie Inverter with Colorful LCD , Adjutable Battery discharge 48V 72V 96V  Battery Grid Tie Miro Inverter

three kinds of DC input voltage specifications can be selected

 1).PV-voc voltage  range:55V~90V or 48v battery

 2) PV-voc voltage range:80v-125v or 72v battery

 3) PV-voc voltage range:120v-180v or 96v battery

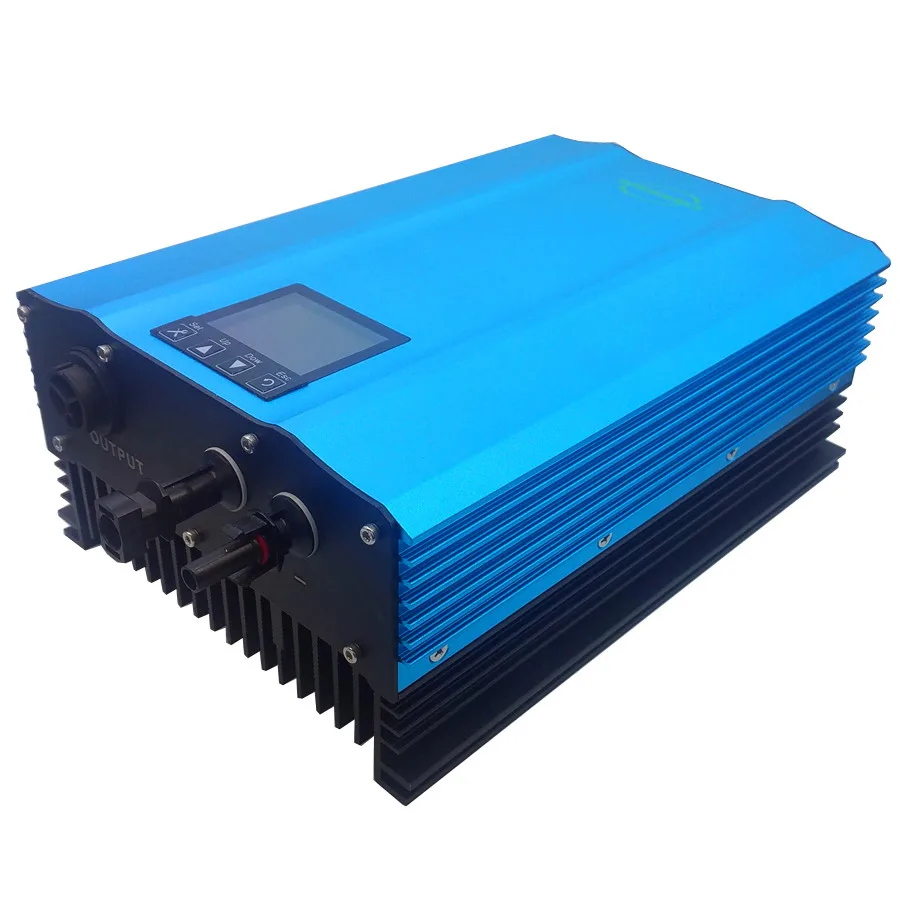

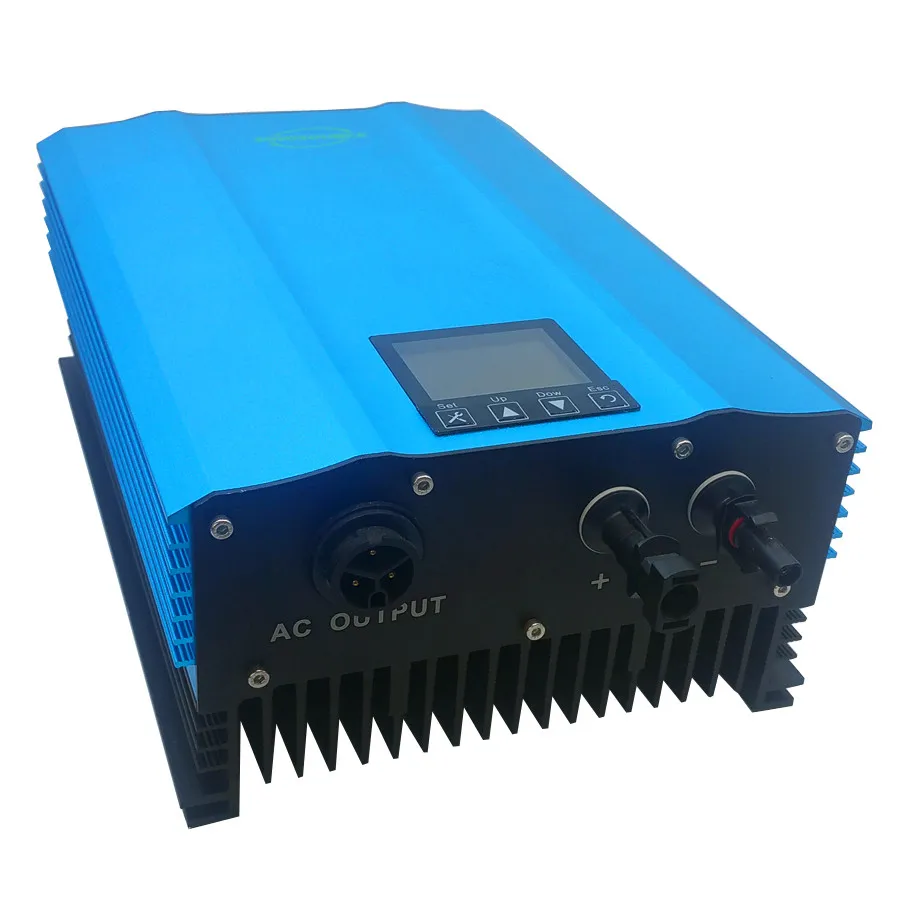

1. Colorful LCD display, more intuitive display parameters; built-in Chinese/English interface

2. 4 function keys, parameterizable operation;

  1).The main interface can display the current model specifications, DC voltage, AC voltage, real-time power, internal real-   time temperature, cumulative total power generation, real-time working status prompts, such as: work, standby, AC and DC voltage is too high or too low, internal Temperature over temperature prompts and other status prompts.

  2).LCD backlight light 1 to 9 can be set;

  3). delay start time can be set: 5-180 seconds;

3. It can be set to battery working mode and photovoltaic working mode;

  Battery operating mode can set the battery start voltage, lowvoltage protection voltage, output power

When the DC input voltage is too low or too high, the LCD will automatically turn off after 10 minutes of standby to reduce power consumption and extend the life of the LCD. When the DC input voltage reaches the normal allowable input voltage range, the LCD display will automatically turn on

Self-test mode is provided. After entering the self-test option, the test will be performed in sequence: AC input voltage and display voltage, DC input voltage value, current power value, internal AC relay on/off test, fan start/stop test, and test completion prompts need to be renewed. Only after power can the inverter be restarted;

Specifications:

Rated Power

1000W

DC input parameters

model

GTN-1000G48

GTN-1000G72

GTN-1000G96

GTN-1000G132

PV-VOC range

 55V--90V

85V-130V

120V--180V

 170V--220V

Max PV Input (W)

<1100W

MPPT working voltage (V)

44V--70V

65V-100V

90V-135V

125V-170V

Battery start voltage set range (V)

45V-71V

66V--100V

89V--120V

120V-165V

Battery low voltage shutdown voltage

set range (V)

44V--70V

65V--99V

88V--119V

119V-164V

Max operating protection current (A)

30A

20A

15A

10A

AC output parameters (AC110 / AC220)

Photovoltaic mode AC max output  (W)

1000W

Battery mode adjustable output power (W)

90W--790W

90W--850W

90W--850W

90W-850W

AC voltage (V)

110V or 220V

AC voltage range

90--140V / 180-260V

AC frequency (Hz)

50HZ/60HZ(Automatic )

AC frequency range (Hz)

58-62 / 48--52

MPPT tracking efficiency

＞99%

Output power factor

＞0.98

Max inverter conversion efficiency

220V：90%

220V：91%

220V：92%

220V：93%

110V：88%

110V：89%

110V：90%

110V：91%

Night standby power consumption

＜2W

THD

＜5%

Island effect protection

VAC;FAC

Work status instructions

Colorful LCD (Chinese / English switchable display)

Protective function

DC overvoltage / overcurrent; AC overvoltage / overcurrent / over frequency;

over temperature protection

Working temperature

-20℃ / +70℃

SIZE<mm>

305*190*85

Packing size (l X w X h mm)

402*260*170

weight(kg)

4.5kg

Degree of protection

IP65

cooling

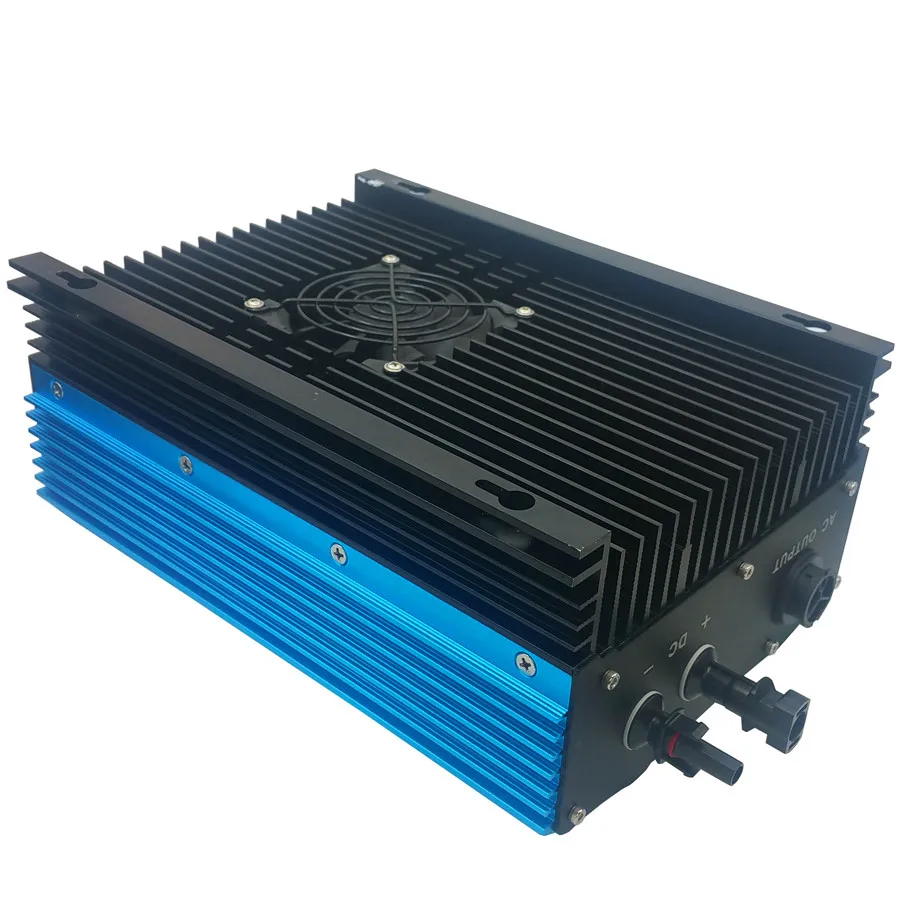

cooling Natural cooling + fan

Other features

Matching components

Monocrystalline components, polycrystalline components, amorphous, thin film, lead-acid batteries,lithium batteries, switching power supplies, chargers, etc.

Electromagnetic Compatibility

EN61000-6-1 /EN61000-6-3

Certification

CEC CE

Packing including:

1200W Inverter--1pcs;

AC cable-----------1pcs;

English Manual--1pcs;
