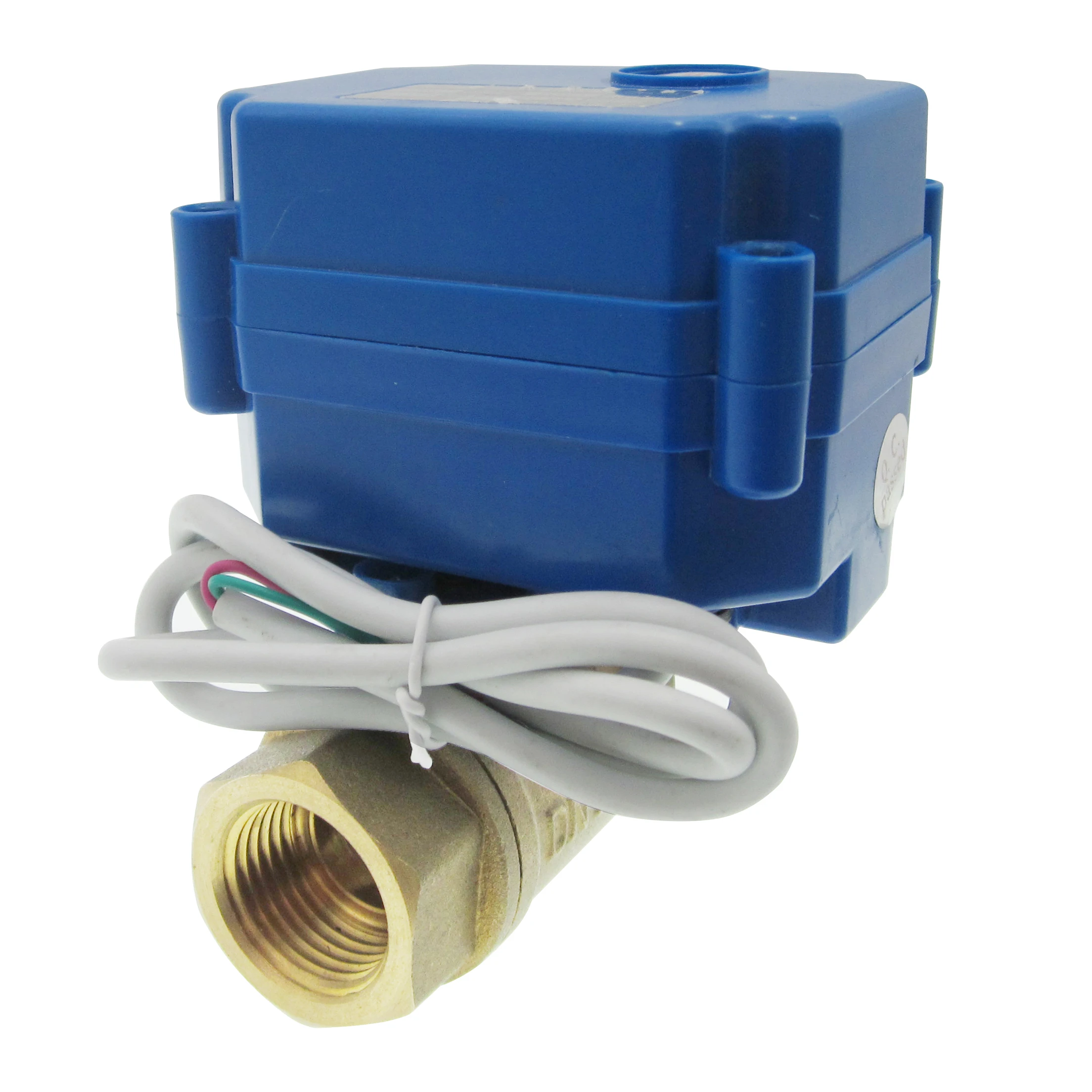

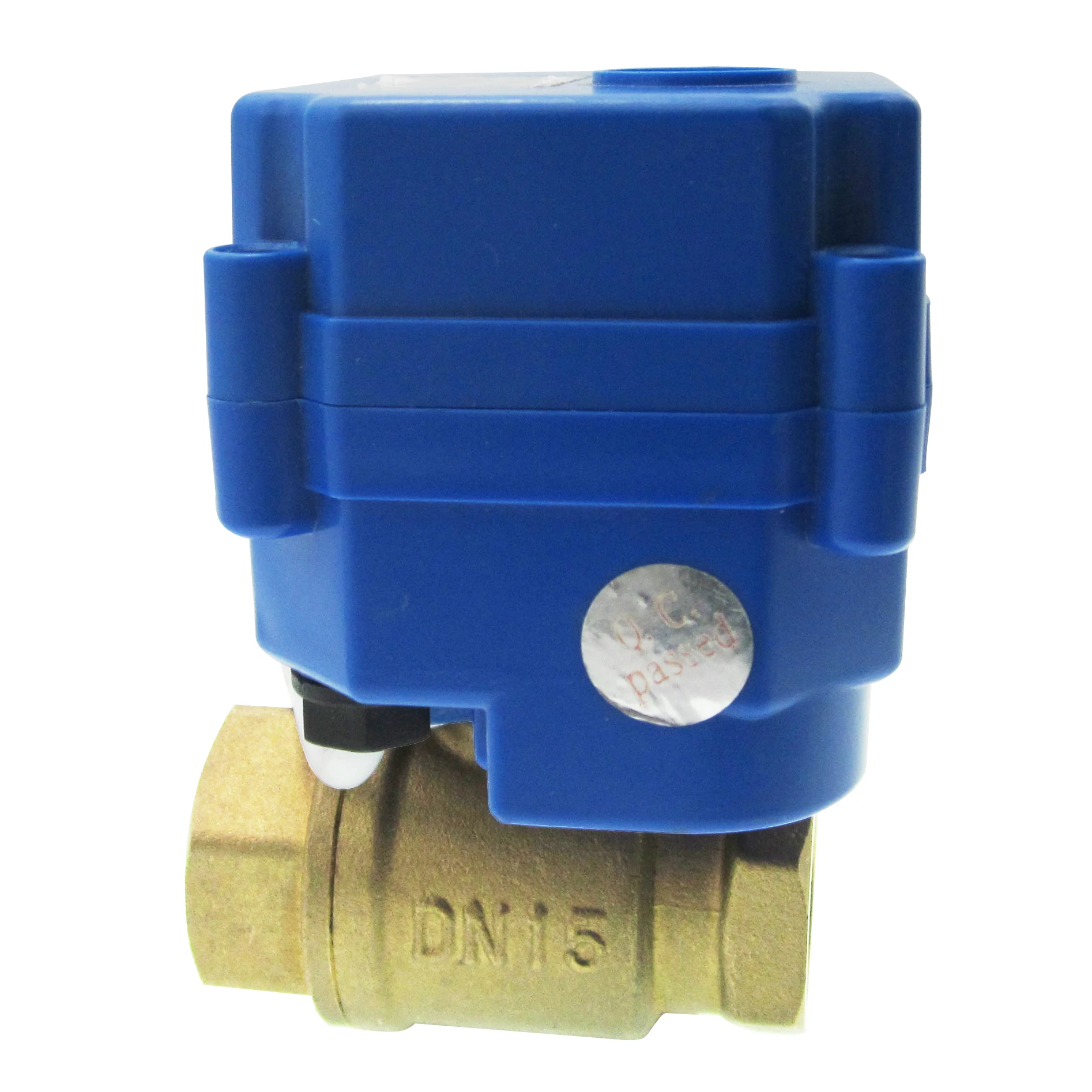

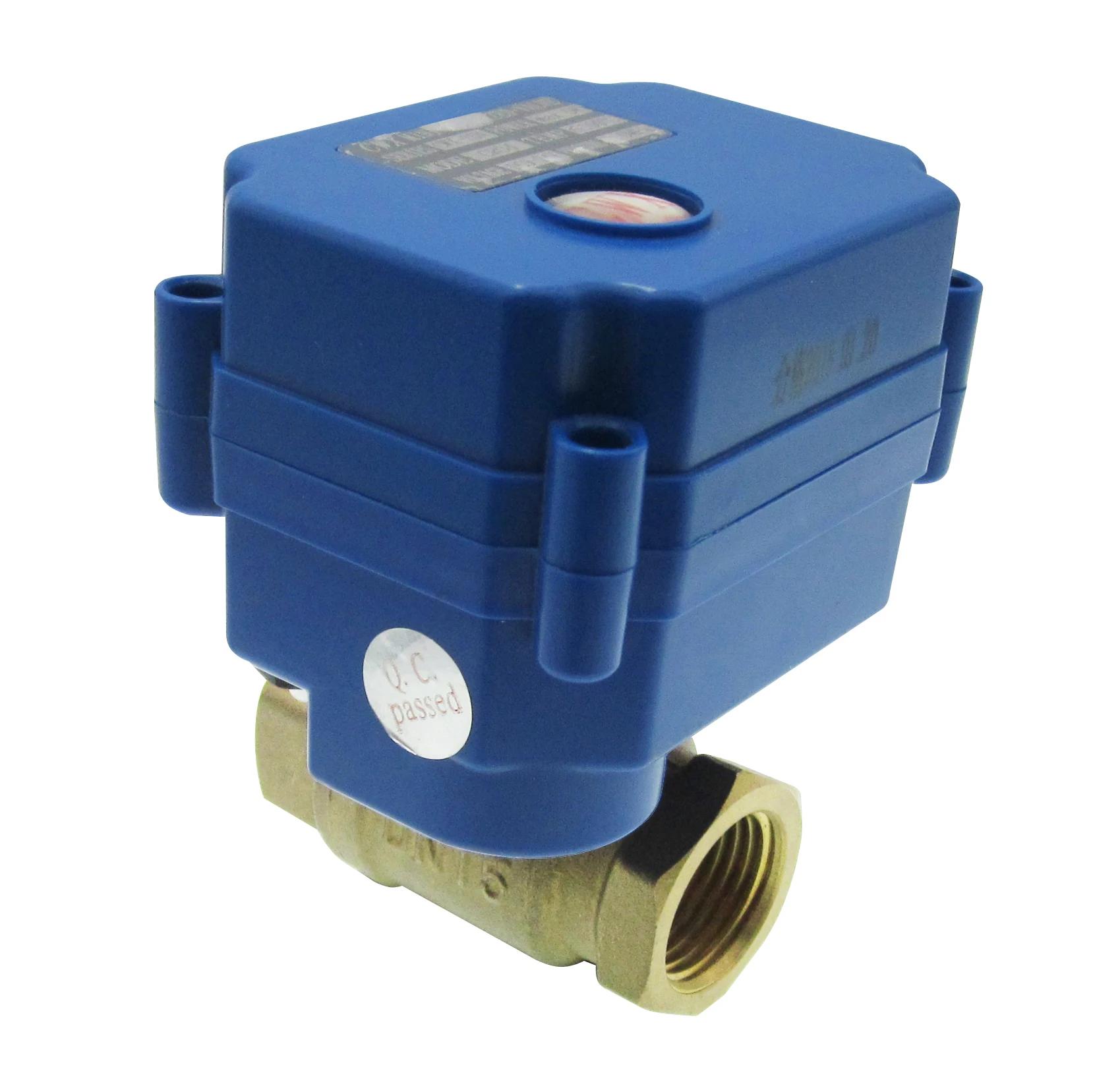

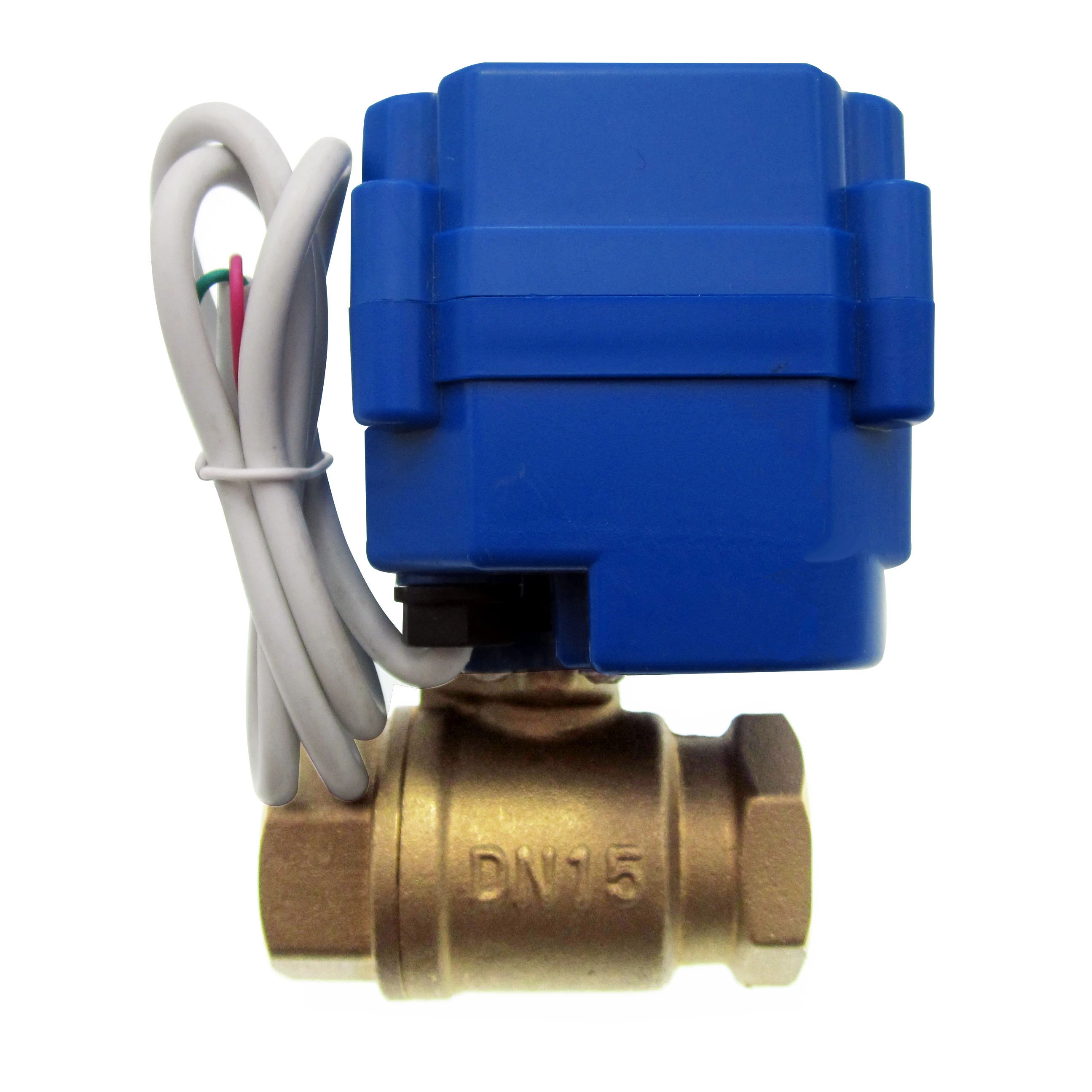

1/2" Motorized Ball Valve Brass Electric DC9-24V Normally Closed | Обустройство дома

1/2" Motorized Ball Valve Brass Electric DC9-24V Normally Closed | Обустройство дома

Features

1.Good substitution for solenoid valve or solenoid valve can not work properly: Automatically power off when in full open/close position, returns to fully closed if power is removed, low current, this reduces likelihood of overheating, long service life, life time can up to 100,000 times, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time. 2. DC9-24V: Works effectively over entire voltage range; Will open or close valve in 3-5 seconds. Float ball structure, no leakage, large flow, two way valve, both inlet and outlet, suitable for the occasion of heavy dirt or long time no action. 3. Safe and Reliable: POM and metal gear, POM gear used in the high speed to reduce the noise of gear transmission, while the low speed use metal gear, to ensure the reliability of the gear. 4. Convenient: Electrical limit and machinery limit design, accurate position, high consistency, to avoid actuator action all the time. Multi-angle assembly, which is convenient for the allocation of space and more convenient to use. 5. 1/2" NPT Threading: Manufactured and measured according to National Pipe Thread standards; This electrical ball valve is full port, meaning the bore in the ball is a full1/2”. This minimizes pressure loss through the valve.

Technical Parameters:

Model: CWX-15N Protection class: IP65 Working Pressure: Max 1.0MPa Output Torque: Max2.0NM Size: DN8-DN32 Open/close time: ＜5s Voltage: DC9-24V Working current: Max100mA Medium Temp: 0-90℃

Application:

Auto-control system, industrial mini-auto equipment, solar water heaters, water saving of high-school, drinking water equipment, timing watering, timing humidification, air compressor timing drainage, etc.

Packaging include

1x Motorized Ball Valve
