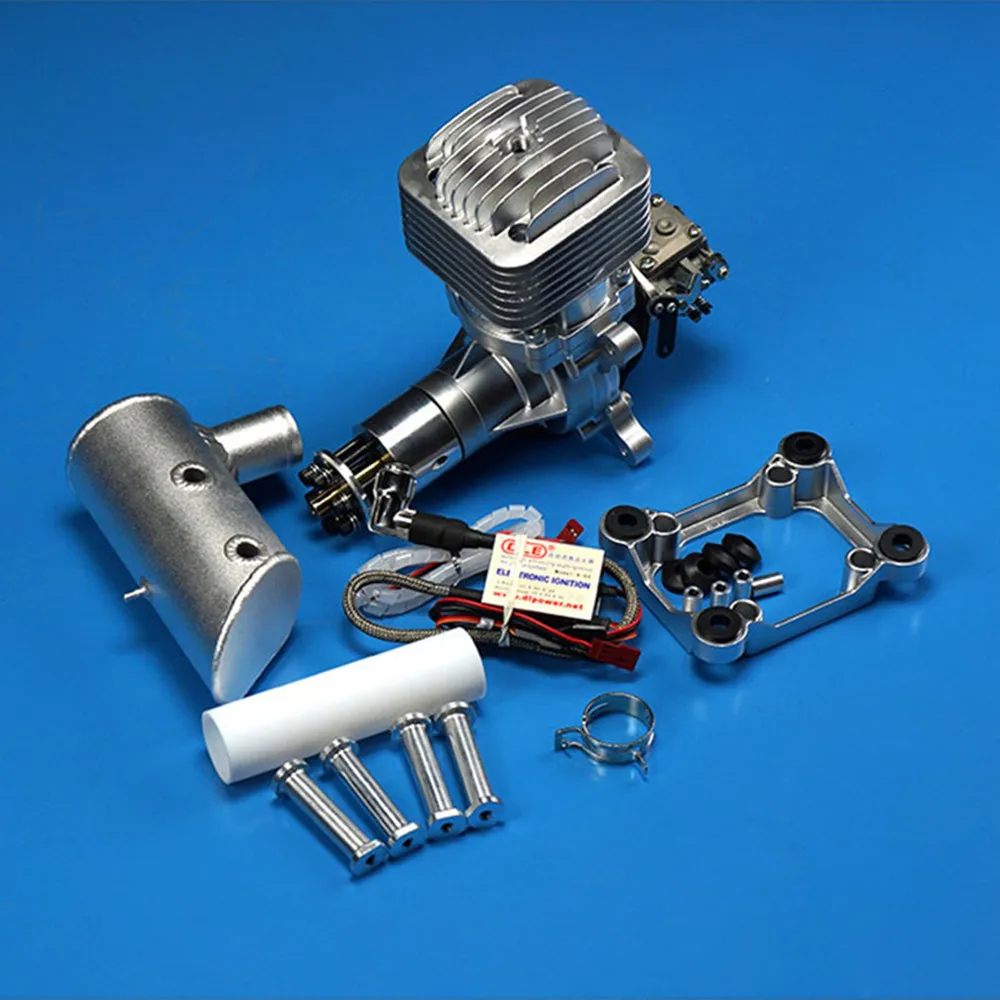

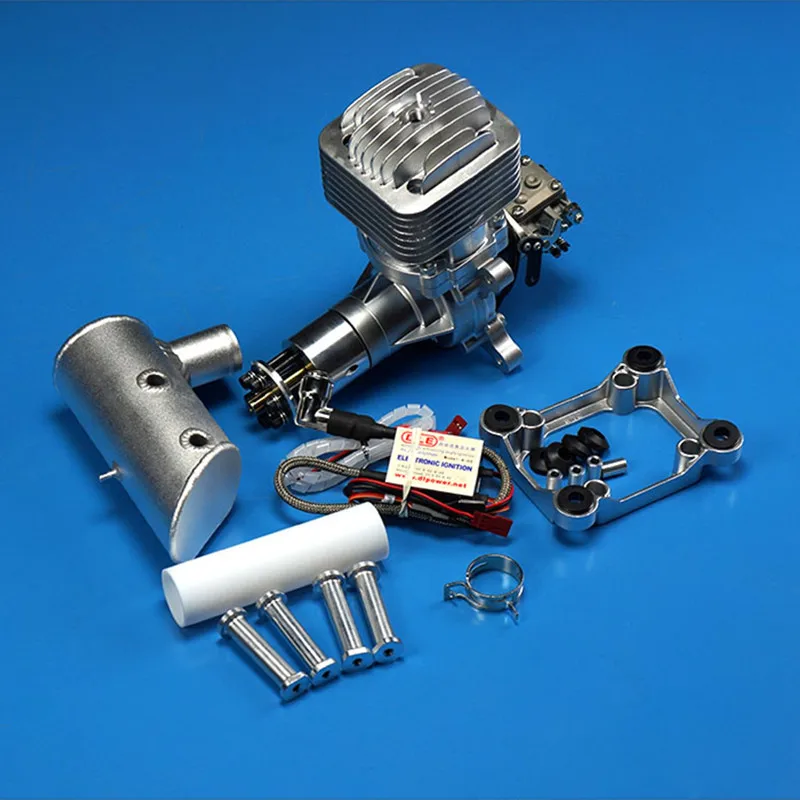

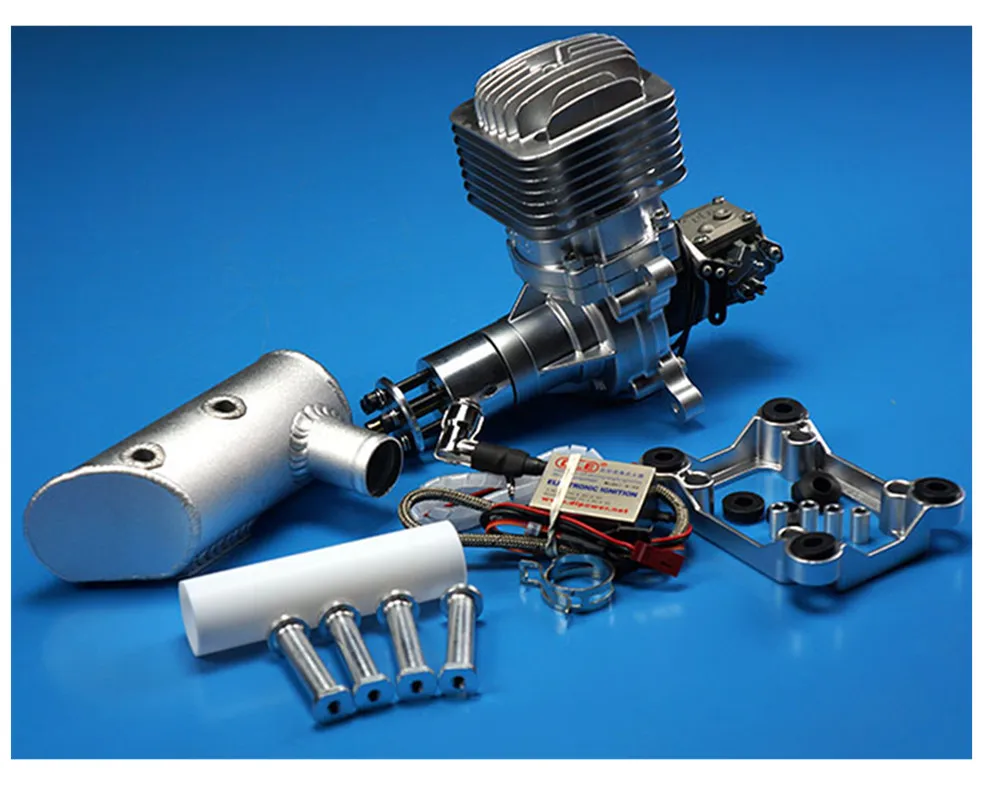

DLE 85 85CC new Gas Engine for RC airplane

This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE refuses any liability；Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is strongly recommended during the installation.

■CAUTION ： During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock absorber. Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.

Performance :8.5HP/7500rpm
Idle Speed :1500 rmp/min
Static Thrust :21kg/100 meters Altitude
Static Thrust :18kg/1800 meters Altitude

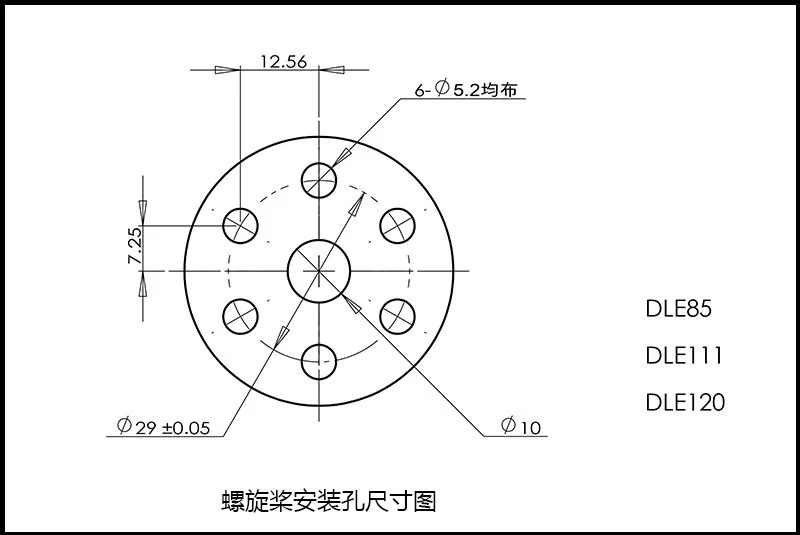

Recommended Propeller :25×10 ; 26×9 ; 27×8 ;
Spark Plug Type :NGK CM6
Displacement : 85cm3
Diameter × Stroke :52mm×40mm
Compression Ratio :9.5：1
Lubrication Ratio : 30:1
Weight of Main Engine :1940g
Weight of Exhaust :250g
Weight of Ignition:140g
Ignition voltage :4.8V-8.4V
