12v 24V Smart Fast Charging

150A Lead Acid Battery Chargers 12v 24V Smart Fast Charging Full Automatic Motorcycle Truck Car Battery Charger LCD Display

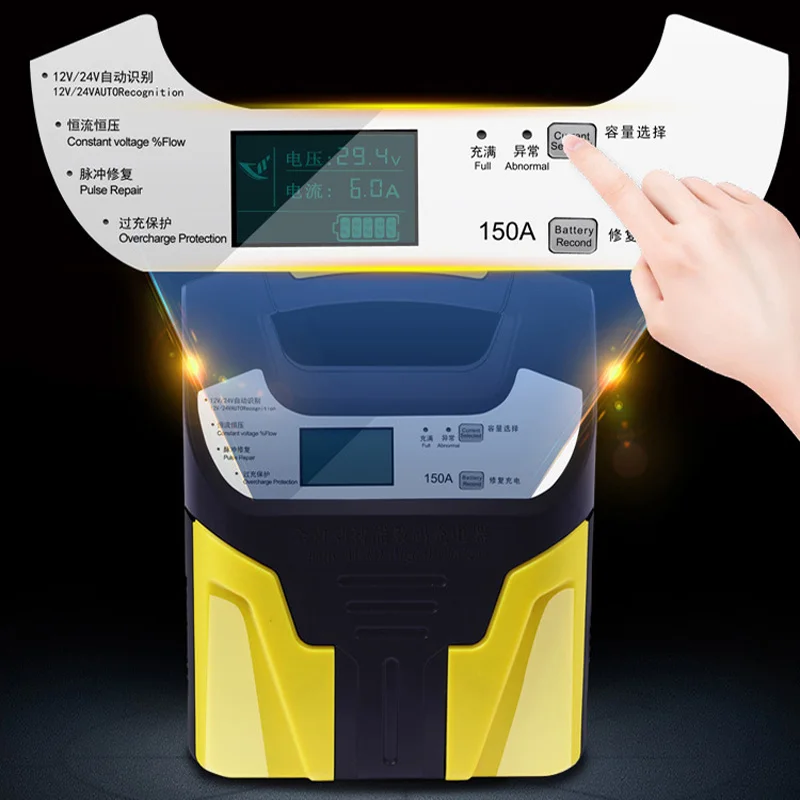

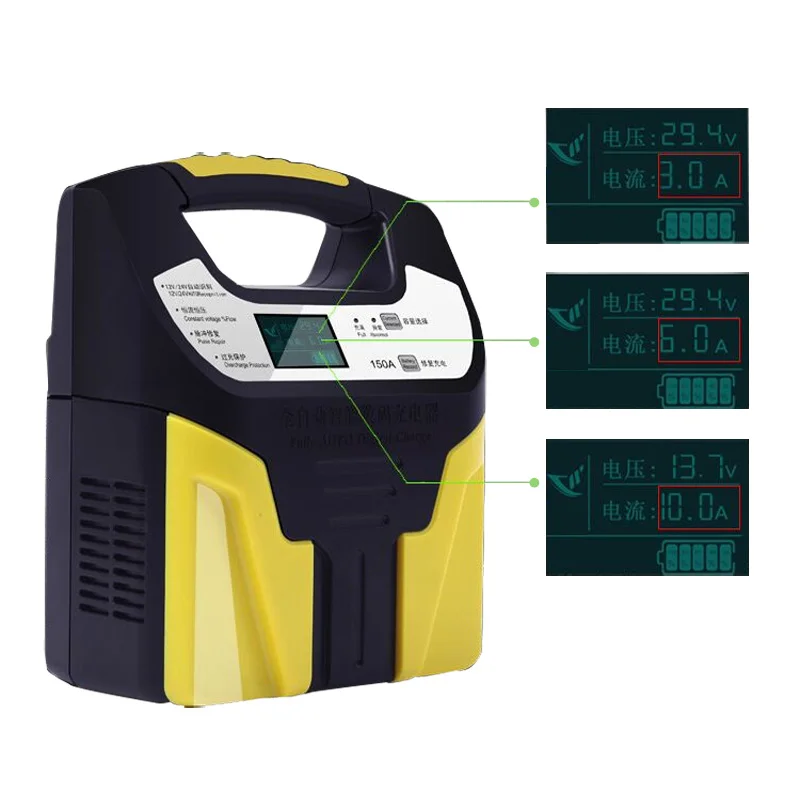

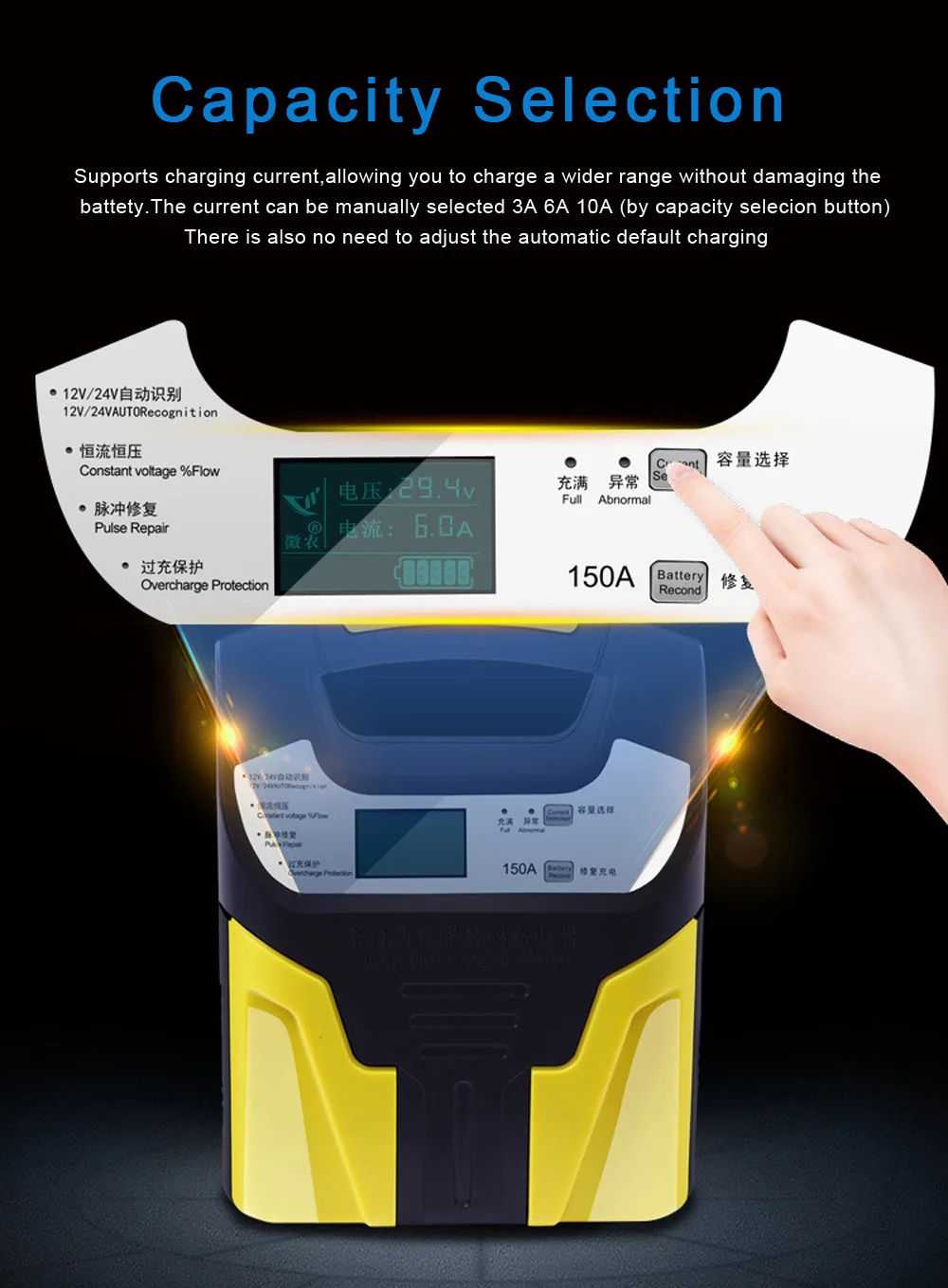

Capacity Selection

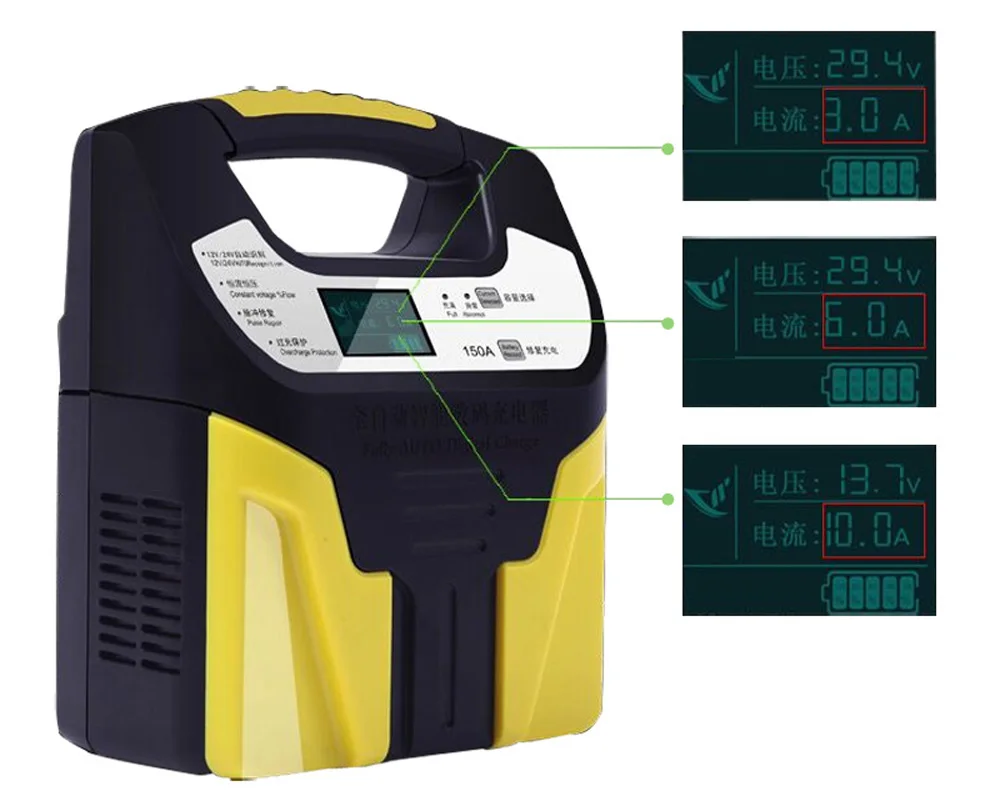

Supports charging current,allowing you to charge a wider range without damaging the battety. The current can be manually selected 3A 6A 10A (by capacity selecion button) There is also no need to adjust the automatic default charging

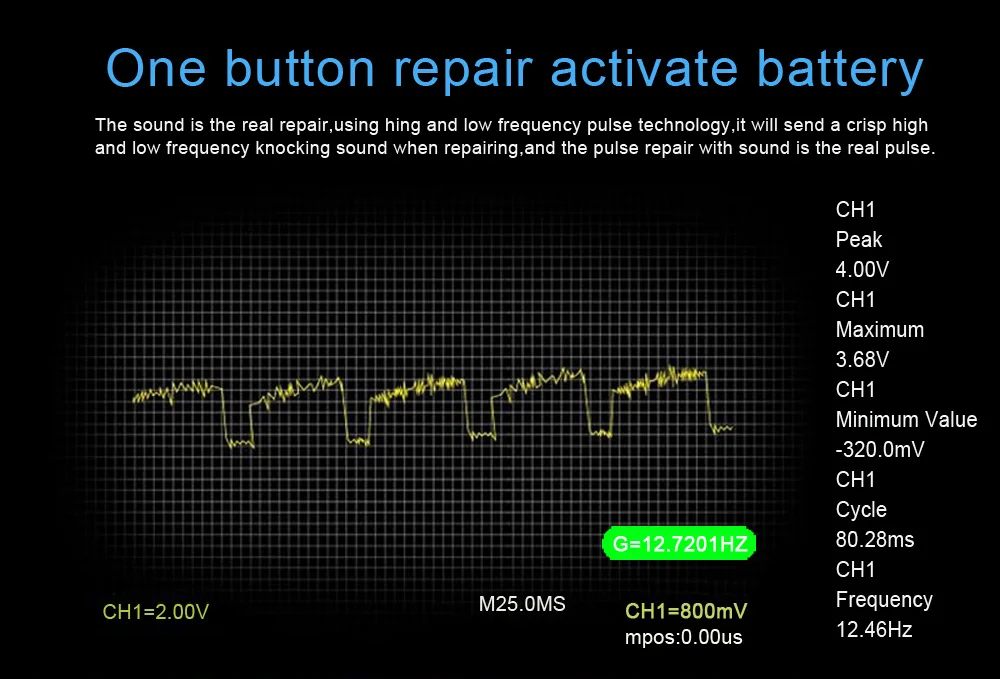

One button repair activate battery

The sound is the real repair,using hing and low frequency pulse technology,it will send a crisp high and low frequency knocking sound when repairing,and the pulse repair with sound is the real pulse.

CH1 Peak 4.00V CH1 Maximum 3.68V CH1 Minimum Value -320.0mV CH1 Cycle 80.28ms CH1 Frequency 12.46Hz

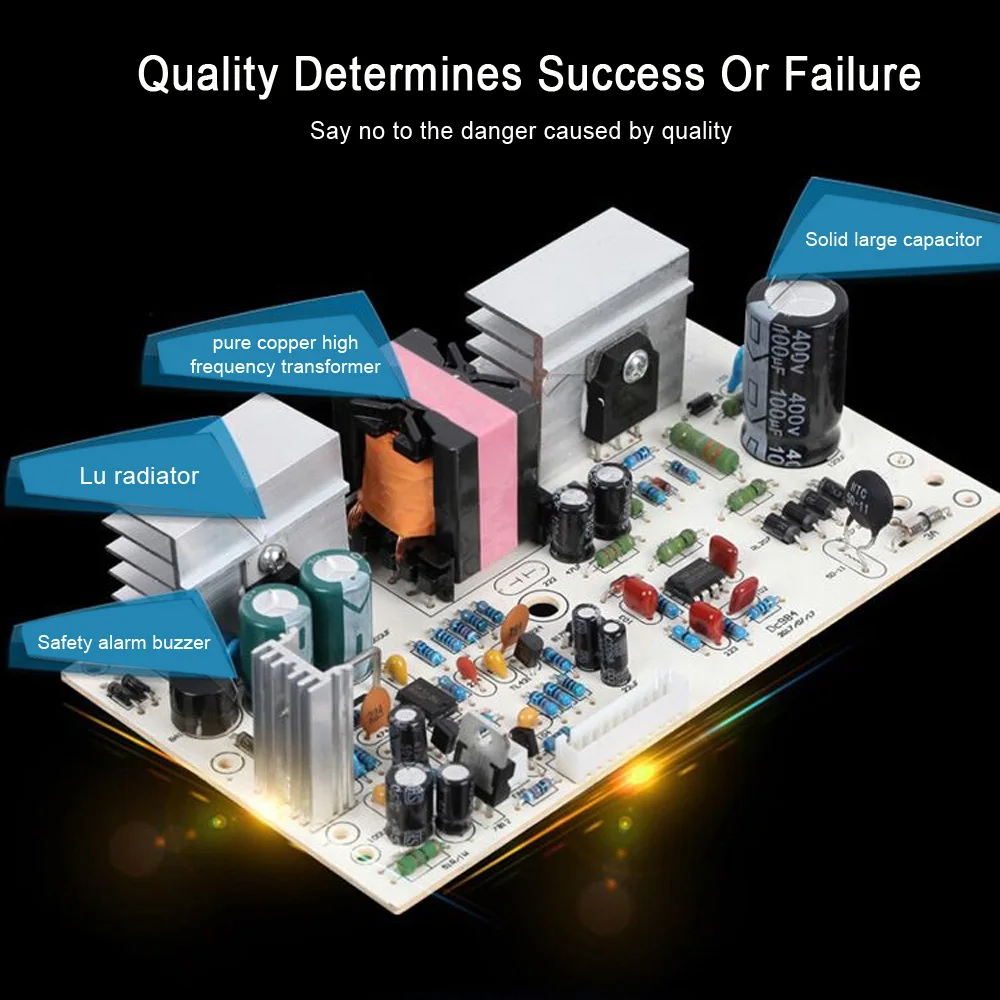

Quality Determines Success Or Failure

Say no to the danger caused by quality

Protections : Short circuit/OVP/OCP/Overload/Polarity reversed

VI. Charging operation

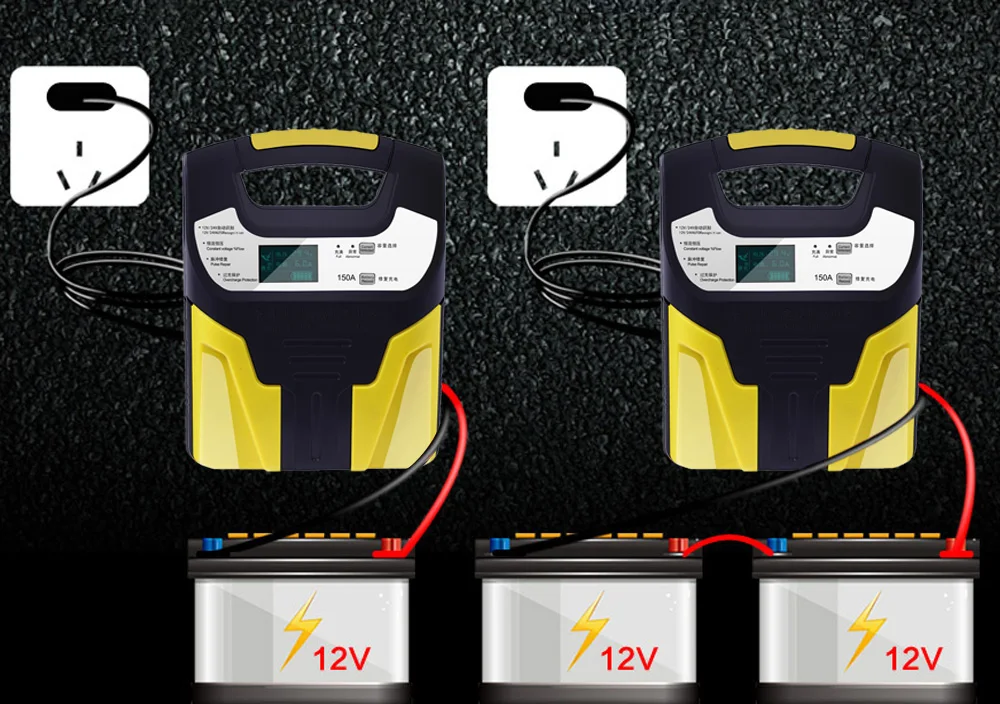

Step 1, Examine and make sure rated voltage of battery is conforming to output voltage of charger. Step 2, Connect correctly the charger and the battery. Step 3, Examine and make sure mains supply voltage is conforming to input voltage of the charger. Step 4, Connect mains supply and the battery, watch to see if the indicator is on and the cooling fan is working when charging. Step 5, if the charger refuse to work, turn off mains supply immediately and check all the connecting cables between mains supply, the battery and the charger.

Wide range of adaptation

Charge fully drained 12V&24V SLA/GEL/AGM/VRLA/lead-acid batteries and WET/FLOODED batteries for maintenance, including Car, SUV, Boat, Excavator,Truck, and heavy cars

User Manual

I. Summary WL-series switching power supply pulse quick chargers are designed and manufactured by our company based on single-voltage battery packs of 12V, 24V, 36V, 48V, 60V, 62V, 72V and 84V. Intelligent computer chips are adopted for whole process control with advanced technologies of pulse width modulation (PWM).This series of products feature small size, safety and flexibility, high conversion rate, stable output current, large designed volume, long-time duration, etc. Short circuit protection, reverse connection protection, overheat protection as well as low voltage protection is available. Therefore, constant voltage and constant current can be transformed reliably from constant voltage status into floating charge status. Hence, power waste and water loss can be reduced during charging process, and battery overheating and bubbling can be eliminated. As a result, battery life is extended greatly! II. Technical parameters Model: WL-12-50 WL-24-30 Rated input voltage: AC150V-250V Rated working frequency: 50-60HZ Full conversion rate: 93%±3% Working temperature range: -30℃ TO +35℃ III. Working modes Constant current mode: when battery voltage is lower than charger preset voltage, the working mode is constant current charging mode, where constant charging current is provided by the charger to battery. In this mode, both battery and charger are under good protection. Constant voltage mode: Adoption of pulse width modulation (PWM) can have precise control of charging current and output voltage so that the battery can be fully charged while at the same time not over-charged. Trickle mode: When battery voltage decreases to preset value, charging current will decrease gradually to preset value, and the charger will go into trickle floating charging mode from either constant current mode or constant voltage mode. Even if charging is completed, battery can still be set in floating charging mode. IV. Multiple protections Overheat protection: The charger will close automatically without current output for protective purpose when its temperature is over 105℃, and when the temperature is decreased below about 80℃ or power supply is shut down for 10 minutes, charging process can be resumed. Short circuit protection: In case of accidental short circuit, the charger will close automatically without current output, and beep for alarming. Once correctly connected, charging process will be resumed. Reverse connection protection: Whenever positive poles and negative poles of the charger and the battery are not connected correctly, the charger will close automatically without current output, and beep for alarming. Once correctly connected, charging process will be resumed. Low voltage protection: When single cell voltage is below 1.5V, the charger can not be started up, and beep for alarming. This mechanism is to avoid possible damages caused up by voltage discrepancy between the battery and the charger. V. Warnings ① Dangerous high voltage is contained inside the charger, so please contact your local dealer or the manufacturer in case of equipment failure. ② Do not use under humidity or high temperature, or where there are flammables or explosives. ③ Do not block cooling hole, or use the charger while cooling fan is stopped. ④ Do prevent rain or water entry into the machine to avoid damages. ⑤ Non-professional technicians are strictly prohibited to open the machine or change its purpose. Otherwise, severe injury may be caused. VI. Charging operation Step 1, Examine and make sure rated voltage of battery is conforming to output voltage of charger. Step 2, Connect correctly the charger and the battery. Step 3, Examine and make sure mains supply voltage is conforming to input voltage of the charger. Step 4, Connect mains supply and the battery, watch to see if the indicator is on and the cooling fan is working when charging. Step 5, if the charger refuse to work, turn off mains supply immediately and check all the connecting cables between mains supply, the battery and the charger. VII. Warm Notice For the purpose of a longer service life, avoid charging your battery after it is completely consumed. And, it is always good to charge and discharge this lead-acid battery frequently. If a 12V battery is consumed up (below 10V), firstly the battery will be damaged greatly, and secondly the charger will also be protected due to over-current. This indicates that your battery is below 10V, which is a severe power insufficiency. Do pay attention next time when you using the battery! For vehicle batteries, motorcycle batteries (small volume) which have been laid unused for a long time, the charging indicator may not go ON when charging (due to small current requirement resulted out of large internal resistance).In this situation, you can charge at the same time of huge power discharging (consumption).By this means you can judge if the charger is defective, and at the time the charging indicator will flash.(Normally, you can continue to floating charge for approximately 1 hour after the charging indicator turns Off until the fully charged. At this time, the battery is in excellent condition, you can use freely) (Though the indicator does not flash, the charger is in fact charging the battery in trickle floating mode. And, once large current need from the battery is detected by the charger, the indicator will go flashing). SPECIAL NOTICE: 1. Charging batteries of leakage for the first time shall be under manual monitoring. To avoid overcharging and bubbling, for the 1st and 2nd time, charging shall be stopped immediately once temperature rise is found of the battery. Temperature rise indicates that the battery is full before being charged or there is leakage which does not influence its usage. 2. When the charger is charging the battery, the cooling fan shall be working regularly. 3. An adjustable charger can adjust current size in accordance with battery needs for a better battery protection. For example, if the current is 30A before charging, you are advised to decrease to 25A. Similarly, if 25A, you are advised to decrease to 20A. The 20% spacing shall better protect your battery as well as your charger. If the battery is not needed urgently, you are advised to charge by 1/10, i.e. 10AH battery to 1A charging current.
