This is a 8 Port Gigabit Switch module,SOHO Switch, It provides 8 10/100/1000Mbps

Optional PCBA Size:100*100mm

Auto-negotiation ports,

you can use to establish a LAN network, or extend to the uplink network, Compared with a 100M switch, It

enhances transmission speed up to 10 times,eliminating the bottleneck of cascading bandwidth, It support

desktop installation and wall-mounting,without configuration, It can be played once plugged,

With the stable connective and easy-to-use features.It is perfectly fit for the network of school dormitories,

small offices, home office and Video Surveillance

Features

Complies with IEEE802.3, IEEE802.3u standards

8 10/100/1000Mbps Auto-Negotiation

Each ports supporting Auto-MDI/MDIX.

Supports storage-forward

Supports Full Duplex flow control mode and backpressure for half-duplex mode.

Supports MAC address auto-learning and auto-aging.

Each port provides independent bandwidth providing true non-blocking transmission

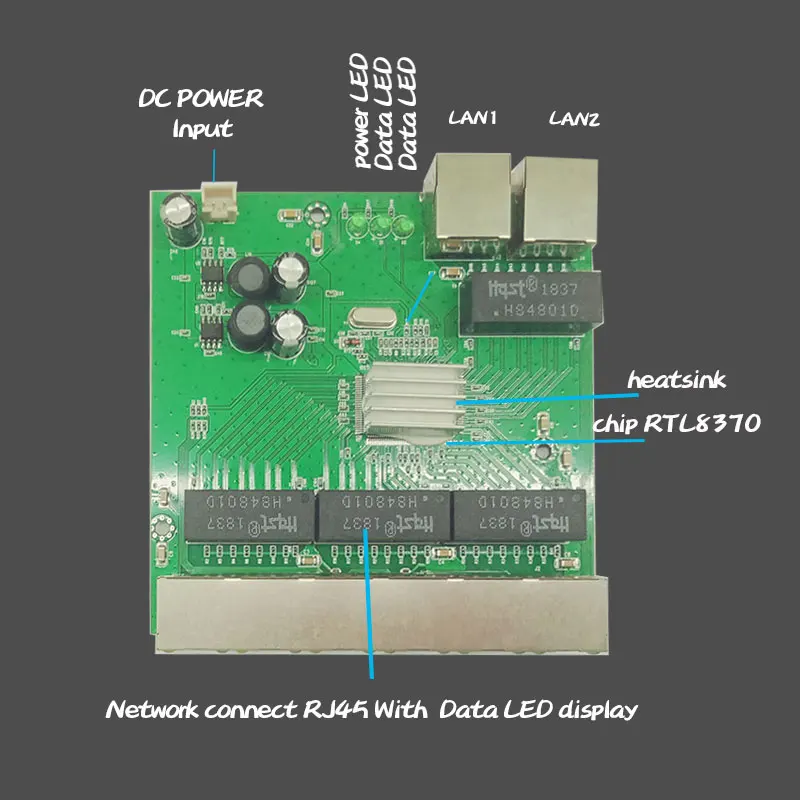

LED indicators for monitoring power, link, activity.

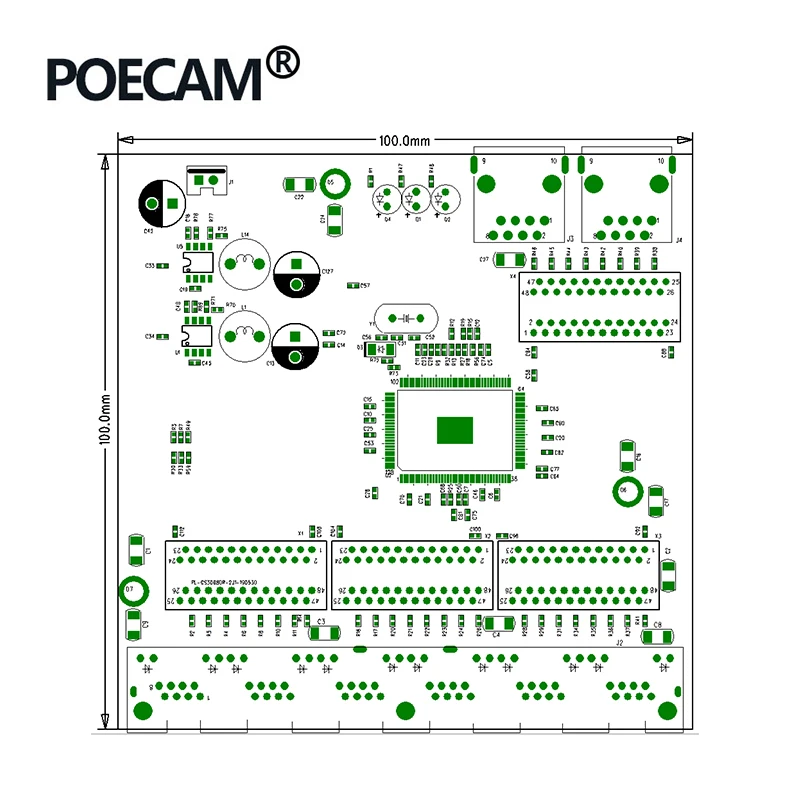

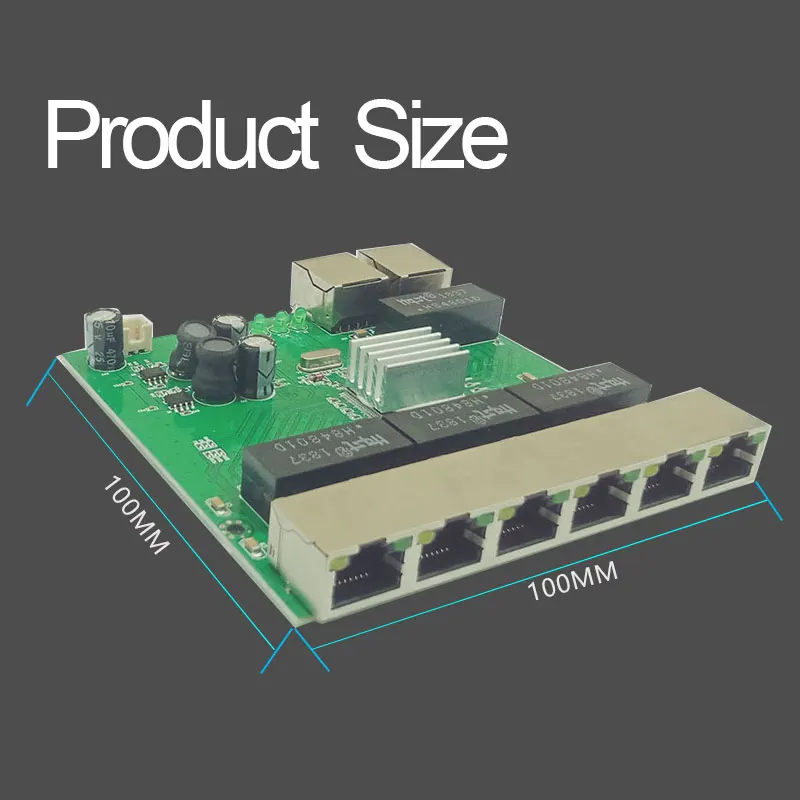

Small PCBA size 100*100mm

Specification:

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI/IEEE Std 802.3 Nway Auto-Negotiation
IEEE 802.3x flow control

protocol

CSMA/CD

Fibering and Transmitting speed

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port
Gigabit Ethernet 2000Mbps (full duplex), 1000BASE-T :1488000pps/port

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(Less than 100m)

5 UTP(Less than 100m)

1000Base-T:Cat 6 or above Cat.5 UTP(Less than 100m)

Number of Ports

8port 10/100/1000M RJ45 ports

UPLINK

Any port (support Auto-MDI/MDIX function)

Transmits Method

Store-and-Forward

Temperature

Operating Temperature 0 ~40 Celsius (32 F~104 F)

Storage Temperature -40 ~70 Celsius (-40 F~158 F)

Humidity

Operating Humidity 10 ~90 percent non-condensing

Storage humidity 5 ~95 percent non-condensing

Switch capacity

16G

LED Indications

1* power LED(Power: Red)

8* port LEDs(Link/Act: Green)

Power Supply

DC Input 5V-20V
