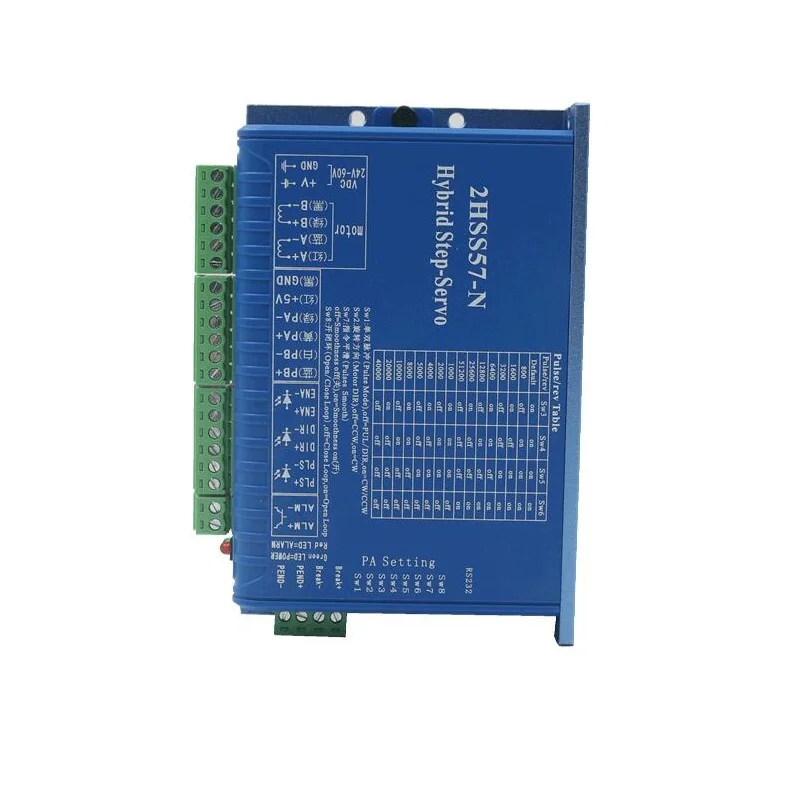

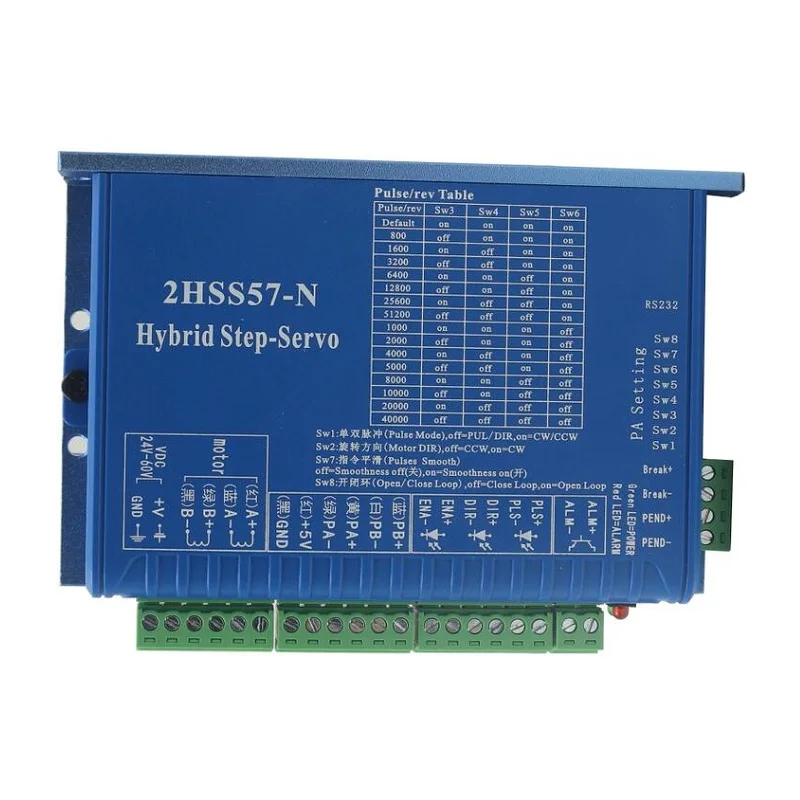

Introductions

2HSS57 two  phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop, speed loop and position loop. This product has the advantage of both step and servo  system, and it’s a highly cost-effective motion control products.

Full closed loop control

Motor with standard 1000 line encoder

It save energy and achieve nearly 100% output torque

Micro step setting range is 2-256

High speed response, High speed

Optical isolation fault  alarm output interface ALM

Current loop bandwidth: (-3dB) 2KHz (typical value)

Speed loop bandwidth: 500Hz (typical value)

Position loop bandwidth: 200Hz (typical value)

RS232 serial communication available to download or change the parameters

Optical isolation fault  alarm output interface ALM

Over current, I2T, over voltage, under voltage, temperature, speeding, over-differential protection

Alarm clear input ENA

Electrical Specifications

Parameters

Min

Typical

Max

Unit

Supply voltage

24V

36V

60V

VDC

Output Current (Peak)

-

-

6.0

Amps

Logic Input Current

-

10

-

mA

Pulse input frequency

-

-

200

KHz

Low Level Time

2.5

-

-

µsec

Environment

Cooling

Natural Cooling or Forced Convection

Environment

Storage Space

Avoid dust, oil frost and

corrosive gases

Ambient Temperature

-20°C - +80°C

Humidity

<80%RH

Vibration

5.9m/s² Max

Storage Temp.

-20°C -+80°C

Weight

Approx. 300 gram

Faults alarm and led flicker frequency

Sequence Chart of Control Signals

Every year, we will have booth in many international exhibitions to show our products and meet our customers.

Welcome to see you in next one !

 Shenzhen Just Motion Control Electromechanics Co.,Ltd established in 2007, we have 10 years experiences in the motion cotrol area.

Our main products are stepper motor drives, step motors, AC servo motor systems, integrated step servo motors, integated step AC servo motors,DC brushes and brushless motors and drive systems.we also provide complimentary mechaical products.suchas motor couplings, gearboxes, and linear motions.

Our products are widely used and applied in the following industries:semiconductor,textile, packaging,laser,woodworking, printing,advertising,clothing,marble and ceramic,robotics and military.

Our customers come froms all around the world:European, America, Canada, Middle East,Asia and so on!

Sincerely hope we can have channce to cooperate!

Q1. What are your products can be use to ?

A: Our products can be use inCNC routers ,CNC milling machine ,engraving machine, packaging machine,filling machine, cutting machine, printing machine,laser machine, carving machine, labeling machine and so on.

Q2. What  kind of Payment methods do you accept ?

A: We can accept Paypal ,Western Union ,TT

Q3: What kind of shipping methods do you use ?

A:1)For samples or small batch , air shipping  is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.

2)For mass production or big batch, ocean shipping/sea shipment is recommended .

Q4: What is the lead time of my products?

A: Lead time : For standard samples , 2-5 days will be OK .

For mass production , the lead time depend on the quantities you need .

Note:

Sometimes yourlocal customs may charge tax fromyou. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to waitand ask us toextend delivery dates for you.

Q5:What is your warranty time ?

A:Warranty time : 12 months. And we provide life-long technical service and after-sale service.

Q6:Can i get a free sample?

A:Sorry, we don’t provide the free sample.
