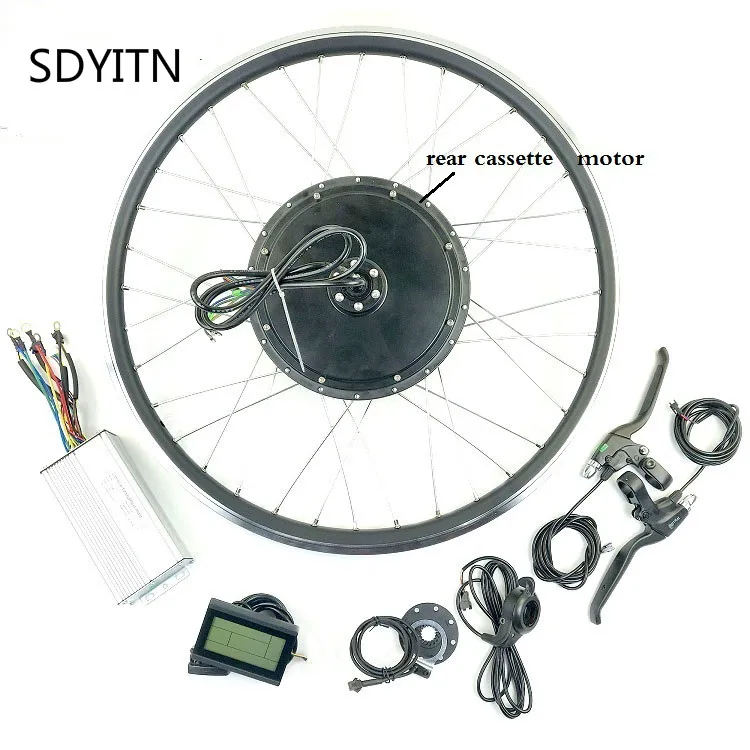

SDYITN Eike Conversion Kit 48V1000W Rear Cassette Brhshless Non-gear Hub Motor Electric Bicycle Wheel with LCD3 Display | Спорт и

SDYITN Eike Conversion Kit 48V1000W Rear Cassette Brhshless Non-gear Hub Motor Electric Bicycle Wheel with LCD3 Display | Спорт и

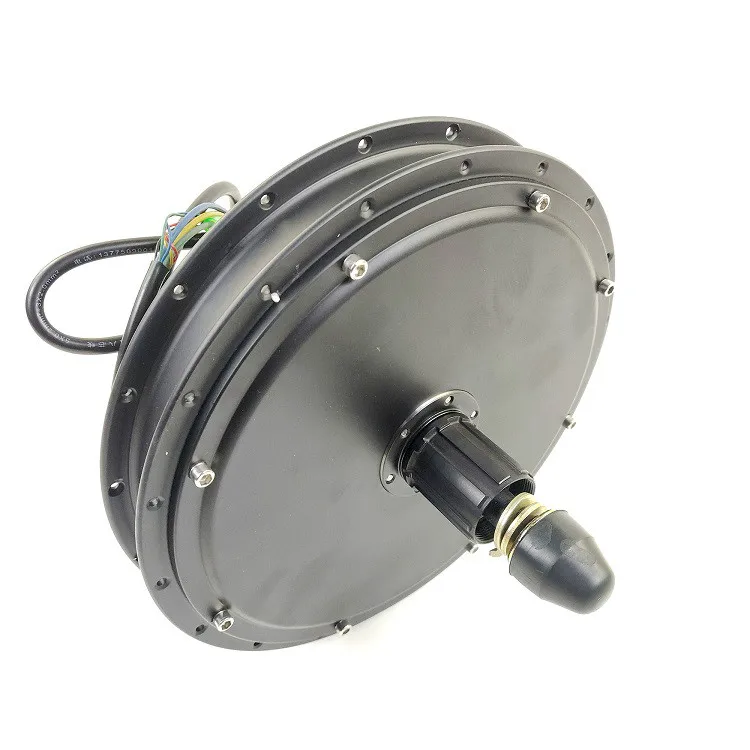

Motor：

1. Brushless non-gear  hub motor

2.Installation location: rear  wheel

3. Spoked with double-wall Aluminum alloy rim with

36 eyelets,stainless steel spokes

4. Disc brake available

5. Rated speed=42KM/H.

6.. Motor cable length=800mm

7. Wheel size： 24inch 26 inch 27.5inch 28inch 29inch 700c wheel

8.front fork100mm,rear fork 135mm

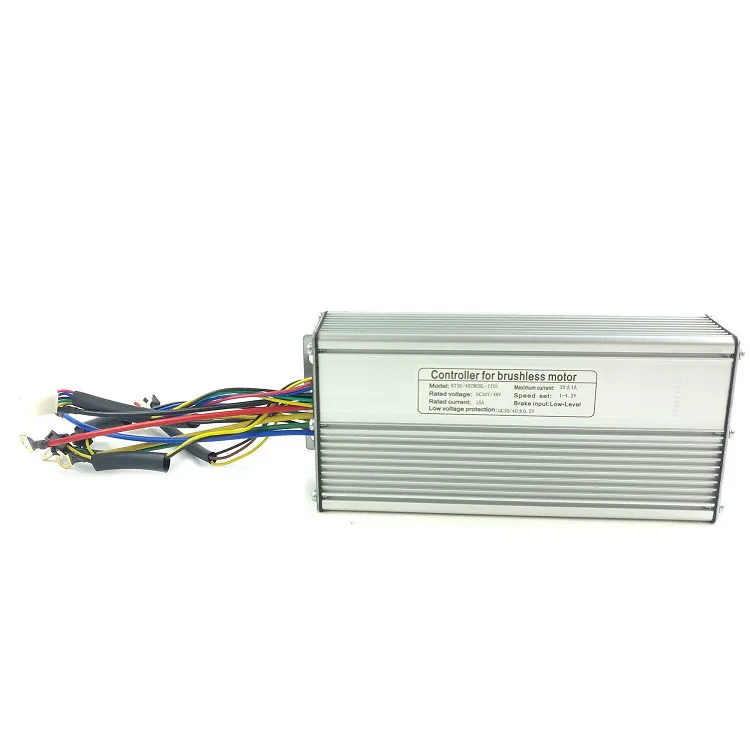

Controller:

Maximum current: 30±1A

Rated voltage:DC48V

Speed set:1-4.2V

Rated current:15A

Brake input :Low-Level

Low voltage protection: DC40±0.5V

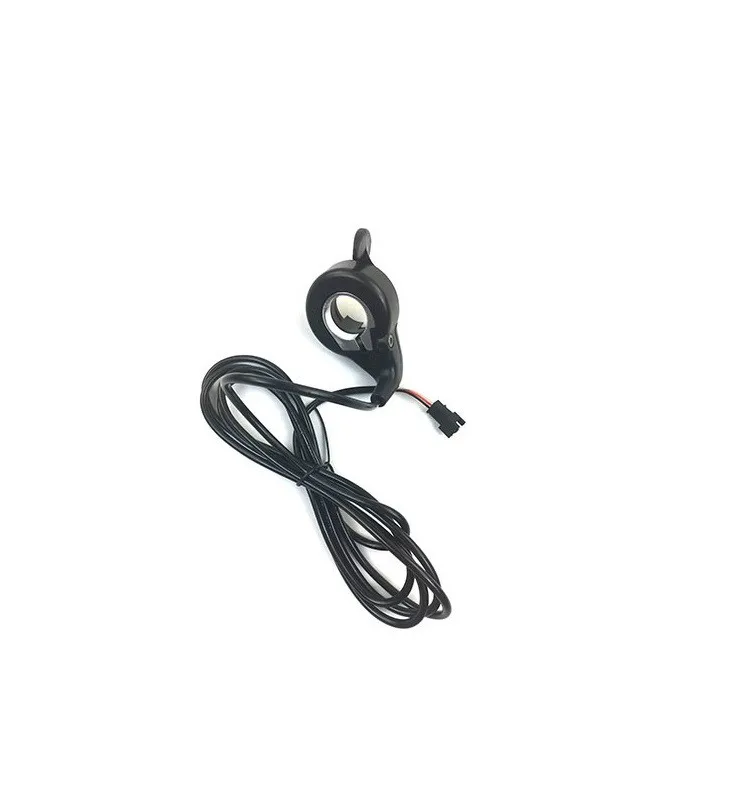

throttle :

Thumb throttle(Twist throttle for option)

​ Function :

1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display

2. Single Max speed(MXS)+single Average Speed(AVS)

3. Single trip distance(DST)+Total Trip distance(ODO)

4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing

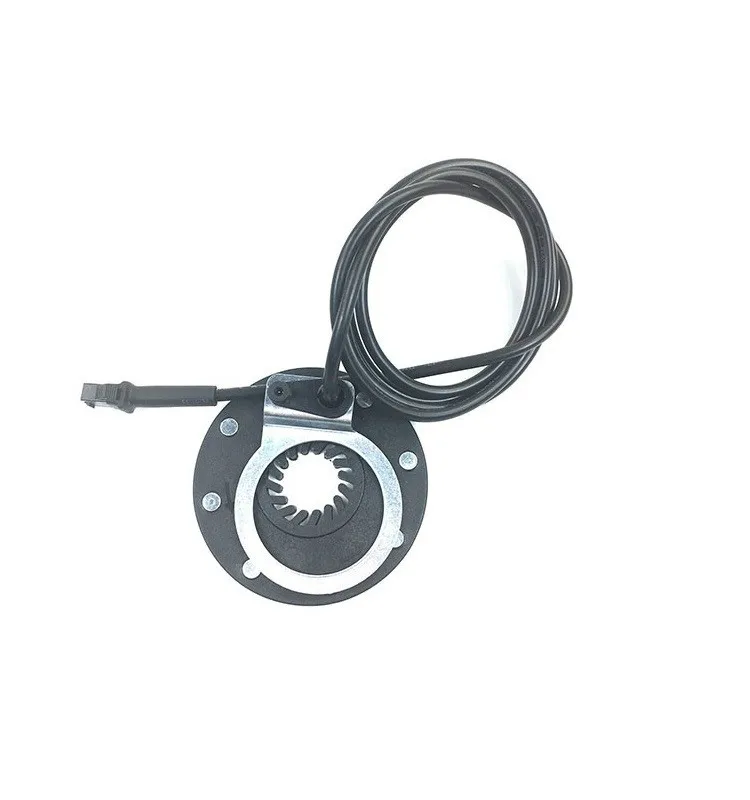

5. torque sensor imulation speed sensor 0-5 level+ battery capcity showing

6. Controller can be reprogrammed by Parameter setting.

7. Data clear+parameter copy+Fault code Disply.

8.Motor working power(W) showing. And motor working Temperature showing.

9.LCD Alarm for motor over heat.

10.ABS Brake,Cruise Function , E-brakeing Function , Regenerative Brake Function

11. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible
