TV box DVB T2 Digital Terrestrial Receiver DVB-T2 MPEG-2/-4 H.265 Support IPTV HDMI Set Top Box For Europe/Russian DVBK2max | Электроника

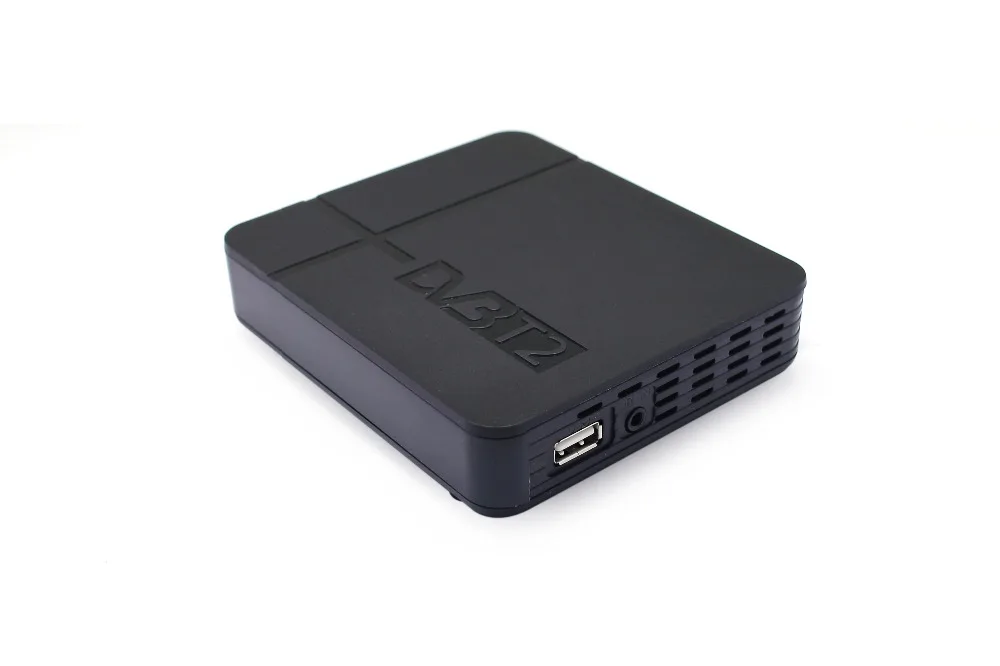

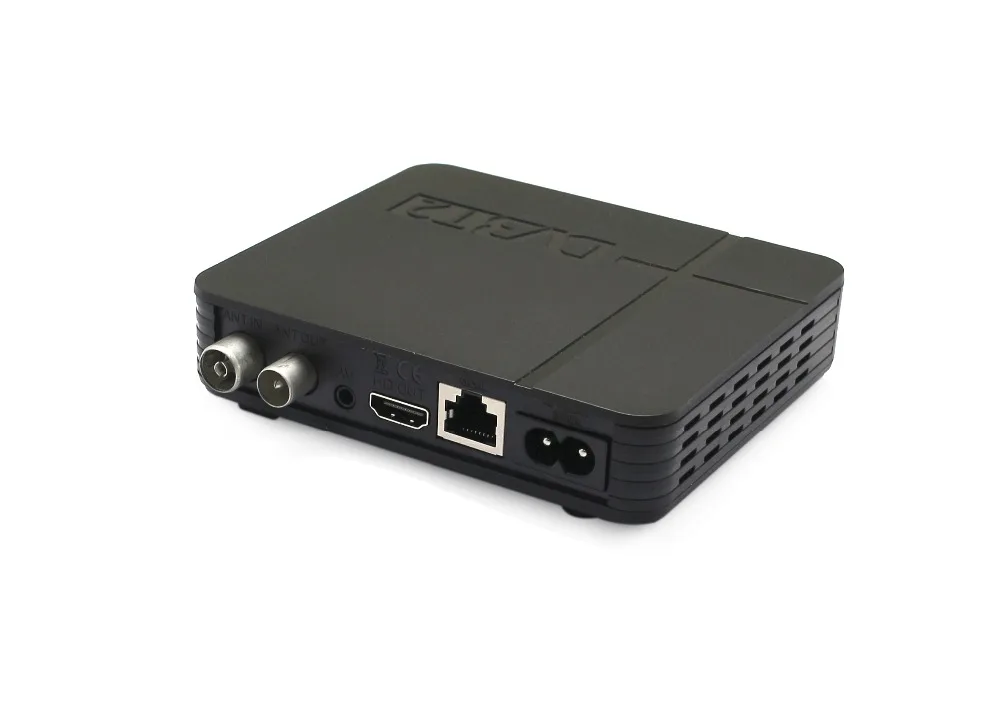

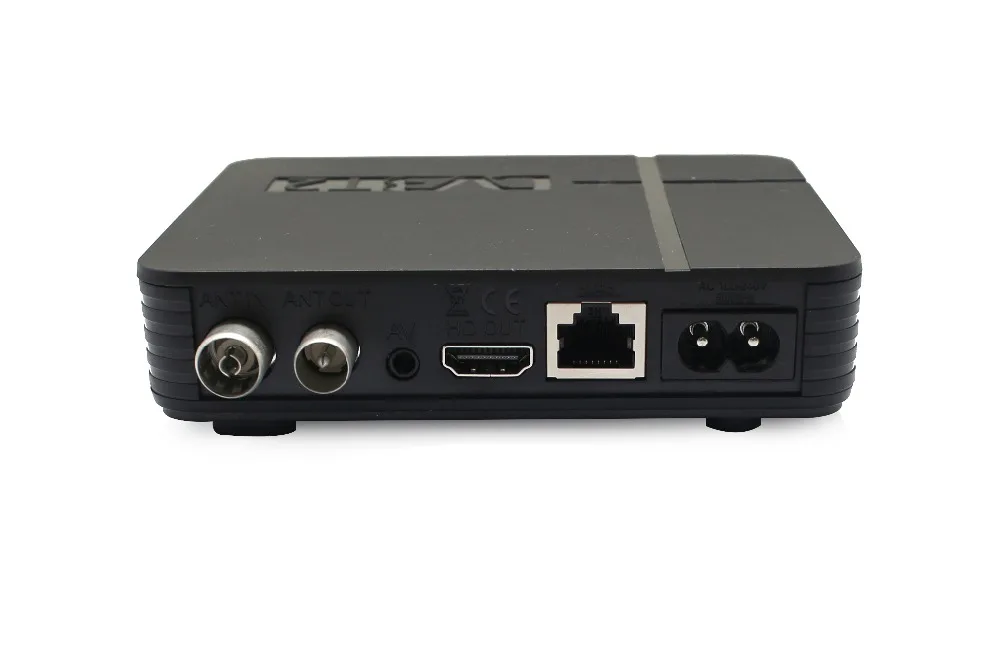

  Hardware CPU MSTAR-MSD7T10EZ (80pin) MIPS 34Kf@600MHz Memory MSD7T10EZ built-in (512M DDR2) Flash 4M Byte TUNER Rafael R836 Front Panel red LED Standby,green  LED Lock Side panel USB 2.0 Embedded One Host IR IN Rear Panel Tuner RF input connector    IEC-162-2( Female) Tuner RF Loop through connector    IEC-162-2( Male) ETHERNET (RJ45 *1) HDMI V1.4b AV interface ( one to three ) Power  AC100~240V  50Hz/60Hz ( Eight-character power socket ) Demodulation Terrisal Receiver Standard DVB-T2/T(EN_302755 V1.3.1/EN 300744) Input RF Frequency 48~866MHZ Bandwidth 6MHz,7MHz,8MHz Constellation   QPSK 16-QAM 64-QAM and 256-QAM FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 Guard Interval  1/128  1/32  1/16  19/256  1/8  19/128  1/4 FFT Mode 2K/ 8K/32K Support Support  Single and multiple PLPS Input level  -83 - -5dBm Sortware Features •Fully comply with DVB-T/T2 and H.264, MPEG-2/4  H.265/HEVC  Standard •The maximum speed of the traffic flow of at least 50 Mbit / sec  •Support 3D interface  •Sleep Timer •Support teletext/subtitle/muti-language
  •Powerful and highly effective 7-day EPG function •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P •Support Digital Dolby AC-3   Network Application online video , IPTV, Megogo

USB Wi-Fi

Ralink7601   Video Decoder MPEG-2/4 Video Decoder         H.264 Decoder              VC-1 Decoder
AVS/AVS+ Decoder
VP8 Decoder                              VP9 Decoder
HEVC (H.265) Decoder Audio Decoder Audio sampling rate conversion (SRC)  Supports digital audio decoding: − MPEG-1 (Layer I/II), MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital)Optional, AAC-LC, WMAOptional, WMA 10 ProOptional,E-AC-3 (Dolby Digital Plus)Optional. HE-AAC 5.1 multi-channel decoding Powerful Multimedia Features
  MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc Audio Codec  WMA,MP3,AAC (.wma,.mp3,m4a) Video Decoder JPEG, BMP, PNG   License Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx,DRA  License.

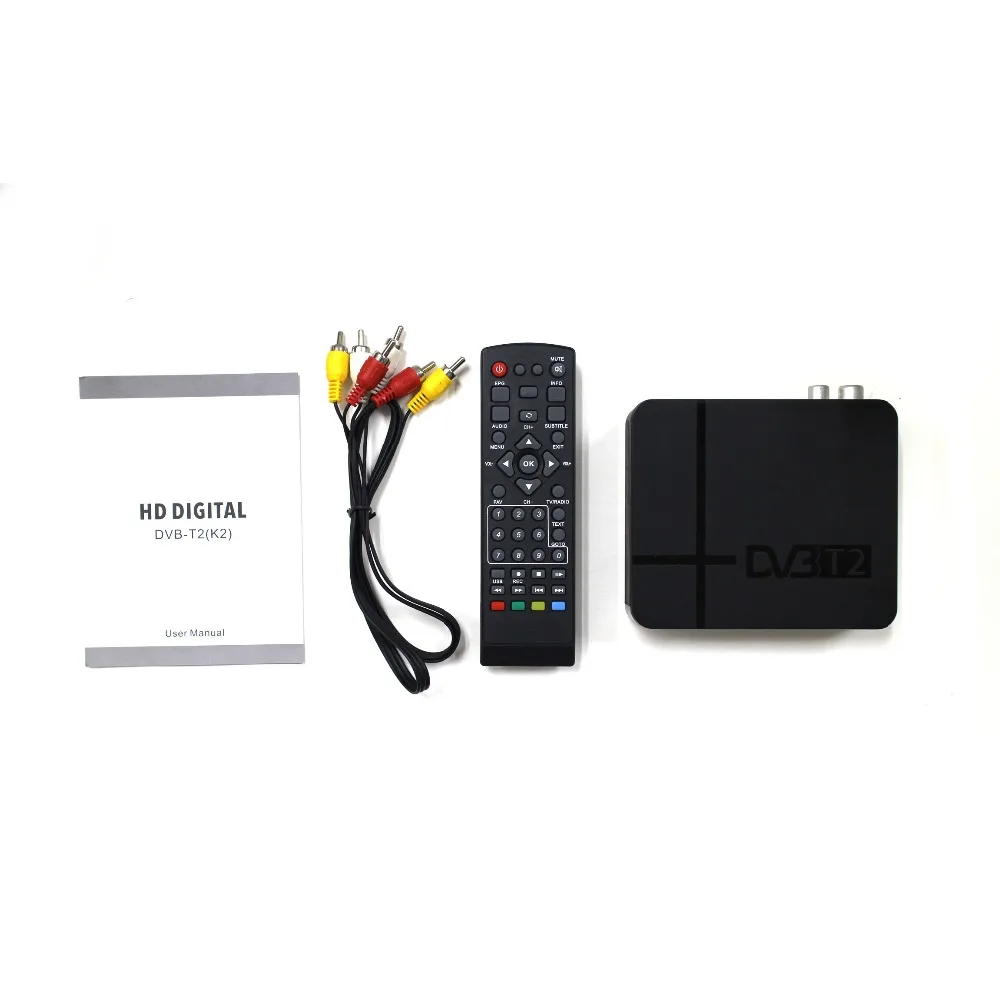

Accessories

    AV cable *1 Power cord *1 IR remote control *1

User Manual *1





payment


-You can pay using Western Union, Moneybookers, Visa, MasterCard credit cards,bank transfer.
-(If you need to pay in another way,please contact us,we wiill offer another payment method,we also accept the payment by the email adress)
-Please make the payment within 3 days.
-If you have any problem on payment, please inform us.
Shipment



-All the orders are handled within 7 workdays after we receive payment,so please pay it ASAP, so that we could ship it out timely after you make order.
-Items will be shipped via Post Air Mail, EMS, epacket, DHL.
-All our items will be shipped to buyer\'s address which offered by buyers, please confirm your address for payment.
-Online tracking available. Tracking number and webste will be offered once items shipped.
-Please allow 20-60 working days (depends on where you are) for delivery (from the date of dispatch), because all items will be shipped from our warehouse in China via Air Mail.
-Ps: We provide combine shipping, but the shipping fee depend on the weight of items. So if you want to do combine shipping, please give us the item name you want, and we will calculate you the total price including shipping.

Customization

-Please CONTACT us for a personalized offer; or if you put a BIG order.
