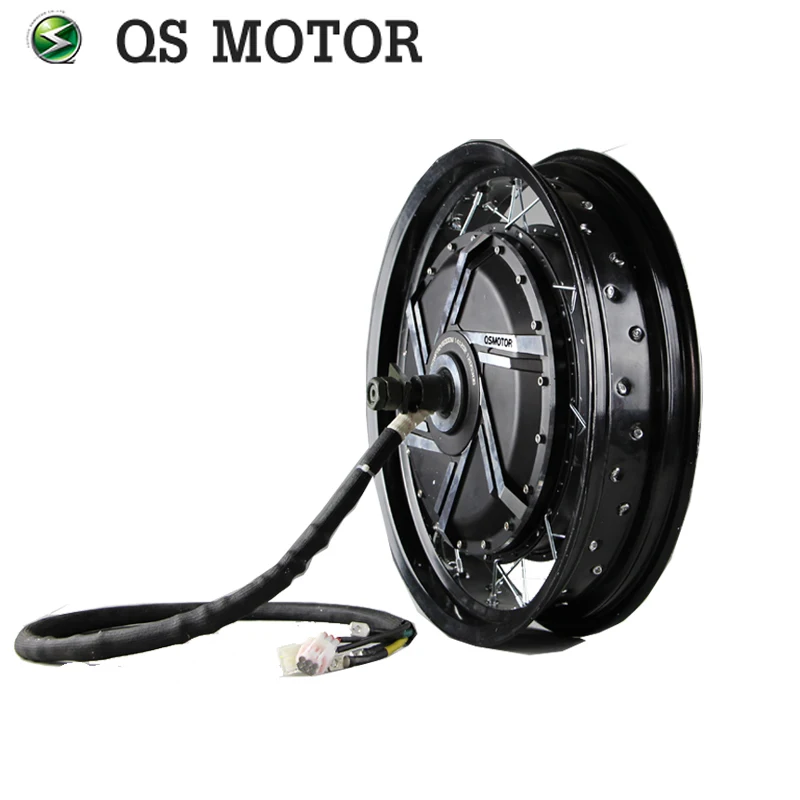

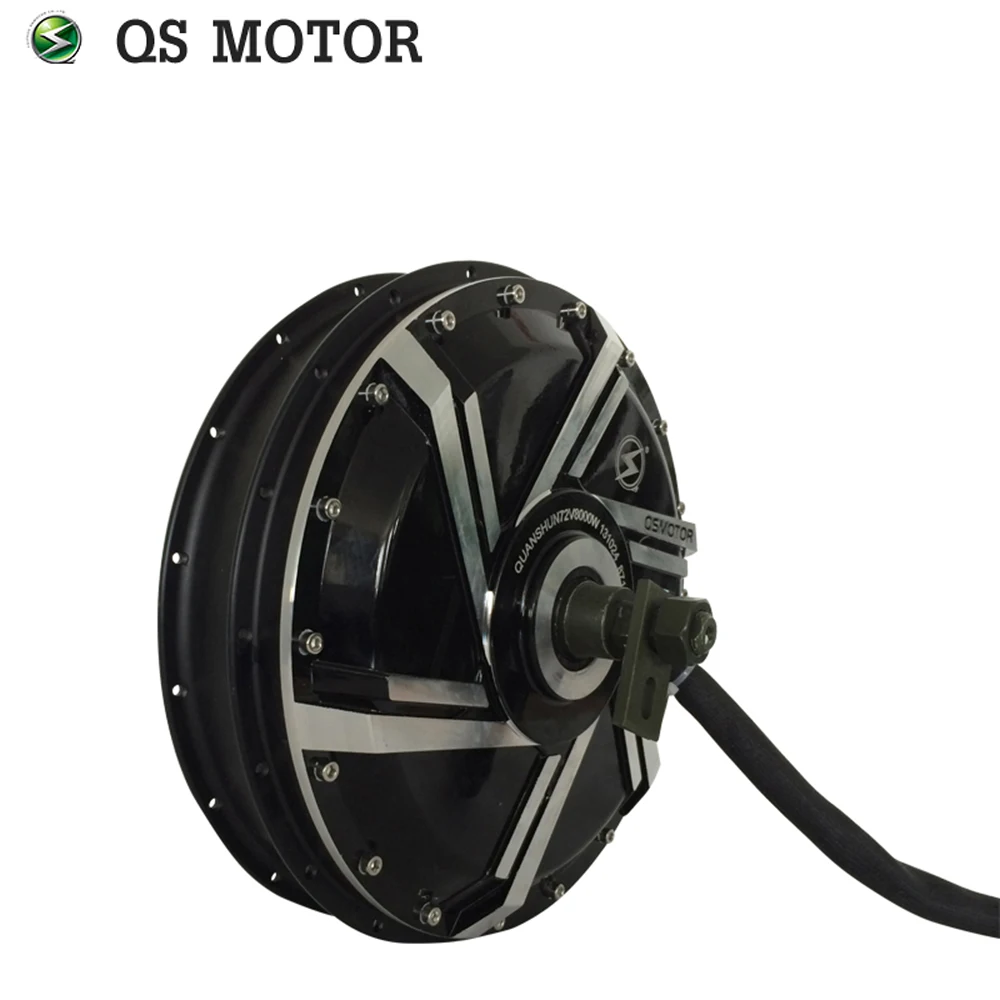

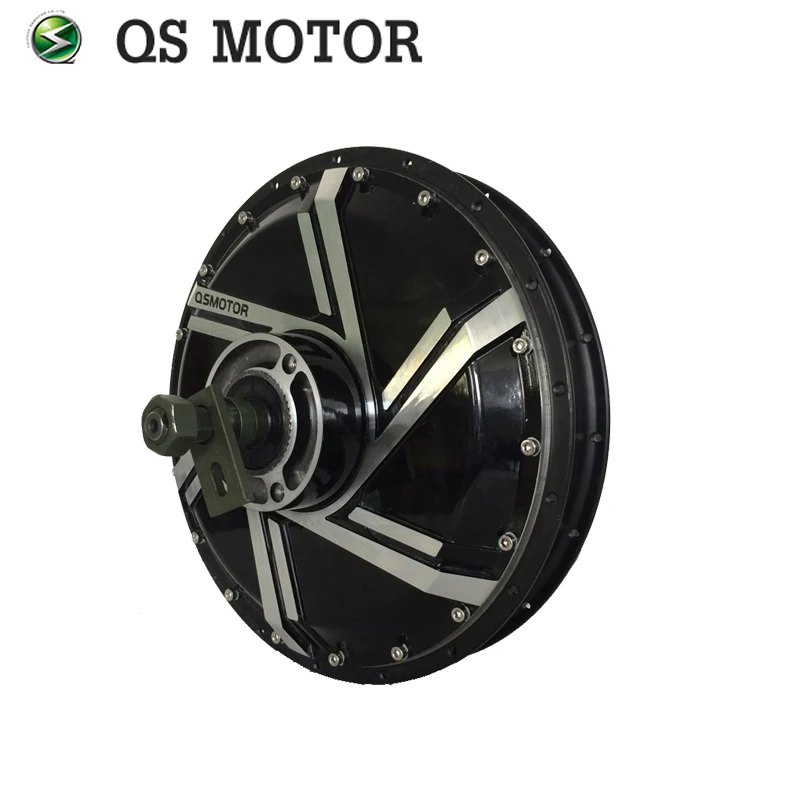

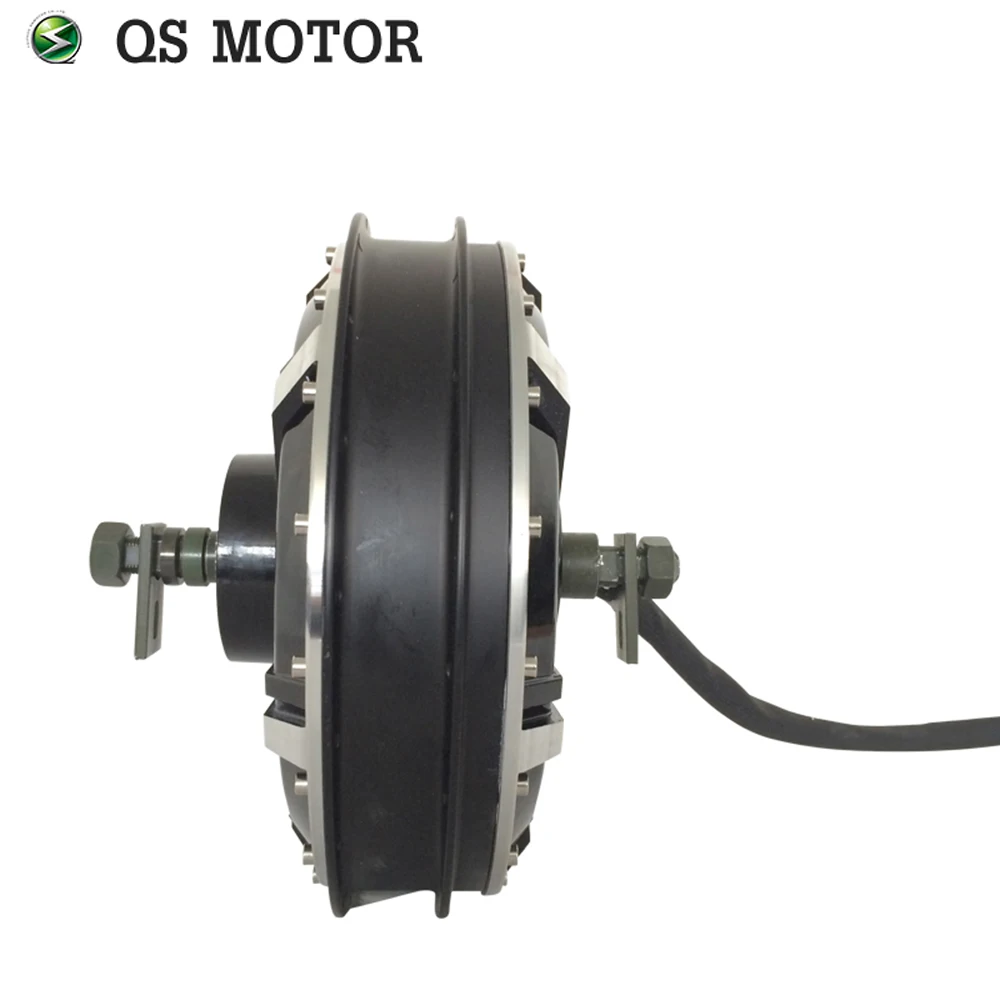

QS motor electric bicycle hub motor 6000W 273 45H V2 CE motor

For 273 spoke hub motor, the dropout is 200mm, it could be used for electric motorcycle, high power electric motorcycle.

For 200mm dropout 273 spoke hub motor, we can provide from 3000w-8000w,

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

QS MOTOR 2733000W-8000W E-Motorcycle Spoke Hub Motor List

PS.1). Above quotation base on 273 electric spoke hub motor, 48V~144V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Double axle without moped rim (integrated), 36 spoke holes, OD 4.2mm

Matching Rim Size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel

Magnet Height: 45mm, 28 pole pairs

Stator: Aluminum Core

Rated Power: 6000W

Speed: 24KPH-110KPH, it's customized, genearlly we will design as 72V95KPH.

Work Voltage range: 48V-144V, will be 72V as default.

Max Torque approx 267.0N.

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency approx 84%

Working Temperature: 70-120℃ , peak 150 ℃

Brake type: Disc brake (as default), PCD3*80mm for motorcycle

Drop-outs/Rear fork Width for installation: 200mm

Dual Halls with waterproof connectors(One for using, one for spare

12mm axle flats

16mm² Cross Section of Phase Wire(not including insulation layer)

Waterproof Grade: IP54

Color: Black (As default)

N.W/ G.W: 21.5kg/22.5kg

Dimension Drawing:

QS 273 200mm drop-outs e-motorcycle spoke hub motor

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits for 273 8kW E-Motorycle Spoke hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for E-Motorcycle hub motor
