Description

▲NTAG213, NTAG215 and NTAG216 have been developed by NXP Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. NTAG213, NTAG215 and NTAG216 (from now on, generally called NTAG21x) are designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications. ▲Target applications include Out-of-Home and print media smart advertisement, SoLoMo applications, product authentication, NFC shelf labels, mobile companion tags. ▲Target use cases include Out-of-Home smart advertisement, product authentication, mobile companion tags, Bluetooth or Wi-Fi pairing, electronic shelf labels and business cards.

Features and benefits

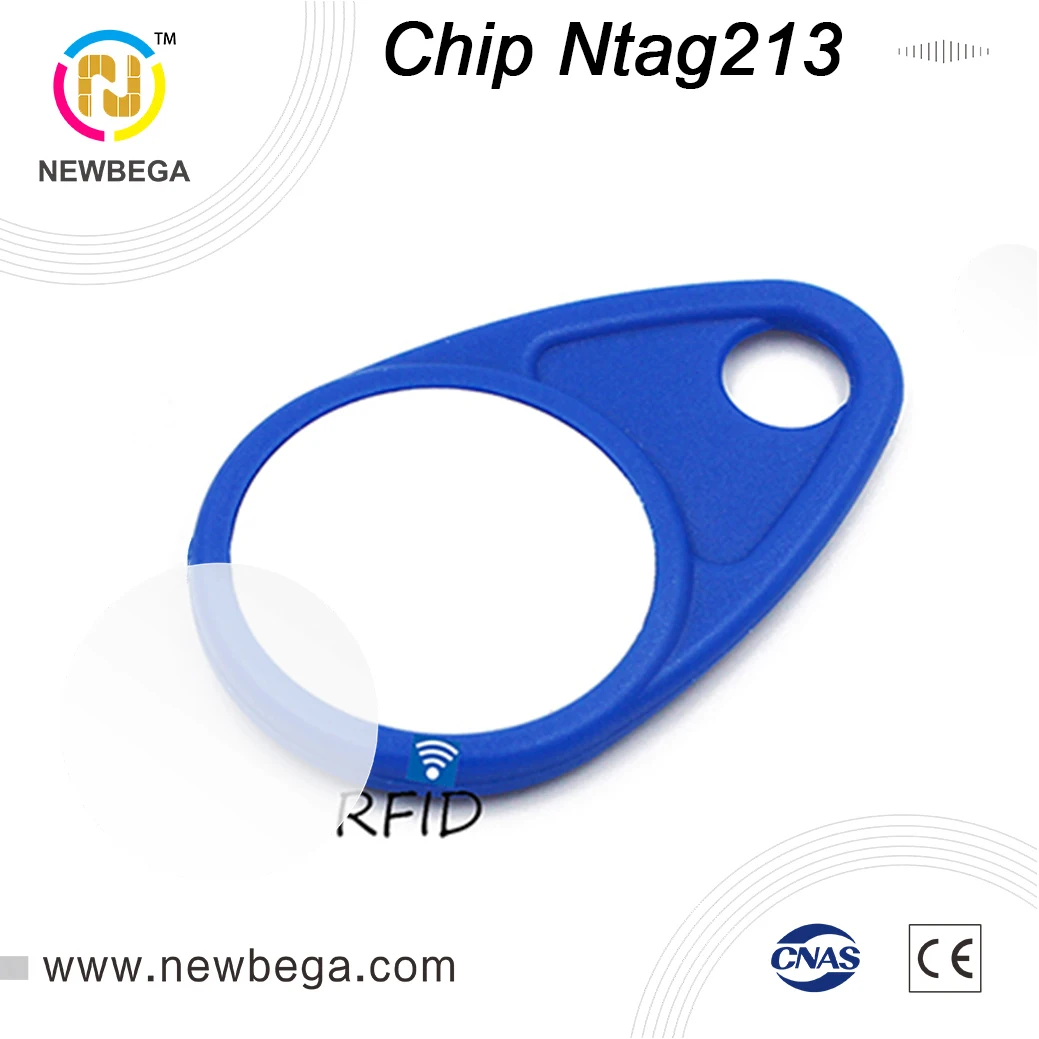

◆ Chip：NXP Ntag213 ◆ Size：55*35*6mm ◆ Memory：180 bytes ◆ Contactless transmission of data and supply energy ◆ Operating frequency of 13.56 MHz ◆ Data transfer of 106 kbit/s ◆ Data integrity of 16-bit CRC, parity, bit coding, bit counting ◆ Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry) ◆ 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3) ◆ UID ASCII mirror for automatic serialization of NDEF messages ◆ Automatic NFC counter triggered at read command ◆ NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message ◆ ECC based originality signature ◆ Fast read command ◆ True anticollision ◆ 50 pF input capacitance EEPROM ◆ 180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page ◆ 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages) ◆ 4 bytes initialized capability container with one time programmable access bits ◆ Field programmable read-only locking function per page for the first 16 pages ◆ Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216 ◆ Configurable password protection with optional limit of unsuccessful attempts ◆ Anti-tearing support for capability container (CC) and lock bits ◆ ECC supported originality check ◆ Data retention time of 10 years ◆ Write endurance 100.000 cycles

Applications

▶ Smart advertisement ▶ Goods and device authentication ▶ Call request ▶ SMS ▶ Call to action ▶ Voucher and coupons ▶ Bluetooth or Wi-Fi pairing ▶ Connection handover ▶ Product authentication ▶ Mobile companion tags ▶ Electronic shelf labels ▶ Business cards

Random color
