Металлический водонепроницаемый кнопочный выключатель 19 мм светодиодный

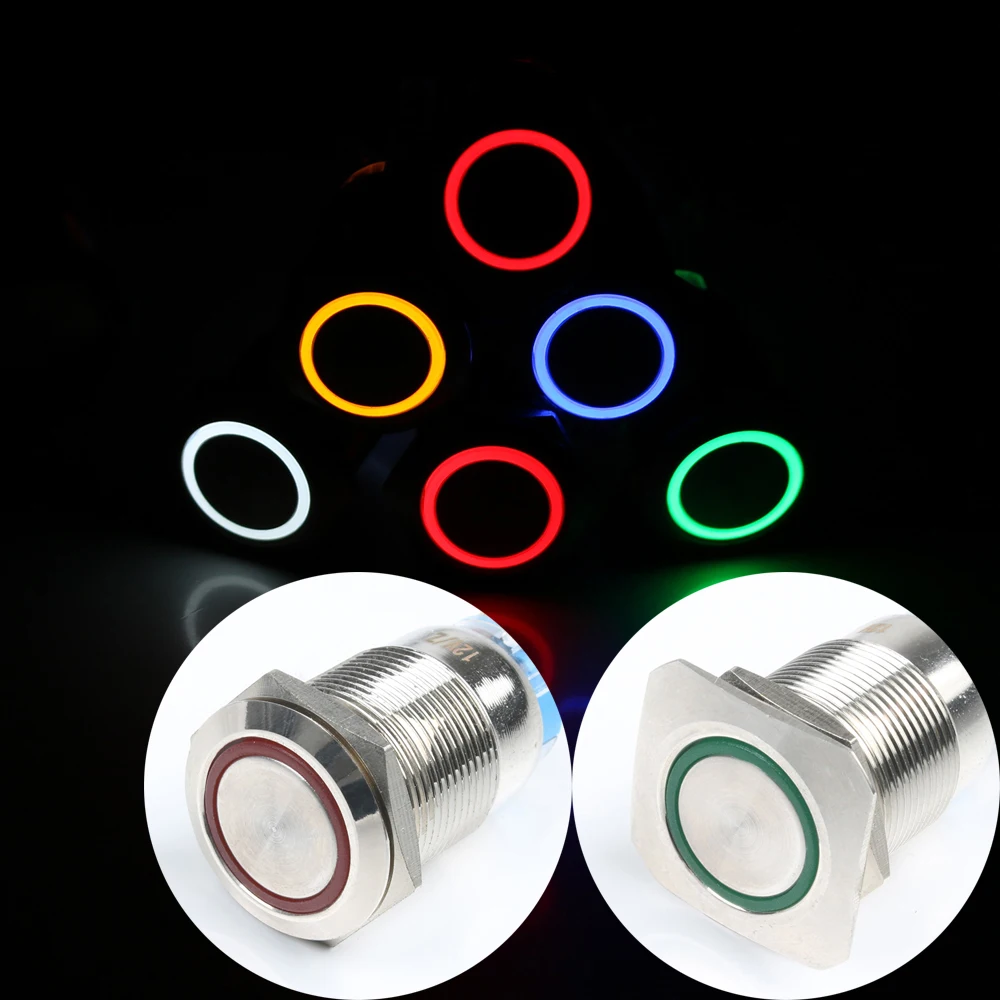

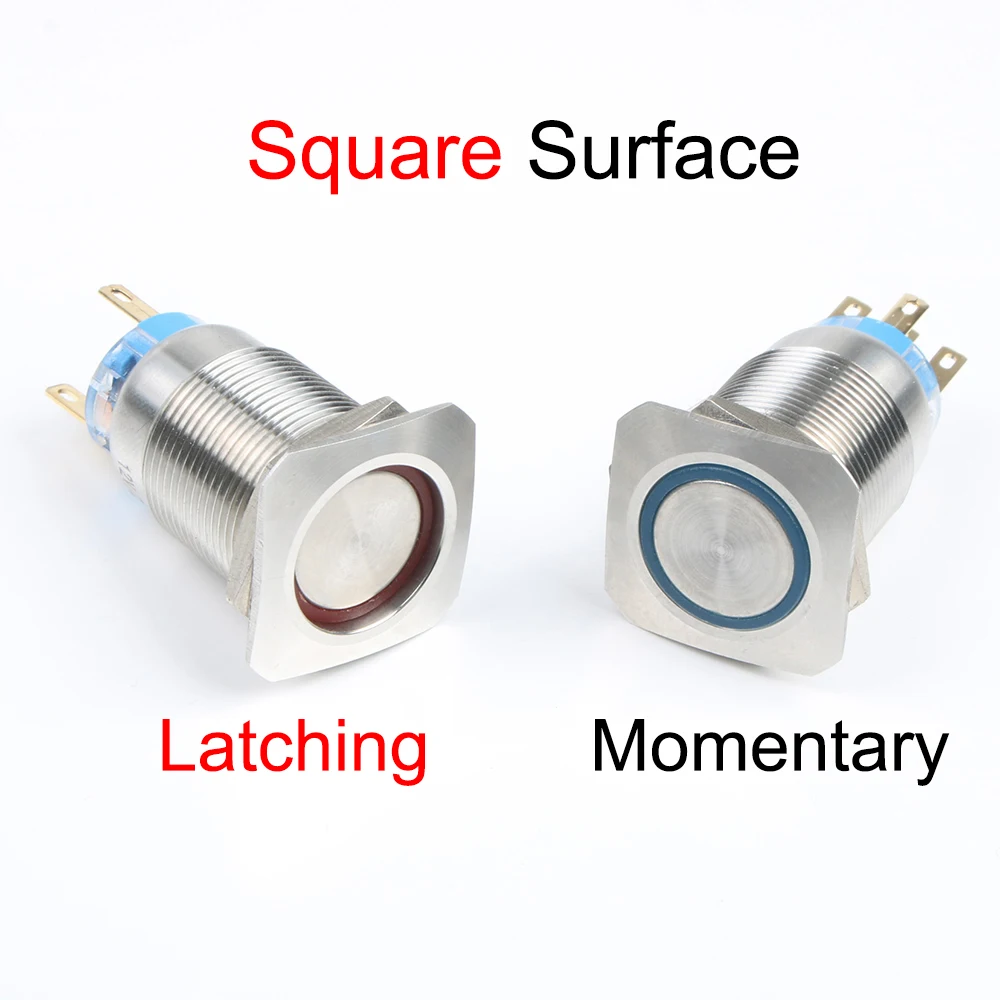

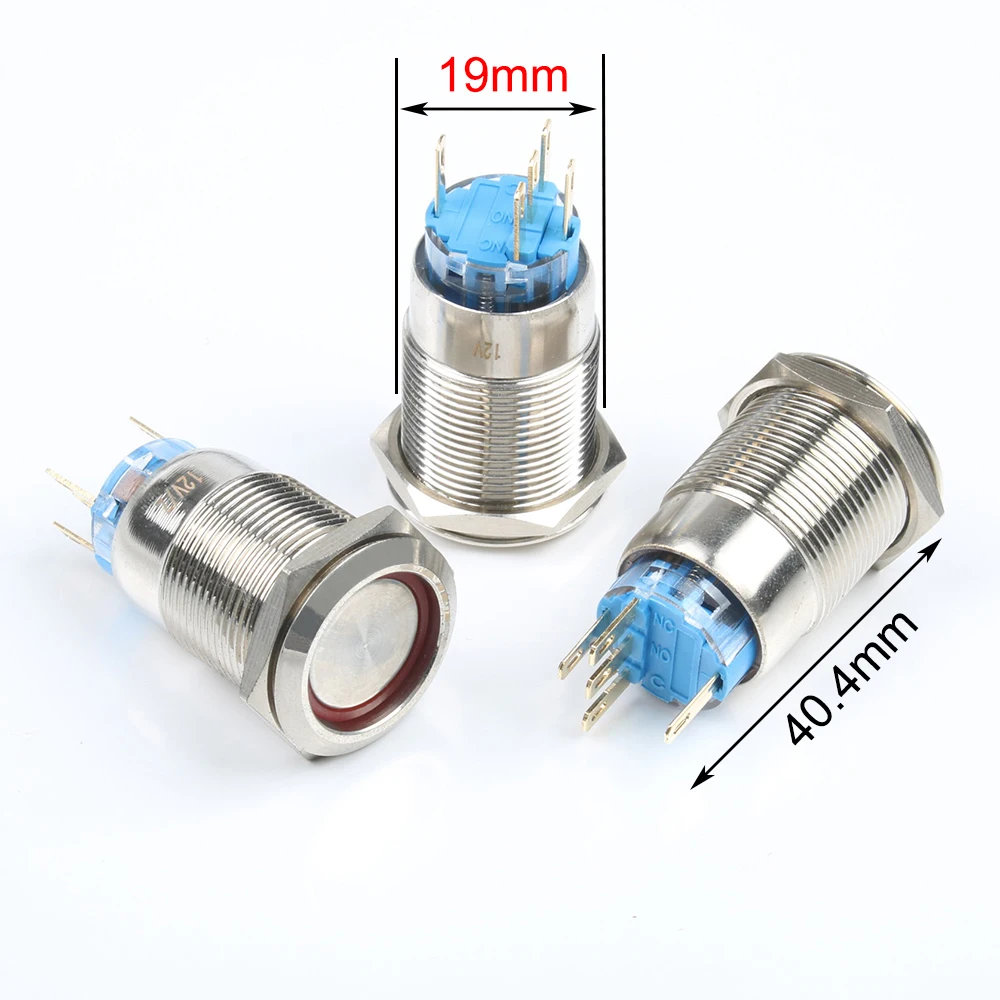

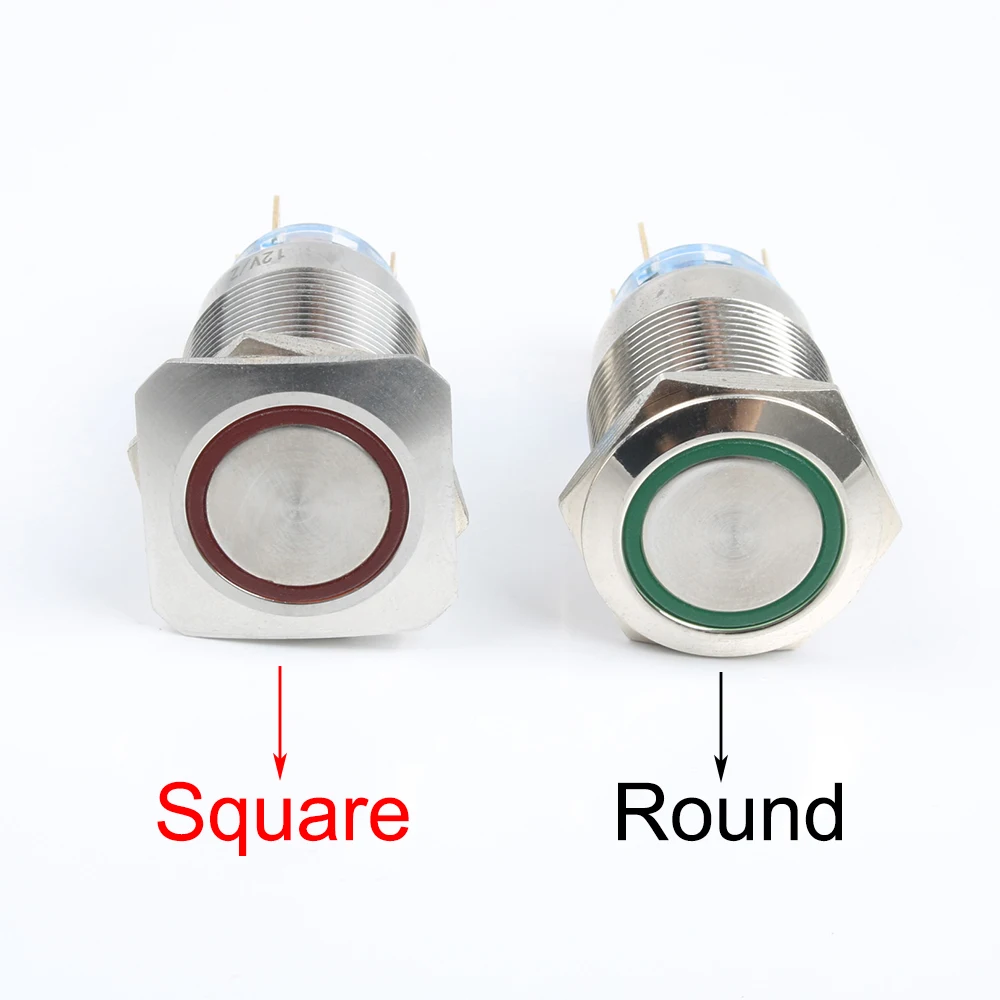

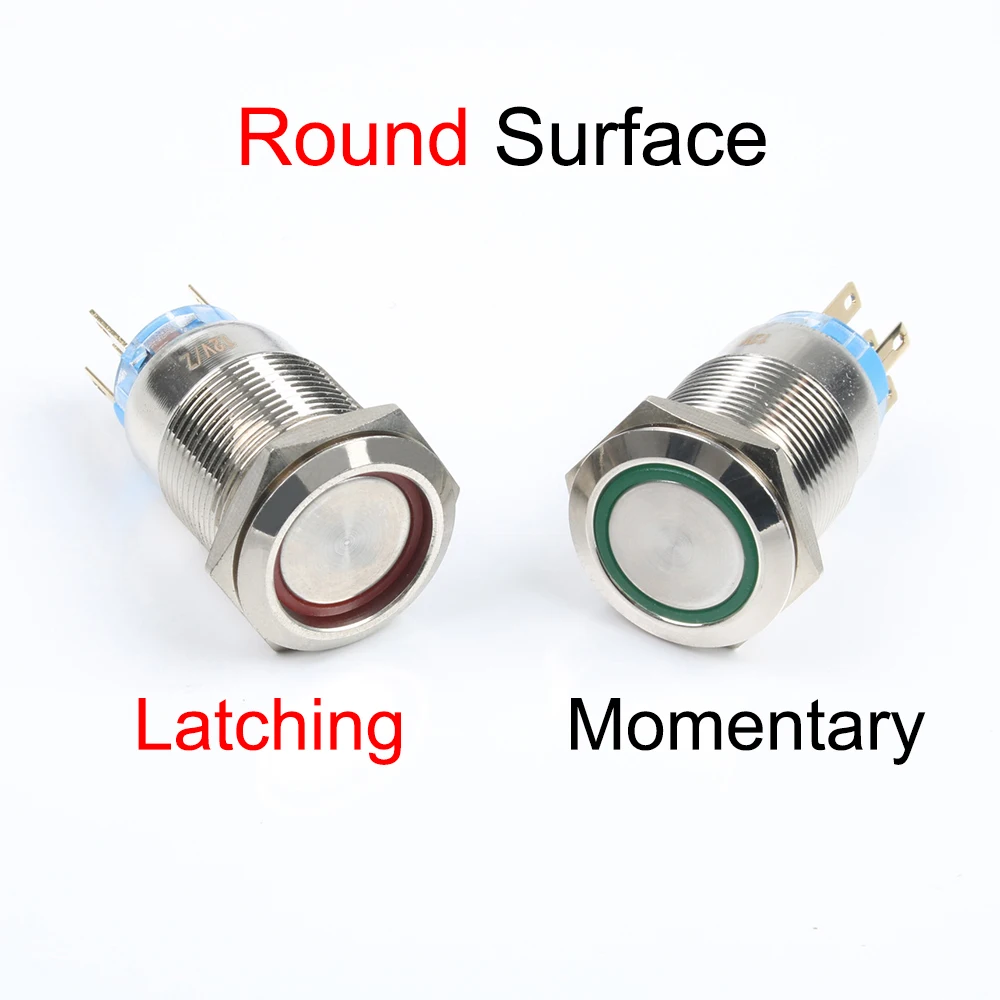

Model Description  Model NO.              button switch  Mounting diameter       19MM  Head shape            Flat Head  Switch Combination      1NO1NC/2NO2NC  Operation type          Momentary/ latching  Illuminating type         Annular,power symbol  Illuminating color         red,green,blue,yellow,white  Lamp voltage           2V/3V/6V/12V/24V/36V/110V/220V/250V  Shell material           Stainless steel,aluminum oxide,copper plating



The Others Parameters Project Parameter Project Parameter  Contact type  Slow moving single contact  Operation Schedule  Connected:1.8mm,Total:3.1mm  Contact Resistance  ≤50mΩ  Actuating Force  about 4N  Insulation Resistance   ≥1000mΩ  Mounting panel  thickness  ≤11mm. customised the others  Dielectric Strength  1000VAC min  Nut torque  5~14N.m  Ambient Temperature  -30°~+80°  Outshell/Press Key   Stainless Steel/Aluminum Oxide/Copper plate / According to the request  Protection Levels  IK10  Diffuser  Environmental protection PC  Electrical Life  Rated:2A250VAC-     Nut  Nickel brass  100,000 times  Rated:5A250VAC-50,000 times  Base Seat  PA66    Rated:8A250VAC-20,000 times  Bottom Seat  Reated:10A250VAC-20,000 times  Insert seat  Mechanical Life   Momentary-500,000 times  Pins            H65 / H65 Silver Plated / Gold  Latching-300,000 times   Contact   Environment-friendly Silver Contact  Waterproof   IP67  Spring  Imported steel wire



Switch Rated Load  Project  Parameter  Reated Insulation Voltage  AC250V  Fusing Current  5A  Rated Voltage DC12V DC24V DC36V AC220V  Rated Current  Nonreactive Load 3 2 2 3  Inductive Load 1 0.5 0.5 0.5



Led Lamp Parameters  Project  Parameter  Led type  High Brightness LED lamp,cool  Luminous color  Red,Green,Blue,Yellow,White  Rated Voltage  AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V  Rated Current  ≤20mA  Reference Life  40,000hours

---
