S-type platinum rhodium high temperature thermocouple / WRP-100 small crucible | Инструменты

S-type platinum rhodium high temperature thermocouple / WRP-100 small crucible | Инструменты

Small platinum-iridium thermocouple industrial assembled thermocouples are used as sensors for measuring temperature, and are usually used in conjunction with display instruments, recording instruments or computers. The temperature of gases, liquids, solutions and solid surfaces in various production processes can be directly measured.

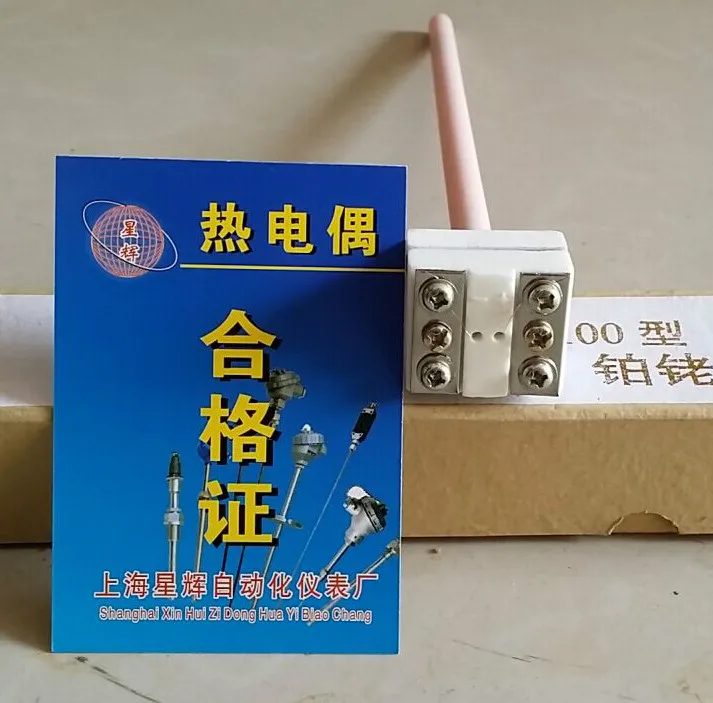

WRP-100 small platinum-rhodium thermocouple uses noble metal high-purity platinum as the negative electrode and platinum-rhodium alloy as the positive electrode. It is used in powder metallurgy, sintering bright furnace, vacuum furnace, smelting furnace and various refractory materials. The outer tube material is corundum, measuring The temperature is 0-1600 degrees.
Product Standards:
B, R, K, J, T, N according to the IEC standard graduation number and various types of assembled thermocouples in line with China's industry standards (JB/T9497-2002).

Platinum crucible is a traditional temperature measuring element with stable thermoelectric performance and strong oxidation resistance. The long-term use temperature is 1600 ° C, and the short-term use temperature is 1800 ° C. According to the size of the wire diameter, the index number is generally divided into: S, R, B). The default S type!
