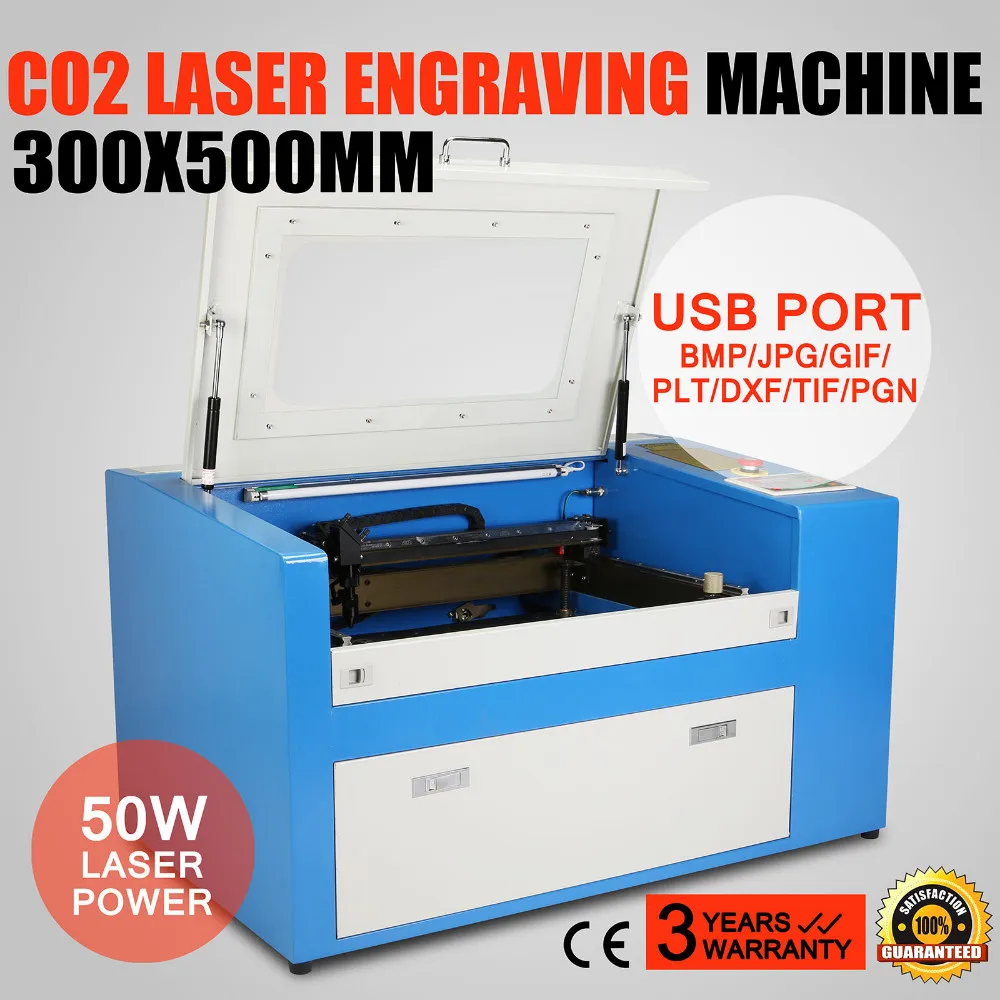

VEVOR 5030 60W Laser Cutting and Engraving Machine Wood CO2 | Инструменты

Product Application

   New Laser Engraving and Cutting Machine.The machine is equipped with a precision 50W water cooled CO2 laser that will engrave almost anything on almost any surface.The machine can also be used for cutting many different materials.With the Cylinder Rotary Attachment,you can engrave any cylindrical object,such as cup,brush pot,musical instrument and so on

Applicable Industry:

This machine is suitable to:woodworking,textile cutting,industrial prototyping,industrial marking,signmaking, medical part marking,aerospace,architectural modeling,specialty advertising,plastics fabricating,flexo,point of purchase, rubber stamps, picture framing,gift manufacturing,bar coding,engraving,gasket cutting, puzzles,cabinetry,awards & recognition,personalized pens,door pulls,cut scroll patterns,games & toys,finger joints,inlays & overlays,fraternity paddles,music boxes,light switch plates,jewelry boxes,parts marking,router templates,desk sets,scrap booking,photo albums,jewelry,crafts,Italian charms. All laser engraving machines can not carve and cut metals.

Applicable Material:

Engrave Material: Material Engrave Cut Wood Yes Yes Jade Yes Acrylic Yes Yes Delrin Yes Yes Cloth Yes Yes Leather Yes Yes Marble Yes Matte Board Yes Yes Melamine Yes Yes Paper Yes Yes Mylar Yes Yes Press Board Yes Yes Rubber Yes Yes Wood Veneer Yes Yes Fiberglass Yes Yes Tile Yes Plastic Yes Yes Cork Yes Yes Corian Yes Yes Stainless Steel * * Brass * * means you have to use a spray called "thermark" to spray the surface of the material and then you can mark on it.
Why our product better than other similar product?

FDA Compliant, CE Certification, ISO9001 Quality Certification.
USB Interface, U-Flash Disk Supported, Machine will read files from memory stick,you can work even without a PC.
Smooth and Precise Engraving and Cutting.
Manual up/down table.
Red Dot Pointer.Provides a visible means of determing engraving location.
Raster/Vector Color Mapping.Change your engraving speeds and power by using color settings.
Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
Adjustable Speed and Power. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
Exhaust Fan system included.
Reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
Cylinder Rotary Attachment, Engrave any cylindrical object.Process the cylinder object such as cup, brush pot, musical instrument and so on.
Engrave almost anything on almost any surface. aser power: 50W Cooling way: Water Cooling and protection system Laser type: Hermetic CO2 glass tube PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) Power supply: AC220±10% 50HZ/ AC110±10% 50HZ Compatible software: RDdraw (also support CorelDraw & AutoCAD but Not Included in this item.) Working area: 300mm X 500mm Cutting thickness: 0-10mm (depends on different materials) Max moving speed: 500mm/s Color separation: Separation of cutting up to 256 colors Locating precision: <0.01mm Sloping engraving: Yes,slope can be designed discretionarily Min shaping character: Character: 2x2mm, Letter: 1x1mm Cuts off the water supply the protection: Yes Operating temperature: 5-40 Packing: Plywood case Resolution ratio: <4500dpi Parts: Cylinder Rotary Attachment Control configuration: DSP Machine Dimension: 1020×650×630 mm Data transfer interface: USB(offline) Net Weight: 65KG Worktable: DC-G350D -up&down table System environment: WINDOWS 2000/WINDOWS XP/ WIN7/VISTA Graphic Format Supported: The Files which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,

Packing Content:

Main Body × 1
Cylinder Rotary Attachment× 1
Air Pump × 1
Water Pump × 1
Exhaust Fan × 1
Smoke Pipe × 1
Laser Tube × 1
Manual/Accessory Bag × 1
Manual × 1
USB Cable × 1
CD × 1
Power Line × 1(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world.)
Wrench × 1set
Key × 1
