60V Lithium Battery Pack 60V 1500W 2000W 3000W

4000W Electric Scooter Battery 60V 40AH Electric Bicycle

Battery use samsung cell

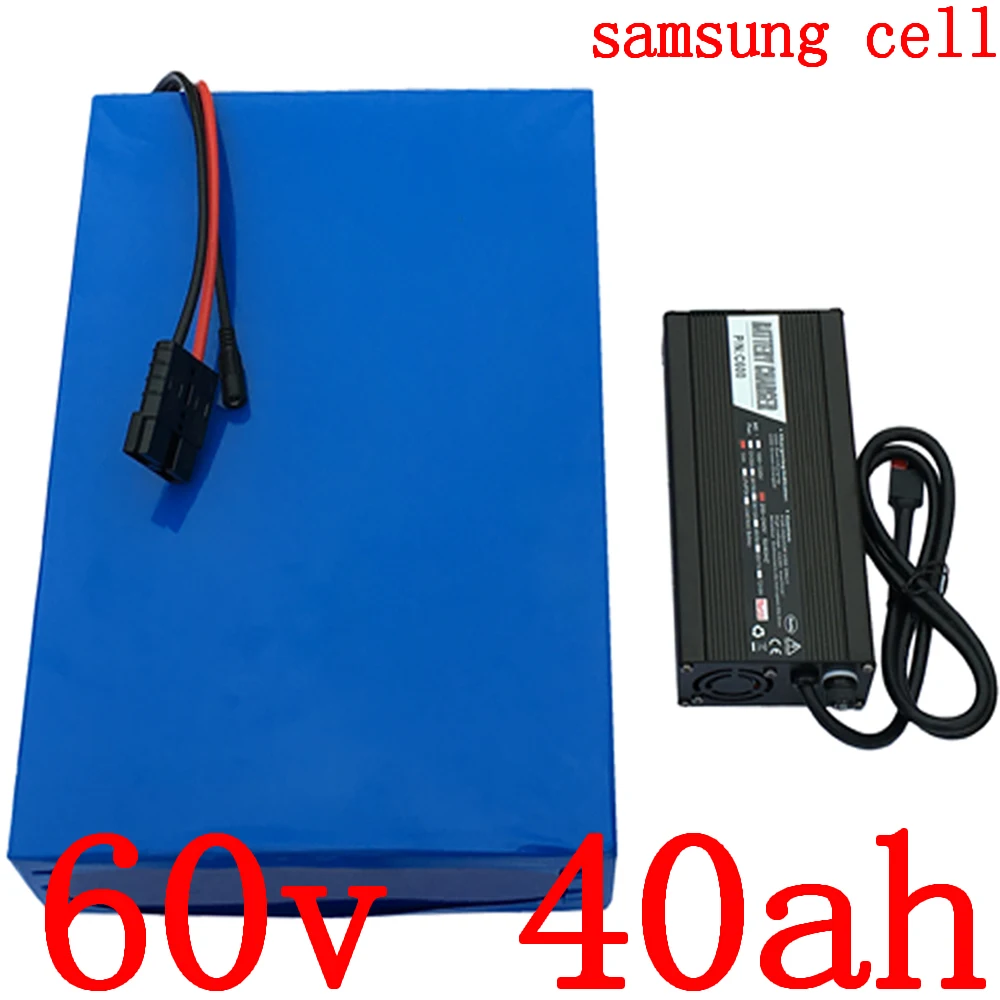

Parts included:

1. 60v 39ah use samsung cell Lithium Battery pack

2. Built-in 60A BMS board

3. 67.2v 2A or 5A  Charger (With EU/US/UK/AU Adapter you can choose)

60V 30AH size：315*200*70mm（+/-5mm）16S10P

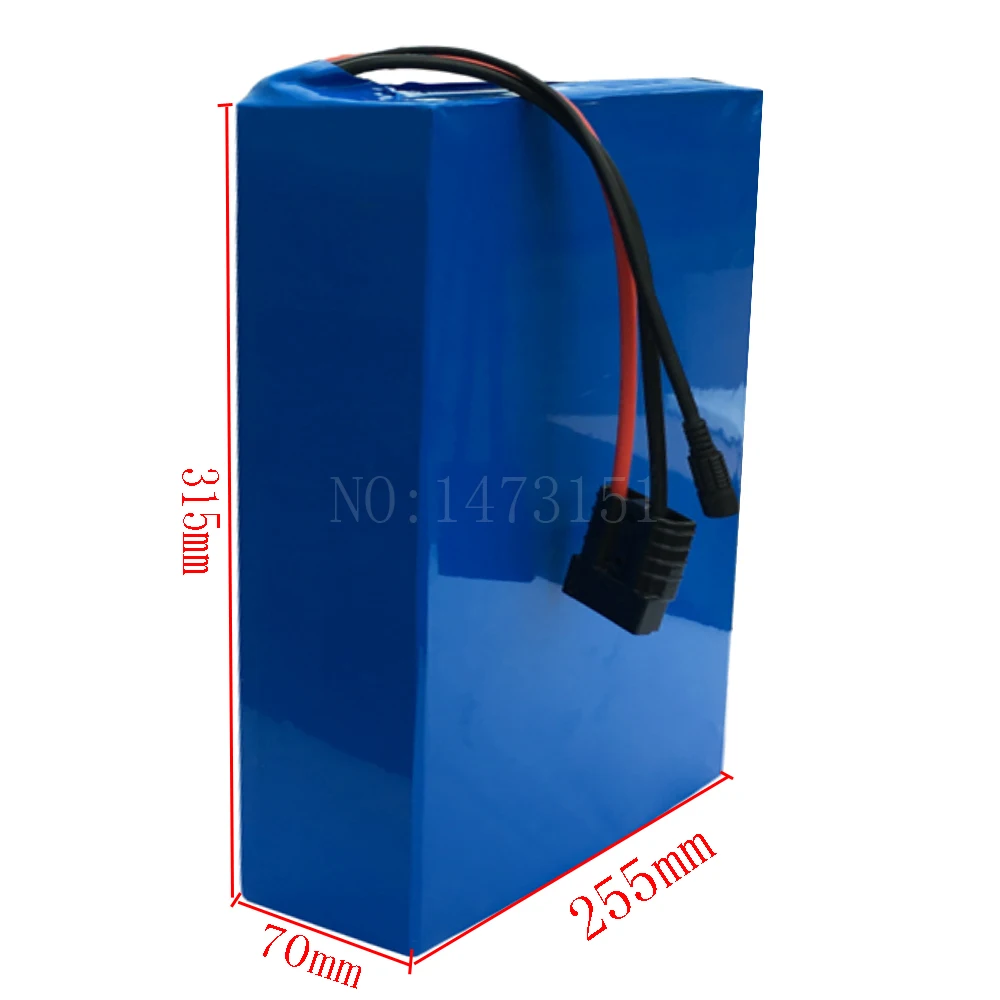

60V 40AH size：315*255*70mm（+/-5mm）16S13P

Product Specifications

Battery Model

60v 39ah

Nominal Voltage (V)

60v

Nominal Capacity (AH)

39ah

Source Resistance (mΩ)

about 40

Cell Specification

3.7V 2.9AH

Cell Combination

13-parallel16-series

Cell Size

3.7v 2900mah samsung 18650

Cell Quantity (parallel*series)

208pcs

Discharge Cutoff Voltage (V)

51+/- 1V

Charge Cutoff Voltage (V)

67.2v

Rated Discharge Current (A)

60A

instantaneous Maximum Discharge Current (A)

180A

Maximum Continuous Discharge Current (A)

60A

Maximum Continuous Charge Current (A)

10A

Charge Mode

CC-CV

Standard Charge Current (A)

5A

Charge Time under Standard Charge Current

20hours

Fast Charge Current (A)

10A

Charge Time under Fast Charge Current

8hours

Charge Temperature Range

-20-55°C

Cell Size (L*W*T )

315*255*70mm(+/-5MM)

Battery Weight

About 9.5KG

Battery Power

1500W 2000W 2500W

3000W 3500w 4000w

Feature:

1. Cells - A grade cells to make sure batteries in high and full capacity

2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger,

anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5.  Long life cycle, No memory, environment friendly.

Lithium battery features:

1.High energy density, Fast charging

2. Light weight, small size  Pollution-free, environment friendly

3. Long cycle life; It extends its cycle life up to 600-800 cycles

4. With short-circuit production function, safe and reliable

5. Large overcharge tolerance and safe performance the batterylife is more longer

6. Simplifying battery management system (BMS such as overcharge/ discharge,over current, short circuit,

over temperature andbalancing) and Battery Charger

Precautions:

1.Do not reverse the position and negative terminals.

2.Do not connect the battery electrodes to an electrical outlet.

3.Do not discard the battery in fire or a heater.

4.Does not use or leave the battery near a heat source as fire or heater

5.Do not short circuit, over-charge or over-discharge the battery pack

6.Do not strike, trample or throw the battery.

7.Do not directly solder the battery and pierce the battery with a nailor other sharp objects

8.Do not short-circuit the battery by directly connecting the positive andnegative terminals with metal objects.

9.Do not transport or store the battery together with metal objects suchas hairpins, necklaces, etc.

10.Use the battery charger specifically for that purpose when recharging.Use a constant current, constantvoltage

(CC/CV) lithium-ion (Li+)batterycharge controller

11.Do not immerse the battery in water or seawater, and keep the batteryin a cool dry surrounding if it stands by.

12.If shelve a long time suggested that the battery need for regular recharging (even if not use),must charge and

discharge for three months one time;
