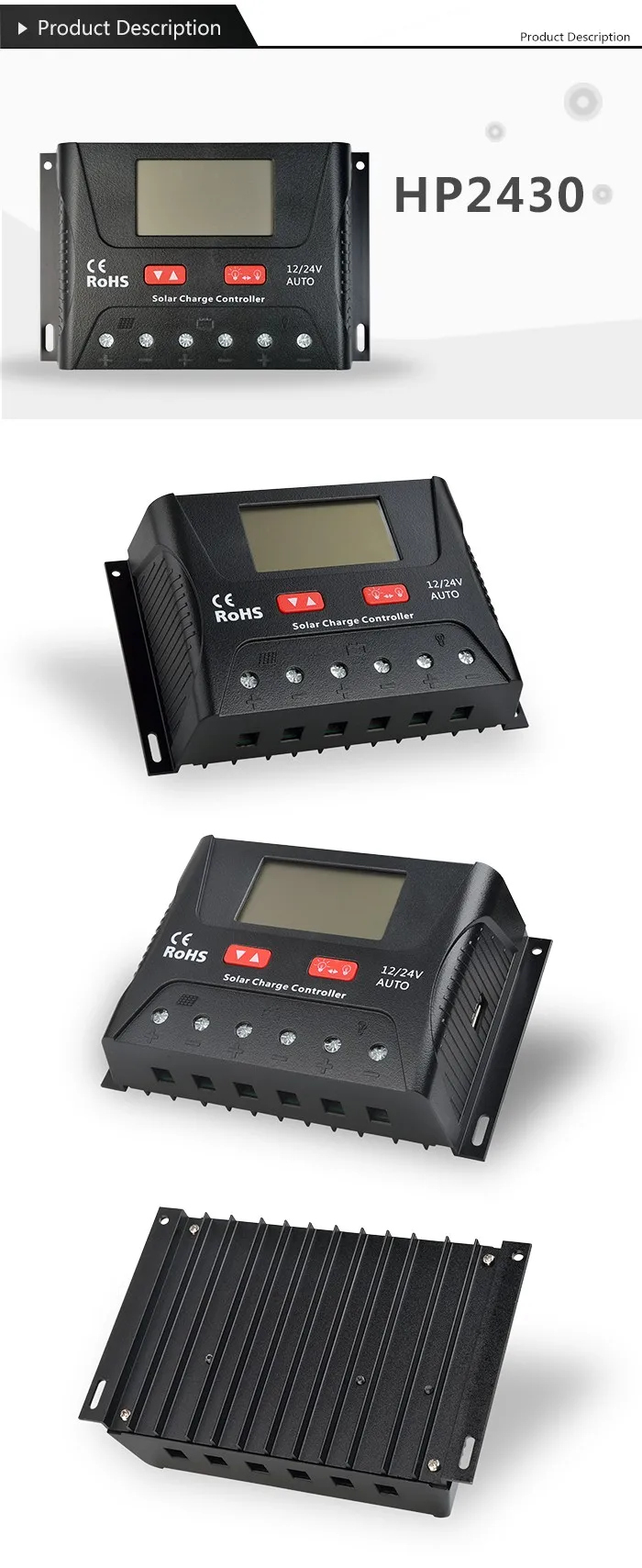

Solar Charge Controller 12V/24V 30A MPPT LCD Digital Display Output USB-5V Dual With CE ROHS

1. Except HP4840/30, 12V/24V system voltages are automatically recognized.

2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available.

3. An upgraded 3-stage PWM charging algorithm is adopted.

4. With temperature compensation employed, charging parameters can be automatically adjusted (with the exception of lithium batteries).

5. A wide range of load working modes facilitate the product's application to different types of street lights and monitoring devices.

6. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverse-connection protection.

7. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.

8. A range of parameter settings and power-down saving functions are available ,thus requiring no repeated setting.

9. The product provides a dot matrix graphic LCD screen and a human-machine interface with 2 keys.

10.The user-friendly design of browser and dynamic interfaces ensures convenient and intuitive operations.

11. (An optional communication function) provides a RJ12 data port (output of TTL232 level or Bluetooth signals), with the data adopting the standard Mudbugs’ protocol, can be used together with our upper computer Monitoring

software or mobile phone APP.

12. Boasting an industrial grade design, the product can function well in various tough conditions.

13.TVS lighting protection is adopted.

Products Specification:

​
