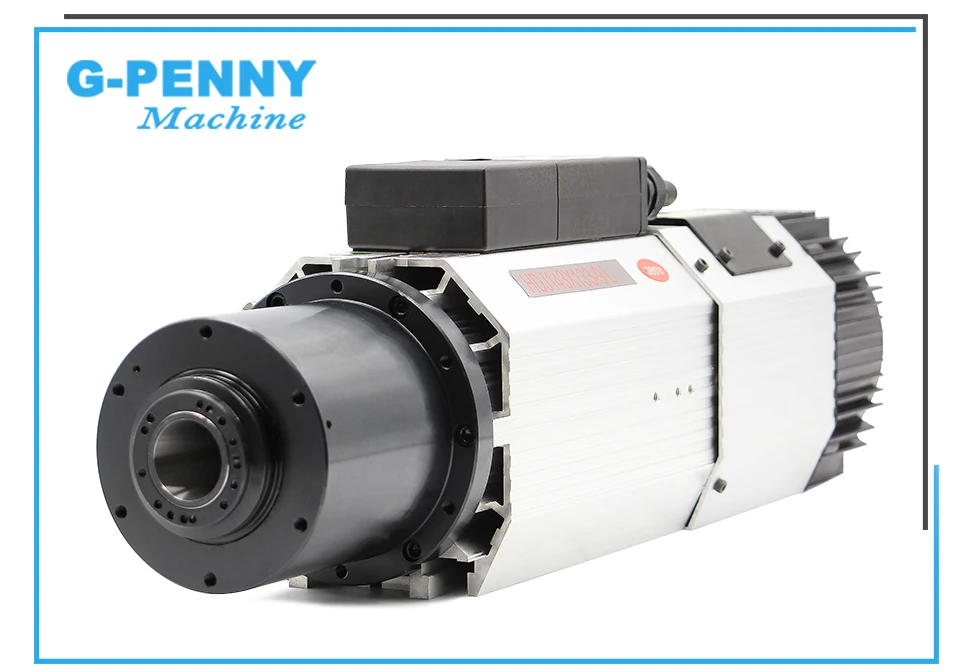

1 & 220v/380v 9.0kw Long axis air cooled spindle motor ceramic ball bearings

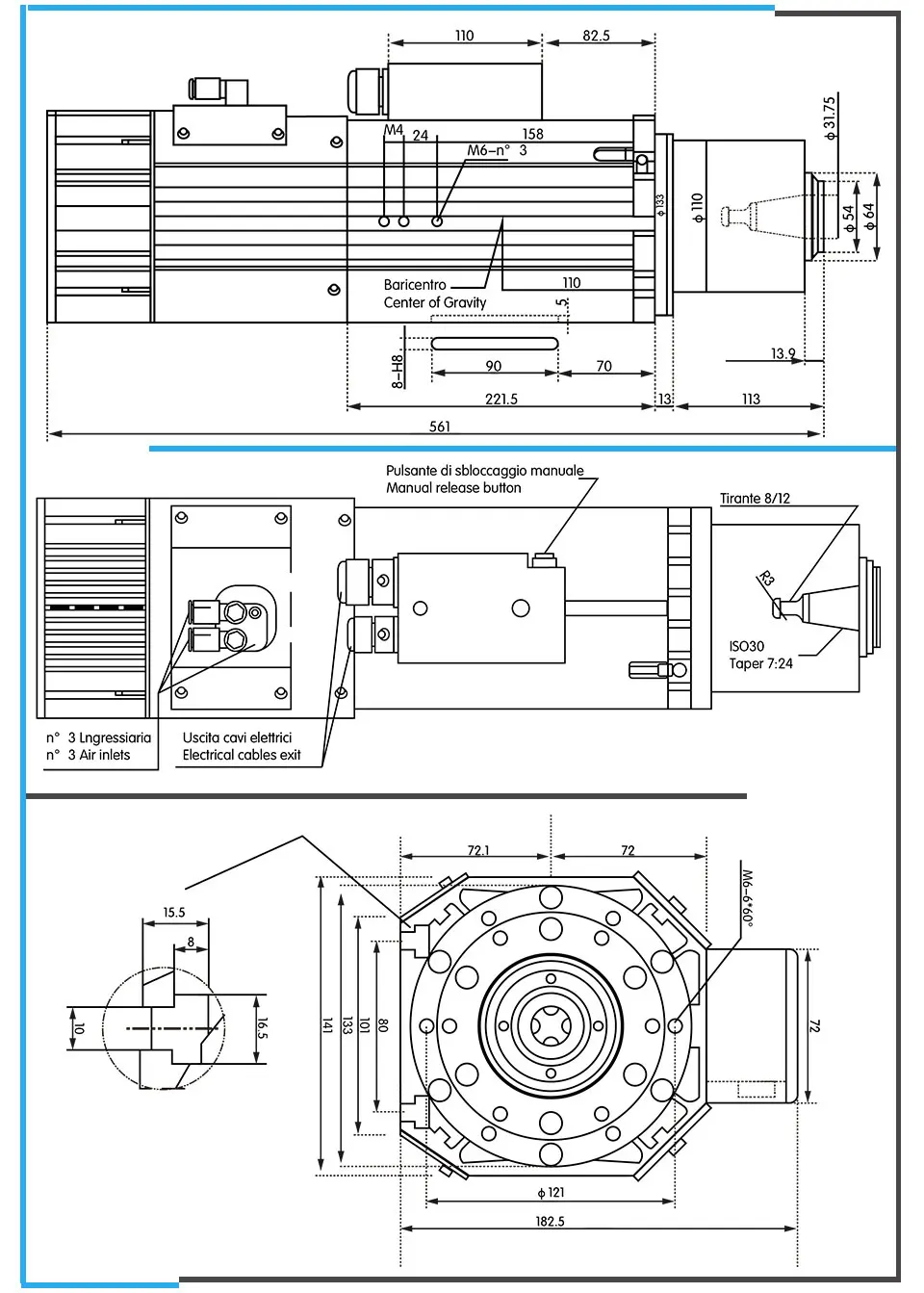

Size: 561x141x182.5mm

Power: 9.0kw

Voltage: 220v/380v

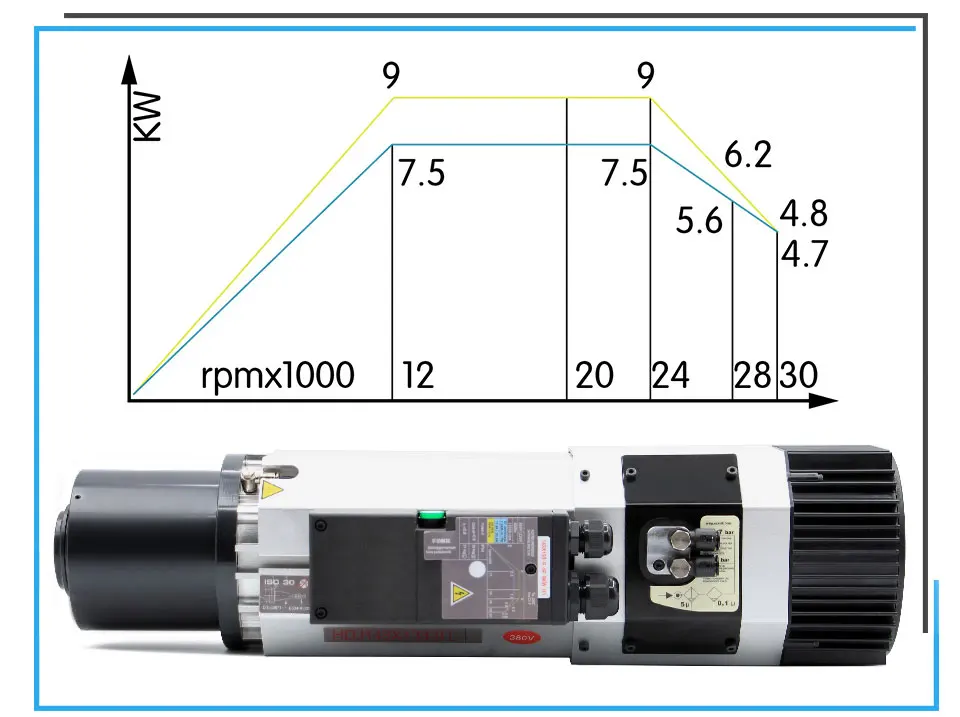

Speed: 12000-24000rpm

Frequency: 800Hz

Current: 30A/20A

Pole: 4

Bearings Type: 2x7008C DB & 2x7006C DB (4pcs ceramic ball bearings)

Cooling Way: 230vAC cooling fan

Chunk: ISO30

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.

2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .

3. Ceramic ball bearings have low friction, low noise and long service life.

4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)

Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.

Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.

AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.

When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.

Shipping Cost

Our products are sold worldwide.

If you need many items in the same time, please contact us in advance to confirm shipping cost.

Payment:

We accept paypal credit, bank transfer, western union etc.

Payment must be made within 7days calendar days of the auction end time.

Problem and Feedback:

PLEASE DON'T leave any negative feedback before you contact us.

We are honest and helpful supplier , we will try our best to solve problems with you.

Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.

Thanks very much in advance.

Refund:

If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.

If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.

Note:

We can produce the product according to our customer's design.

If you need something is very special, please contact us about it.

We are willing to help you about it.
