100% brand new and high quality

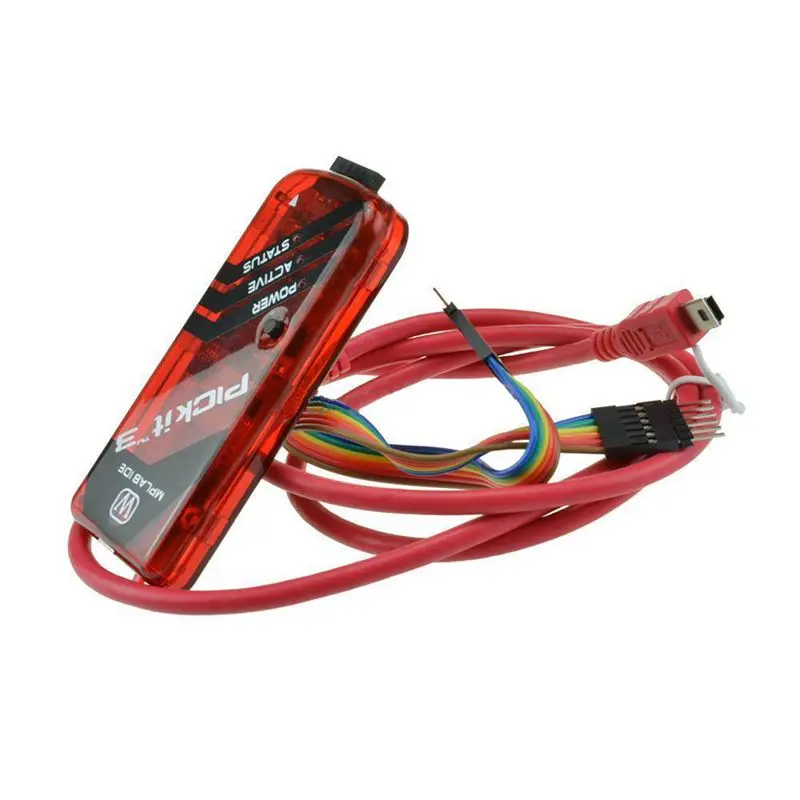

PICKIT3 Programmer Description:
USB (Full speed 12 Mbits/s interface to host PC)
Real-time execution. MPLAB IDE compatible (free copy included)
The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 2.0 volts (2.0v to 6.0v range)
Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go

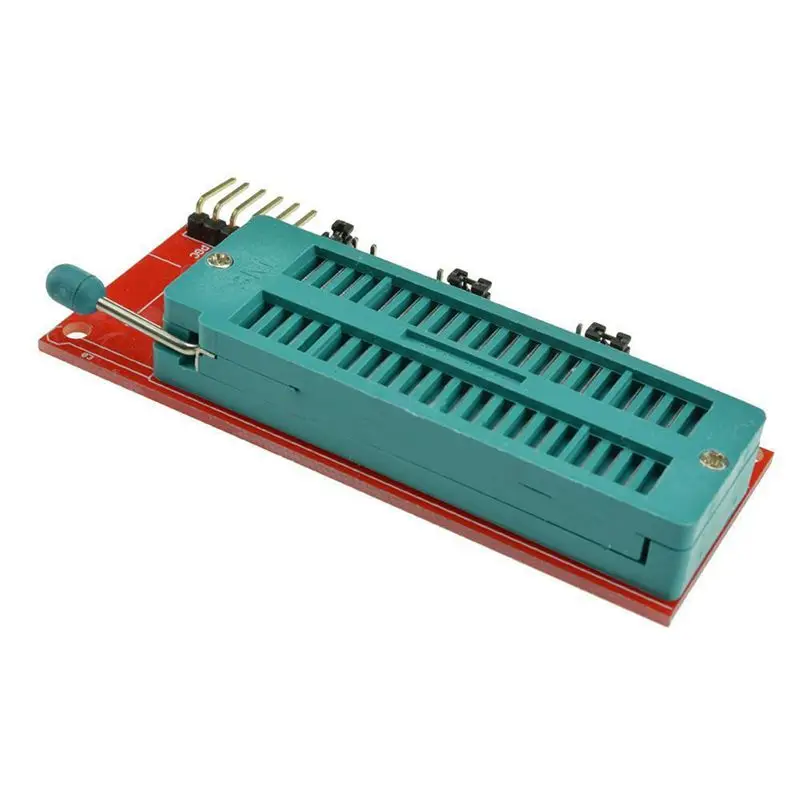

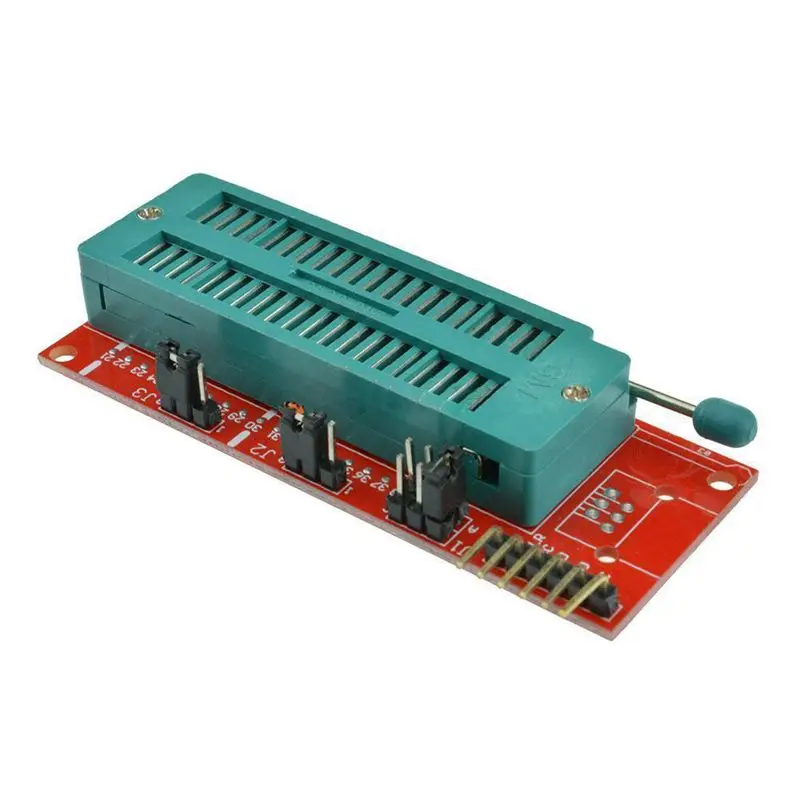

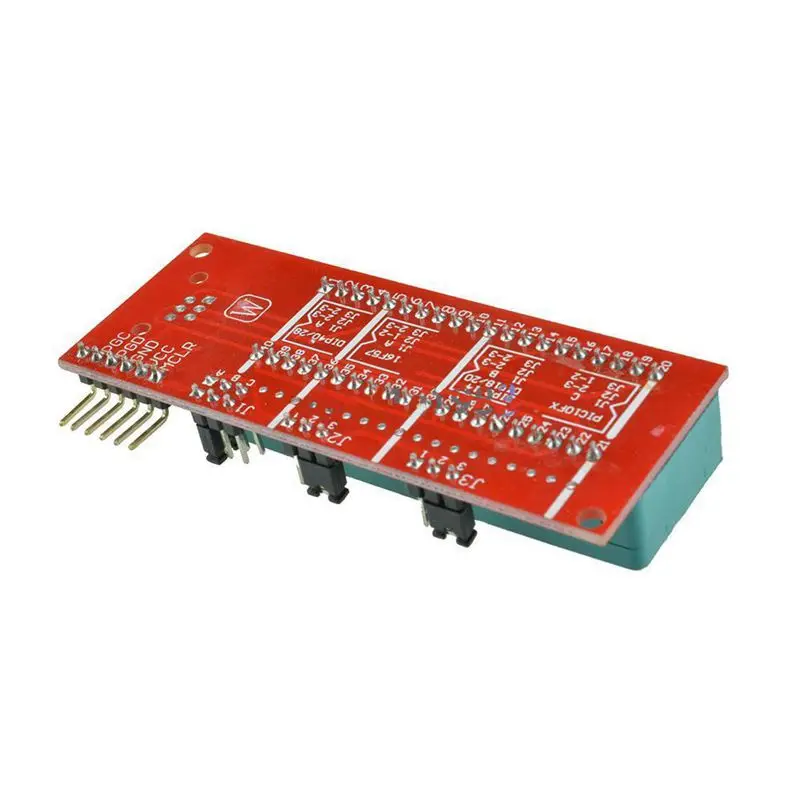

Universal Programmer Seat Description:
Instructions for use:
Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position
The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position
The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)
The seat supports the following programming microcontroller:
PIC16/18XX 40PIN Series devices (except 16F59)
PIC16/18XX 28PIN Series devices (except 16F57)
PIC16/18XX 18PIN Series devices
The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

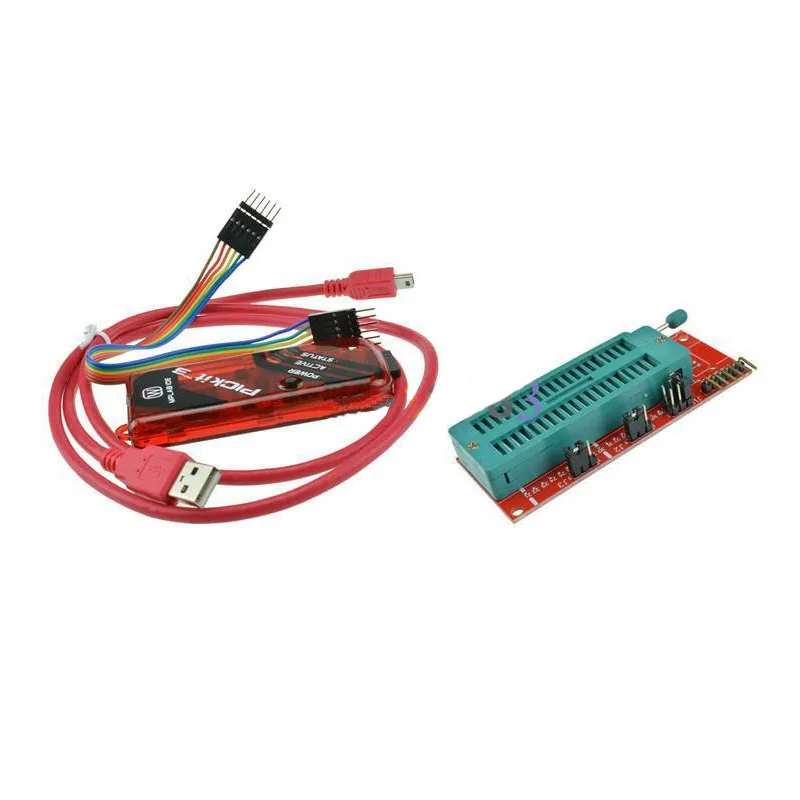

Package Included:
1 X PICKIT3 Simulator

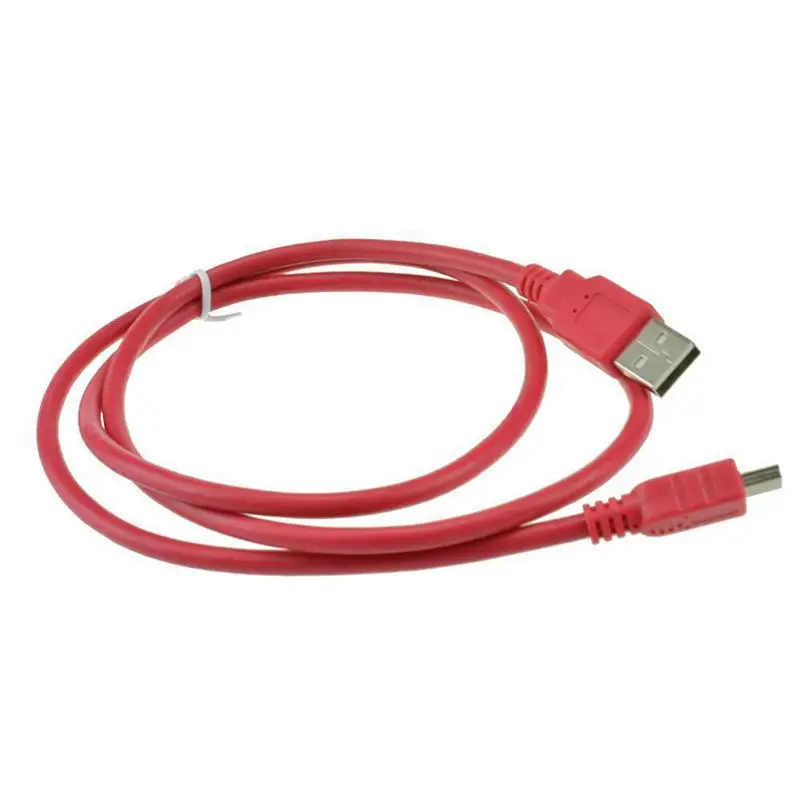

1 X USB Cable
1 X 6Pin cable
1 x Universal Programmer Seat
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
